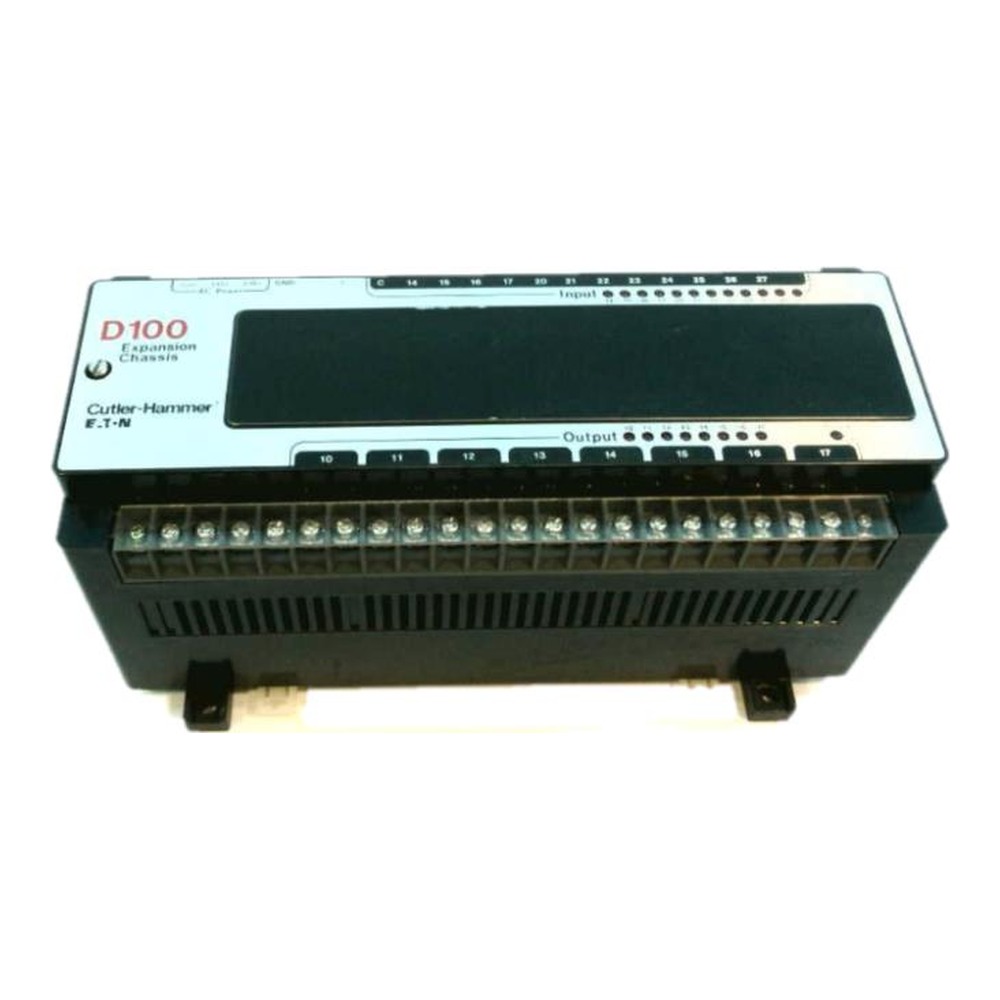

Eaton Cutler-Hammer D100ERA20 D100 Micro PLC I/O Expansion Module
Eaton Cutler-Hammer D100ERA20 is a I/O Expansion Module module from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D100ERA20 is a I/O Expansion Module module from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. It provides 20 points I/O points. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of I/O Points: 20 points
- Number of Input Points: 12 Inputs
- Number of Output Points: 8 Outputs
- Output Type: Relay Outputs
- Output Voltage AC: 230 VAC
- Output Voltage DC: 24 VDC
- Line Voltage: 115 VAC
- Power Consumption: 20 VA
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | I/O Expansion Module |
| Product Line | D100 Micro Programmable Logic Controllers |
| Series | D100 Micro PLC |
| Number of I/O Points | 20 points |
| Number of Input Points | 12 Inputs |
| Number of Output Points | 8 Outputs |
| Output Type | Relay Outputs |
| Output Voltage AC | 230 VAC |
| Output Voltage DC | 24 VDC |
| Line Voltage | 115 VAC |
| Power Consumption | 20 VA |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Mounting Type | 35 mm DIN rail |
| Part Number / Catalog No. | D100ERA20 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D100ERA20 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
