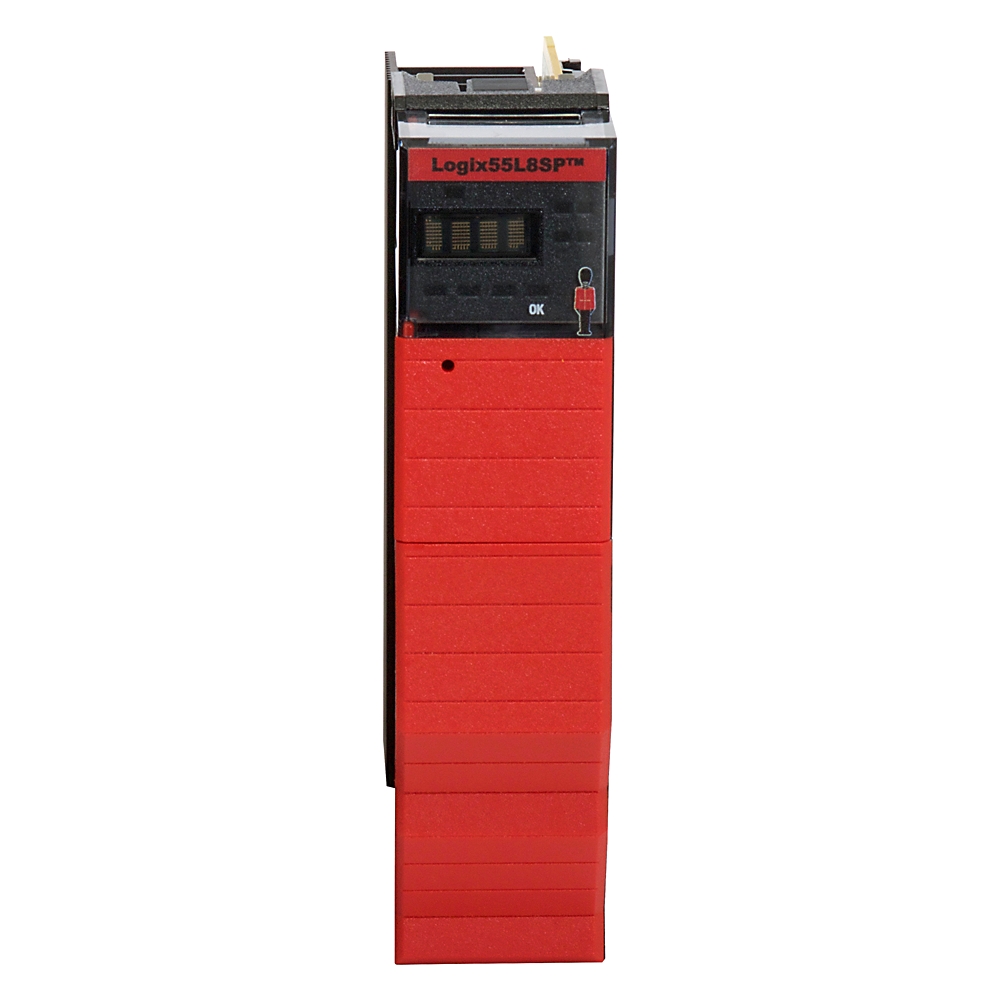

Allen-Bradley 1756-L8SP ControlLogix Safety Partner Controller
Allen-Bradley 1756-L8SP is a ControlLogix safety partner controller optimized to work alongside GuardLogix primary controllers.
Overview
The safety partner controller carries the safety application for GuardLogix 5580 systems, executing safety functions while the primary controller handles standard control. It uses an open-style design for flexible integration into a 1756 ControlLogix chassis.
Key Features
- Safety partner controller for GuardLogix primary processors
- Executes the safety task alongside standard control
- Open-style design for flexible chassis integration
- Single-slot ControlLogix form factor
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | ControlLogix |
| Part Number / Catalog No. | 1756-L8SP |
| UPC | 889508112350 |
| Conformal Coated | Yes |
| Function | Safety partner controller for GuardLogix primary |
| Enclosure | None (open-style) |
| Operating Temperature Range | -25 to 70 °C |
| Storage Temperature Range | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | Up to 95% non-condensing |
| Number of Power Cycles | 80,000 |
| Current Draw @ 1.2V DC | 5 mA |
| Current Draw @ 5.1V DC | 1.2 A |
| Power Dissipation | 6.2 W |
| Thermal Dissipation | 21.2 BTU/hr |
| Dimensions | (‘14.4 x 3.7 x 14.6 cm (5.67 x 1.46 x 5.75 in)’, {‘length’: ‘14.4’, ‘width’: ‘3.7’, ‘height’: ‘14.6’}) |
| Weight | 1.38 lbs (0.62 kg) |
Applications
The 1756-L8SP pairs with a GuardLogix primary controller to hold the safety task, so standard control and certified safety logic run side by side in the same ControlLogix chassis.
Why Buy from Us

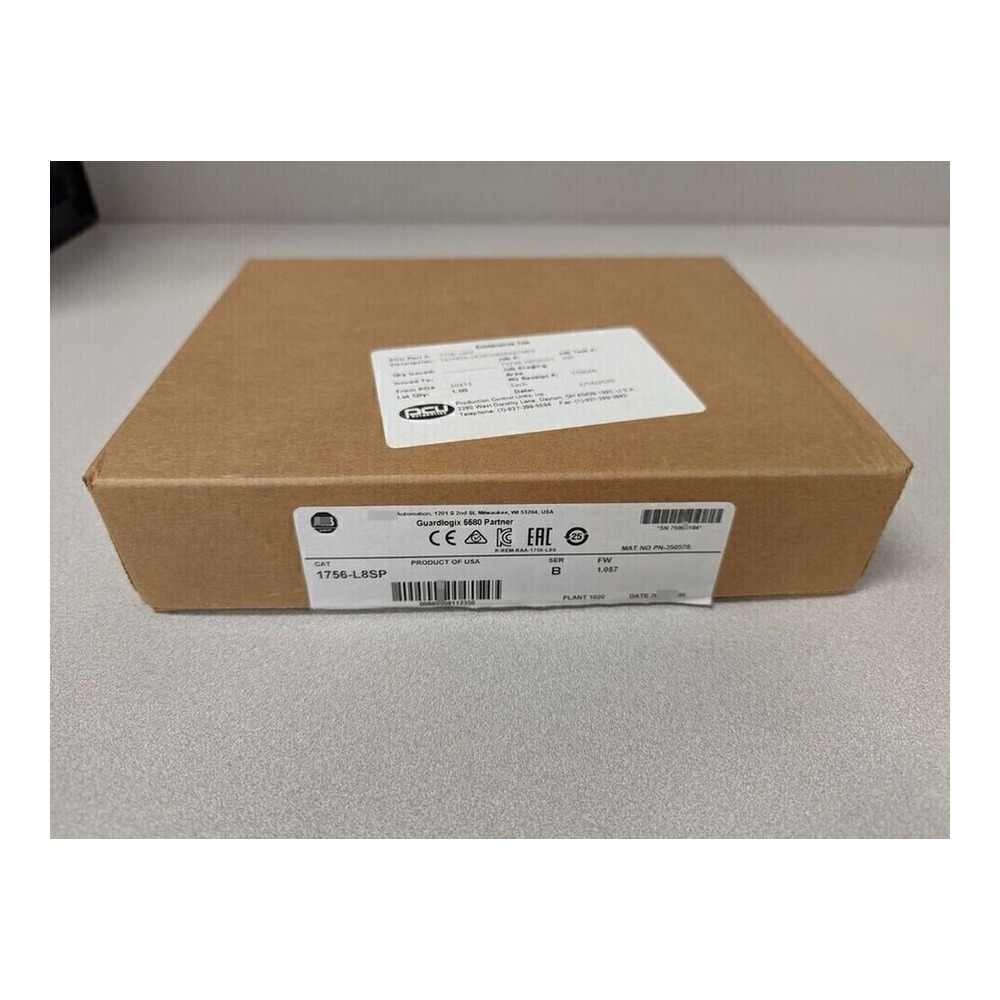

This product is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Publication | Link |
|---|---|
| 1756-UM543 | 1756-um543_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| American Bureau of Shipping | 1756-ct146_-en-e.pdf |
| ATEX | 1756-ct207_-en-e.pdf |
| Australian RCM | 1756-ct007_-en-e.pdf |
| CE | 1756-ct011_-en-e.pdf |
| China CCC | 1756-ct147_-en-e.pdf |
| Eurasian Economic Community | logix-ct001_-ru-e.pdf |
| IECEx Scheme | 1756-ct220_-en-e.pdf |
| ODVA | 1756-ct148_-en-e.pdf |
| Safety | 1756-ct188_-en-e.pdf |
| Security | 1756-ct306_-en-e.pdf |
| UKCA Declaration of Conformity | 1756-ct259_-en-e.pdf |
Per the Rockwell Automation product certification listing. Please review the product label to confirm the certifications your specific unit carries.
