| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Input Module |
| Product Line | CompactLogix |
| Part Number | 1769-IF16C |
| Weight | 0.50 lbs (0.23 kg) |
| Nominal Operating Input Current Range | 0-20 mA |
| Full Module Current Range | 0-21 mA |
| Panel Mounting Tabs | Included |

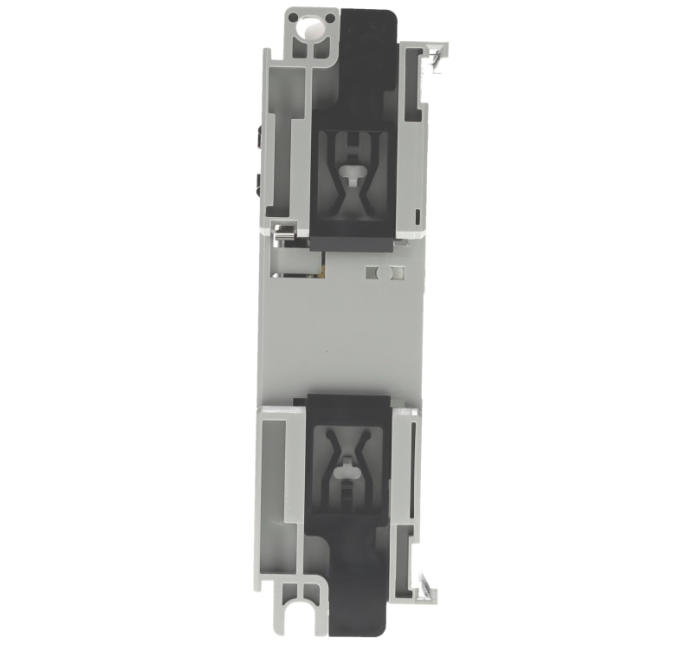

| DIN Rail Latches | Included |
| Bus Lever | Included with a locking function |
| Status LEDs | Included |
| Heat Dissipation | 4 Total Watts |
| Number of Inputs | 16 Single-Ended Inputs |
| Converter Type | Sigma-Delta Type |
| Input Impedance | 249 Ohms |
| Rating Working Voltage | 30V AC/DC |
Overview

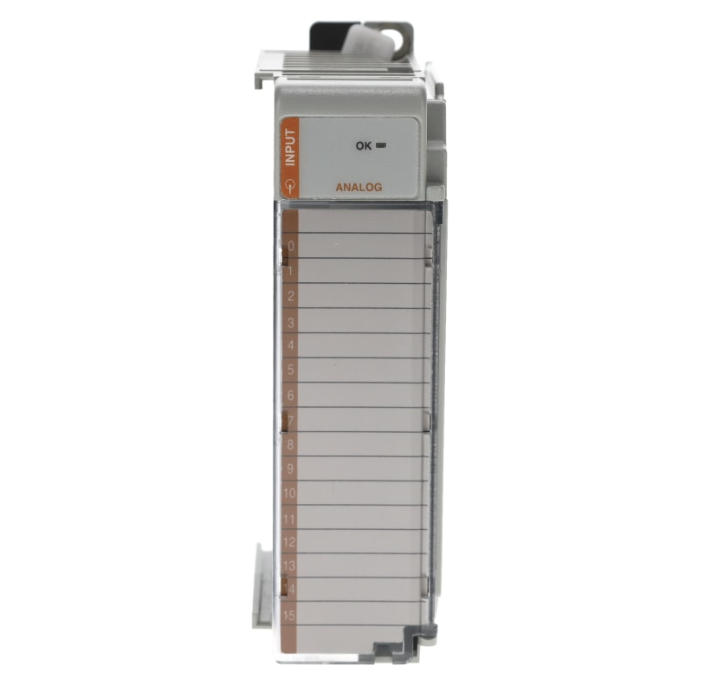

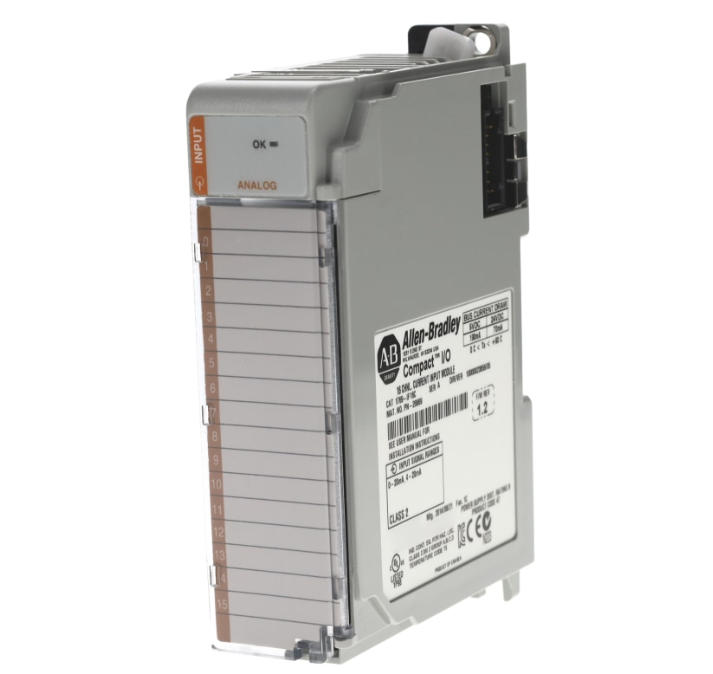

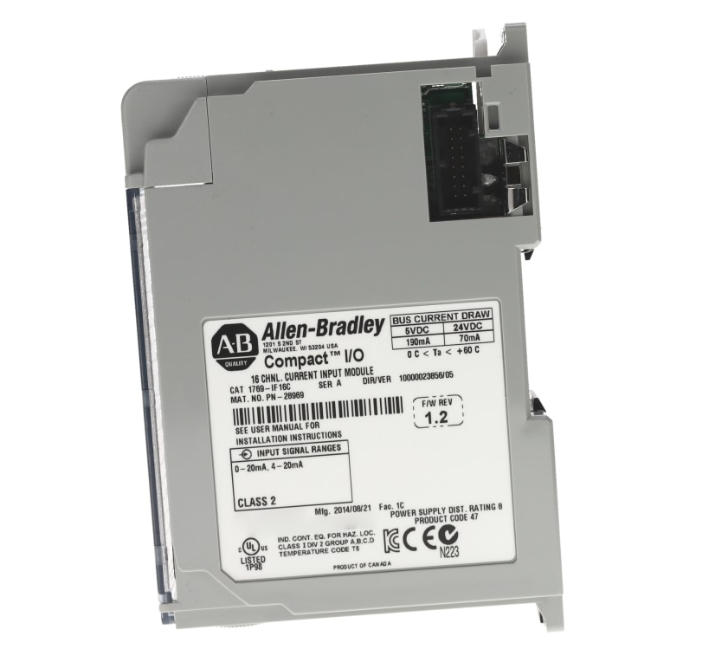

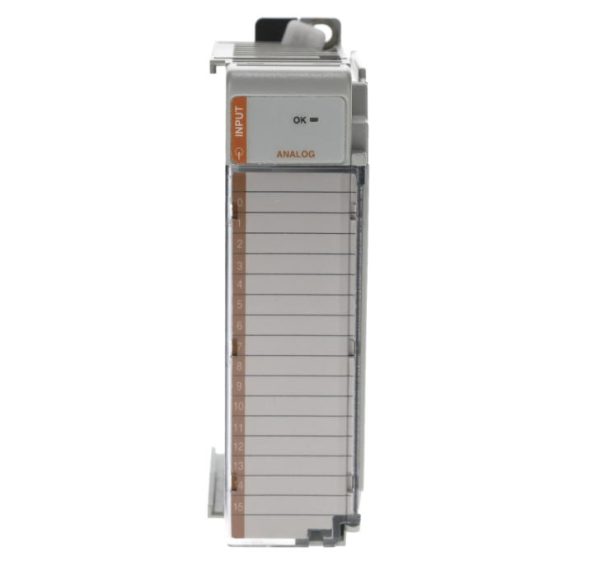

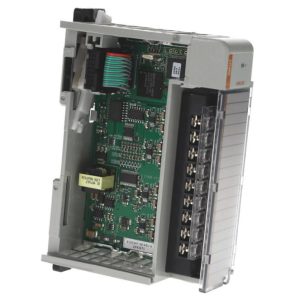

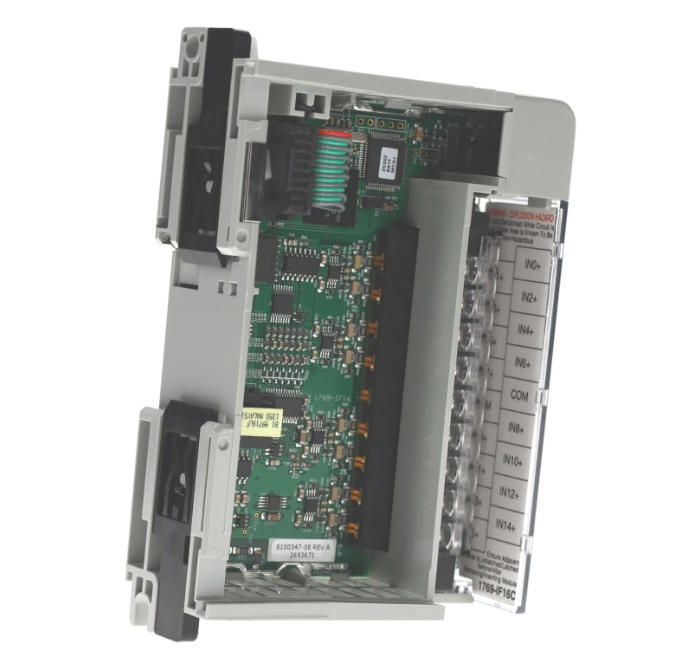

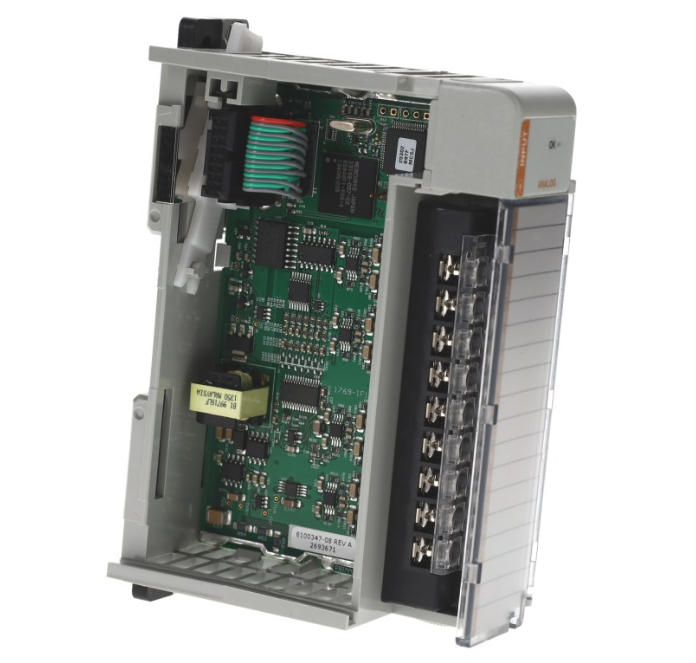

The Allen-Bradley 1769-IF16C is a specialized analog input module designed for the CompactLogix and 1769 Compact I/O platforms by Rockwell Automation. Distinguished by its high channel count, the 1769-IF16C provides 16 independent current input channels in a single-width package. This makes it the optimal choice for applications requiring the monitoring of numerous field devices, such as pressure transmitters, flow meters, and temperature sensors, without consuming excessive panel space.
Key Features & Benefits
Ultra-High Density: Features 16 independent analog input channels, all dedicated to current signals. This density is unmatched in the series, allowing for massive I/O consolidation in a single module.
- 16-Bit Precision: Utilizes a Delta-Sigma (ΔΣ) analog-to-digital converter to deliver high-resolution 16-bit data acquisition, ensuring exceptional signal accuracy and noise rejection.
- Current Input Specialized: Supports both 0 to 20 mA and 4 to 20 mA (sourcing/sinking) input ranges, making it compatible with standard industrial transmitters and sensors.
- Diagnostic Capabilities: Integrated diagnostics include channel status indicators and programmable alarms for over-range and under-range conditions, facilitating rapid troubleshooting.
- Robust Performance: Designed to operate in industrial environments with temperatures ranging from 0°C to 60°C, ensuring reliable data collection even in harsh conditions.
- Space-Saving Design: By consolidating 16 channels into one module, the 1769-IF16C significantly reduces the physical footprint of the control system, lowering overall enclosure costs.
Applications
The Allen-Bradley 1769-IF16C is extensively used in:
- Process Monitoring: Aggregating data from large arrays of pressure, flow, and level transmitters.
- Machine Control: Monitoring multiple sensor feedback loops in packaging and assembly machinery.
- Data Acquisition: High-channel-count data logging for quality control and historical trending.
- Water Treatment: Monitoring extensive sensor networks for pH, chlorine, and flow rates.
Important Installation Note
The 1769-IF16C module does not include the terminal block. You must order the 1769-RTBN10 (screw type) or 1769-RTBN10P (spring type) separately for wiring. Due to the high channel count, proper wire management is essential.
Why Choose This Module?
Our 1769-IF16C units are sourced from authorized distributors, guaranteeing genuine Allen-Bradley / Rockwell Automation quality. Its ability to handle 16 channels in a single slot makes it a cost-effective and space-saving solution for complex automation systems. We provide fast shipping, technical support, and competitive pricing.
Consolidate your analog inputs with the Allen-Bradley 1769-IF16C.
