| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Removable Terminal Block |
| Product Line | CompactLogix |
| Part Number | 1769-RTBN10 |
| Weight | 0.19 lbs (0.09 kg) |
| Connector Type | NEMA 10-pin |
| Mounting | Snap-on module connection |
| Compatibility | 1769 CompactLogix I/O modules |
| Pin Count | 10 |
| Wire Size | 22–14 AWG |
| Environment | Industrial control panels |
| Material | Industrial-grade plastic |
| Use Case | Field wiring termination |
| Orientation | Front removable |
| Wire Type | Solid or stranded |
| Locking Mechanism | Screw clamp |
| Certification | CE, UL listed |
Overview

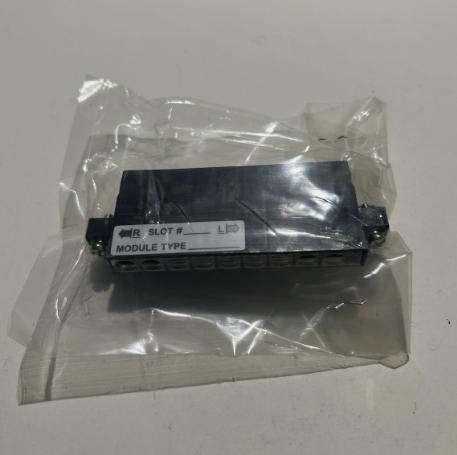

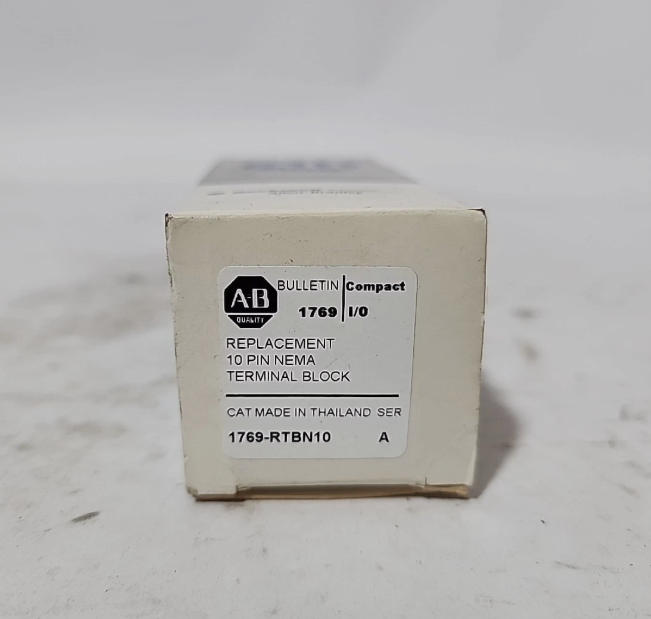

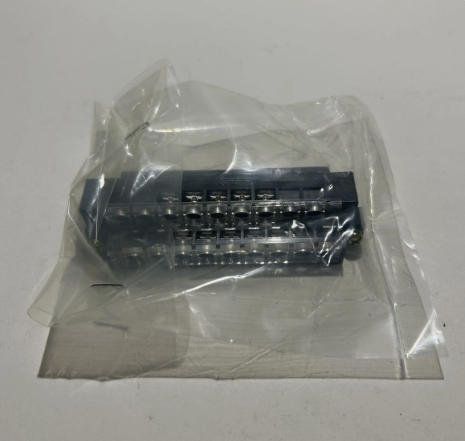

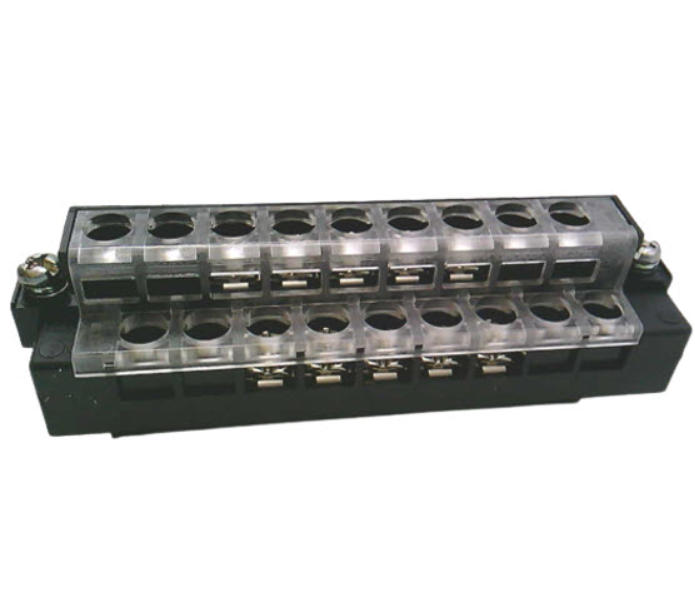

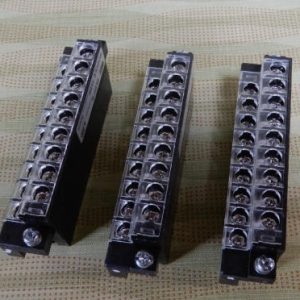

The Allen-Bradley 1769-RTBN10 is the essential wiring interface for the Rockwell Automation 1769 Compact I/O system. Serving as the physical bridge between your control panel wiring and the PLC module, this 10-pin terminal block ensures a secure and organized connection. The “RTBN” designation indicates a Removable Terminal Block with NEMA ratings and Screw Clamp technology, providing a robust solution for industrial environments.
Key Features & Benefits
- Removable Design: The 1769-RTBN10 plugs directly into the front of 1769 modules and can be unplugged for maintenance. This allows you to replace a module without cutting or desoldering field wiring, significantly reducing downtime.
- Screw Clamp Technology: Features traditional screw-type terminals that provide a secure mechanical connection for solid and stranded wires. This design is familiar to electricians and ensures a tight grip on conductors.
- 10-Point Connectivity: Provides 10 connection points (pins), making it compatible with a wide range of 1769 series modules, including analog inputs/outputs and digital I/O modules.
- NEMA Rated: Unlike standard DIN-style blocks, the 1769-RTBN10 carries NEMA ratings (Type 1, 4X, 12), certifying its suitability for use in various industrial enclosure types.
- Versatile Compatibility: Specifically designed for use with 1769-IF4, 1769-IF8, 1769-OF4, 1769-OF8C, 1769-IF16C, and various digital modules.
- Durable Construction: Molded from high-strength, flame-retardant thermoplastic, ensuring longevity and resistance to industrial chemicals and heat.
Applications
The Allen-Bradley 1769-RTBN10 is used in virtually every application involving 1769 Compact I/O, including:
- Machine Building: Wiring analog sensors and actuators for OEM machinery.
- Process Automation: Connecting pressure transmitters and control valves.
- System Integration: Providing a modular interface for panel builders.
- Retrofit Projects: Replacing older wiring schemes with modern CompactLogix components.
Important Installation Note:
The 1769-RTBN10 is a Terminal Block only; it does not include the I/O module. It is specifically designed for screw-type connections. If you require a tool-less, spring-clamp connection, please refer to the 1769-RTBN10P model.
Why Choose This Terminal Block?
Our 1769-RTBN10 units are sourced from authorized distributors, guaranteeing genuine Allen-Bradley / Rockwell Automation quality. As a critical consumable for panel building, having the correct terminal block is vital for system safety and compliance. We provide fast shipping and reliable customer support.
Secure your Compact I/O wiring today with the Allen-Bradley 1769-RTBN10.
1769 Compact I/O Modules Specifications
Publication Type: Technical Data Published Date: Nov 18, 2023Language: English
Digital/Analog Programmable Controller Wiring Systems Technical Data
Publication Type: Technical Data Published Date: Jan 1, 2009Language: English
Compact I/O Modules Installation Instructions
Publication Type: Installation Instructions Published Date: Feb 16, 2011Language: English
Compact I/O Analog Output Module
Publication Type: Installation Instructions Published Date: Aug 31, 2009Language: English
