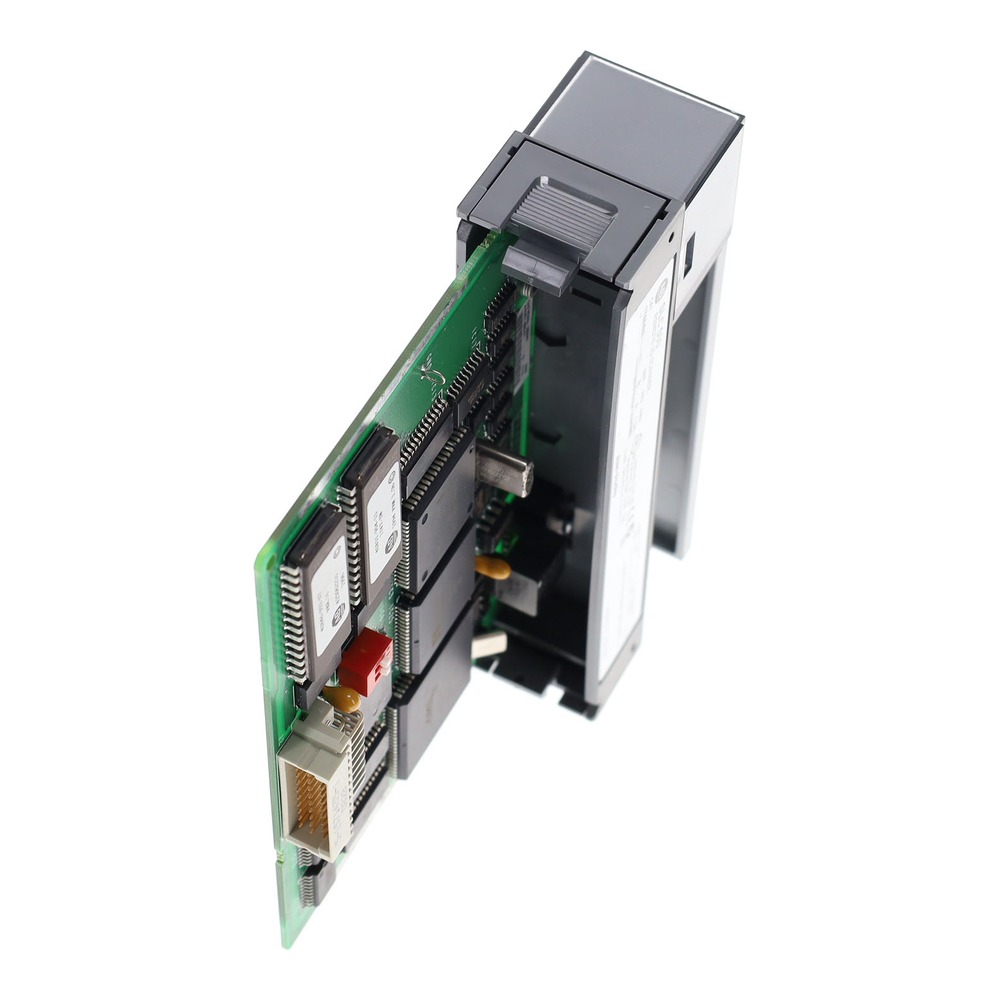

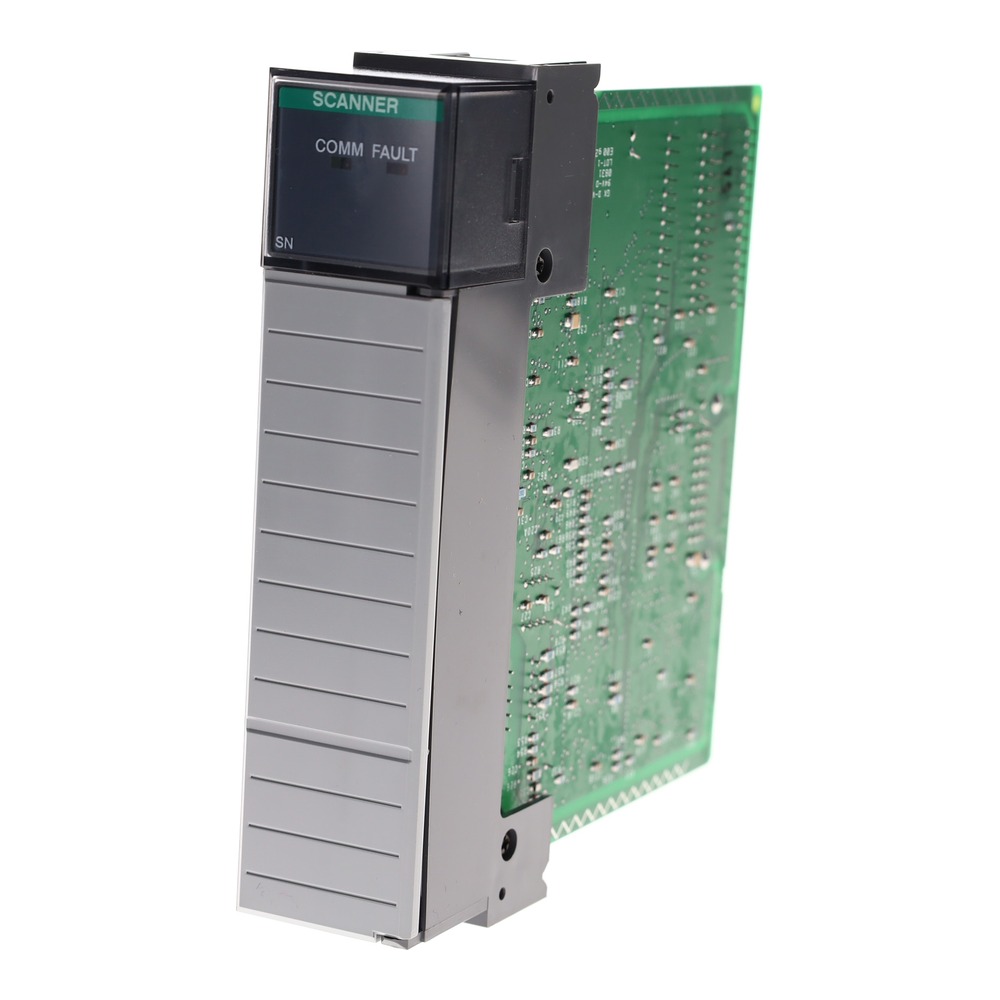

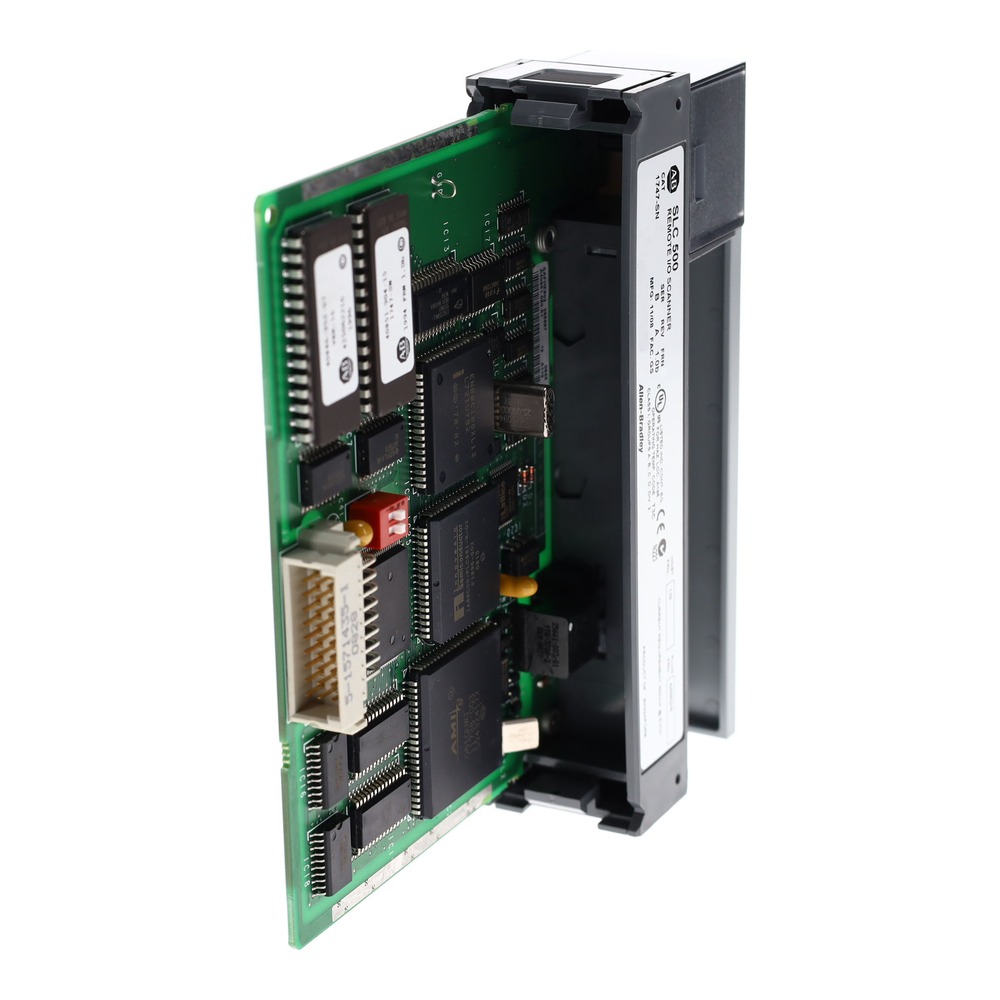

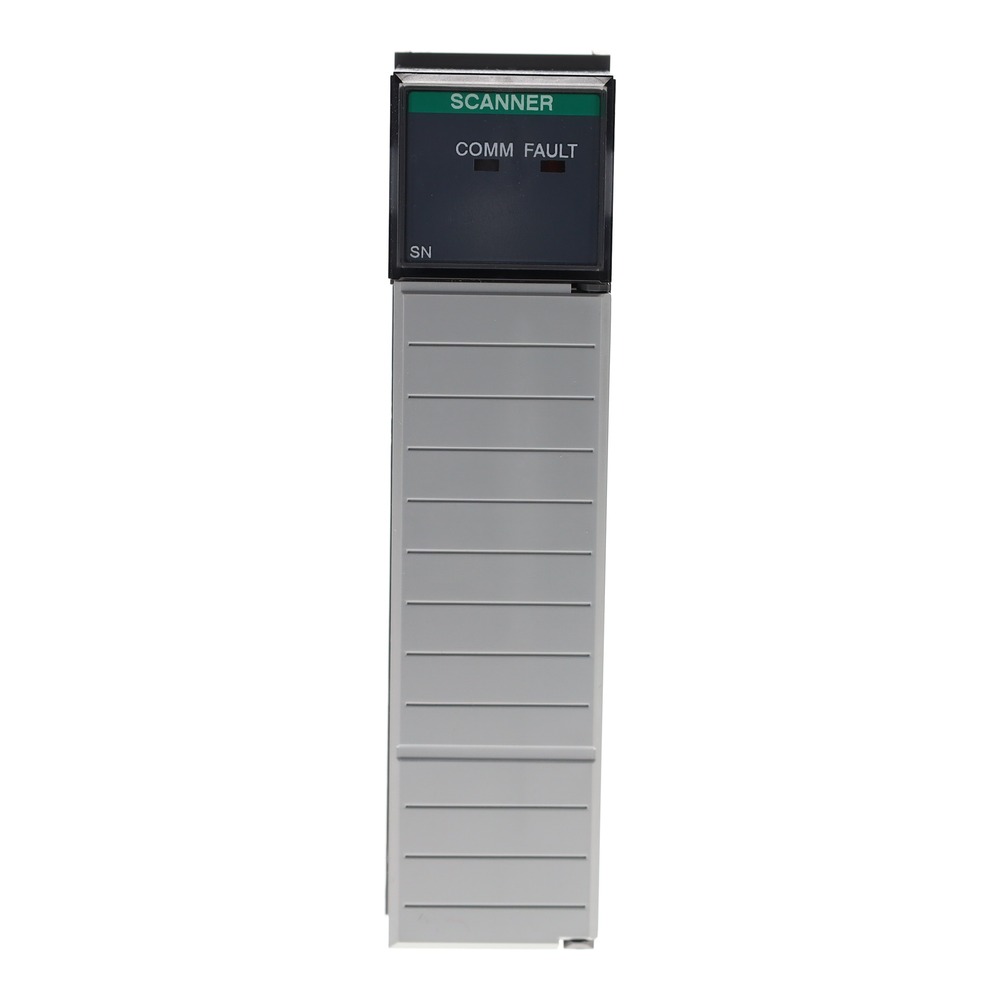

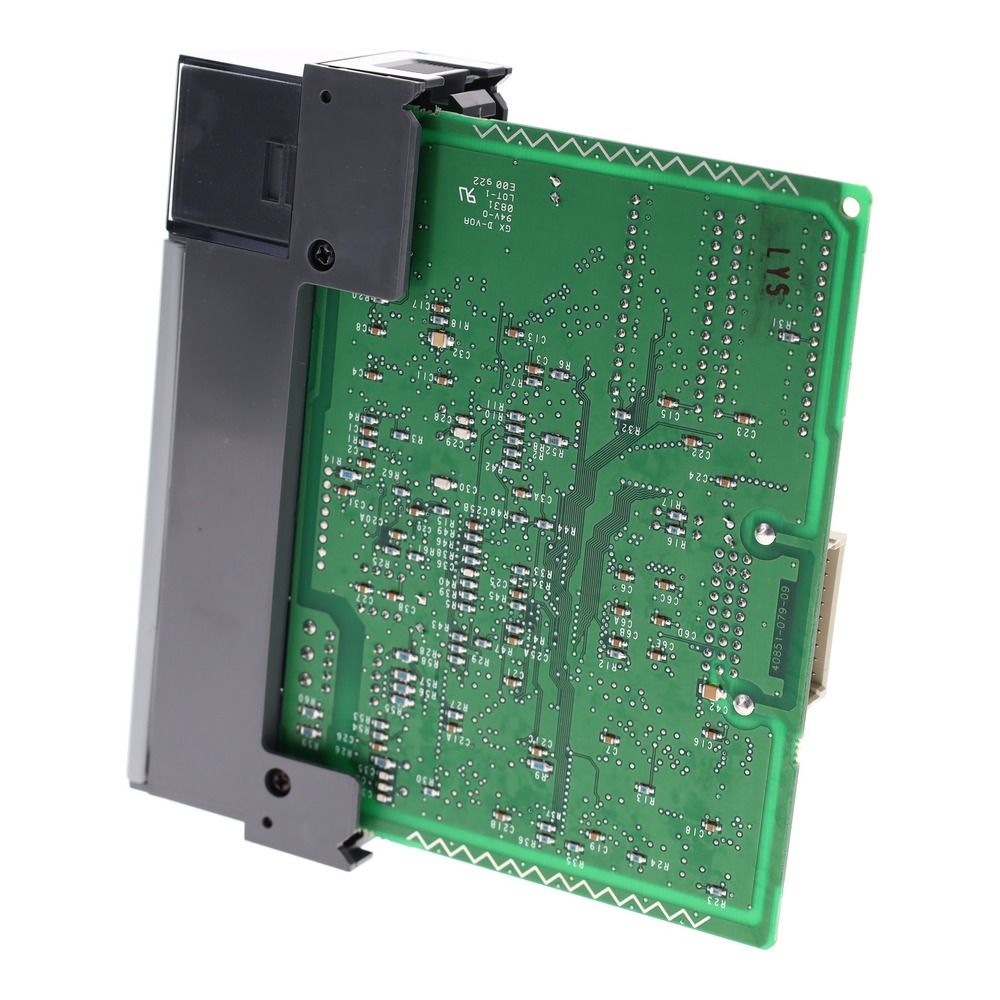

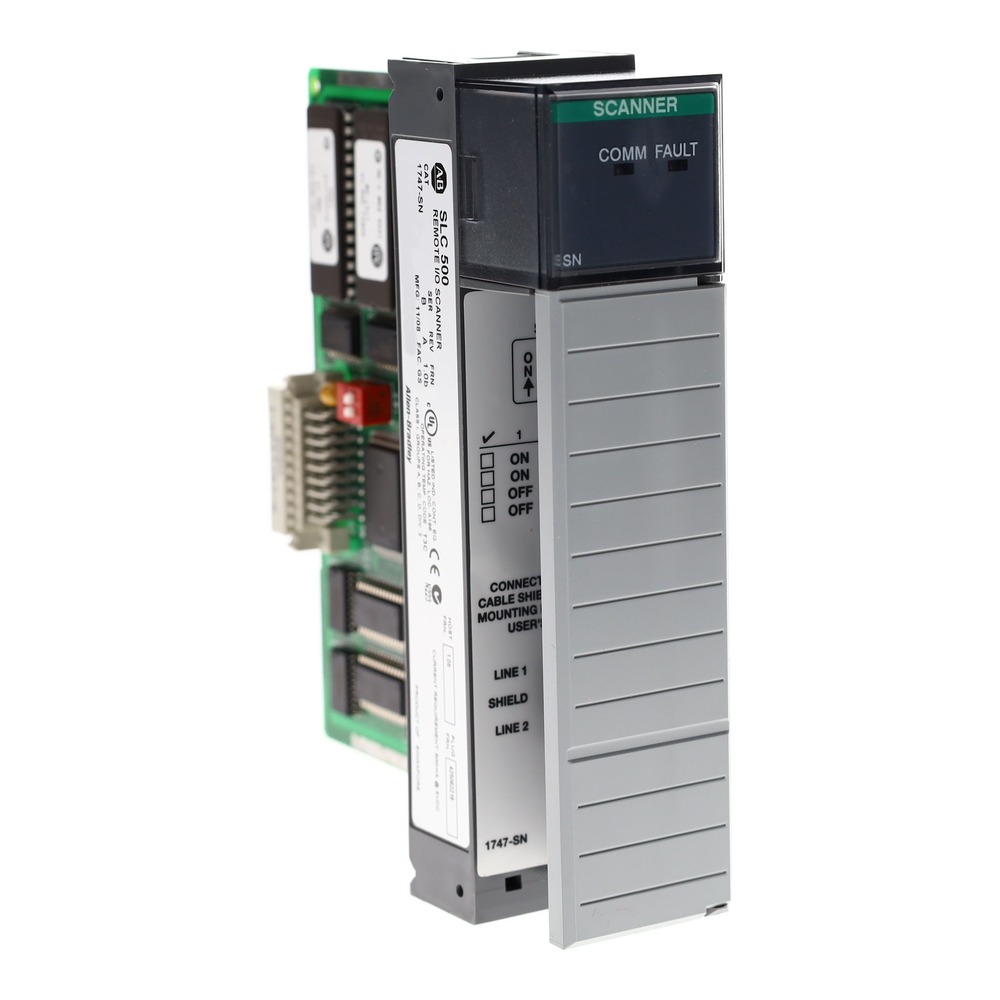

Allen-Bradley 1747-SN SLC 500 Remote I/O Scanner Module
Allen-Bradley 1747-SN is the SLC 500 Remote I/O scanner module that lets the SLC processor control Remote I/O adapter links – up to 3050 m of cable and 16 (32 complementary) device connections.
Overview
Installed in the local chassis, the 1747-SN scans remote I/O adapters over the RIO link in normal mode (up to 16 device connections) or complementary mode (up to 32), supporting distributed controller applications and connections between I/O adapters and controllers. The RIO link runs up to 3050 m (10,000 ft), with integrated noise immunity for electrically harsh environments. The module draws 600 mA at 5 V DC from the backplane and is rated 0 to 40 °C operating, 0 to 50 °C storage, up to 1000 m altitude.
Key Features
- Remote I/O scanner for the SLC 500 family
- Connections between I/O adapters and controllers; distributed control support
- Normal mode: 16 device connections; complementary mode: 32 device connections
- Maximum RIO cable length 3050 m (10,000 ft)
- Built-in noise immunity
- Backplane current 600 mA @ 5 V DC; single slot
- Operating 0…40 °C; storage 0…50 °C; max altitude 1000 m
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 (1747) |
| Series | SLC 500 |
| Part Number / Catalog No. | 1747-SN |
| UPC | 662073876922 |
| Product Type | Remote I/O Scanner Module |
| Connections | I/O adapters and controllers; distributed controller applications |
| Operating Modes | Normal / Complementary |
| Max. Connections | 16 (normal) / 32 (complementary) |
| Max. RIO Cable Length | 3050 m (10,000 ft) |
| Noise Immunity | Built-in |
| Backplane Current | 600 mA @ 5 V DC |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | 0 to 50 °C (32 to 122 °F) |
| Max. Operating Altitude | 1000 m |
| Slots Used | 1 |
| Dimensions | 14.5 x 3.5 x 14 cm (5.7 x 1.4 x 5.5 in), approx (single-slot SLC 500 module) |
| Weight | 1.00 lbs (0.45 kg) |
| Country of Origin | Singapore |
Applications
The 1747-SN is the scanner half of a classic SLC 500 remote I/O system: pair it with 1747-ASB adapters in remote 1746 chassis to distribute I/O across a line, a building or between buildings. It remains in wide service on installed A-B RIO networks and pairs directly with 1771-ASB remote adapters when SLC processors must control PLC-5 family I/O.
Why Buy from Us

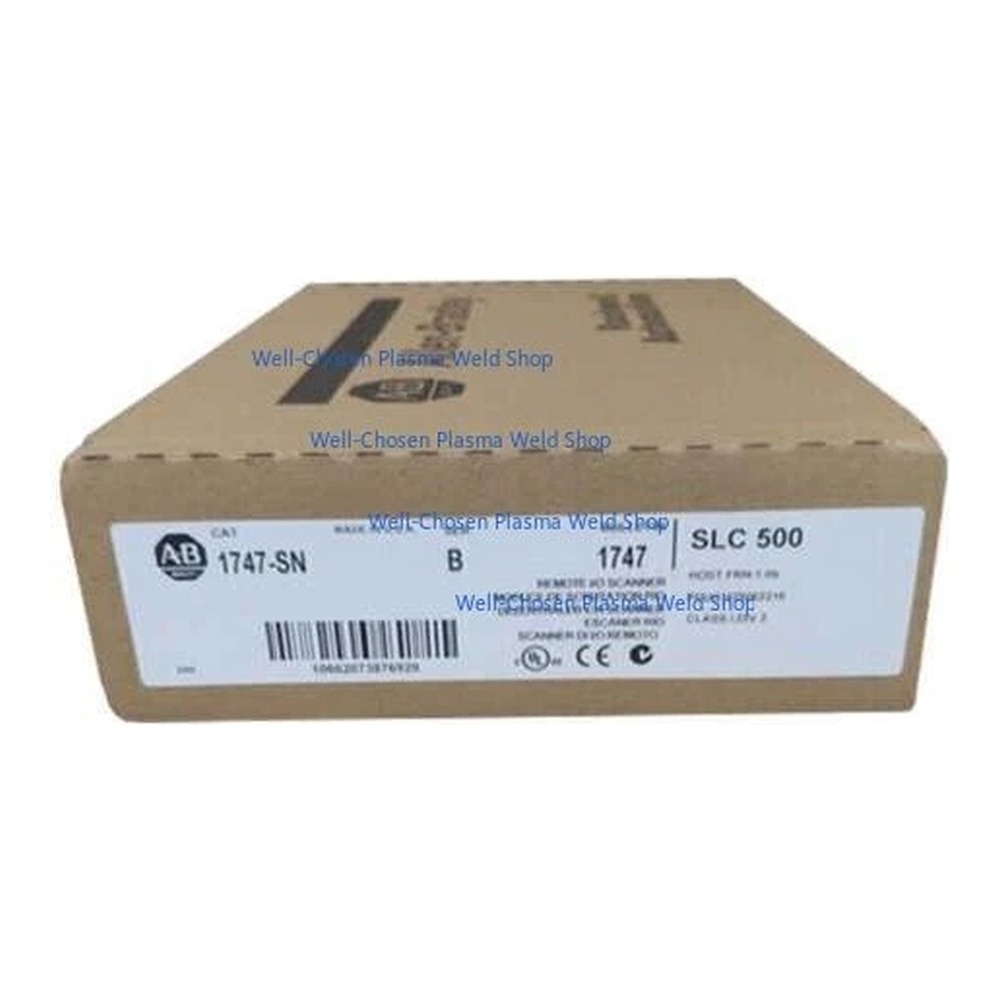

This scanner is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN060 – Remote I/O Scanner (1747-SN) Installation Instructions | 1747-in060_-en-p.pdf |
| Publication | 1747-UM013 – Remote I/O Scanner (1747-SN) User Manual | 1747-um013_-en-p.pdf |
