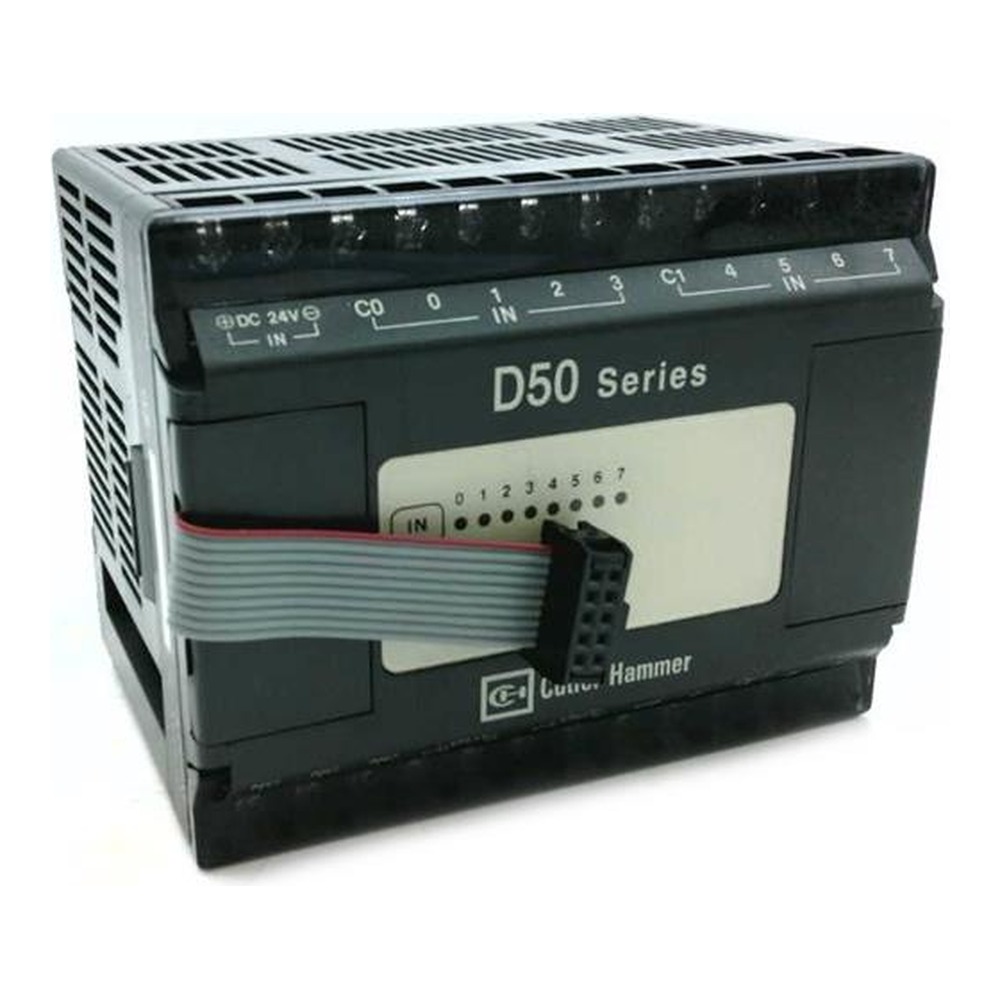

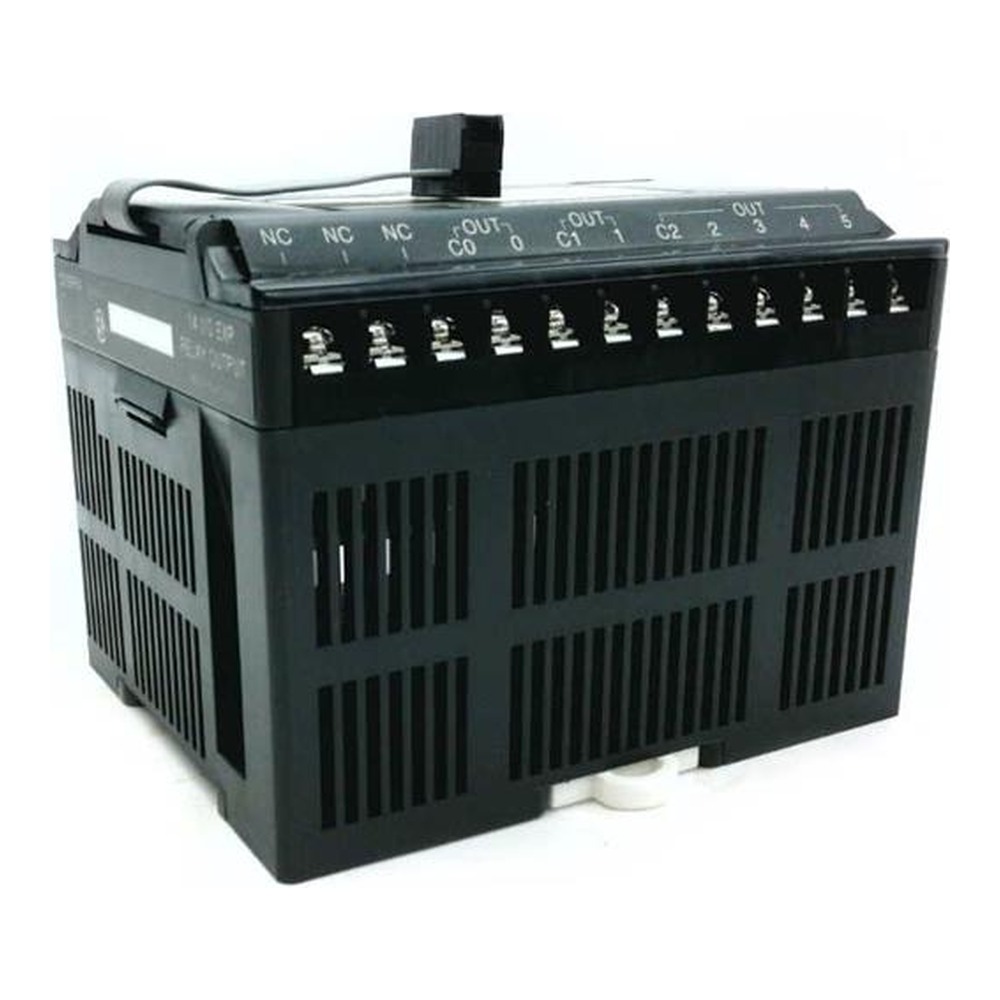

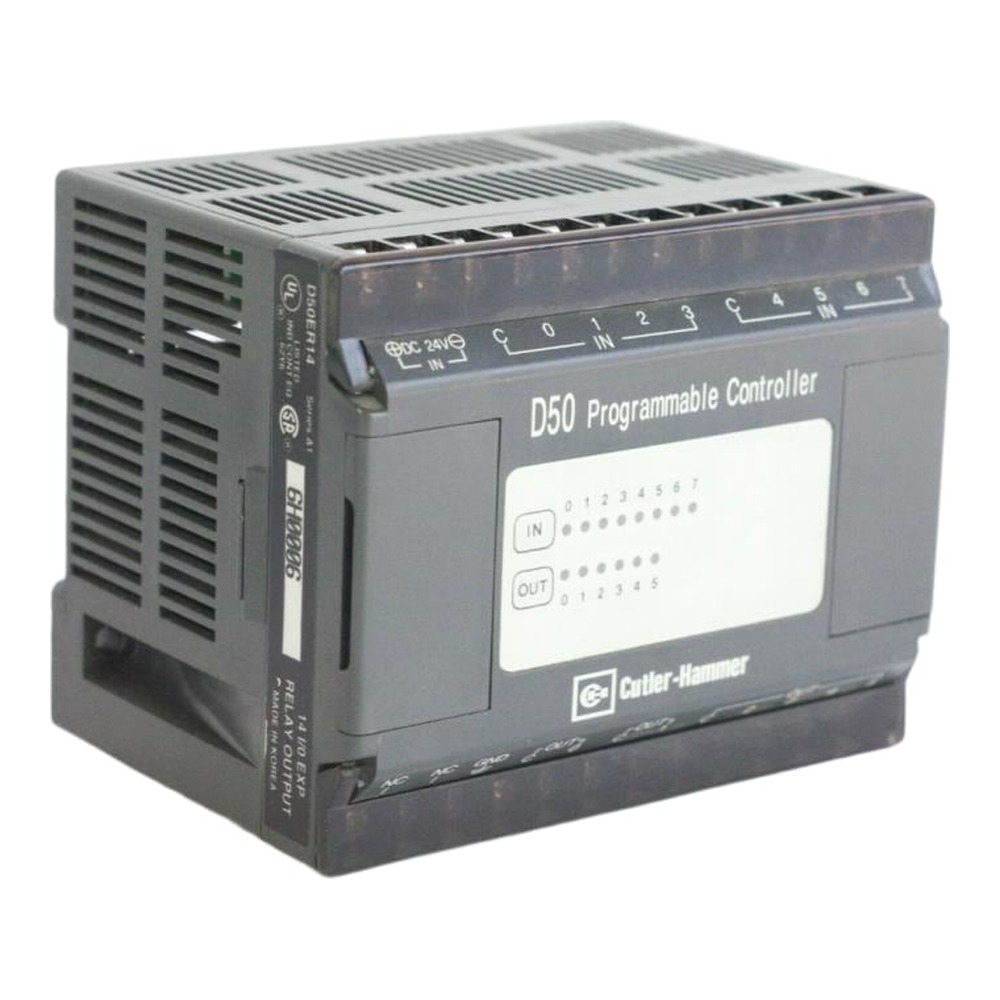

Eaton Cutler-Hammer D50ER14 D50 Micro PLC Digital Input/Output Expansion Module
Eaton Cutler-Hammer D50ER14 is a Digital Input/Output Expansion Module module from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D50ER14 is a Digital Input/Output Expansion Module module from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Inputs 8 digital inputs; Number of Outputs 6 relay outputs; Input Type 24 Volts DC input. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Inputs: 8 digital inputs
- Number of Outputs: 6 relay outputs
- Input Type: 24 Volts DC input
- Input Voltage Range: 12 to 24 Volts DC
- Permissible Voltage Range: 9 to 30 Volts DC
- Maximum Input Current: 10 milliamperes
- Output Current Per Point: 2 Amperes per point
- Frequency Tolerance: 47 to 63 Hertz
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Digital Input/Output Expansion Module |
| Product Line | D50 PLC |
| Series | D50 Micro PLC |
| Number of Inputs | 8 digital inputs |
| Number of Outputs | 6 relay outputs |
| Input Type | 24 Volts DC input |
| Input Voltage Range | 12 to 24 Volts DC |
| Permissible Voltage Range | 9 to 30 Volts DC |
| Maximum Input Current | 10 milliamperes |
| Output Current Per Point | 2 Amperes per point |
| Frequency Tolerance | 47 to 63 Hertz |
| Input Resistance | 3.3 kiloohms |
| Input Delay Time | Less than 10 milliseconds (both ON-OFF and OFF-ON) |
| Isolation Type | Photocoupler |
| Recommended Operating Temperature | 0°C to 55°C (-32°F to 131°F) |
| Part Number / Catalog No. | D50ER14 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D50ER14 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
