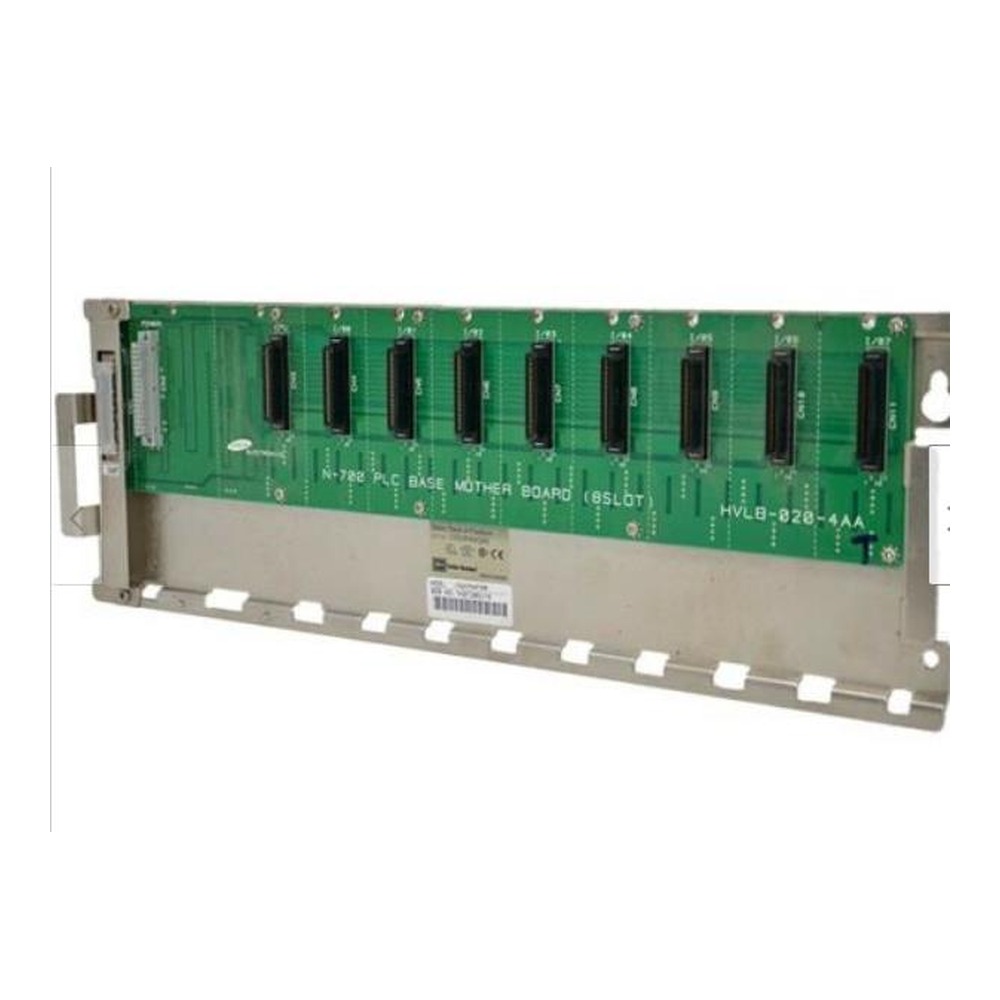

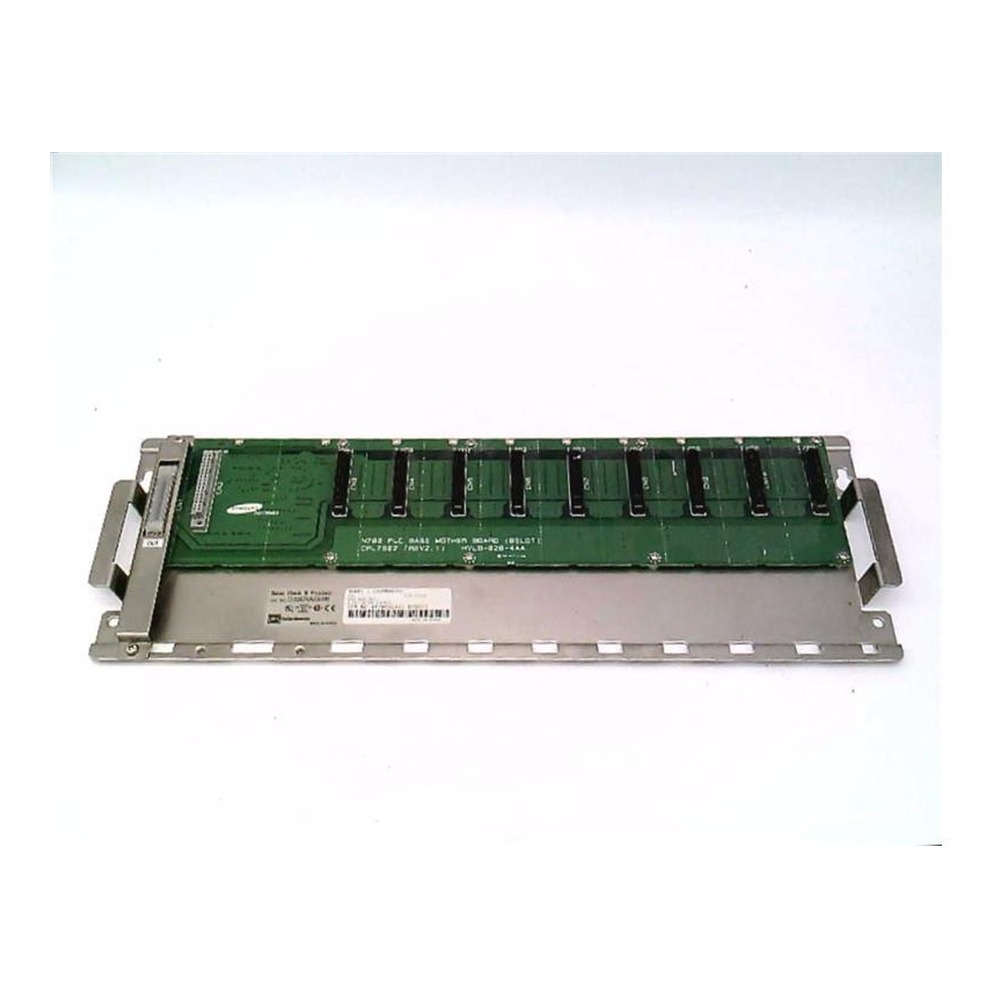

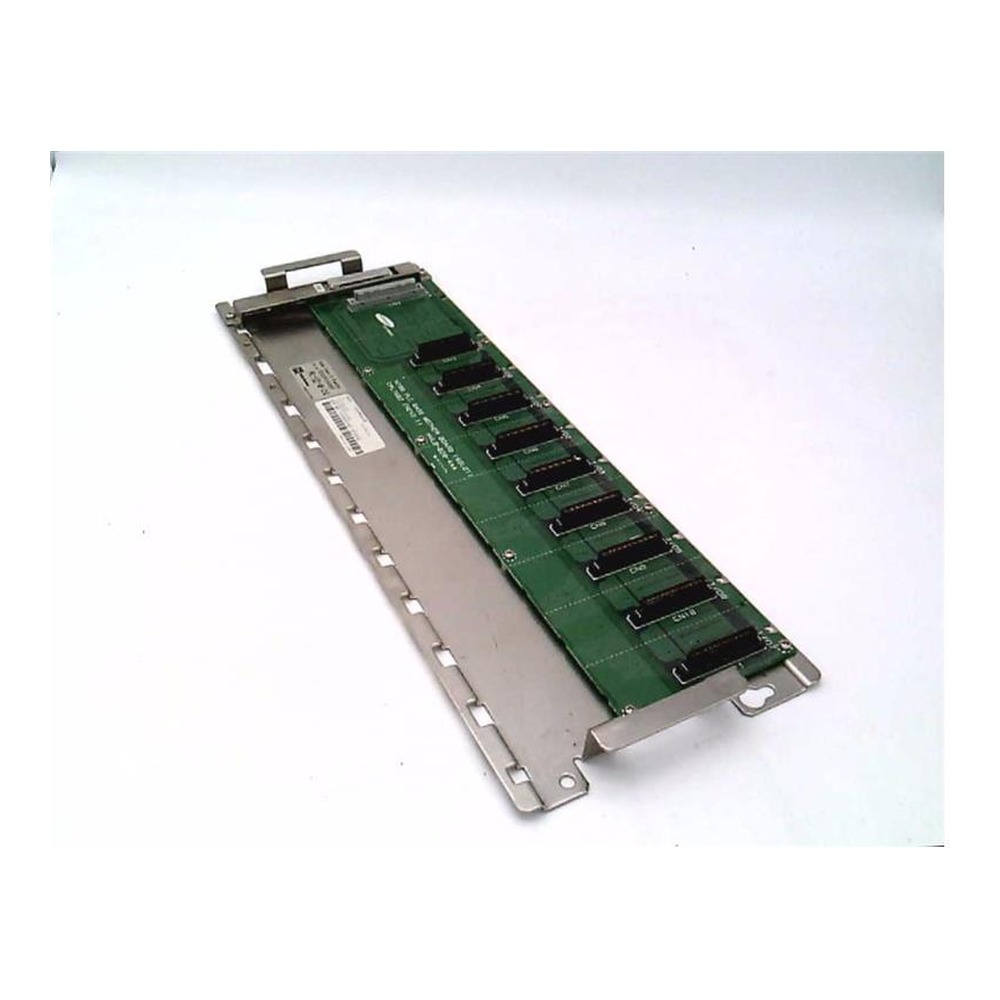

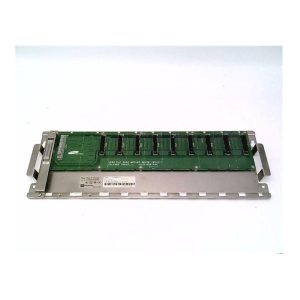

Eaton Cutler-Hammer D320RAK08B D320 PLC Base Backplane
Eaton Cutler-Hammer D320RAK08B is a Base Backplane unit from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D320RAK08B is a Base Backplane unit from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Slots 8 Slots; Breakdown Voltage 1500 VAC; Insulation Resistance 1500 Vp-p pulse width 50 ns. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Slots: 8 Slots
- Breakdown Voltage: 1500 VAC
- Insulation Resistance: 1500 Vp-p pulse width 50 ns
- Vibration Resistance: 10 to 55 Hz for 1 min
- Min. Operating Temperature: 0°C
- Max. Operating Temperature: 55°C
- Min. Storage Temperature: -20°C
- Max. Storage Temperature: 75°C
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Base Backplane |
| Product Line | D320 PLC |
| Series | D320 PLC |
| Number of Slots | 8 Slots |
| Breakdown Voltage | 1500 VAC |
| Insulation Resistance | 1500 Vp-p pulse width 50 ns |
| Vibration Resistance | 10 to 55 Hz for 1 min |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | 55°C |
| Min. Storage Temperature | -20°C |
| Max. Storage Temperature | 75°C |
| Min. Relative Humidity | 5% (Non-Condensing) |
| Max. Relative Humidity | 95% (Non-Condensing) |
| Installation Altitude | 1000 m |
| Part Number / Catalog No. | D320RAK08B |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8538.90 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D320RAK08B |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
