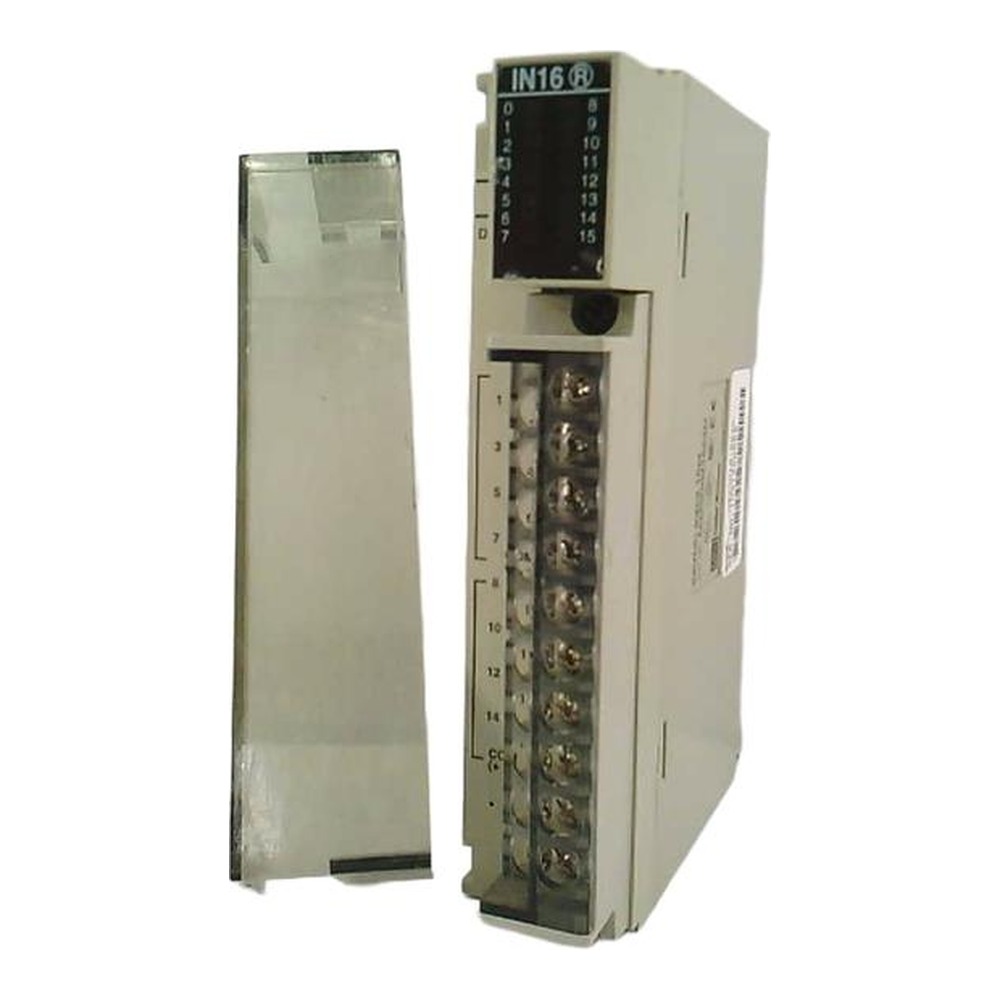

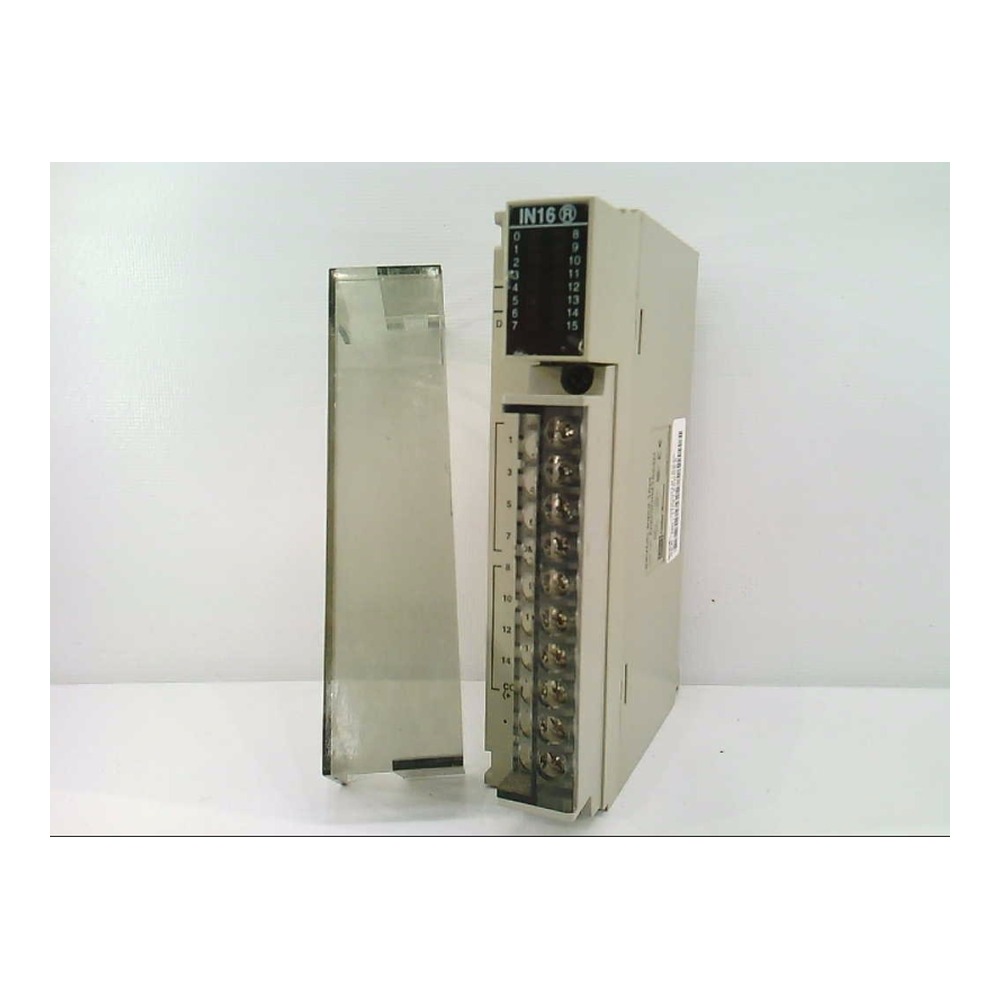

Eaton Cutler-Hammer D320DIM1624D D320 PLC Digital Input Module
Eaton Cutler-Hammer D320DIM1624D is a Digital Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D320DIM1624D is a Digital Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Maximum Number of Inputs 16 Inputs; Input Type DC digital inputs; Input Voltage Range 12 to 24 VDC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Maximum Number of Inputs: 16 Inputs
- Input Type: DC digital inputs
- Input Voltage Range: 12 to 24 VDC
- Breakdown Voltage: 1500 VAC
- Insulation Resistance: > 98 MΩ
- Noise Immunity: 1500 Vp-p (50 ns pulse)
- Vibration Resistance: 10–55 Hz (1 minute)
- Mounting: Rack-mounted in D320 PLC chassis
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Digital Input Module |
| Product Line | D320 PLC |
| Series | D320 PLC |
| Maximum Number of Inputs | 16 Inputs |
| Input Type | DC digital inputs |
| Input Voltage Range | 12 to 24 VDC |
| Breakdown Voltage | 1500 VAC |
| Insulation Resistance | > 98 MΩ |
| Noise Immunity | 1500 Vp-p (50 ns pulse) |
| Vibration Resistance | 10–55 Hz (1 minute) |
| Mounting | Rack-mounted in D320 PLC chassis |
| Compatible Series | D320 PLC Series |
| Part Number / Catalog No. | D320DIM1624D |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D320DIM1624D |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
