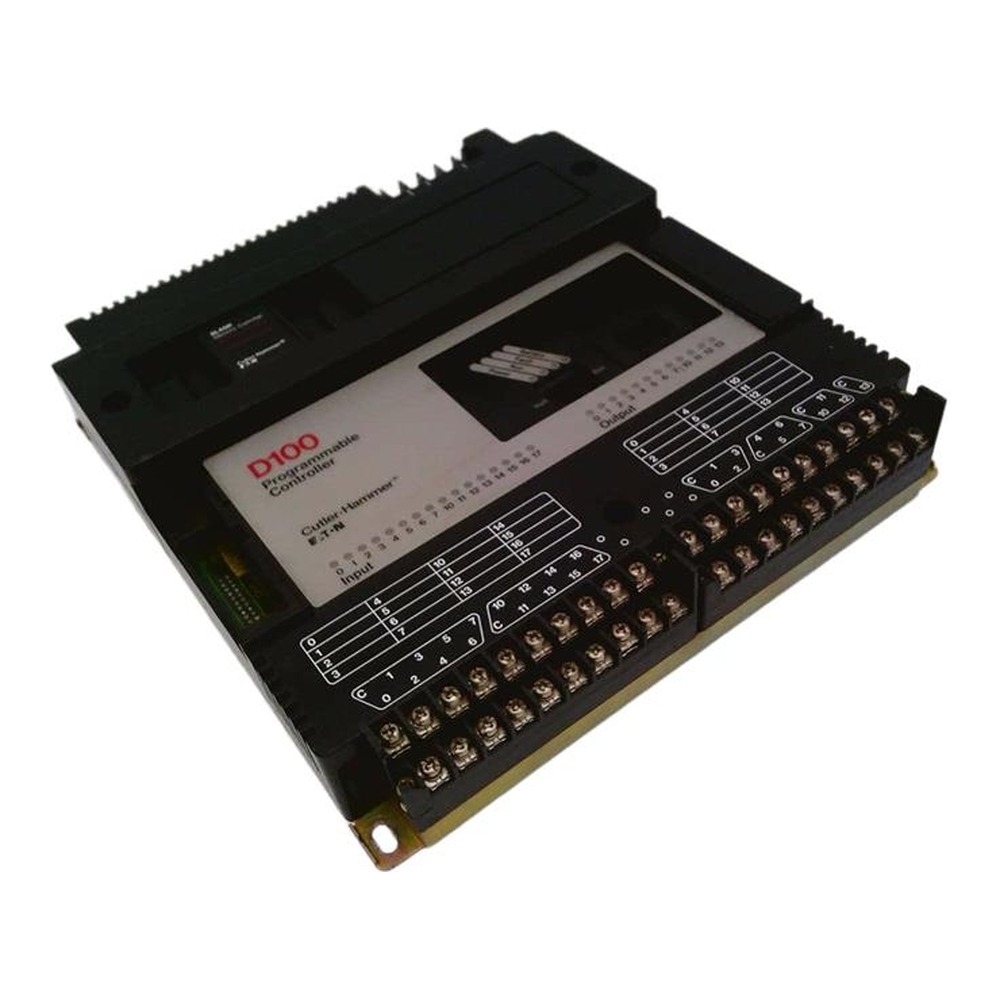

Eaton Cutler-Hammer D100CRA28 D100 Micro PLC Programmable Logic Controller
Eaton Cutler-Hammer D100CRA28 is a Programmable Logic Controller unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D100CRA28 is a Programmable Logic Controller unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. It provides 28 I/O Points I/O points. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Total I/O Capacity: 28 I/O Points
- Number of Inputs: 16 Digital Inputs
- Number of Outputs: 12 Digital Outputs
- Communication Interface: RS-232C/RS-422 via converter interface
- Mounting Style: Standard DIN-rail or panel mounting
- Housing Material: Industrial high-impact thermoplastic housing
- Min. Operating Temperature: 0°C
- Max. Operating Temperature: 55°C
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Programmable Logic Controller |
| Product Line | D100 Micro Programmable Logic Controllers |
| Series | D100 Micro PLC |
| Total I/O Capacity | 28 I/O Points |
| Number of Inputs | 16 Digital Inputs |
| Number of Outputs | 12 Digital Outputs |
| Communication Interface | RS-232C/RS-422 via converter interface |
| Mounting Style | Standard DIN-rail or panel mounting |
| Housing Material | Industrial high-impact thermoplastic housing |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | 55°C |
| Part Number / Catalog No. | D100CRA28 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D100CRA28 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
