Allen-Bradley 1747-KE SLC 500 DH-485/RS-232C Communication Interface Module
Allen-Bradley 1747-KE is a DH-485/RS-232C communication interface module that bridges DF1 devices to the DH-485 network from inside an SLC 500 chassis.
Overview

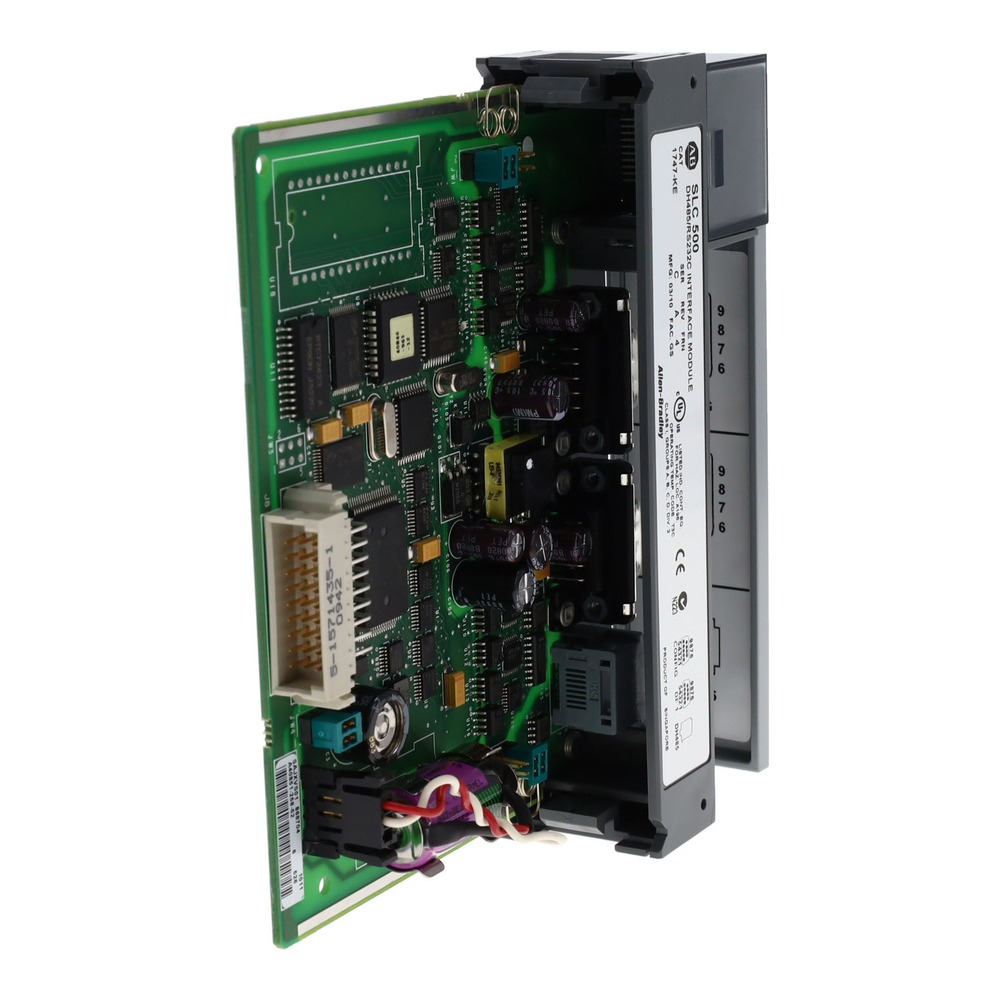

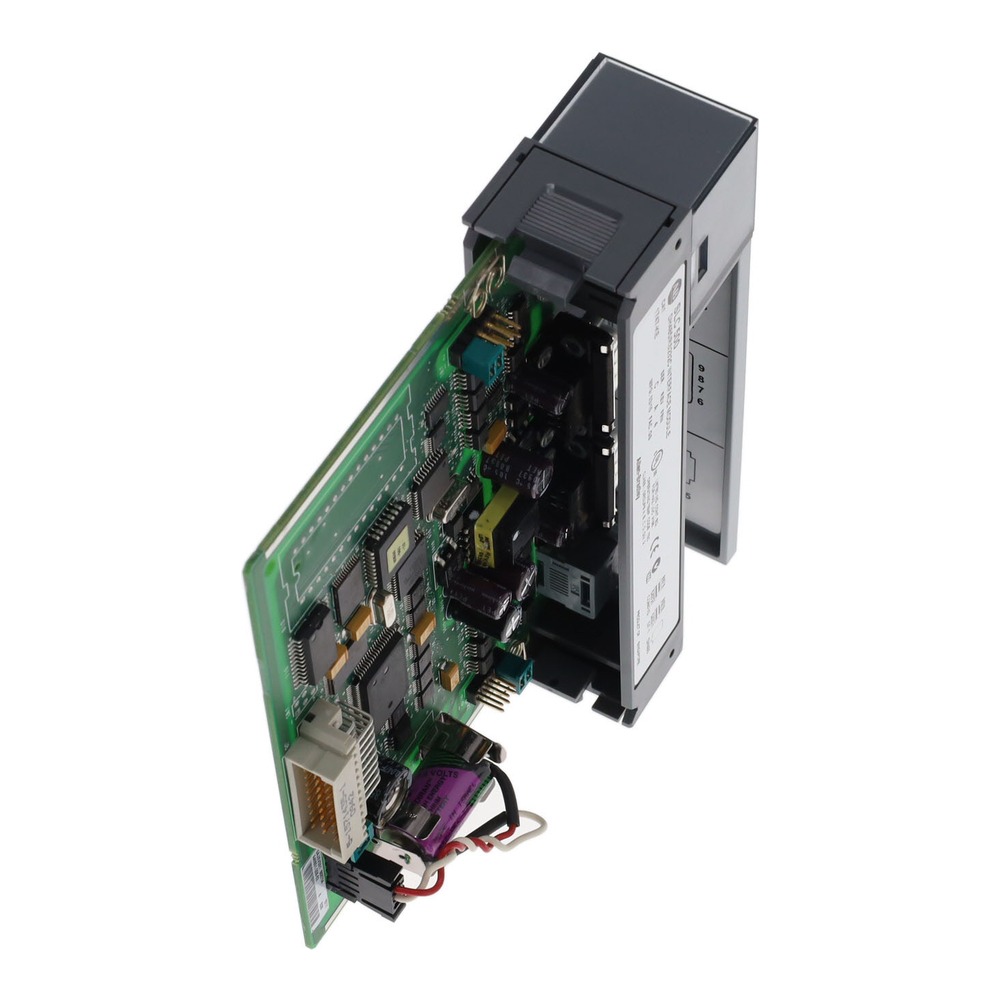

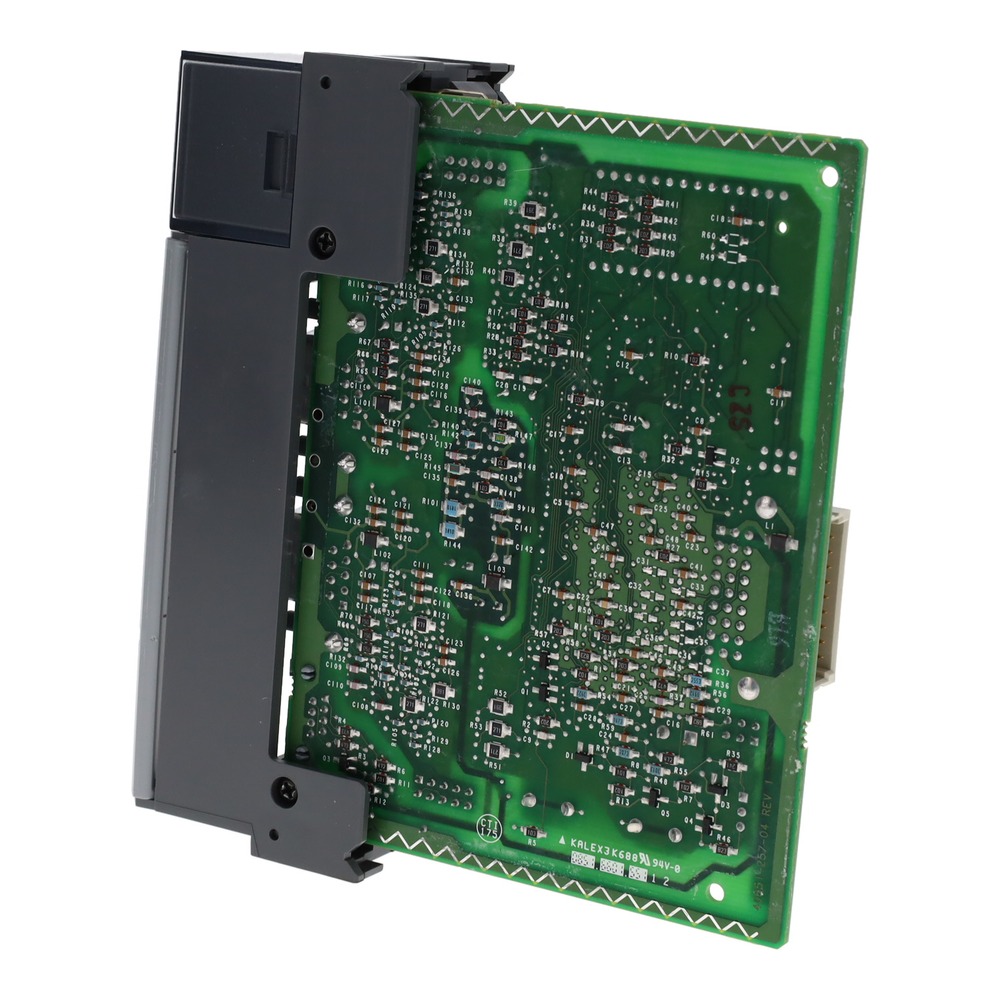

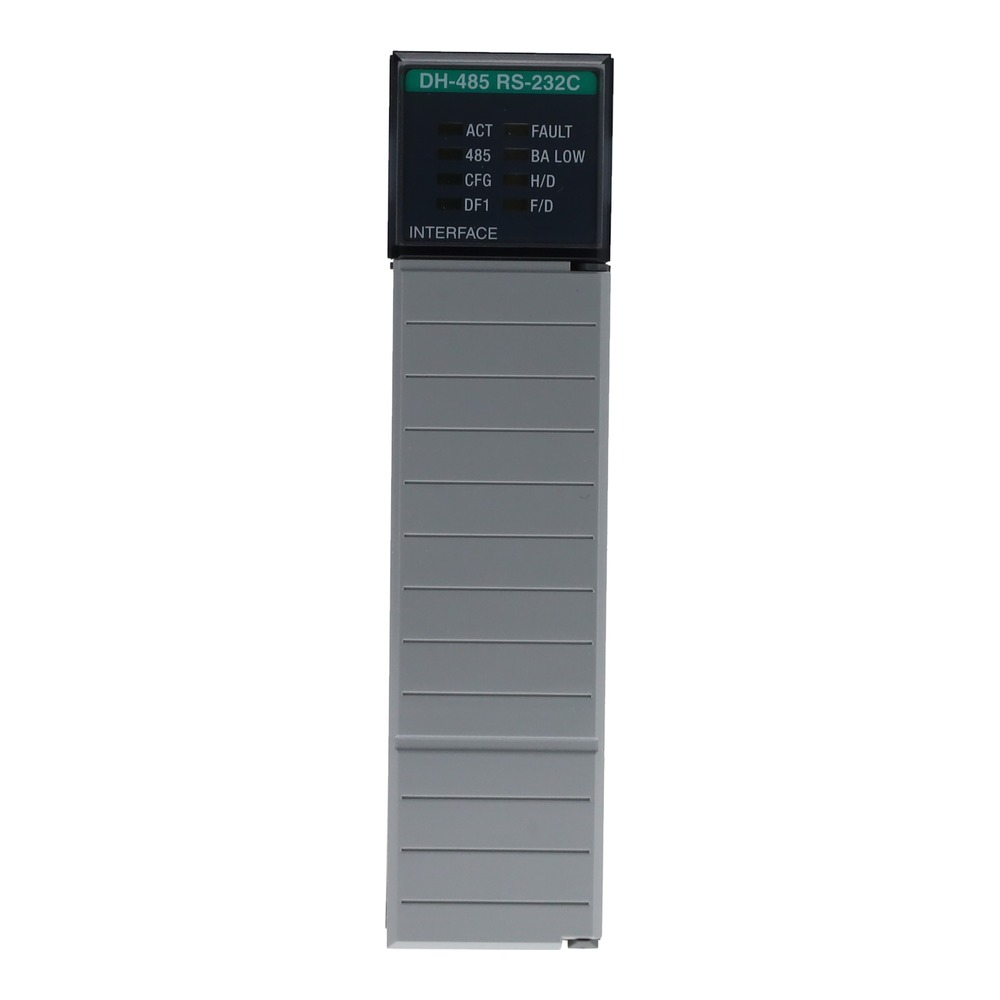

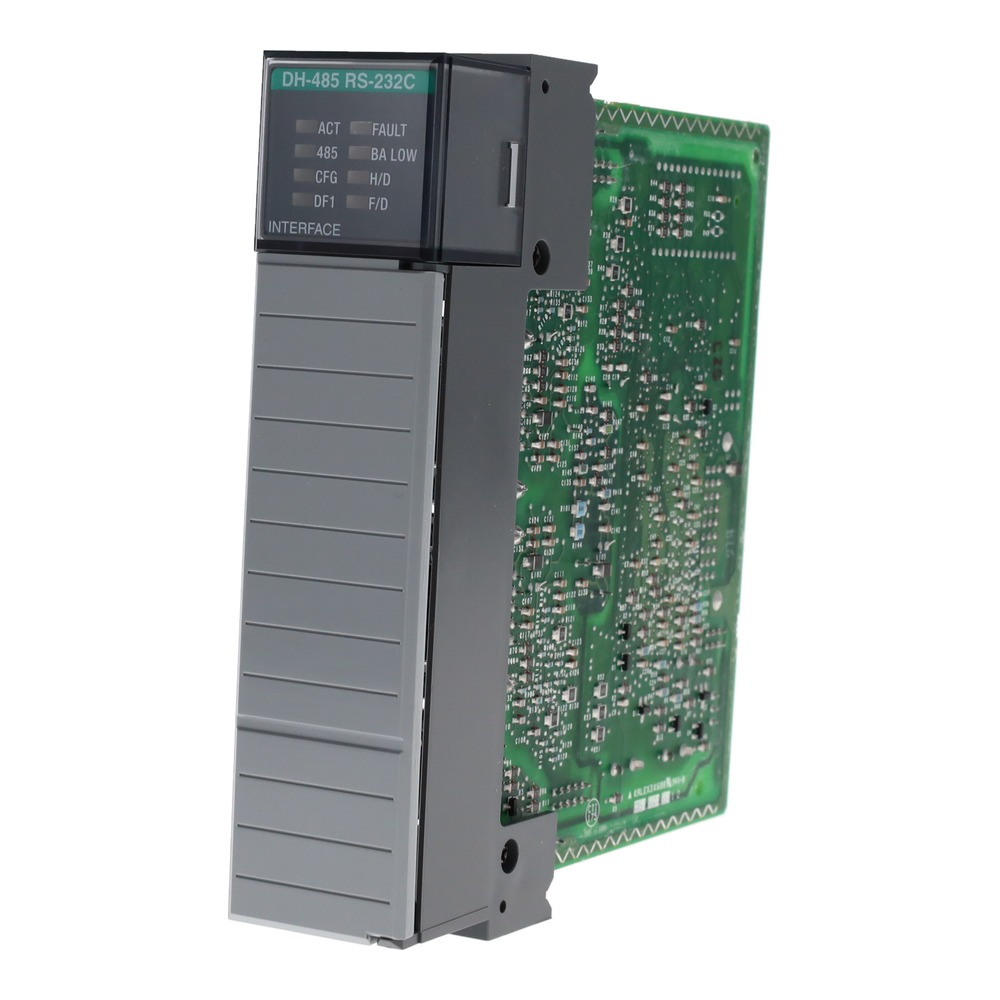

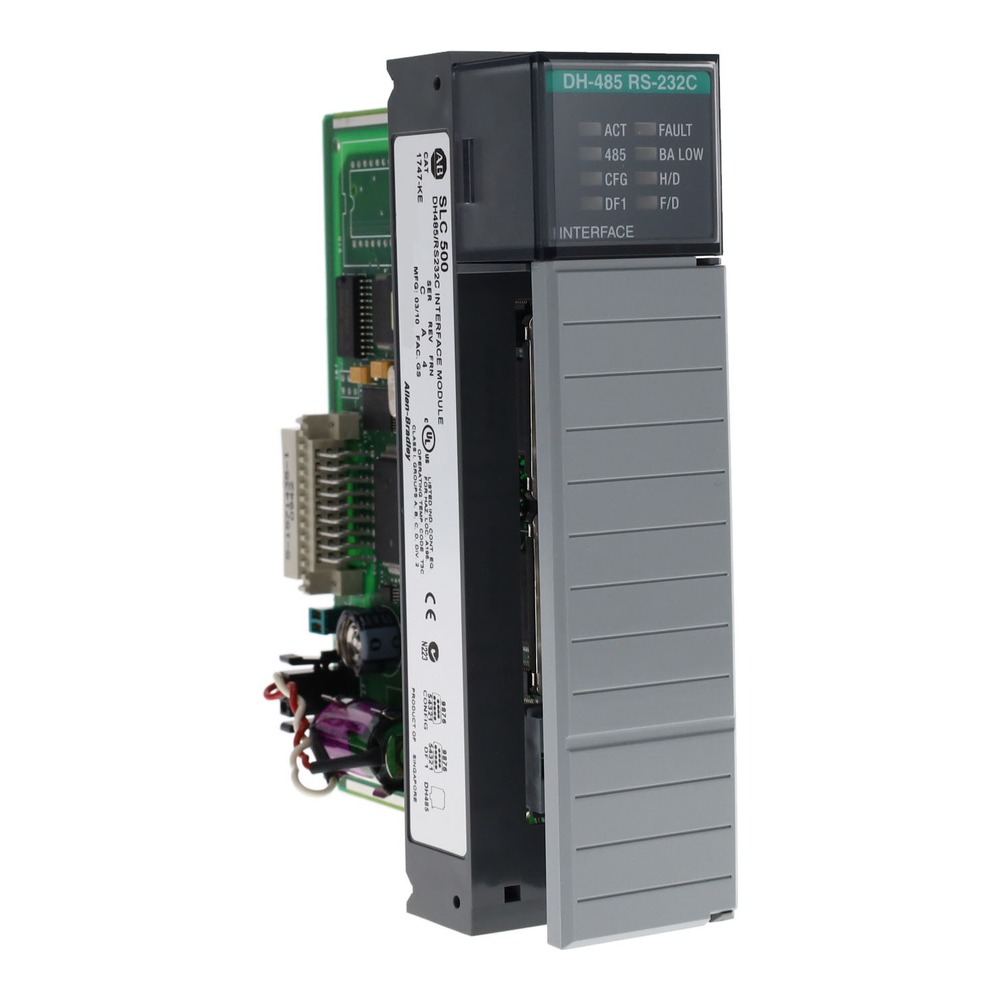

The 1747-KE provides three front-panel communication ports – CONFIG (ASCII terminal configuration), DF1 and DH-485 – and converts between the DH-485 token-passing network and DF1 full- or half-duplex links at 300 to 19200 bps. The DF1 port configures for RS-232/423, RS-422 or RS-485 devices, and modems (including dial-up) connect directly through the DF1 port. Configuration is held in battery-backed RAM, ports are isolated 500 V DC from the backplane and from each other, and the module draws only 150 mA @ 5 V DC and 40 mA @ 24 V DC. Eight front-panel LEDs report module and network status.
Key Features
- DH-485 to DF1 protocol bridging inside the SLC 500 chassis
- Three ports: CONFIG, DF1 and DH-485; DF1 supports RS-232/423, RS-422 and RS-485
- Transmission speed 300…19200 bps; supports dial-up and direct-connect modems
- Battery-backed configuration RAM with clock/calendar (±1 min/month at 25 °C)
- Port isolation 500 V DC (backplane-to-CONFIG, backplane-to-DF1, CONFIG-to-DF1)
- Backplane current 150 mA @ 5 V DC and 40 mA @ 24 V DC; single slot
- 8 front-panel LEDs; 6-pin Phoenix connector; Belden 9463 cable
- UL/C-UL Class I Division 2 Groups A-D listed; CE and C-Tick marked
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 (1747) |
| Series | SLC 500 |
| Part Number / Catalog No. | 1747-KE |
| Product Type | DH-485 / RS-232C Communication Interface Module |
| Communication Ports | 1 x CONFIG, 1 x DF1, 1 x DH-485 |
| Supported Protocols | DH-485; DF1 (full/half duplex) |
| DF1 Interface Options | RS-232/423, RS-422, RS-485 |
| Transmission Speed | 300 to 19200 bps |
| Port Isolation | 500 V DC (backplane/CONFIG/DF1, each pair) |
| Clock/Calendar Accuracy | ±1 min/month at 25 °C |
| Backplane Current | 150 mA @ 5 V DC; 40 mA @ 24 V DC |
| Cable / Connector | Belden 9463; 6-pin Phoenix connector |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5 to 95% non-condensing |
| Agency Certification | UL/C-UL Class I Div 2 Groups A-D; CE; C-Tick |
| Slots Used | 1 |
| Dimensions | 14.5 x 3.5 x 14 cm (5.7 x 1.4 x 5.5 in), approx (single-slot SLC 500 module) |
| Weight | 1.50 lbs (0.68 kg) |
Applications
The 1747-KE connects SLC 500 systems to SCADA and HMI equipment over switched telephone lines, radio modems or leased lines, and lets programming terminals and PanelView displays on DH-485 talk to remote DF1 devices. It remains the standard in-chassis bridge for legacy SLC networks that must reach out over serial infrastructure.
Why Buy from Us
This module is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN006 – DH485/RS-232C Interface Module (1747-KE) Installation Instructions | 1747-in006_-en-p.pdf |
| Publication | 1747-UM005 – DH-485/RS-232C Interface Module (1747-KE) User Manual | 1747-um005_-en-p.pdf |
