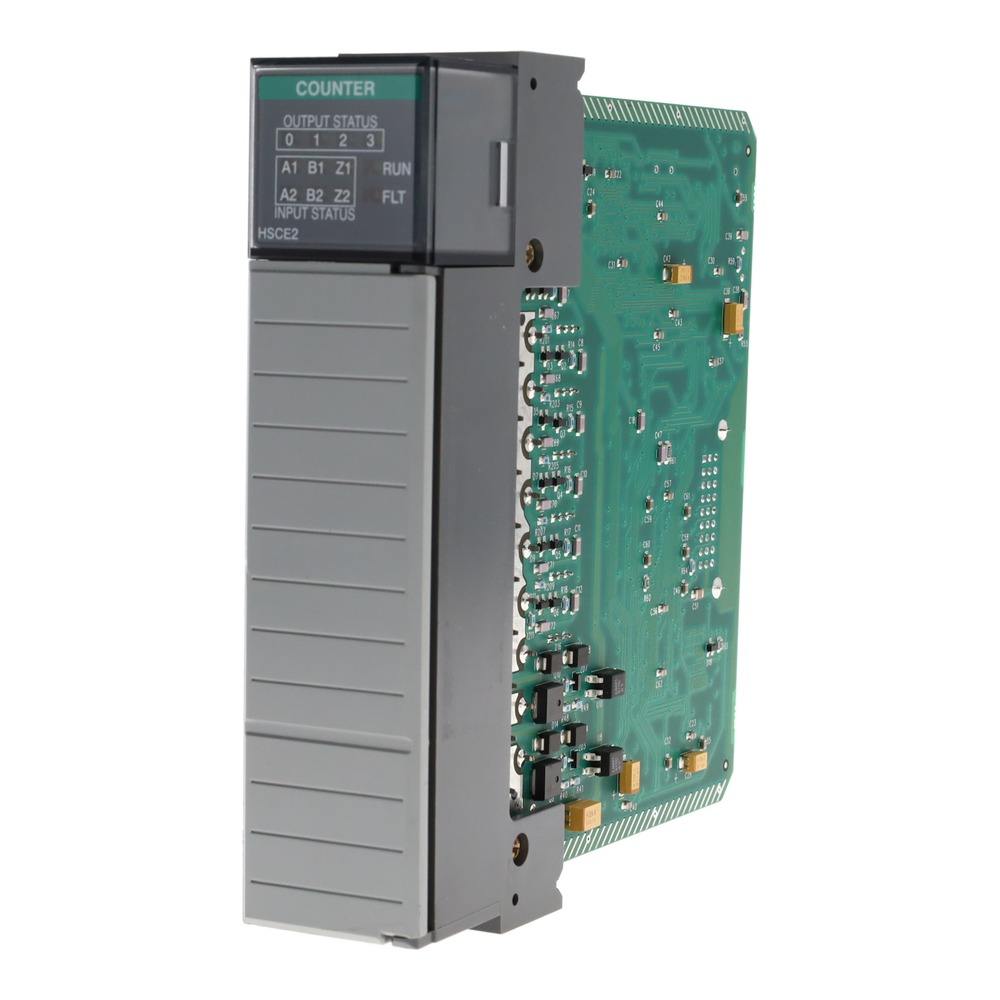

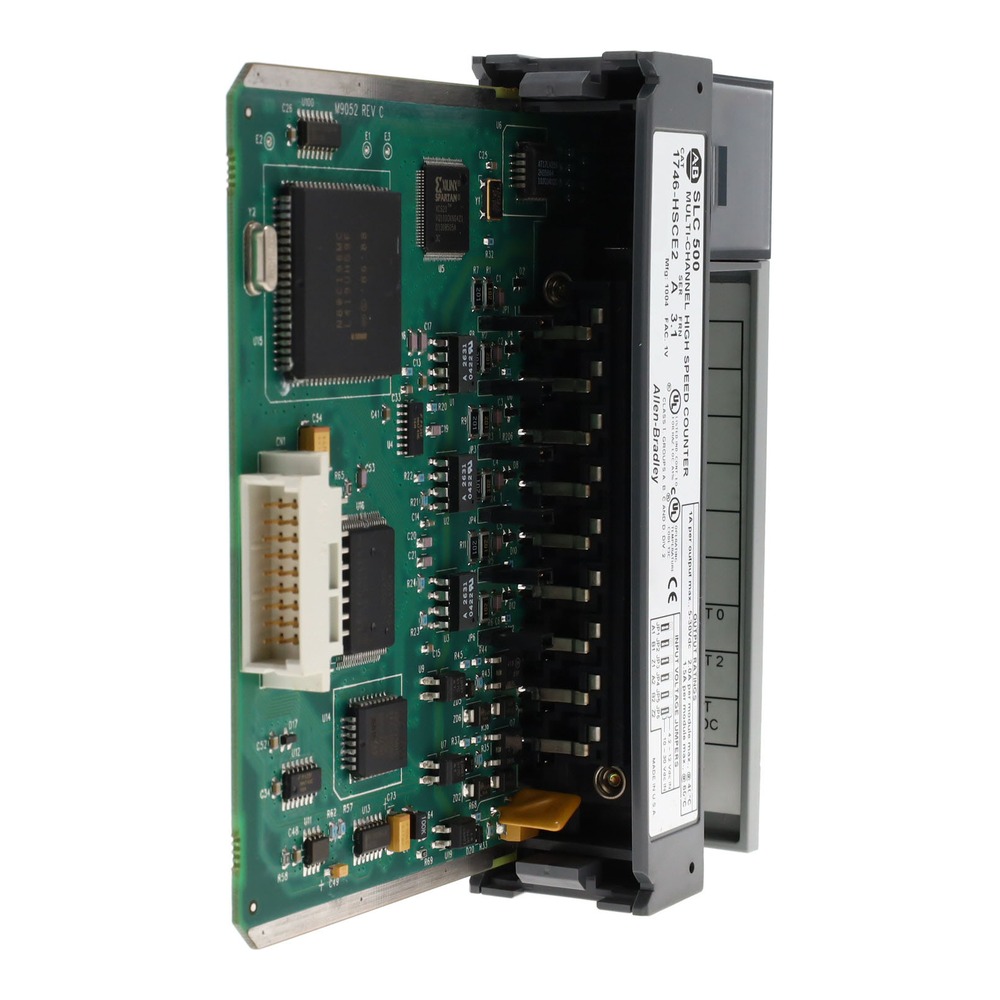

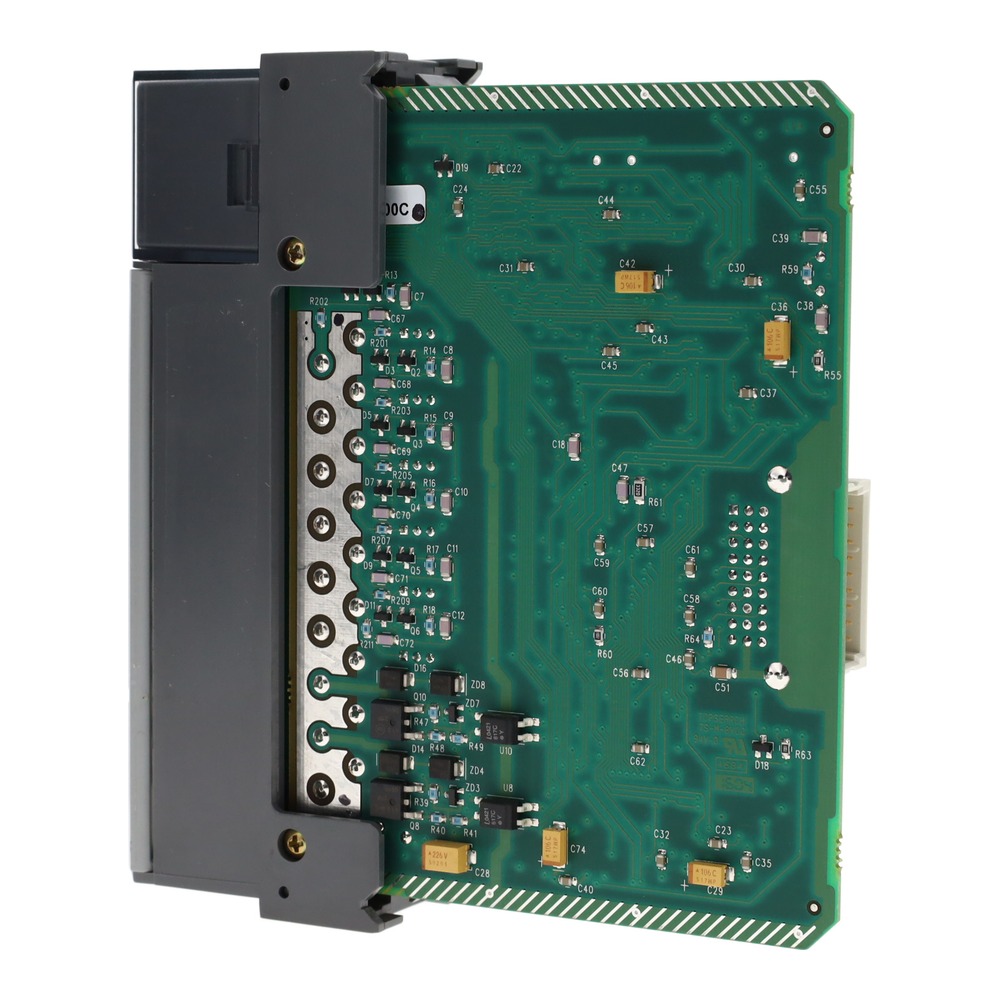

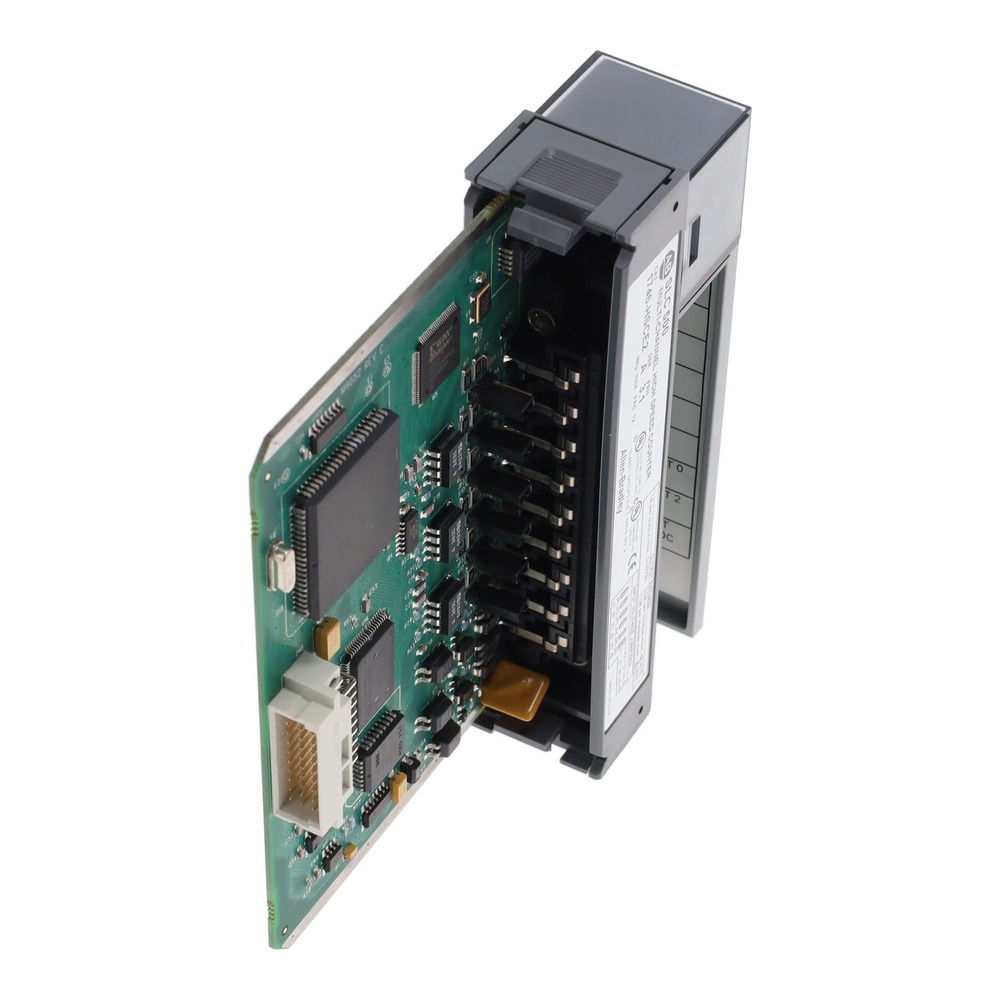

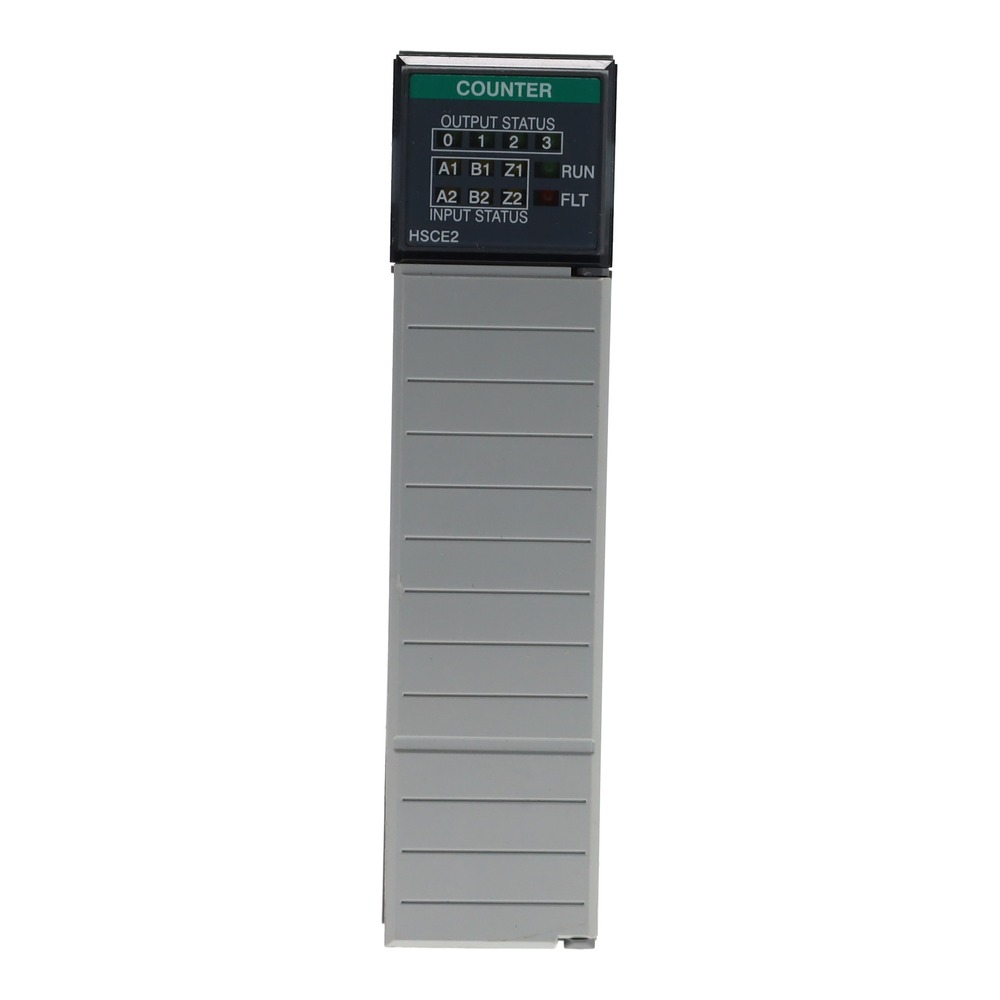

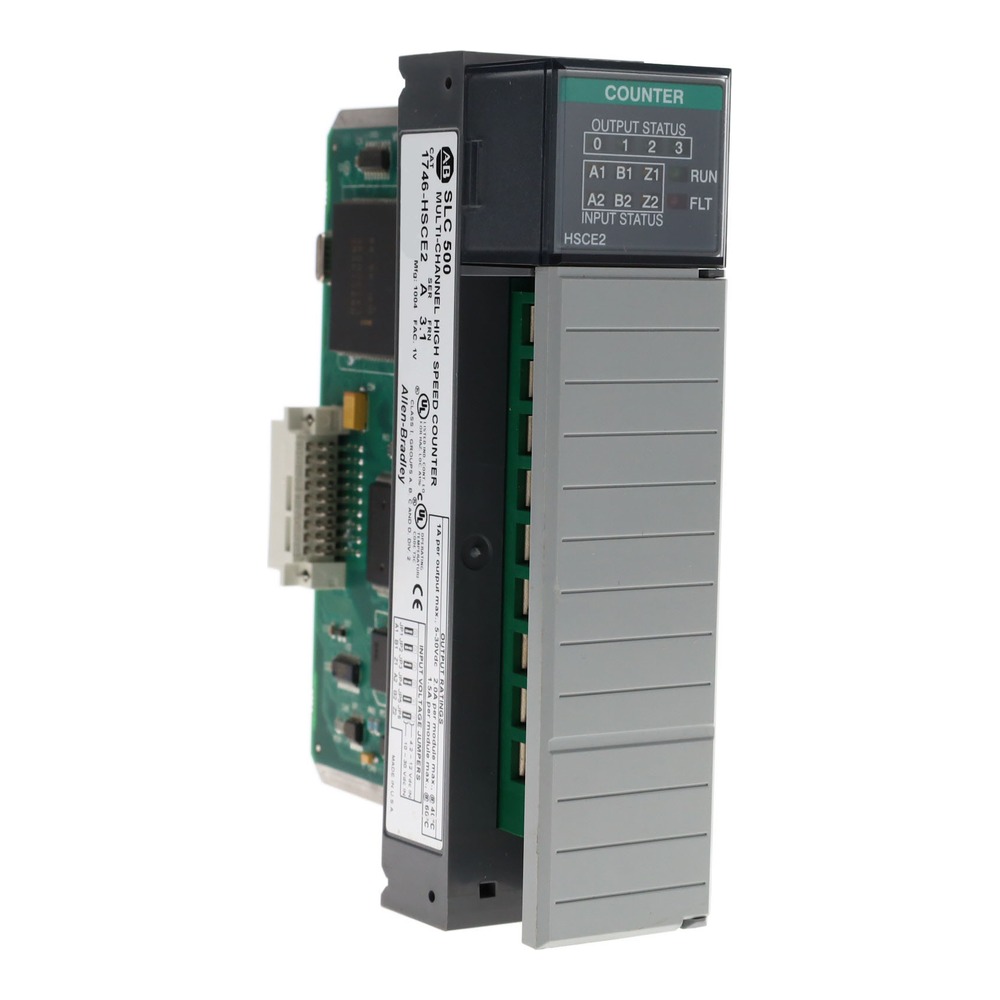

Allen-Bradley 1746-HSCE2 SLC 500 Multi-Channel High-Speed Counter Module
Allen-Bradley 1746-HSCE2 is an SLC 500 multi-channel high-speed counter module that counts bidirectionally up to 1 MHz and totalizes, rates and monitors position for high-speed motion applications.
Overview
The 1746-HSCE2 carries six dedicated counter inputs (±A1, ±B1, ±Z1, ±A2, ±B2, ±Z2) selectable between a 4.2 to 12 V DC window at 5 V DC and a 10 to 30 V DC window at 24 V DC. Inputs accept pulses as narrow as 475 ns with 200 ns minimum phase separation at a 1 MHz maximum frequency. Four real 5-30 V DC sourcing outputs plus four virtual outputs are on board, and each counter is 24-bit (counts to ±8,388,607) configurable as linear or ring. Up to four pulse counters or two quadrature counters run simultaneously, driven by the module’s own dedicated processor with a typical backplane response of 0.7 to 1.6 ms.
Key Features
- Multi-channel high-speed counter – up to 4 pulse counters or 2 quadrature counters
- 24-bit counting range ±8,388,607, linear or ring mode
- Inputs ±A1, ±B1, ±Z1, ±A2, ±B2, ±Z2; 4 single-ended + 2 differential quadrature inputs
- Maximum input frequency 1 MHz; minimum pulse width 475 ns; phase separation 200 ns
- Input voltage 5 V DC (4.2…12 V DC) or 24 V DC (10…30 V DC)
- Eight outputs – four real 5-30 V DC sourcing + four virtual
- Backplane current 250 mA @ 5 V DC; update time 1.5 ms; thermal dissipation 1.25 W
- Backplane isolation 1000 V DC; channel-to-output isolation 500 V AC
- Single slot; connects to encoders via 1746-RT25G; operates in any SLC 500 system and on a 1747-ASB RIO link
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 (1746 I/O) |
| Series | SLC 500 |
| Part Number / Catalog No. | 1746-HSCE2 |
| UPC | 611320083750 |
| Product Type | Multi-Channel High-Speed Counter Module |
| Number of Counters | 4 pulse / 2 quadrature, 24-bit (±8,388,607) |
| Inputs | ±A1, ±B1, ±Z1, ±A2, ±B2, ±Z2 (4 single-ended, 2 differential quadrature) |
| Input Voltage | 5 V DC: 4.2…12 V DC; 24 V DC: 10…30 V DC |
| Max. Input Frequency | 1 MHz |
| Min. Pulse Width / Phase Separation | 475 ns / 200 ns |
| Outputs | 4 real (sourcing, 5-30 V DC) + 4 virtual |
| Backplane Current | 250 mA @ 5 V DC |
| Update Time | 1.5 ms (typ. backplane response 0.7…1.6 ms) |
| Isolation | 1000 V DC backplane; 500 V AC channel-to-output |
| Encoder Cable | 1746-RT25G |
| Slots Used | 1 |
| Dimensions | 14.5 x 3.5 x 14 cm (5.7 x 1.4 x 5.5 in), approx (single-slot SLC 500 module) |
| Weight | 0.63 lbs (0.28 kg) |
| Thermal Dissipation | 1.25 W maximum |
| Country of Origin | United States of America |
Applications
The 1746-HSCE2 is built for encoder-based motion feedback: cut-to-length, registration, flow totalizing, web line-speed and position monitoring on packaging, converting and material-handling lines. Because counting runs on a dedicated processor, the SLC processor scan is never burdened by high-frequency pulses, and the module keeps counting through speed changes with on-the-fly preset adjustment.
Why Buy from Us

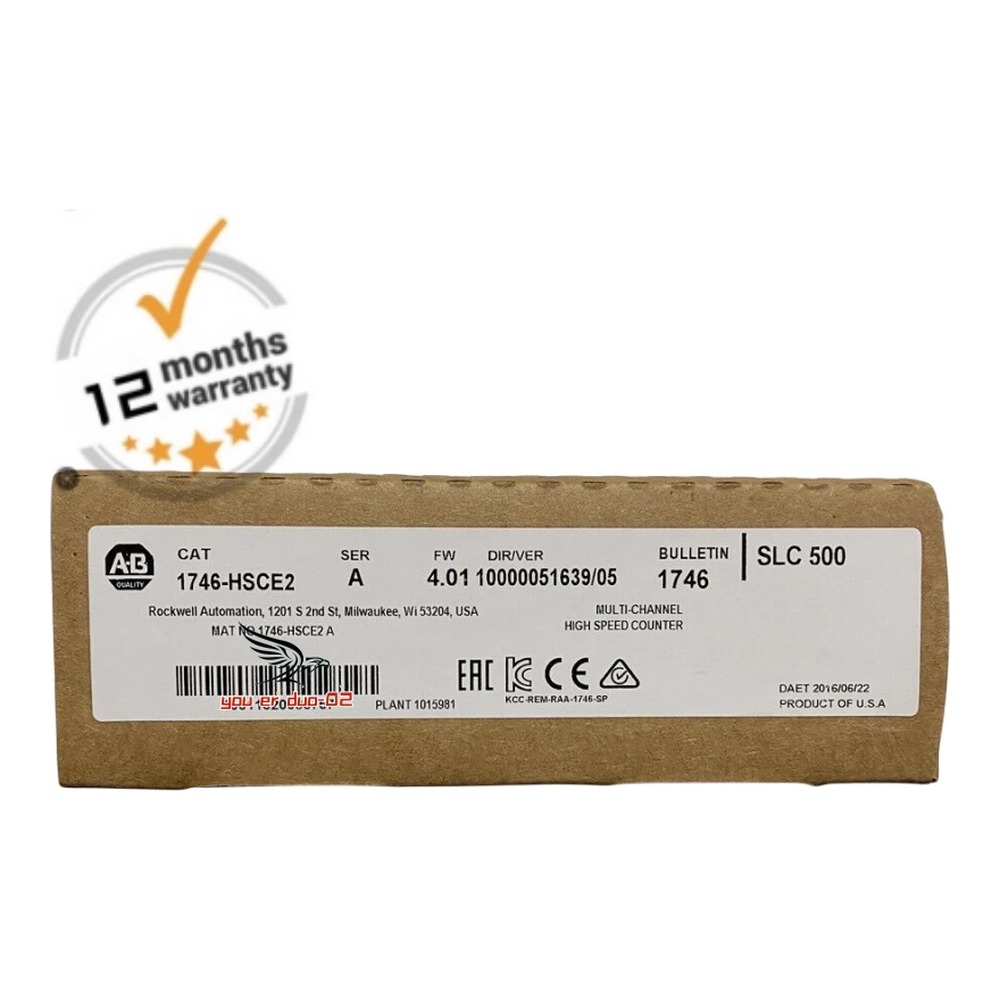

This module is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1746-IN002 – Multi-Channel High-Speed Counter 1746-HSCE2 Installation Instructions | 1746-in002_-en-p.pdf |
| Publication | 1746-UM002 – Multi-Channel High Speed Counter (1746-HSCE2) User Manual | 1746-um002_-en-p.pdf |
