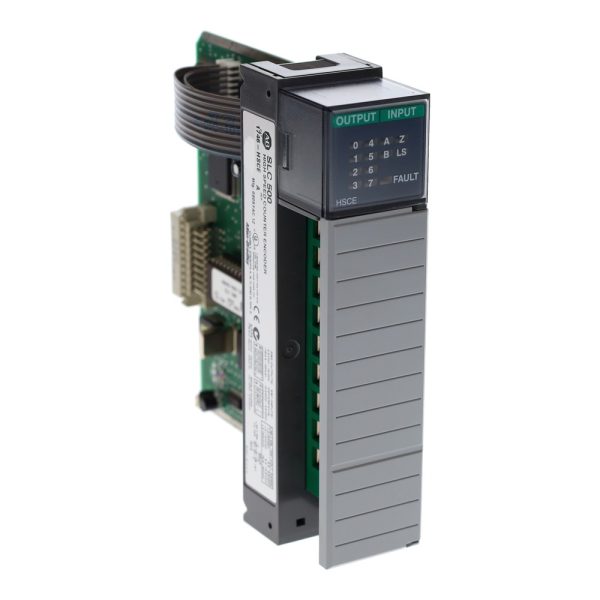

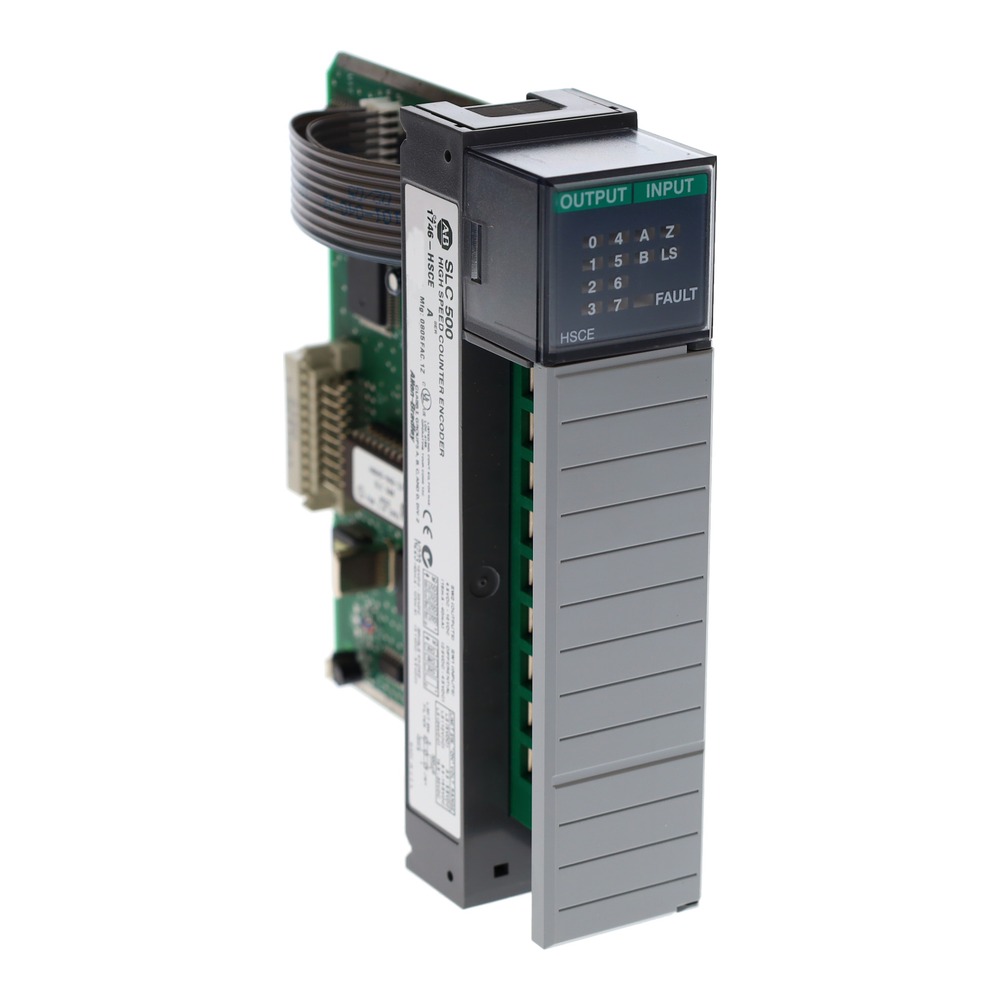

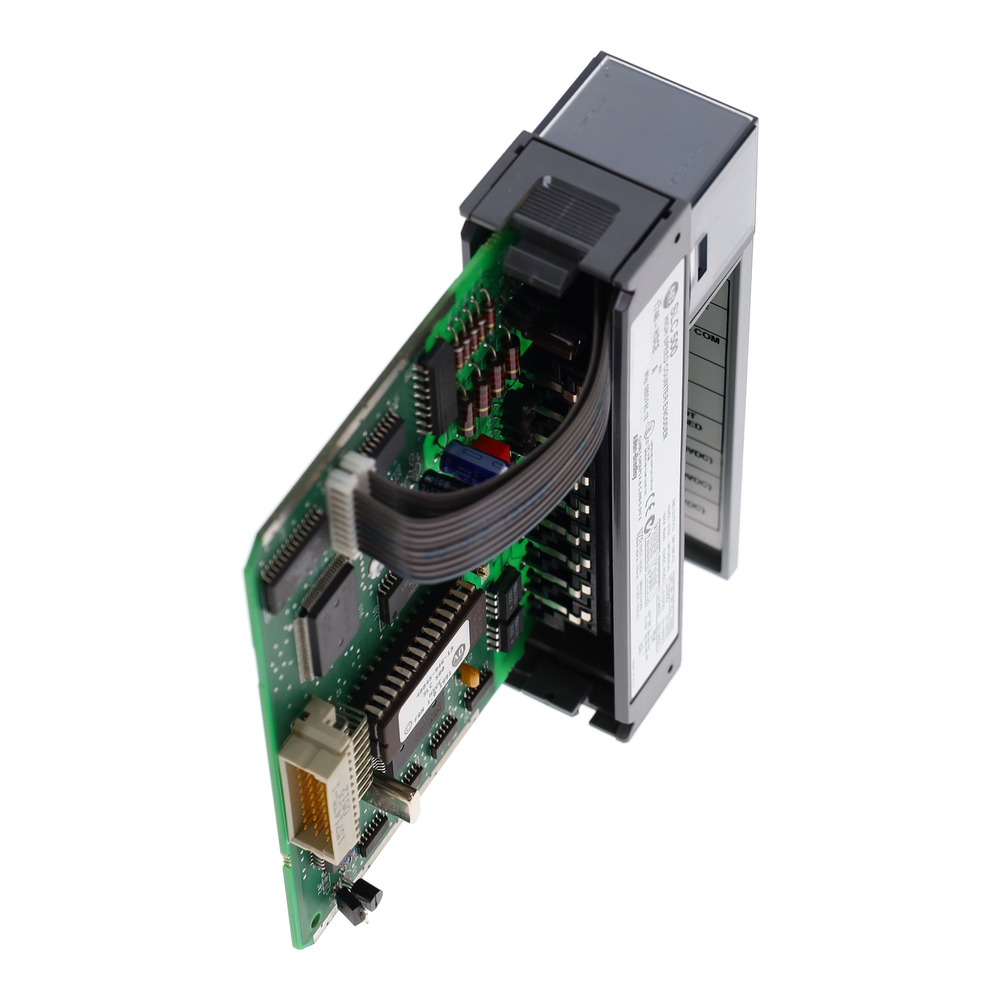

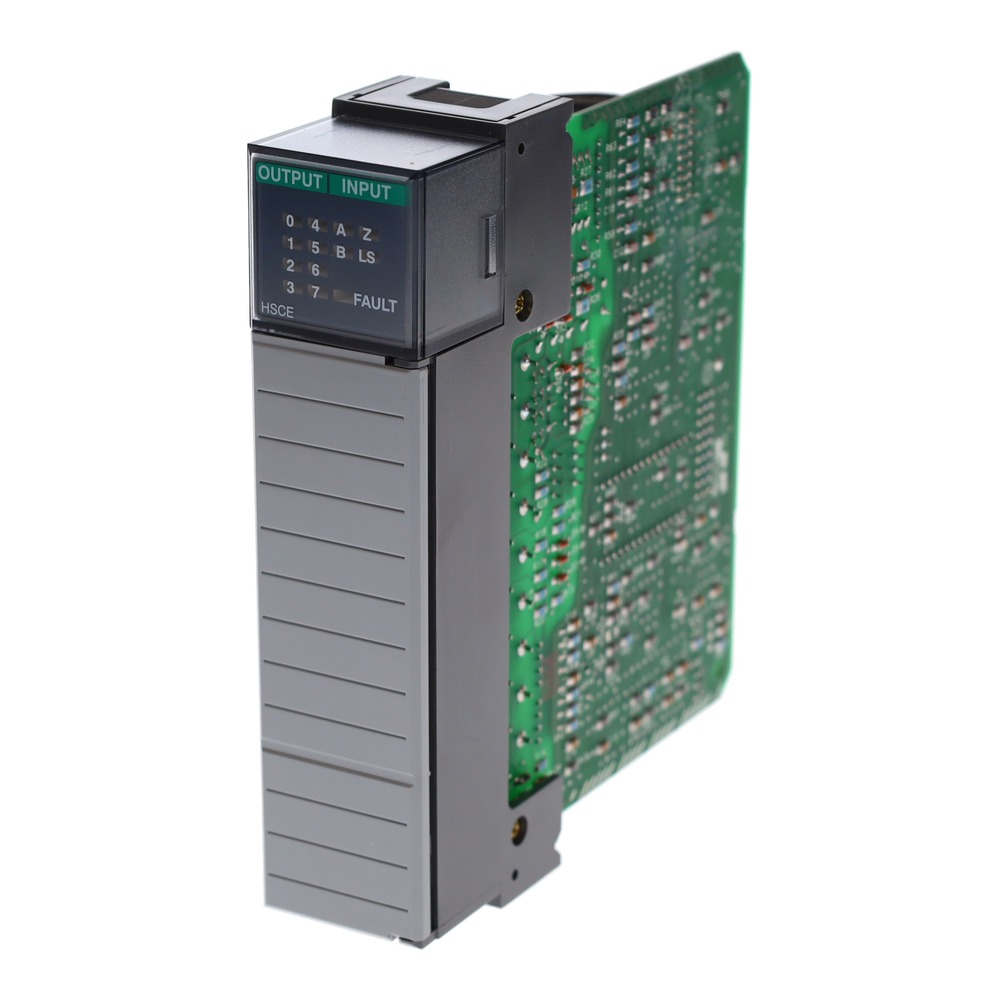

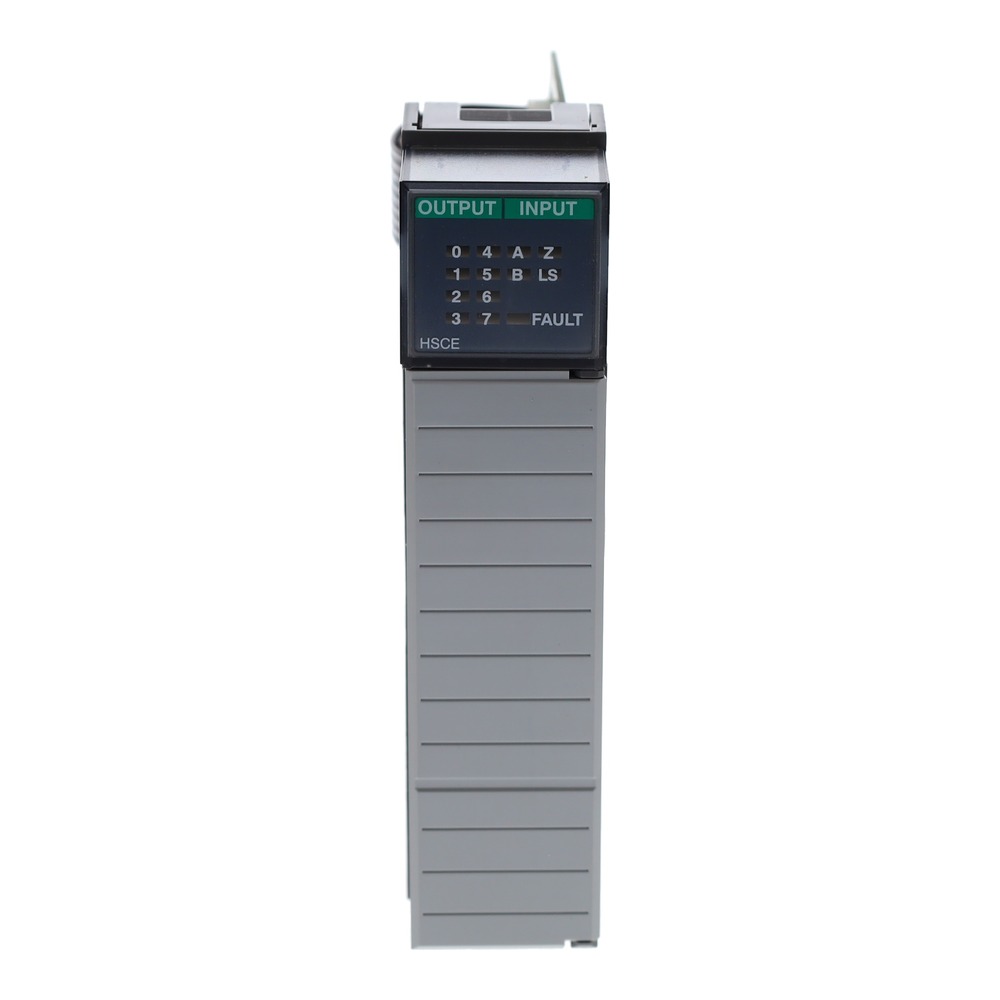

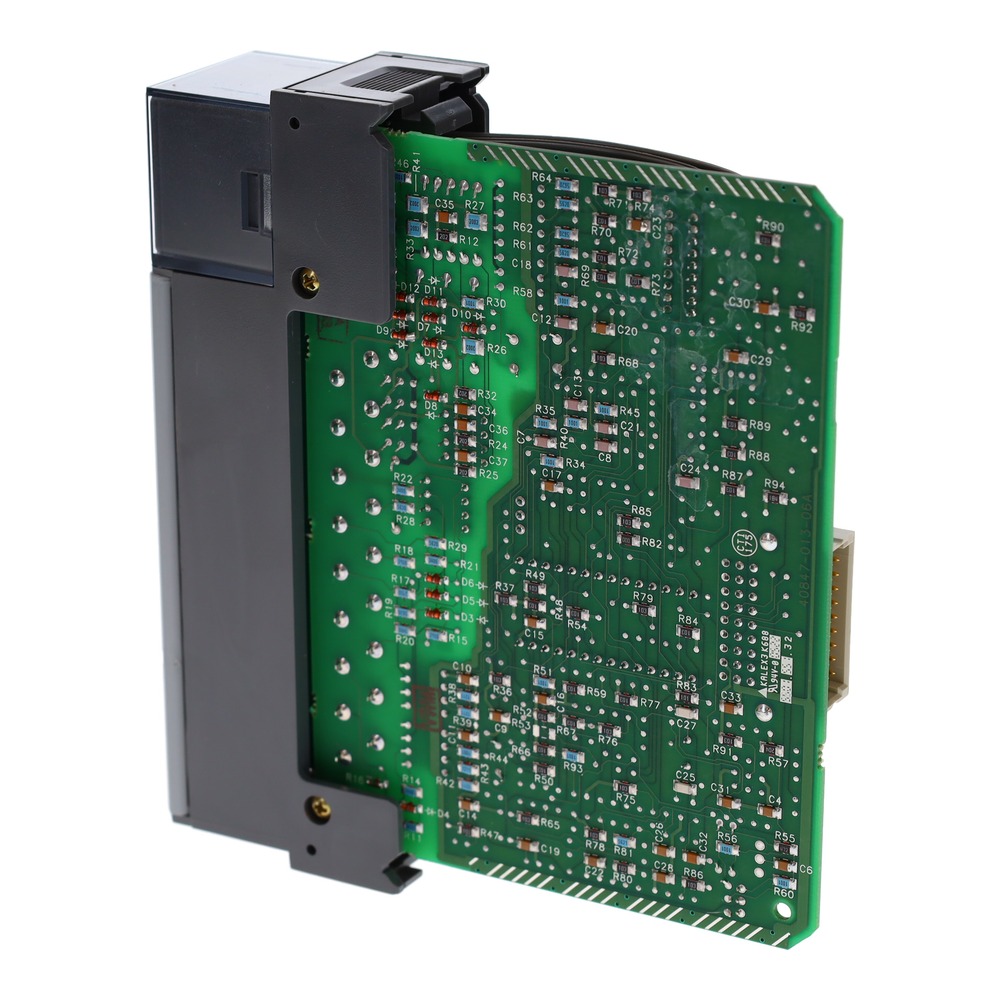

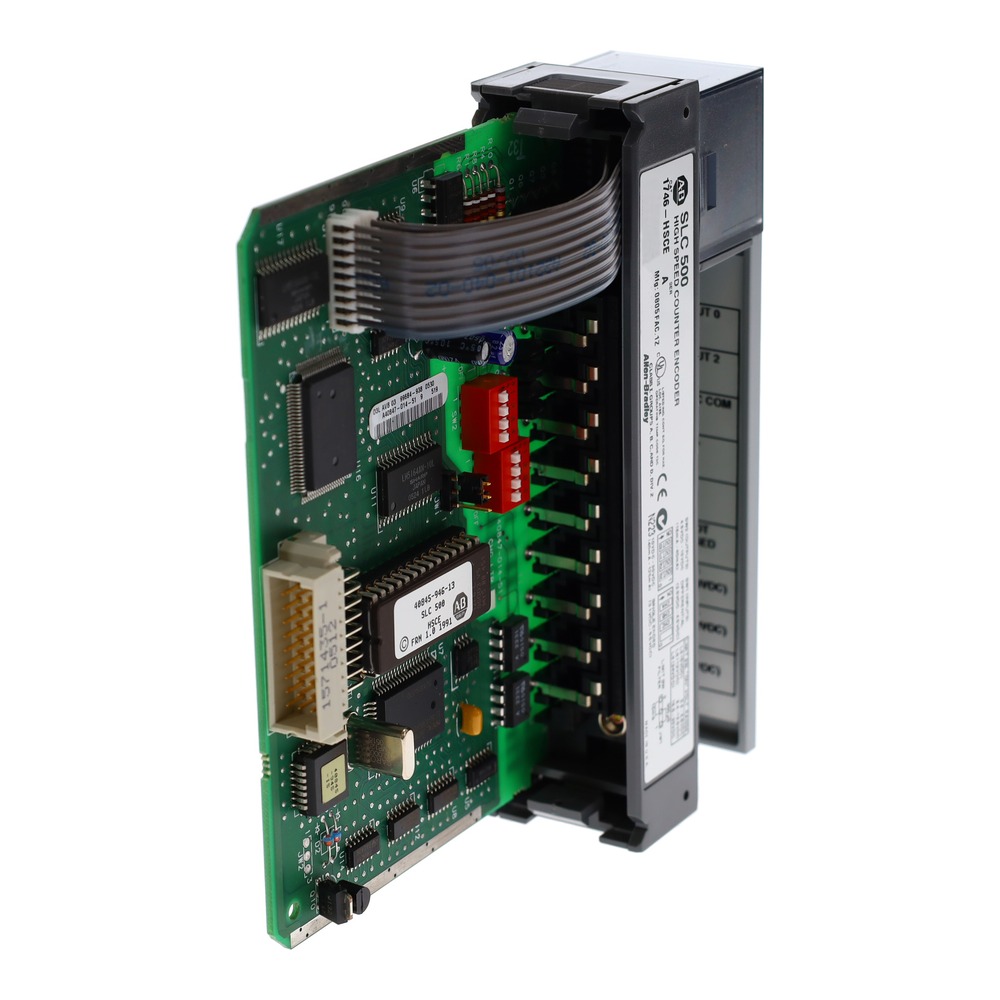

Allen-Bradley 1746-HSCE SLC 500 High-Speed Counter Module

Allen-Bradley 1746-HSCE is an SLC 500 high-speed counter module with one bidirectional counting channel that accepts quadrature, pulse/direction or up/down encoder inputs and drives four open-collector outputs.

Overview

The 1746-HSCE counts at full speed on a dedicated on-board processor, offloading high-frequency pulse training from the SLC processor scan. The single bidirectional channel supports quadrature, pulse/direction and up/down input modes, with range, rate and sequencer operating modes; throughput is 1.8 ms in sequencer mode and 3.9 ms in range mode. Four open-collector outputs rated for 5, 12 or 24 V DC provide direct control of indicator, trip and handshake functions, and the module is tested to a 1500 V isolation voltage.

Key Features

• One bidirectional high-speed counting channel
• Quadrature, pulse/direction and up/down input modes supported
• Range, rate and sequencer operating modes
• Four open-collector outputs; 5 / 12 / 24 V DC output voltage ratings
• Throughput 1.8 ms (sequencer mode), 3.9 ms (range mode)
• Tested isolation voltage 1500 V
• Single-slot SLC 500 module; country of origin Singapore

Technical Specifications

Applications

The 1746-HSCE suits encoder feedback tasks on legacy SLC 500 lines – length measurement, cut-to-length cutoffs, totalizing and simple positioning where one axis must be tracked exactly regardless of processor scan time. It pairs with differential or single-ended encoders and keeps its four outputs available for at-speed, zero-mark and preset trip functions.

Why Buy from Us

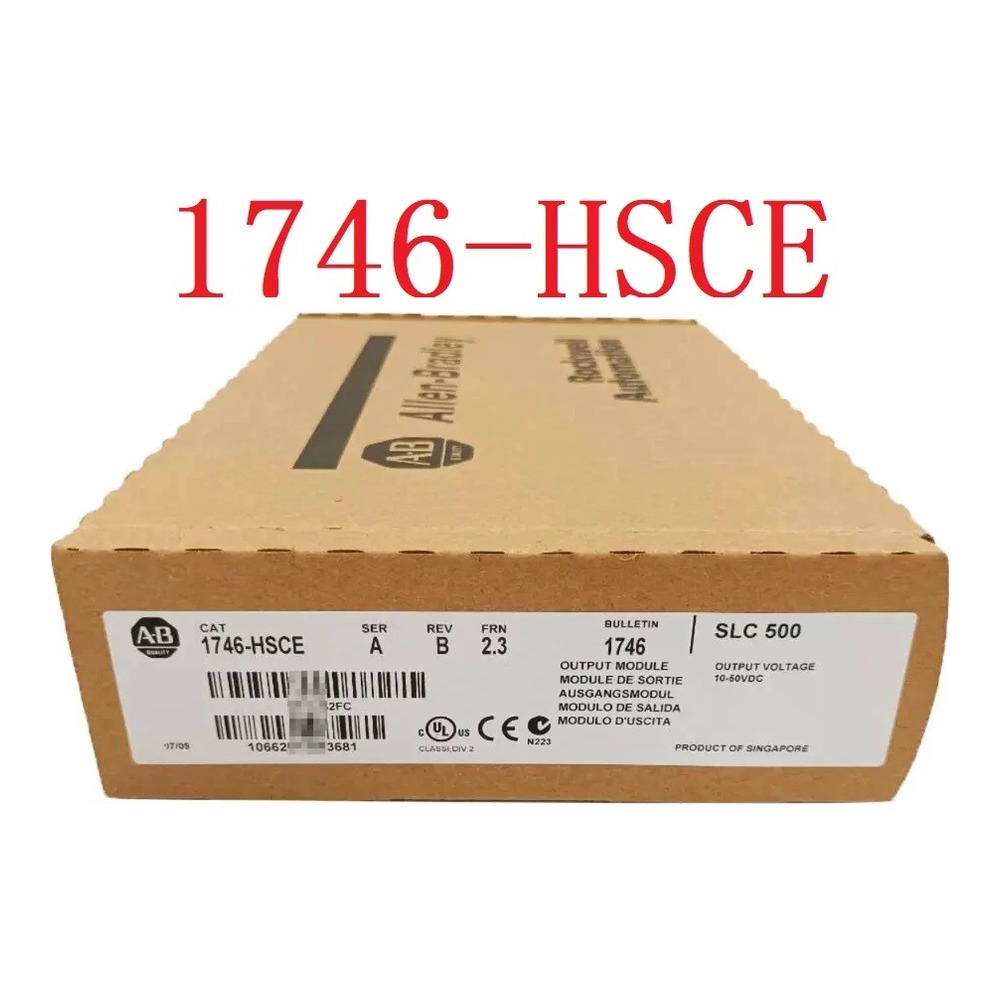

This module is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
