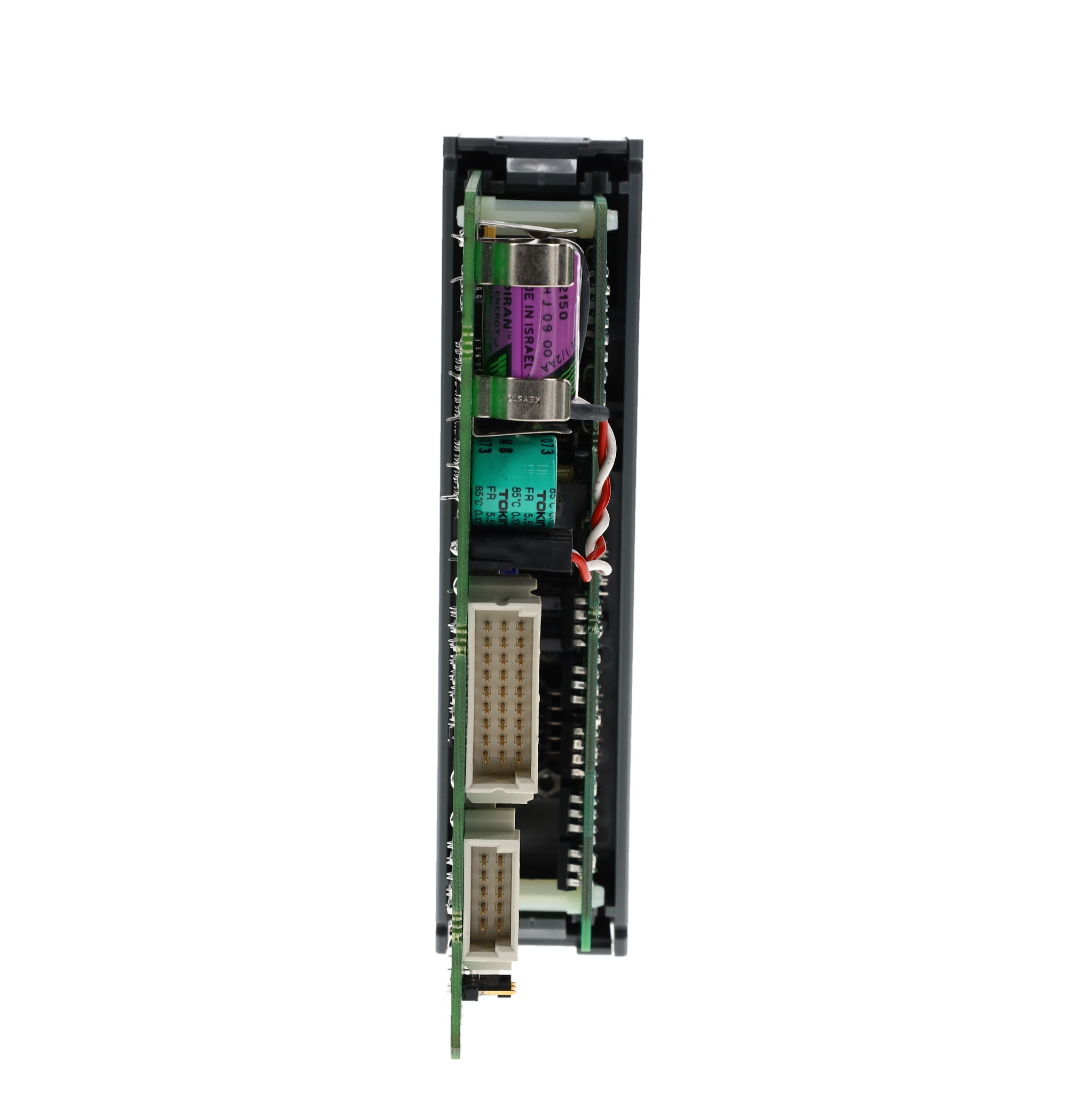

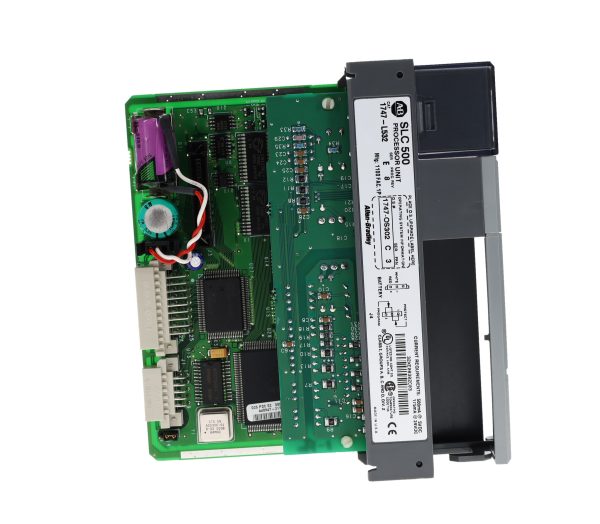

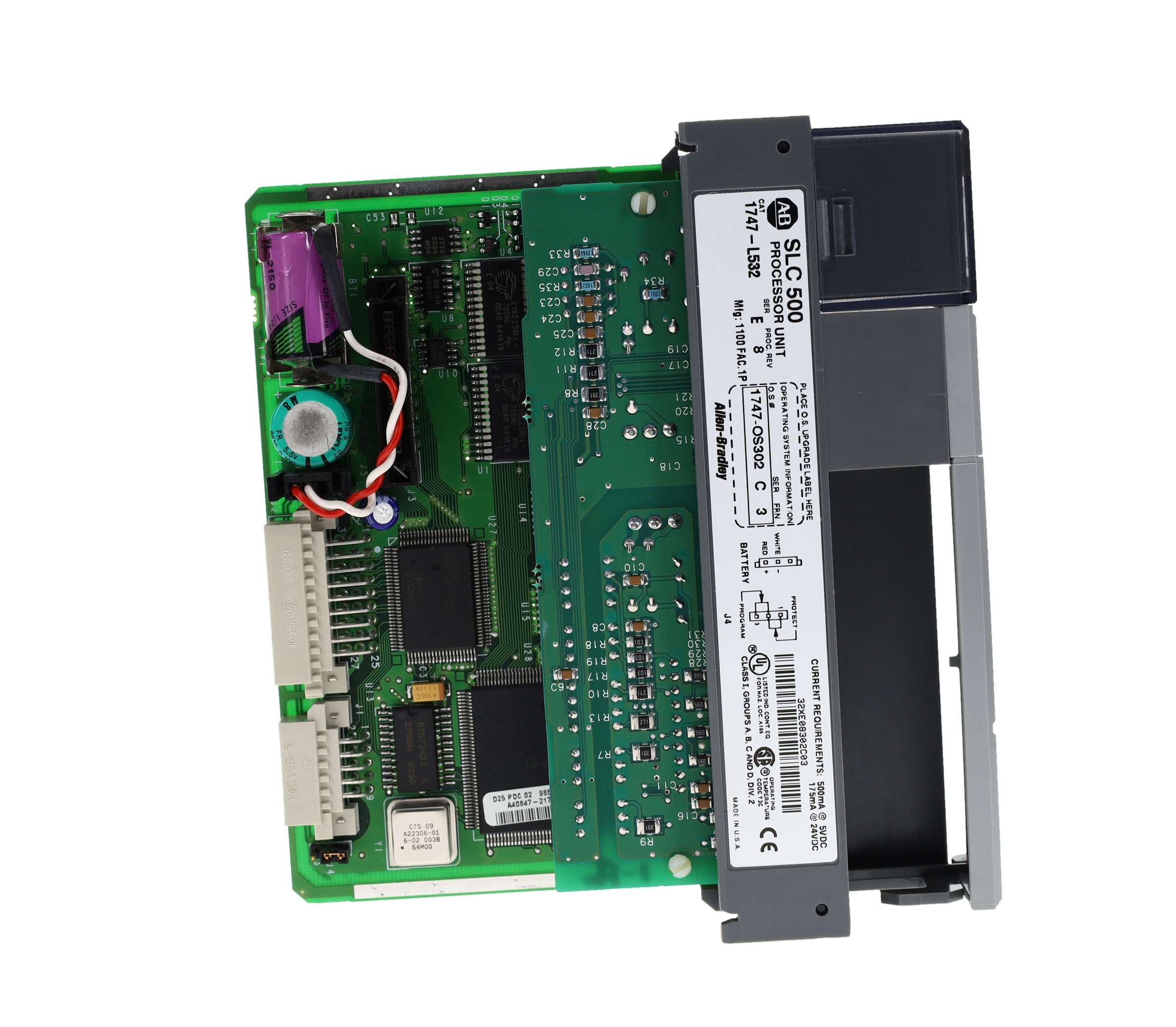

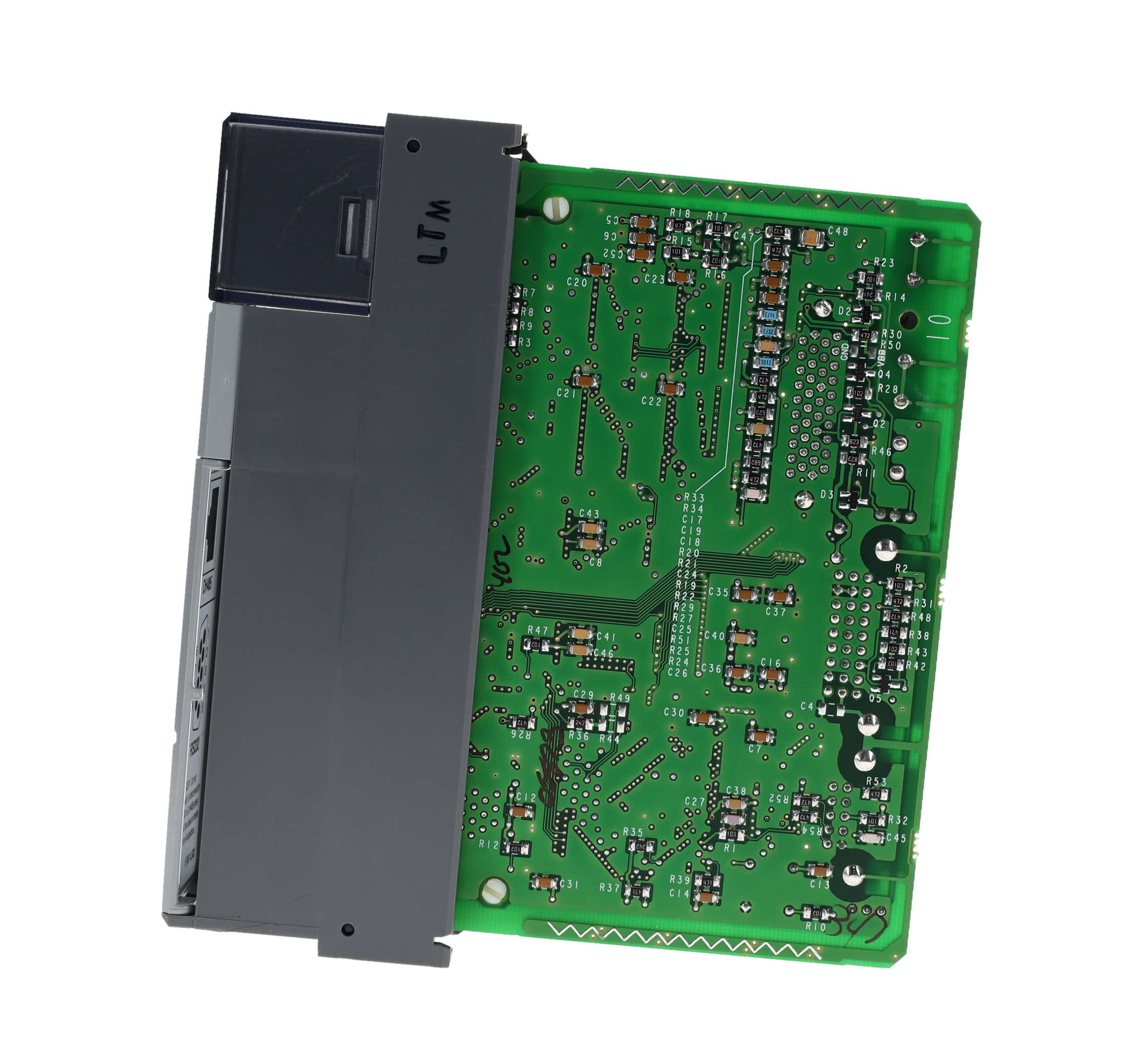

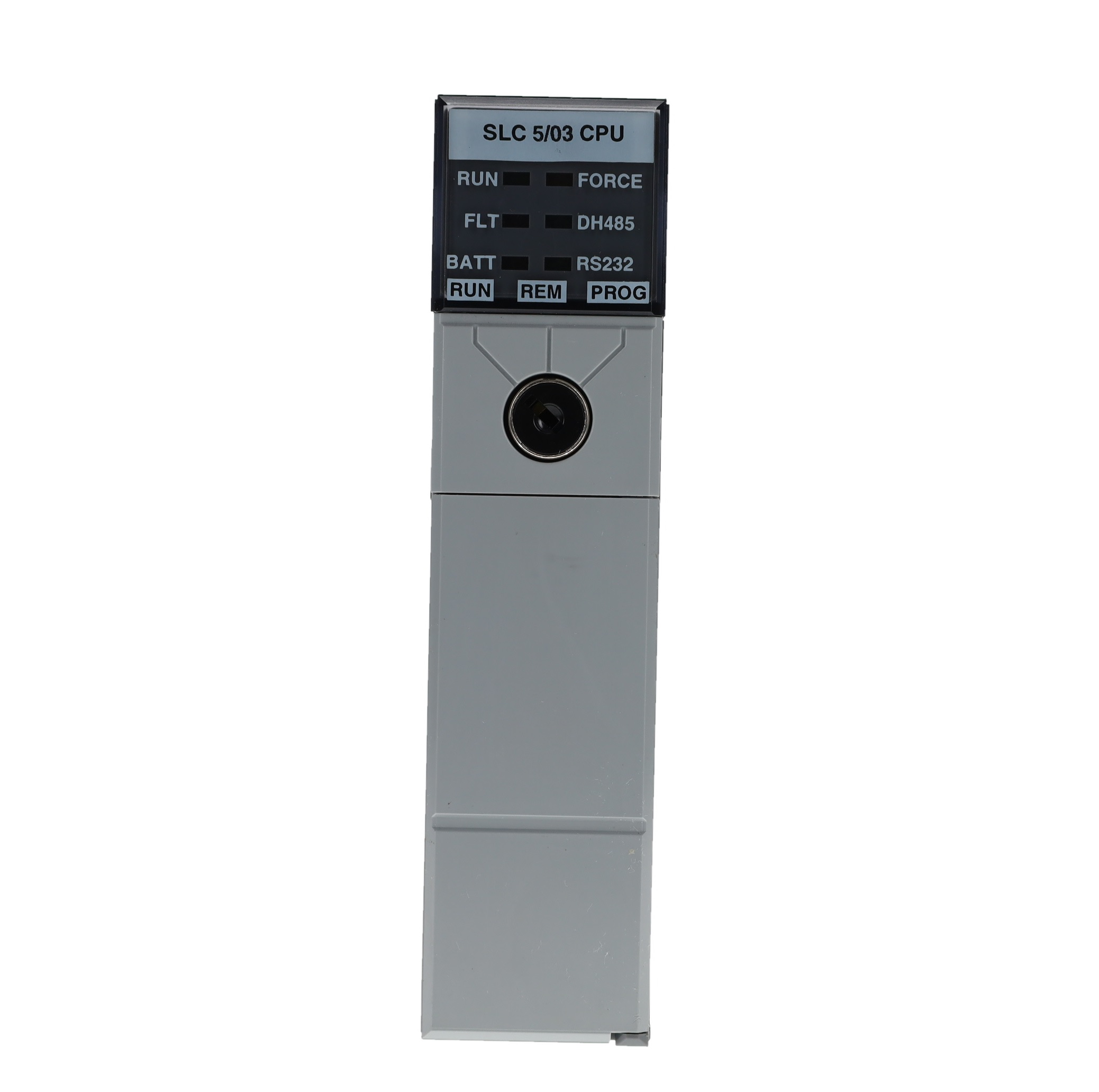

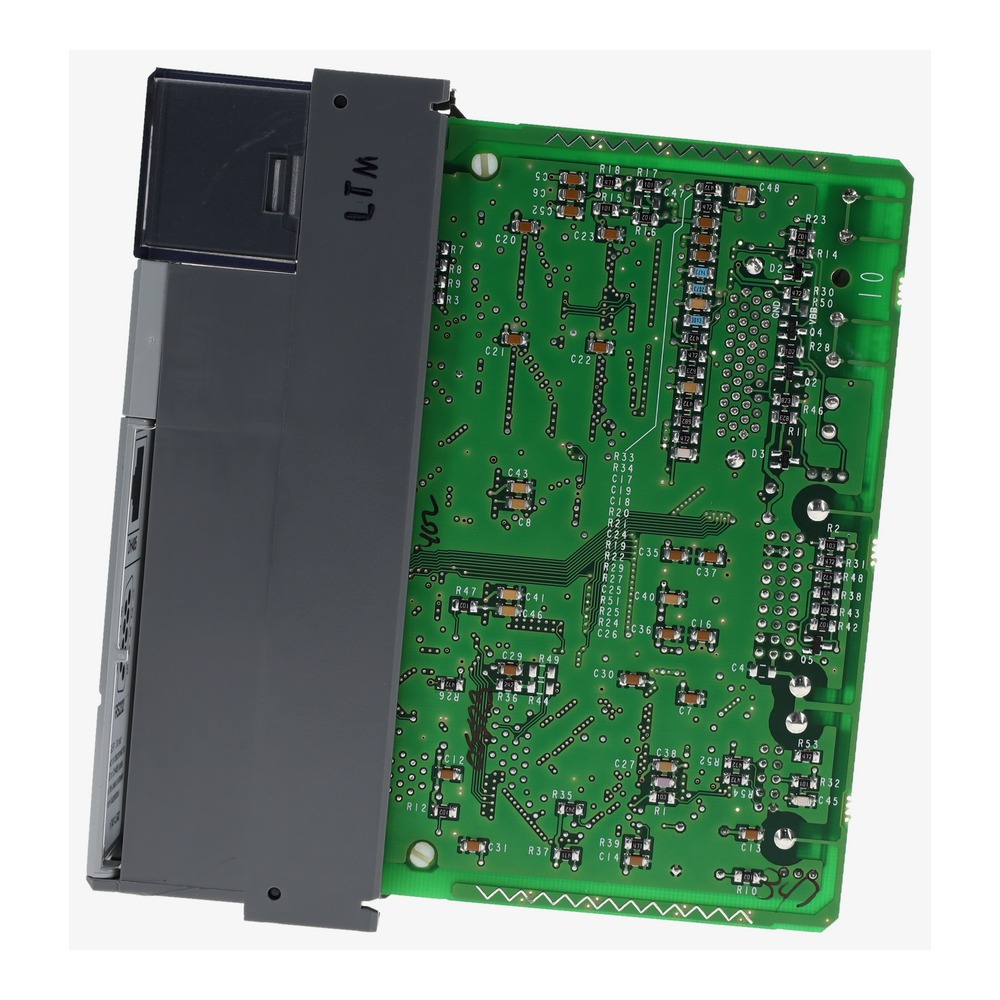

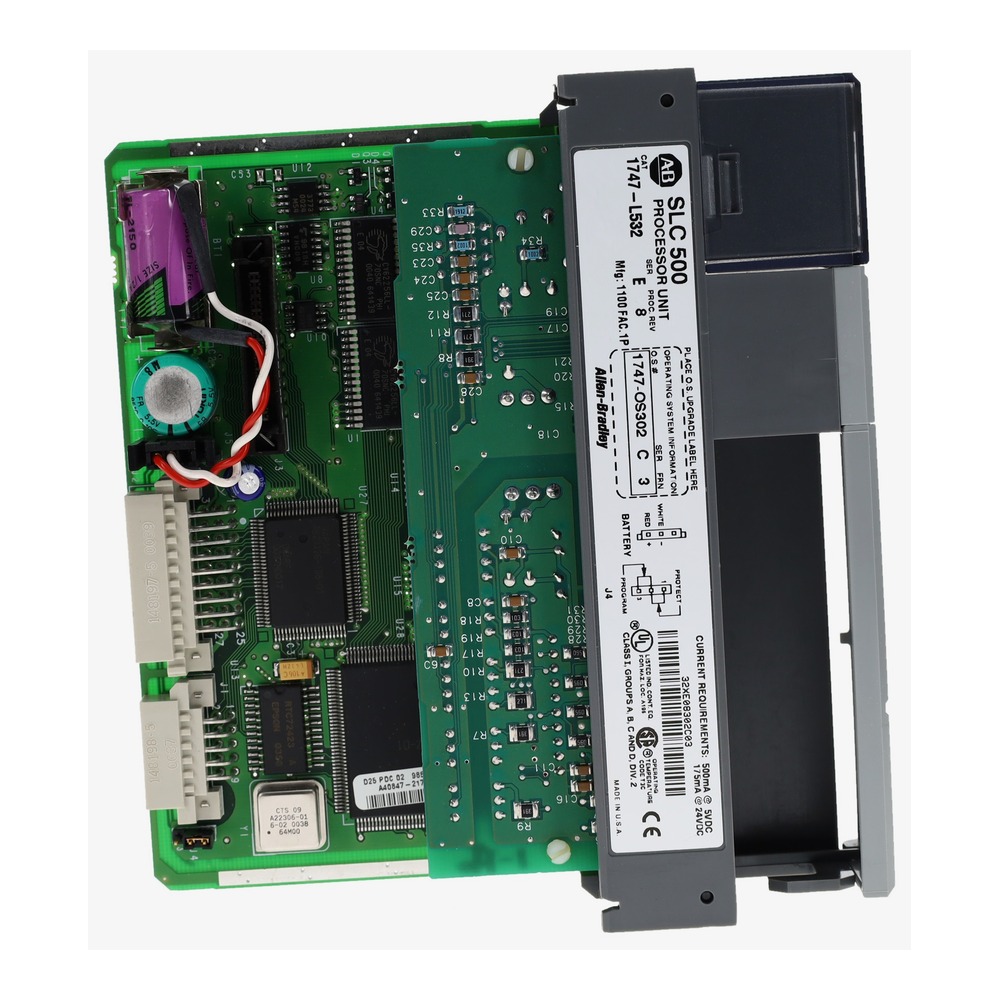

Allen-Bradley 1747-L532 SLC 5/03 Processor, 16K Memory, DH-485 + RS-232
Allen-Bradley 1747-L532 is an SLC 500 slc 5/03 occupying a single slot of a 1746 I/O chassis, with 16K words of user memory and dh-485 + rs-232.
Overview
The processor mounts in a single slot of a 1746 I/O chassis and is powered from the chassis power supply (1746-P1 to 1746-P7). It addresses up to 4096 discrete inputs and 4096 discrete outputs across up to three local chassis (30 slots). User memory is 16K words with battery-backed RAM and a user-replaceable 1747-BA battery. Communication is DH-485 + RS-232 (DF1); scan times are 1 ms/K per Kword for programs and 0.225 ms for I/O, with backplane current draw of 500 mA at 5V DC / 175 mA at 24V DC. A 1747-M13 Flash EPROM module provides non-volatile program backup, and the processor draws 2.9 W total.
Key Features
- SLC 500 SLC 5/03 – 16K words user memory, single 1746 chassis slot
- 4096 discrete inputs / 4096 discrete outputs; up to 3 local chassis / 30 slots
- Communication: DH-485 + RS-232 (DF1)
- Scan times: 1 ms/K program / 0.225 ms I/O; backplane 500 mA at 5V DC / 175 mA at 24V DC
- Battery-backed RAM with user-replaceable 1747-BA battery; 1747-M13 Flash EPROM module backup memory support
- Open-style module, 14 x 3.5 x 14.5 cm (5.5 x 1.4 x 5.7 in)
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 |
| Processor Series | SLC 5/03 |
| Part Number / Catalog No. | 1747-L532 |
| UPC | 662468217880 |
| User Memory | 16K words |
| Max. Discrete I/O | 4096 Inputs / 4096 Outputs |
| Communication | DH-485 + RS-232 (DF1) |
| Typical Program Scan Time | 1 ms/K |
| Typical I/O Scan Time | 0.225 ms |
| Backplane Current Draw | 500 mA at 5V DC / 175 mA at 24V DC |
| Backup Memory | 1747-M13 Flash EPROM module |
| Power Supply | Via 1746 I/O chassis power supply (1746-P1 to 1746-P7) |
| Mounting | 1746 I/O chassis, single slot |
| Dimensions | 14 x 3.5 x 14.5 cm (5.5 x 1.4 x 5.7 in) |
| Weight | 1.25 lbs (0.57 kg) |
| Total Power Consumption | 2.9 Watts |
| Maximum Programming Instructions | 107 Instructions |
| Compatible Flash EPROM Module | 1747-M13 |
Applications
The 1747-L532 doubles the 5/03 memory to 16K words for larger sequential and process programs, with 107 instruction types, Flash EPROM backup via 1747-M13 and DH-485 plus DF1 communication – a common choice for wastewater skids, packaging machines and retrofit SLC 500 systems.
Why Buy from Us
This product is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN009 — SLC 500 Modular Hardware Style Installation Instructions | 1747-in009_-en-p.pdf |
| Publication | 1747-UM013 — SLC 500 Modular Hardware Style User Manual | 1747-um013_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA Declaration of Conformity (SLC 500 family) | slc500-ct007_-en-e.pdf |
| Morocco Declaration of Conformity (SLC 500 family) | slc500-ct008_-fr-e.pdf |
Per the Rockwell Automation product certification listing. Please review the product label to confirm the certifications your specific unit carries.
