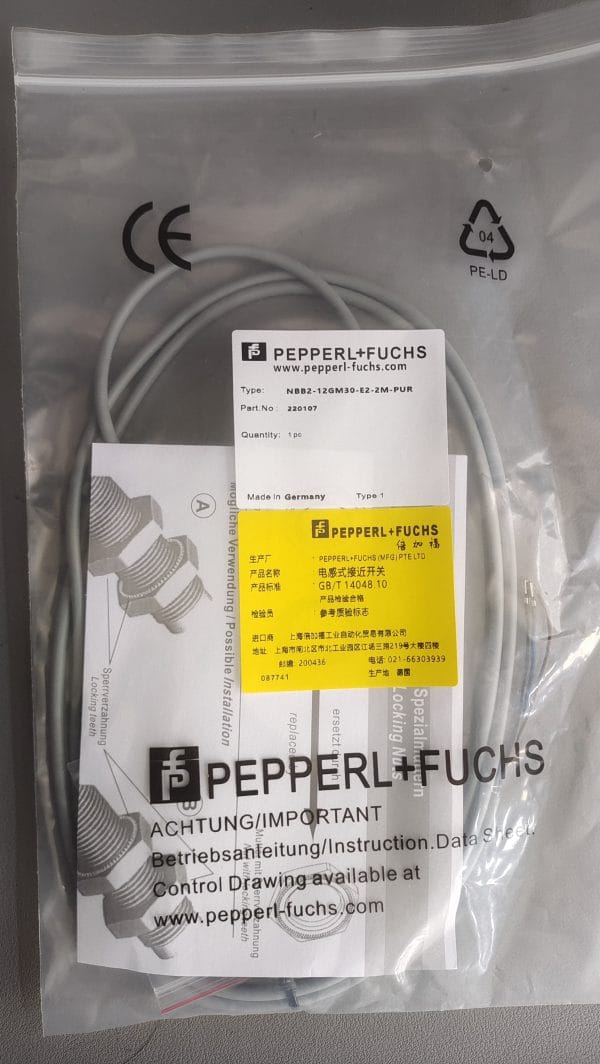

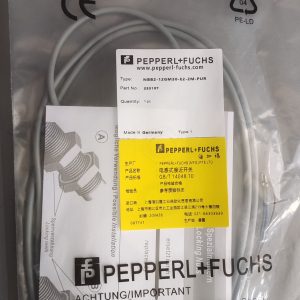

Sale!SensorsPepperl+Fuchs NBB2-12GM30-E2-PUR inductive proximity sensor
$125.40 Original price was: $125.40.$29.04Current price is: $29.04.
Key Specifications
- Sensing Range: 2 mm.
- Output Type: PNP, Normally Open (N.O.).
- Operating Voltage: 10 to 30 V DC (extended ranges up to 36 V DC are available on some newer models).
- Switching Frequency: Up to 800 Hz.
- Cable: 2-meter long PUR (Polyurethane) jacket, which is hard-wearing and resistant to oils and chemicals.
- Housing: M12 cylindrical, nickel-plated brass.
- Protection Rating: IP67.
- Ambient Temperature: -25°C to 70°C (-13°F to 158°F).
General specifications
| Switching function | | Normally open (NO) |
| Output type | | PNP |
| Rated operating distance | sn | 2 mm |
| Installation | | flush |
| Output polarity | | DC |
| Assured operating distance | sa | 0 … 1.62 mm |
| Actuating element | | mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
12 mm x 12 mm x 1 mm |
| Reduction factor rAl | | 0.29 |
| Reduction factor rCu | | 0.23 |
| Reduction factor r304 | | 0.78 |
| Reduction factor rBrass | | 0.42 |

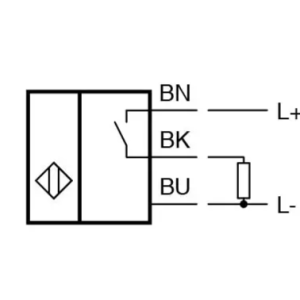

| Output type | | 3-wire |
Mechanical specifications
| Connection type | | cable |
| Housing material | | brass , white bronze coated |
| Sensing face | | PBT , green |
| Degree of protection | | IP65 / IP66 / IP67 / IP68 |
| Cable | | |
| Wire end ferrules | | yes | | Cable diameter | | 4.3 mm ± 0.1 mm | | Bending radius | | > 10 x cable diameter | | Material | | PUR | | Color | | black | | Number of cores | | 3 | | Core cross section | | 0.34 mm2 | | Length | L | 2 m |
|
| Mass | | 71 g |

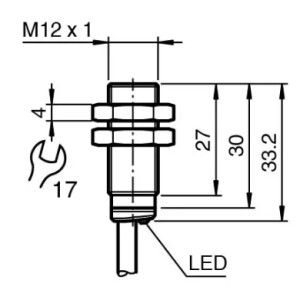

| Dimensions | | |
|
| Mounting | | with nuts, M12 |
| Tightening torque | | ≤ 10 Nm |
Technical Data Sheet
NBB2-12GM30-E2-PURInstallation conditions
