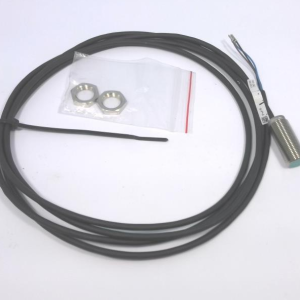

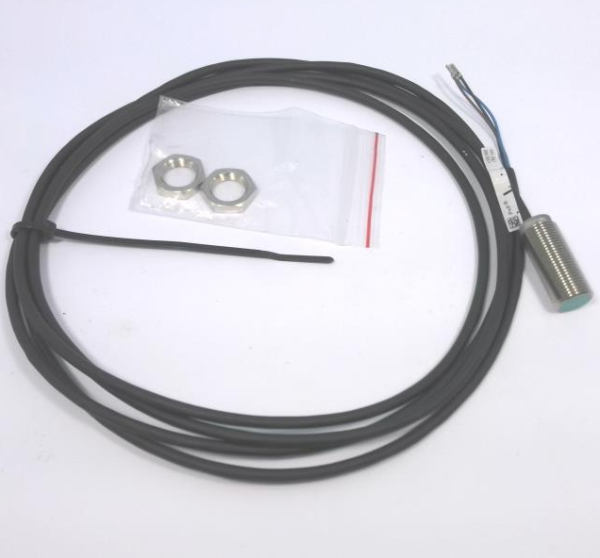

NBB2-12GM30-E2-2M-PUR Overview
The NBB2-12GM30-E2-2M-PUR is a high-performance inductive proximity sensor designed for demanding industrial applications. Combining the renowned reliability of Pepperl+Fuchs engineering with a rugged construction, this M12 cylindrical sensor offers precise non-contact detection of metallic targets in a compact form factor. Its integrated 2-meter PUR (Polyurethane) cable ensures exceptional resistance to cooling lubricants, hydraulic oils, and continuous flexing, making it the top choice for robotic cells and automotive manufacturing lines.
Key Features & Benefits
- Compact & Flush Design: The M12 threaded barrel allows for easy installation in tight spaces. With a 2mm sensing distance and flush mounting capability, it provides precise detection without interference from surrounding metal.
- Robust PUR Cable: Unlike standard PVC cables, the 2m PUR cable offers superior resistance to abrasion, oils, chemicals, and hydrolysis. It is specifically designed for drag chain applications and robotic arms where continuous movement is required.
- High Immunity: Engineered to withstand harsh industrial conditions, including high temperatures, electromagnetic interference, and welding spatter, ensuring uninterrupted operation in steel mills and welding shops.
- Reliable Output: Equipped with a PNP Normally Open (NO) switching element and a visible LED switching indicator for easy status monitoring and troubleshooting.
- Superior Protection: Boasts an IP68 rating, guaranteeing complete dust tightness and protection against long-term immersion in water, suitable for washdown environments.
Technical Specifications
- General specifications
Switching function Normally open (NO) Output type PNP Rated operating distance sn 2 mm Installation flush Output polarity DC Assured operating distance sa 0 … 1.62 mm Actuating element mild steel, e. g. 1.0037, SR235JR (formerly St37-2)
12 mm x 12 mm x 1 mmReduction factor rAl 0.29 Reduction factor rCu 0.23 Reduction factor r304 0.78 Reduction factor rBrass 0.42 Output type 3-wire
Applications
This NBB2 series sensor is widely used in:
- Robotics: End-of-arm tooling and joint position feedback due to flexible PUR cable.
- Automotive Industry: Welding lines, assembly conveyors, and stamping presses.
- Packaging Machinery: Detection of metal caps, foils, or components on high-speed lines.
- Machine Tools: Tool breakage detection and axis positioning.
- Food & Beverage: Washdown areas requiring high IP ratings and chemical resistance.
Why Choose This Sensor?
Our NBB2-12GM30-E2-2M-PUR modules are sourced from authorized channels, ensuring you receive genuine Pepperl+Fuchs quality. Whether you are upgrading existing machinery or designing a new automated system, this sensor delivers the precision, durability, and longevity your operations demand. We offer fast shipping, technical support, and a comprehensive warranty.
Upgrade your detection systems today with the industry standard for inductive sensing.
Dimensions

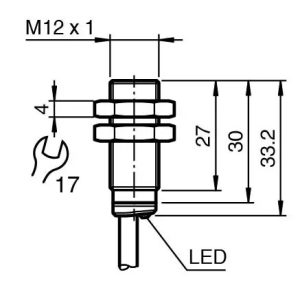

Dimensions |
|---|
|

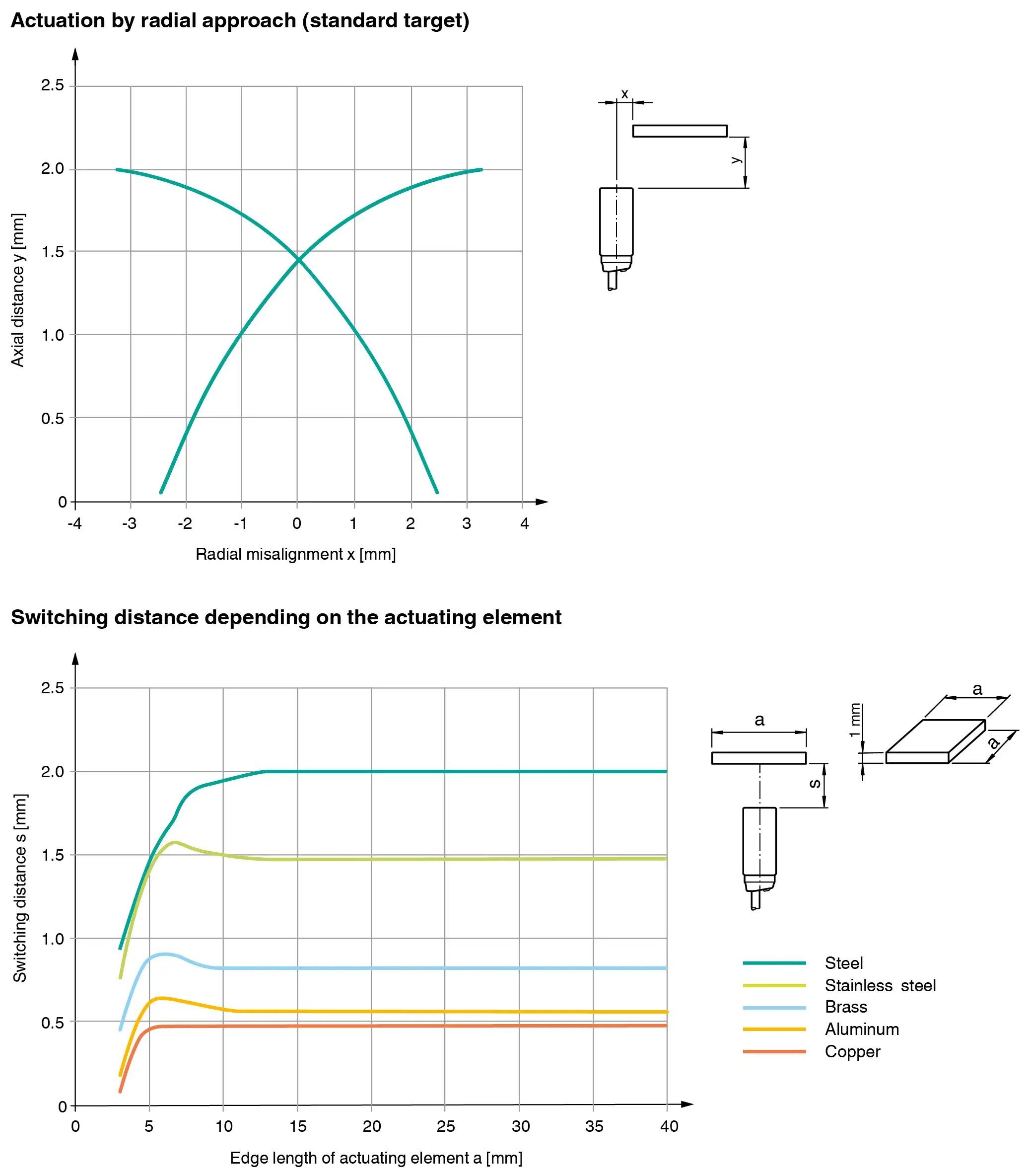

Characteristic curve |
|---|
|
Connection Assignment |
|---|
|
Documents
Product Information | File Type | File Size | Language | Download |
|---|---|---|---|---|
| Installation conditions | PDF | 566 KB | English |
Datasheet | File Type | File Size | Language | Download |
|---|---|---|---|---|
| Datasheet | PDF | 806 KB | English |
Approvals NBB2-12GM30-E2-PUR
Declaration of Conformity | Certificate Number | File Type | File Size | Download |
|---|---|---|---|---|
| EU Declaration of Conformity (Pepperl+Fuchs) | DOC-4740A | PDF | 1 MB | |
| UK Declaration of Conformity (Pepperl+Fuchs) | DOC-6413 | PDF | 1 MB |
Certificates | Certificate Number | File Type | File Size | Download |
|---|---|---|---|---|
| Canada USA UL Ordinary Location | UL-US-2019259-5 / UL-CA-2015551-5 | PDF | 359 KB | |
| China Information on CCC | CCC-Exempt Declaration (Pepperl+Fuchs) | PDF | 457 KB | |
| DNV Marine | TAA00003AK | PDF | 93 KB |
