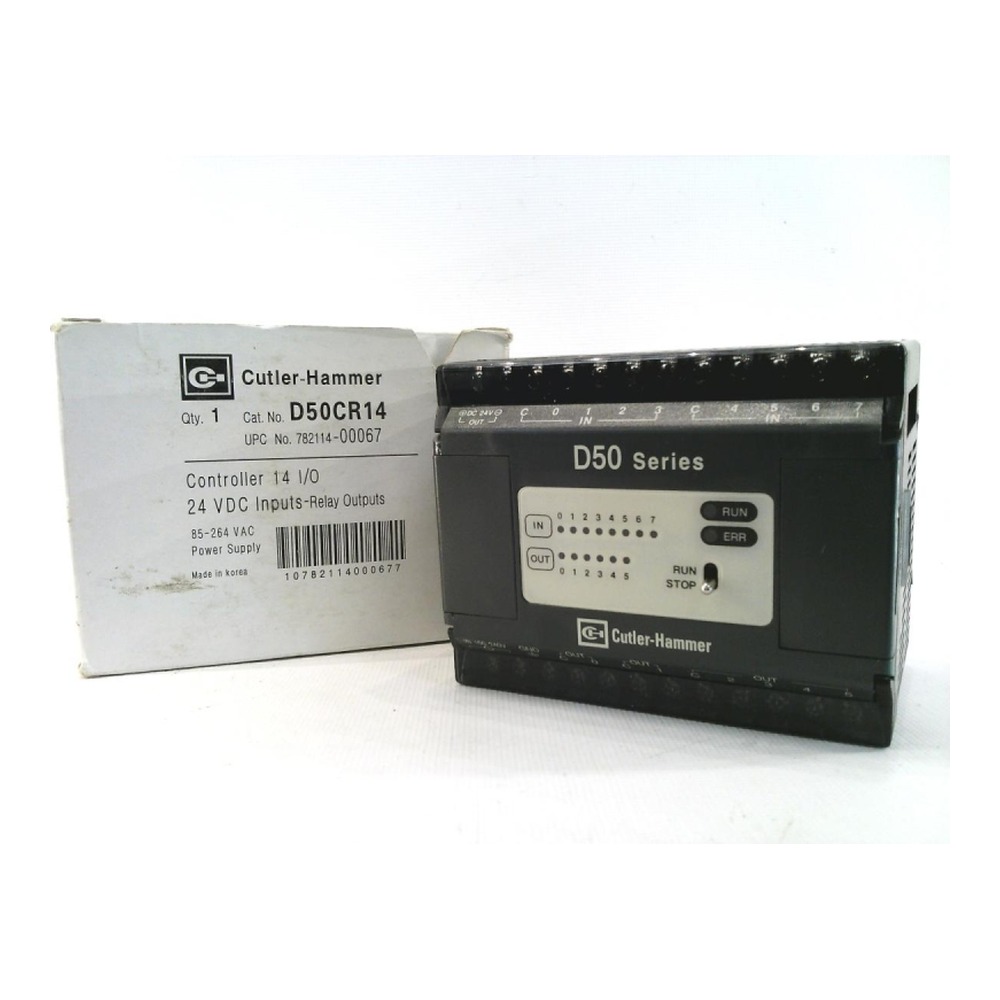

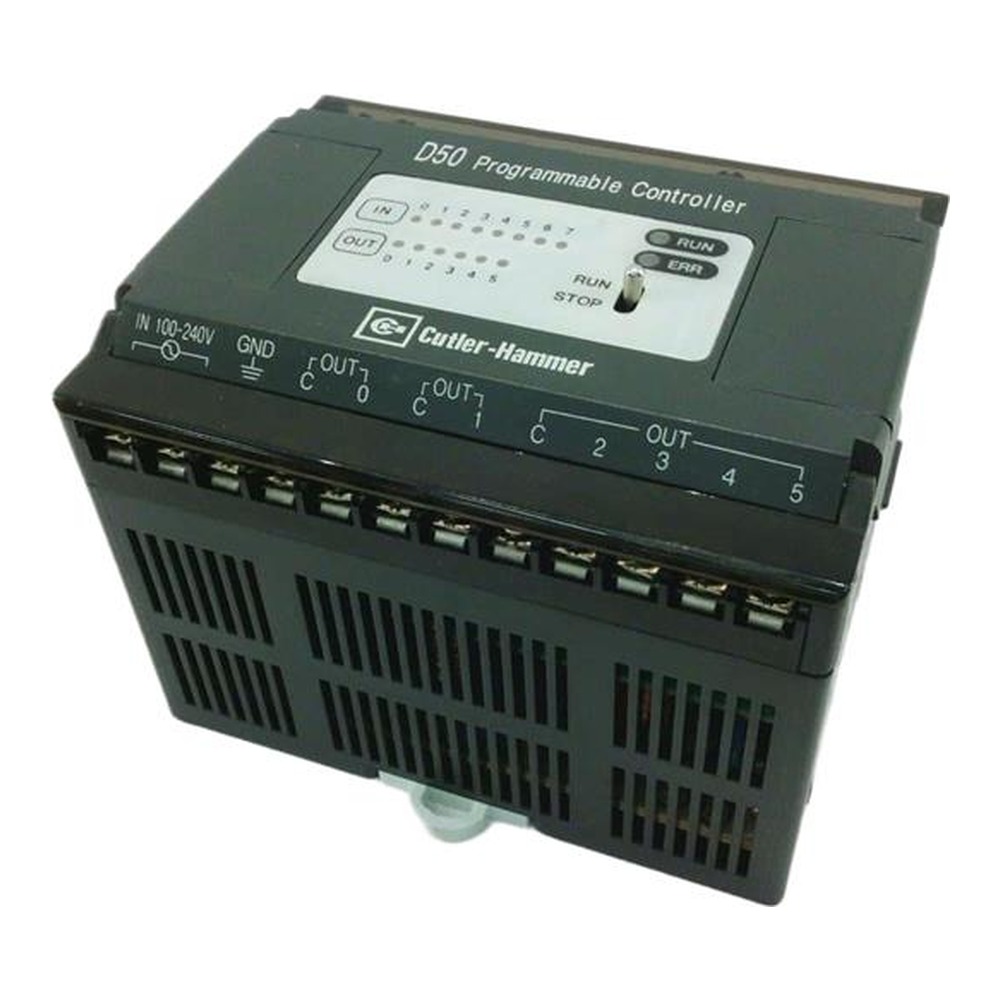

Eaton Cutler-Hammer D50CR14 D50 Micro PLC Programmable Controller
Eaton Cutler-Hammer D50CR14 is a Programmable Controller unit from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D50CR14 is a Programmable Controller unit from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Digital Inputs 8; Outputs 6; Input Type 24V DC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Digital Inputs: 8
- Outputs: 6
- Input Type: 24V DC
- Output Type: Relay
- Power: 115-230V AC
- Current Consumption: 0.6 A max.
- AC Frequency: 47-63 Hz
- Program Capacity: 2k Steps
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Programmable Controller |
| Product Line | D50 PLC |
| Series | D50 Micro PLC |
| Digital Inputs | 8 |
| Outputs | 6 |
| Input Type | 24V DC |
| Output Type | Relay |
| Power | 115-230V AC |
| Current Consumption | 0.6 A max. |
| AC Frequency | 47-63 Hz |
| Program Capacity | 2k Steps |
| Process Speed | 2 to 4 S/step |
| Comm. Port Interface | RS485 Multidrop at 9600 bps |
| Part Number / Catalog No. | D50CR14 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D50CR14 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
