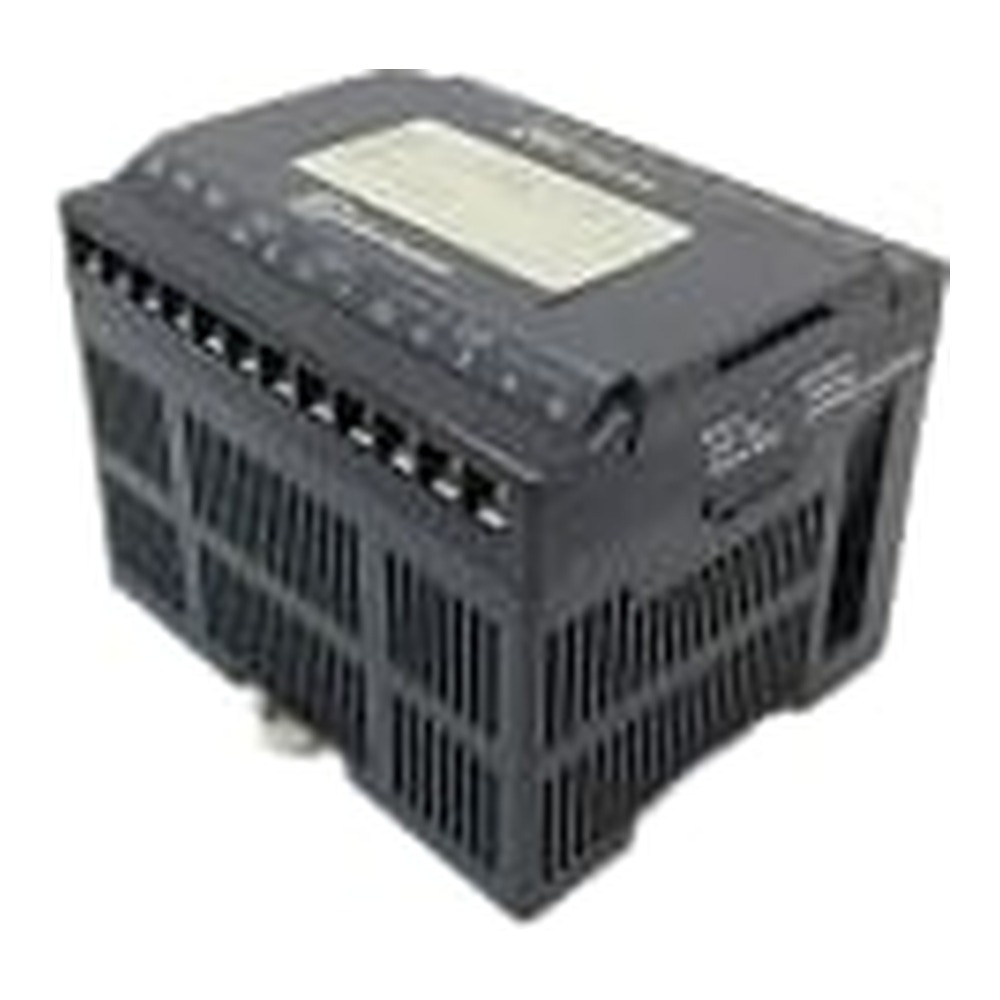

Eaton Cutler-Hammer D50AIM410V D50 Micro PLC Analog Input Expansion Module
Eaton Cutler-Hammer D50AIM410V is a Analog Input Expansion Module module from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D50AIM410V is a Analog Input Expansion Module module from the D50 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Channels 4 Differential Channels; I/O Type Analog-to-Digital conversion for PLC processing; Input Range 4-20 mA current loop. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Channels: 4 Differential Channels
- I/O Type: Analog-to-Digital conversion for PLC processing
- Input Range: 4-20 mA current loop
- Rated Voltage: 110/120V AC
- Energy Consumption: 5 VA
- Minimum Frequency: 50 Hz
- Maximum Frequency: 60 Hz
- Connection Type: Screw terminal
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Analog Input Expansion Module |
| Product Line | D50 PLC |
| Series | D50 Micro PLC |
| Number of Channels | 4 Differential Channels |
| I/O Type | Analog-to-Digital conversion for PLC processing |
| Input Range | 4-20 mA current loop |
| Rated Voltage | 110/120V AC |
| Energy Consumption | 5 VA |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Connection Type | Screw terminal |
| Mounting Type | DIN Rail mount |
| IP Rating | IP20 |
| Alternative Input Support | -10 to 10V DC |
| Part Number / Catalog No. | D50AIM410V |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D50AIM410V |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
