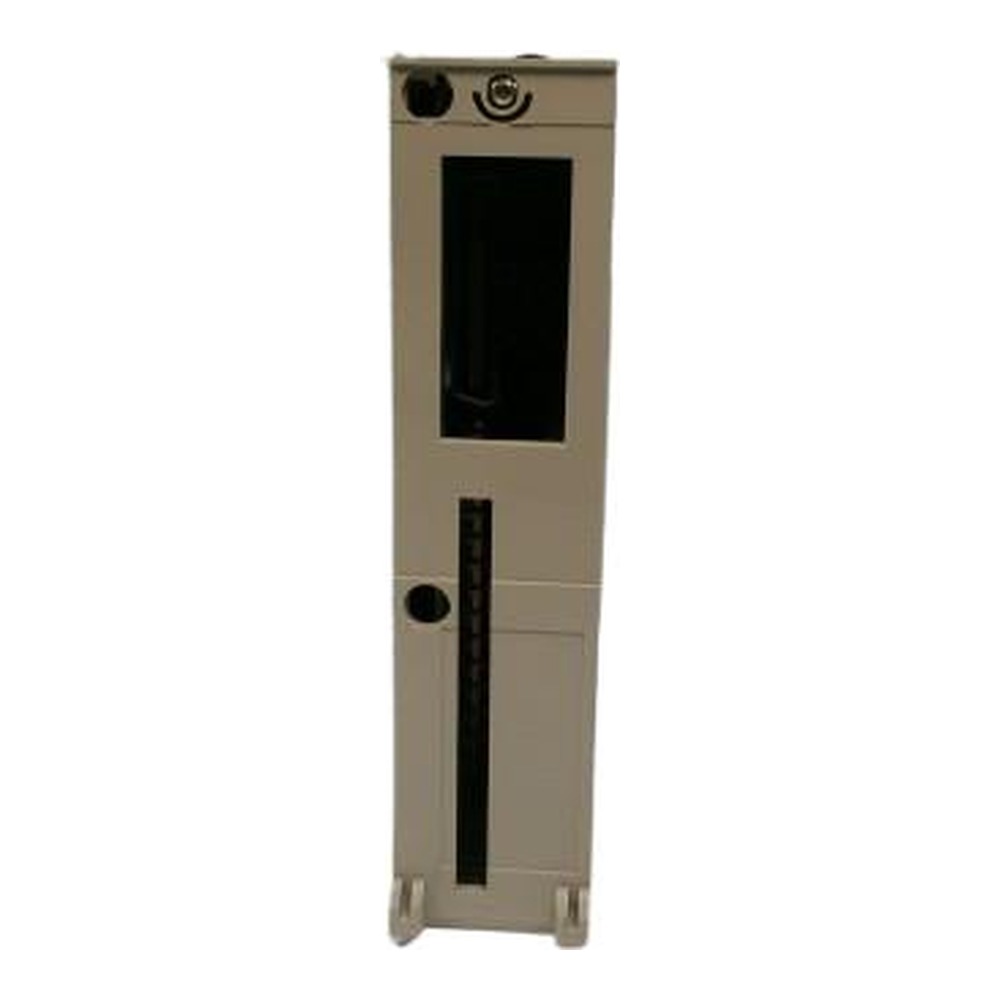

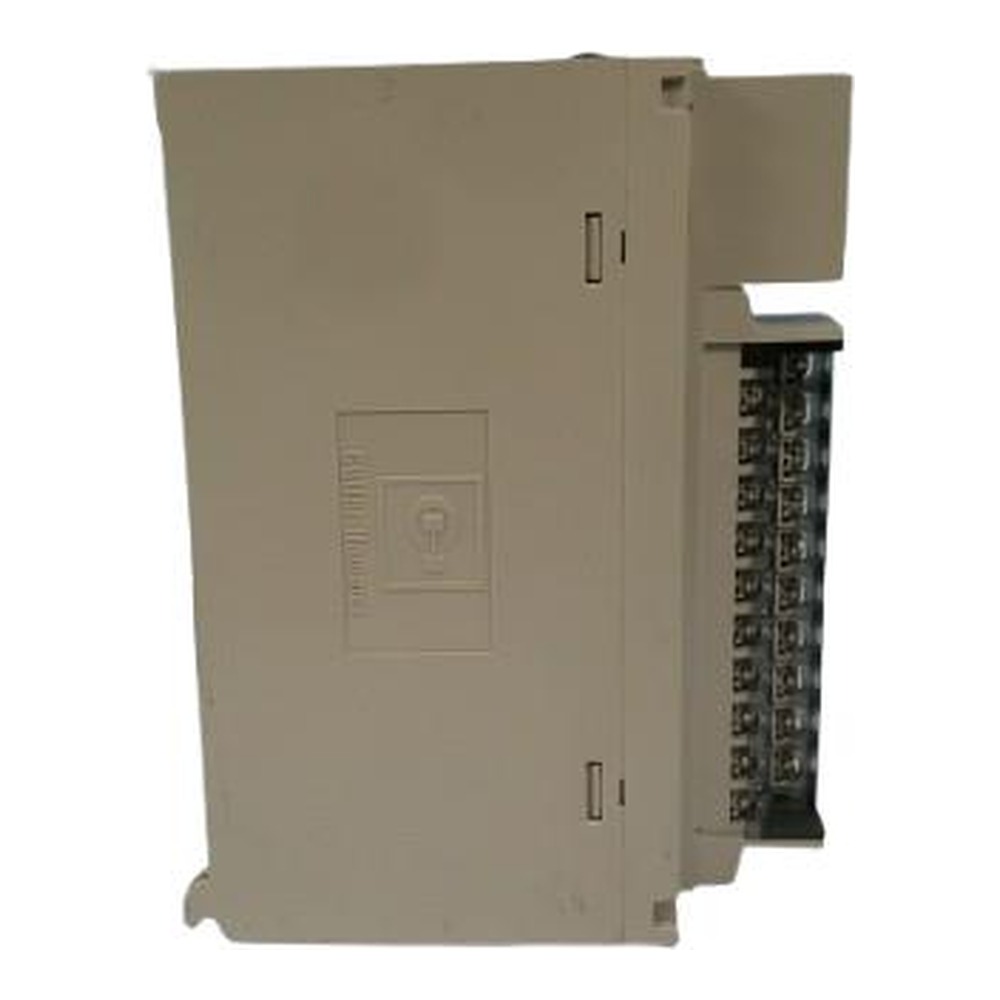

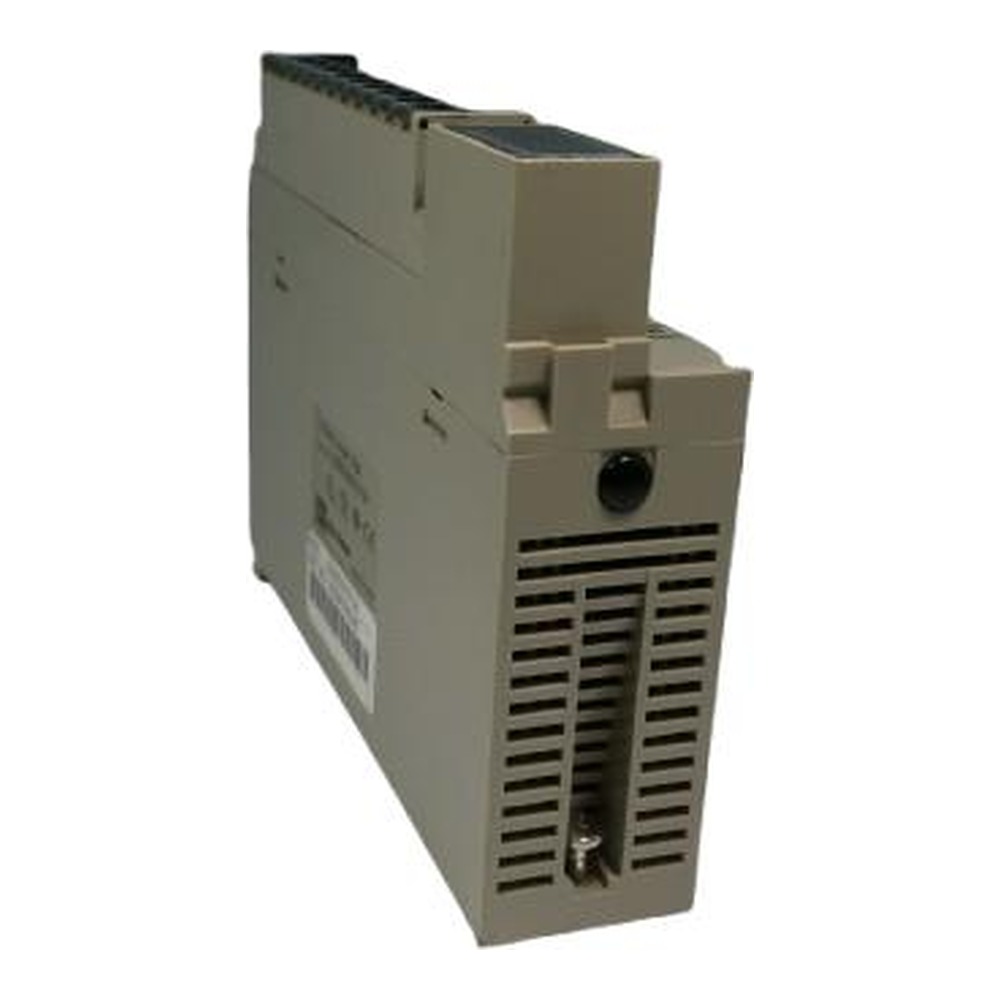

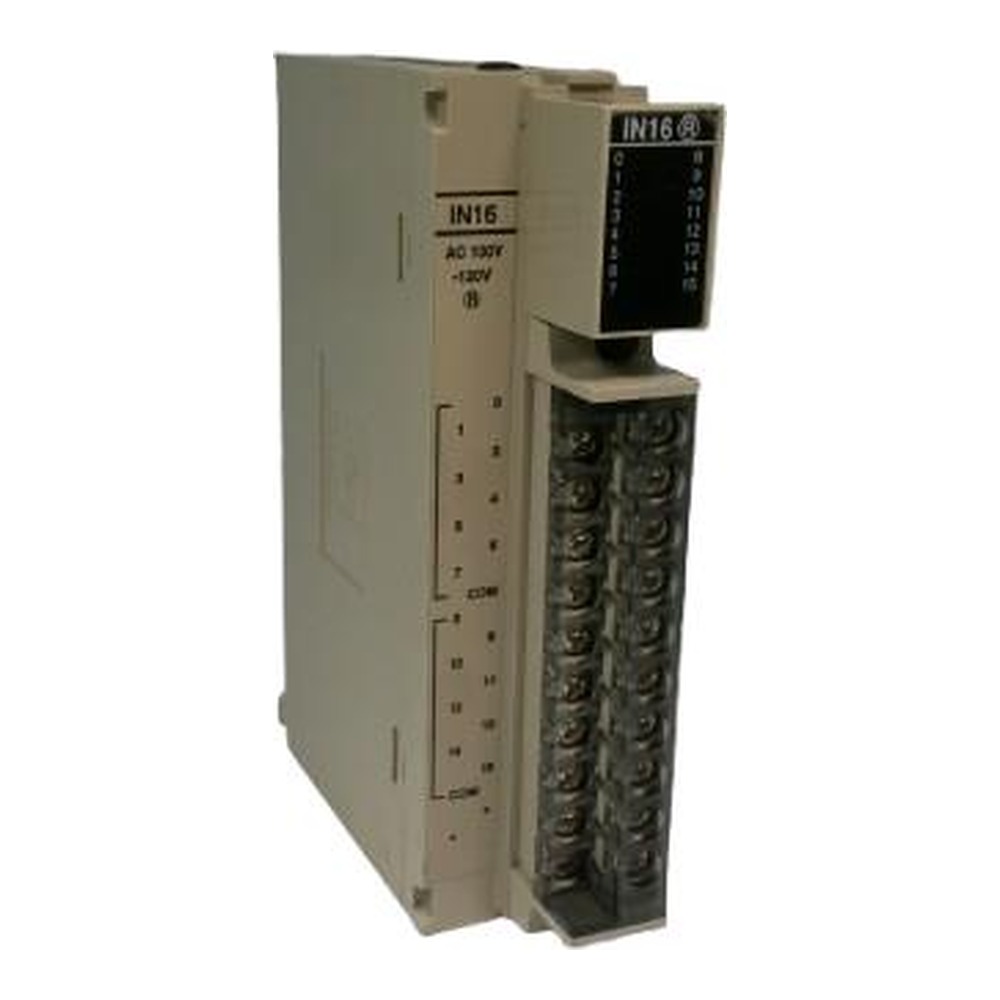

Eaton Cutler-Hammer D320DIM1615A D320 PLC Digital Input Module
Eaton Cutler-Hammer D320DIM1615A is a Digital Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D320DIM1615A is a Digital Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Inputs 16 Channels; Input Voltage Rating 115V AC; Input Current 10 mA. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Inputs: 16 Channels
- Input Voltage Rating: 115V AC
- Input Current: 10 mA
- Power Consumption: 150 mA from 5V DC
- Minimum Frequency: 47 Hz
- Maximum Frequency: 63 Hz
- Status Indicators: LED per Channel
- Isolation Voltage: 1500 VAC
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Digital Input Module |
| Product Line | D320 PLC |
| Series | D320 PLC |
| Number of Inputs | 16 Channels |
| Input Voltage Rating | 115V AC |
| Input Current | 10 mA |
| Power Consumption | 150 mA from 5V DC |
| Minimum Frequency | 47 Hz |
| Maximum Frequency | 63 Hz |
| Status Indicators | LED per Channel |
| Isolation Voltage | 1500 VAC |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 55°C |
| Common Points | 2 Common |
| Part Number / Catalog No. | D320DIM1615A |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D320DIM1615A |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
