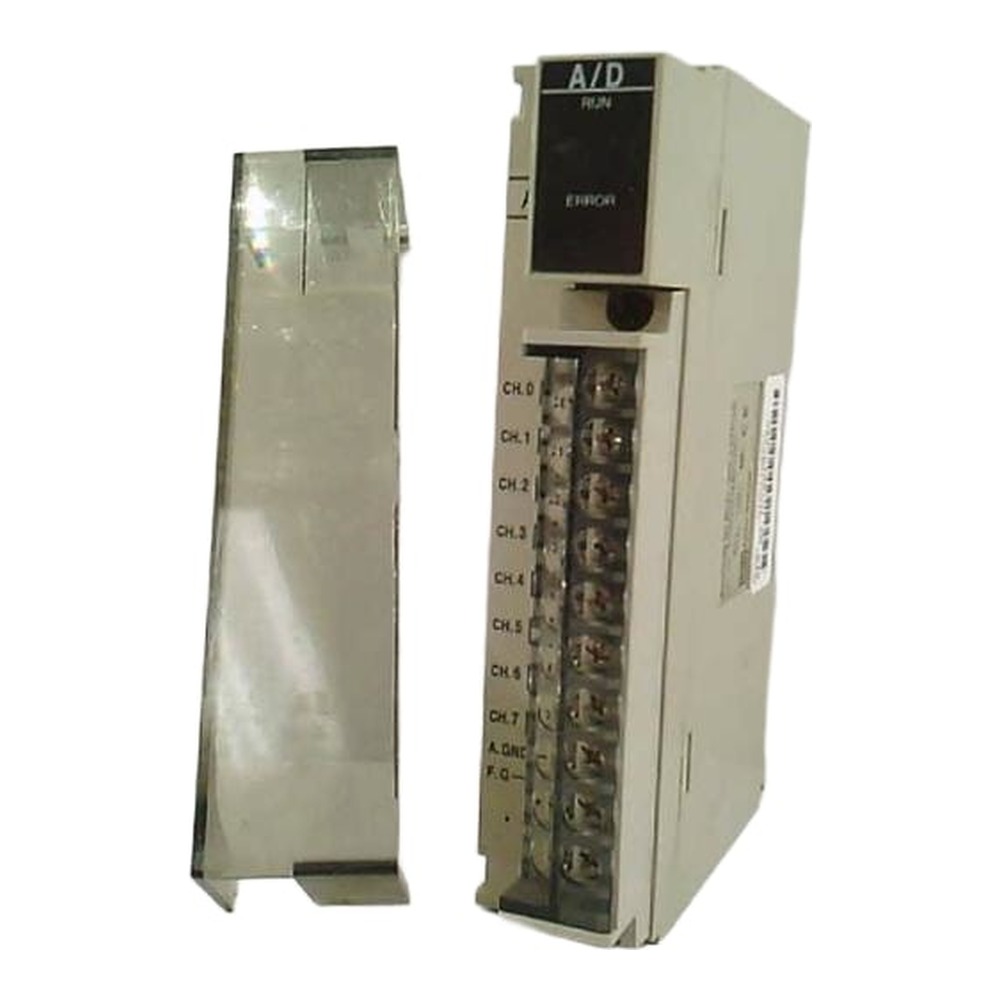

Eaton Cutler-Hammer D320AIM820C D320 PLC Analog Input Module
Eaton Cutler-Hammer D320AIM820C is a Analog Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D320AIM820C is a Analog Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Inputs 8 Inputs; Current Range 0-20 mA; Breakdown Rating 1500 V AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Inputs: 8 Inputs
- Current Range: 0-20 mA
- Breakdown Rating: 1500 V AC
- Insulation Resistance: More than 98 m/S2
- Noise Resistance: 1500 Vp-p at 50 ns of pulse width
- Vibration Rating for 1 Minute: 10 to 55 Hz
- Operating Temperature: 0 to 40 degrees Celsius
- Storage Temperature: 0 to 50 degrees Celsius
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Analog Input Module |
| Product Line | D320 PLC |
| Series | D320 PLC |
| Number of Inputs | 8 Inputs |
| Current Range | 0-20 mA |
| Breakdown Rating | 1500 V AC |
| Insulation Resistance | More than 98 m/S2 |
| Noise Resistance | 1500 Vp-p at 50 ns of pulse width |
| Vibration Rating for 1 Minute | 10 to 55 Hz |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Max. Operating Humidity | 80% RH, non-condensing |
| Max. Storage Humidity | 80% RH, non-condensing |
| Max. Altitude Without Derating | 1000 m above sea level |
| Part Number / Catalog No. | D320AIM820C |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D320AIM820C |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
