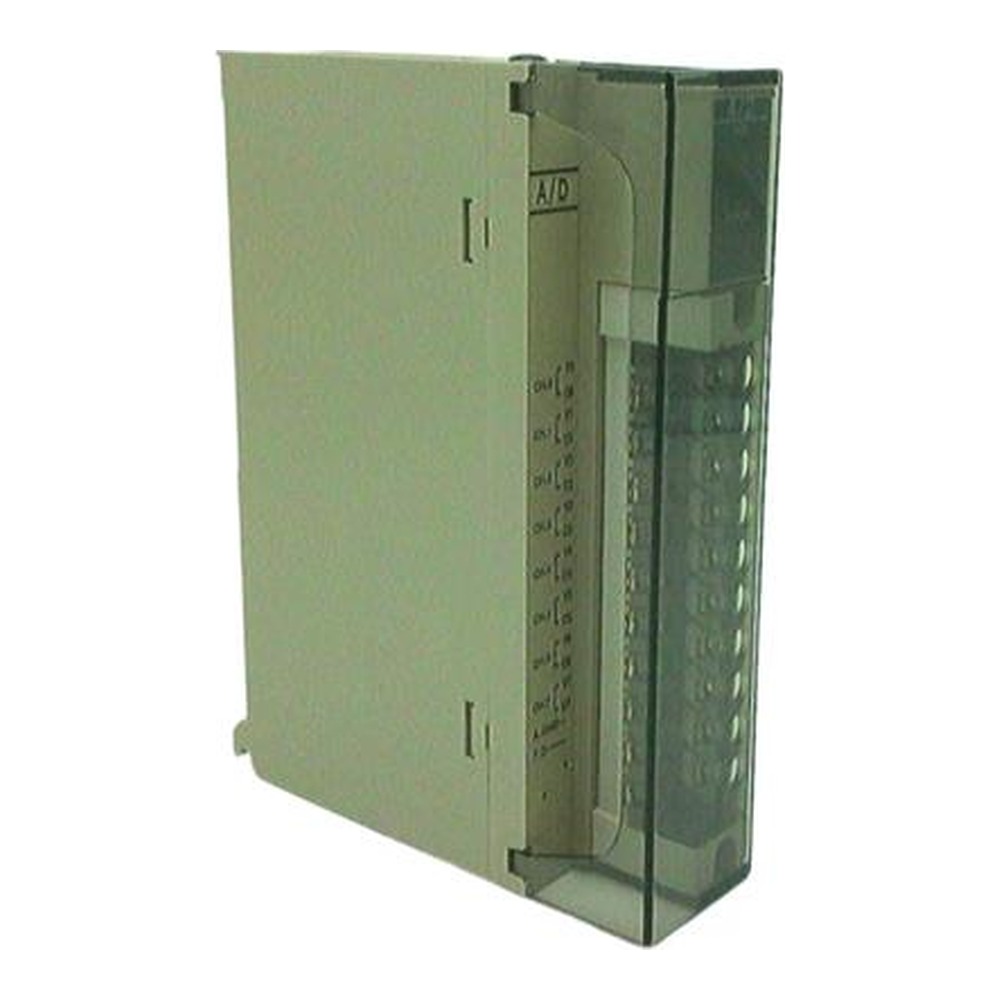

Eaton Cutler-Hammer D320AIM810V D320 PLC Analog Input Module
Eaton Cutler-Hammer D320AIM810V is a Analog Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D320AIM810V is a Analog Input Module module from the D320 PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Inputs 8 Inputs; Input Voltage 0-5V; Breakdown Voltage 1500V AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Inputs: 8 Inputs
- Input Voltage: 0-5V
- Breakdown Voltage: 1500V AC
- Vibration Resistance for 1 Minute: 10 to 55 Hz
- Minimum Operating Temperature: 0 °C
- Maximum Operating Temperature: 40 °C
- Minimum Storage Temperature: 0 °C
- Maximum Storage Temperature: 50 °C
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | Analog Input Module |
| Product Line | D320 PLC |
| Series | D320 PLC |
| Number of Inputs | 8 Inputs |
| Input Voltage | 0-5V |
| Breakdown Voltage | 1500V AC |
| Vibration Resistance for 1 Minute | 10 to 55 Hz |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 40 °C |
| Minimum Storage Temperature | 0 °C |
| Maximum Storage Temperature | 50 °C |
| Maximum Operating Humidity | 80% (non-condensing) |
| Maximum Storage Humidity | 80% (non-condensing) |
| Maximum Installation Altitude | 1000 m |
| Part Number / Catalog No. | D320AIM810V |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D320AIM810V |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
