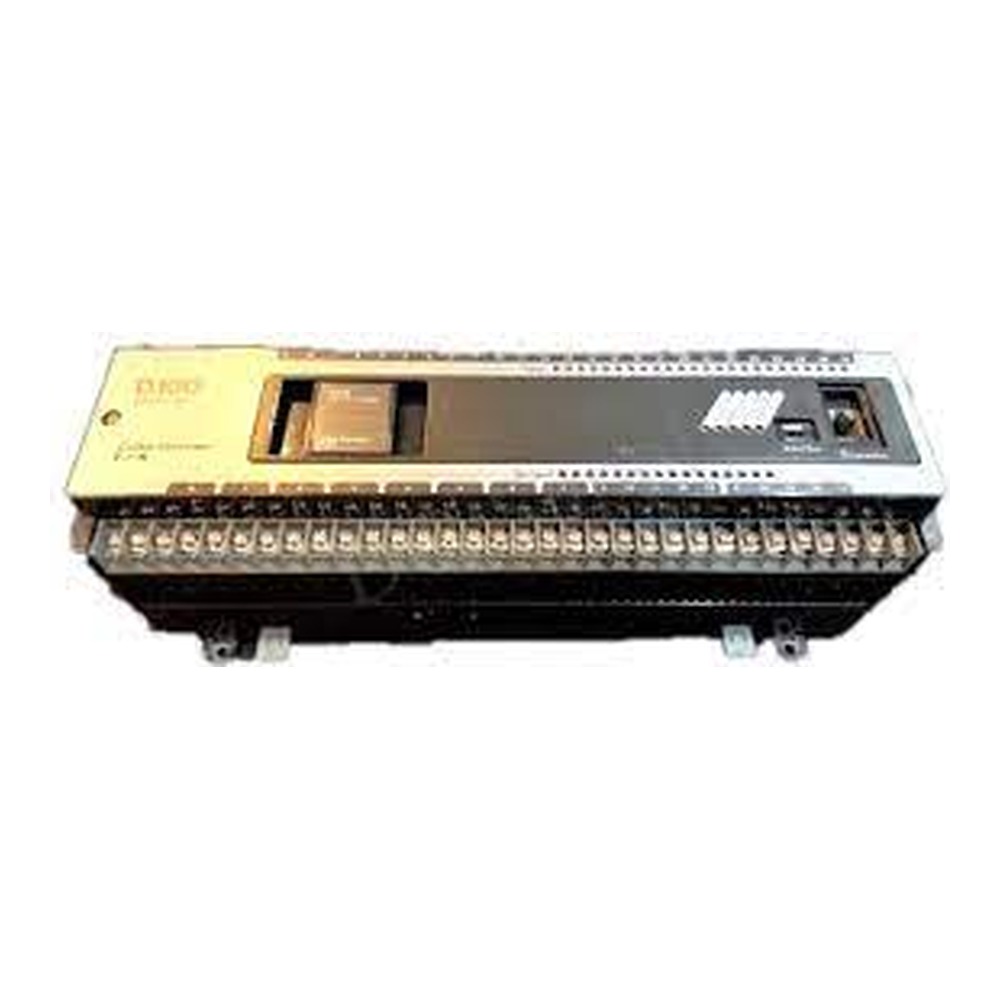

Eaton Cutler-Hammer D100ED20 D100 Micro PLC I/O Expansion Unit
Eaton Cutler-Hammer D100ED20 is a I/O Expansion Unit unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D100ED20 is a I/O Expansion Unit unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Number of Inputs 12 Inputs; Number of Outputs 8 Outputs; Input Type Sink/Source. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Number of Inputs: 12 Inputs
- Number of Outputs: 8 Outputs
- Input Type: Sink/Source
- Output Type: Transistor
- Input Voltage: 24 VDC
- Output Voltage: 24 VDC
- Mounting Type: Vertical or Horizontal Mount
- Cooling Type: Natural
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | I/O Expansion Unit |
| Product Line | D100 Micro Programmable Logic Controllers |
| Series | D100 Micro PLC |
| Number of Inputs | 12 Inputs |
| Number of Outputs | 8 Outputs |
| Input Type | Sink/Source |
| Output Type | Transistor |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Mounting Type | Vertical or Horizontal Mount |
| Cooling Type | Natural |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 60 °C |
| Relative Humidity | 5 to 95% (Non-Condensing) |
| Part Number / Catalog No. | D100ED20 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D100ED20 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
