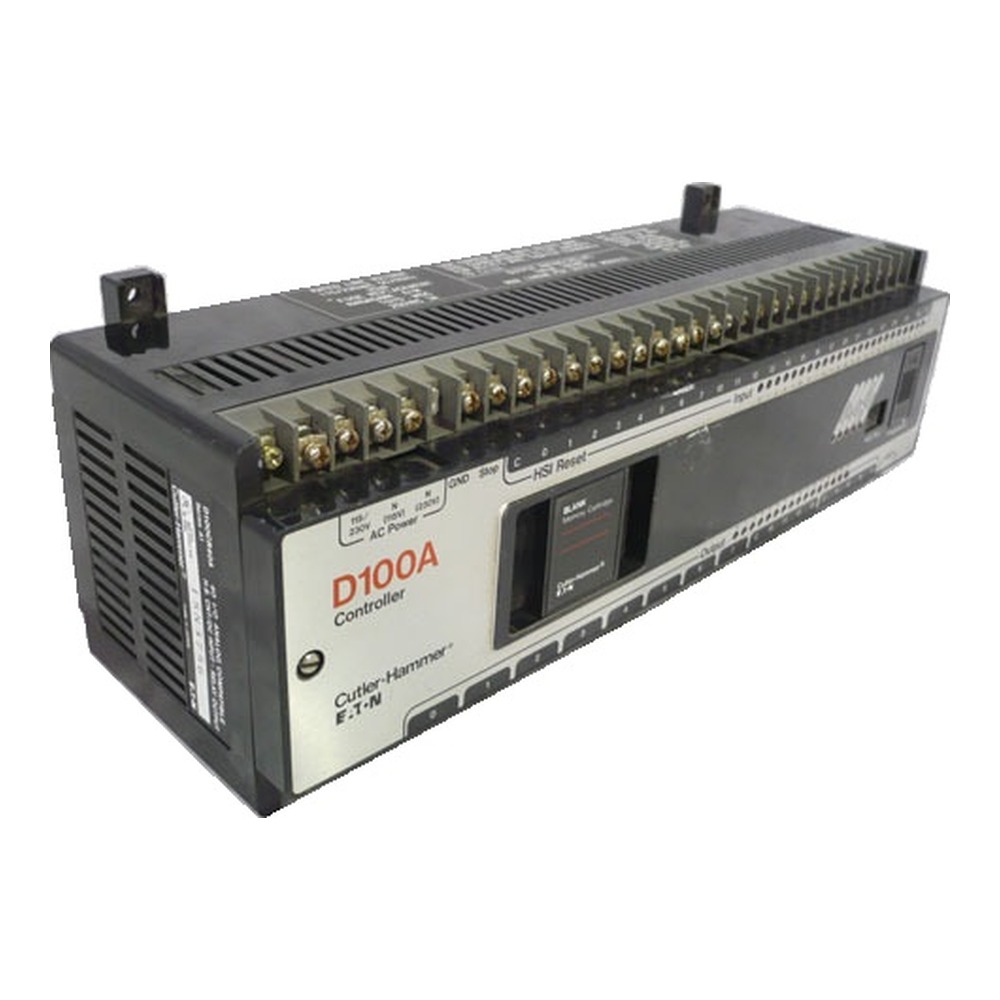

Eaton Cutler-Hammer D100CAA40 D100 Micro PLC High-Speed Programmable Controller
Eaton Cutler-Hammer D100CAA40 is a High-Speed Programmable Controller unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers.
Overview
The Eaton Cutler-Hammer D100CAA40 is a High-Speed Programmable Controller unit from the D100 Micro PLC series of Eaton Cutler-Hammer programmable logic controllers. Key ratings: Total Number of Inputs and Outputs 24 inputs and 16 outputs; Maximum Input and Output Points Up to 48 input points and 32 output points; Input Type 24 Volts DC input. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Total Number of Inputs and Outputs: 24 inputs and 16 outputs
- Maximum Input and Output Points: Up to 48 input points and 32 output points
- Input Type: 24 Volts DC input
- Output Type: Triac output
- Power Supply Voltage: 115 Volts AC
- Operating Frequency: 50 to 60 Hertz
- Communication Port: RS232 port
- Termination Style: Screw terminals
Technical Specifications
| Attribute | Value |
|---|---|
| Product Type | High-Speed Programmable Controller |
| Product Line | D100 Micro Programmable Logic Controllers |
| Series | D100 Micro PLC |
| Total Number of Inputs and Outputs | 24 inputs and 16 outputs |
| Maximum Input and Output Points | Up to 48 input points and 32 output points |
| Input Type | 24 Volts DC input |
| Output Type | Triac output |
| Power Supply Voltage | 115 Volts AC |
| Operating Frequency | 50 to 60 Hertz |
| Communication Port | RS232 port |
| Termination Style | Screw terminals |
| Type of Mounting | Screw mount (M4 screws) |
| Recommended Operating Temperature | From 0°C to 60°C (From 32°F to 140°F) |
| Safety Standards | UL and CSA-certified |
| Compatible Battery Type | Lithium battery (13 volts, 1,200 milliamperes) |
| Part Number / Catalog No. | D100CAA40 |
| Manufacturer | Eaton Cutler-Hammer |
| H.S. CODE | 8537.10 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Availability |
|---|---|
| Programming & Operation Manual (series documentation) | Available on request — contact us with catalog number D100CAA40 |
| Installation & Wiring Guide | Supplied with the unit |
Legacy Eaton Cutler-Hammer series documentation is no longer hosted online by the manufacturer. Request a copy with your order and we will supply the current revision we hold on file.
