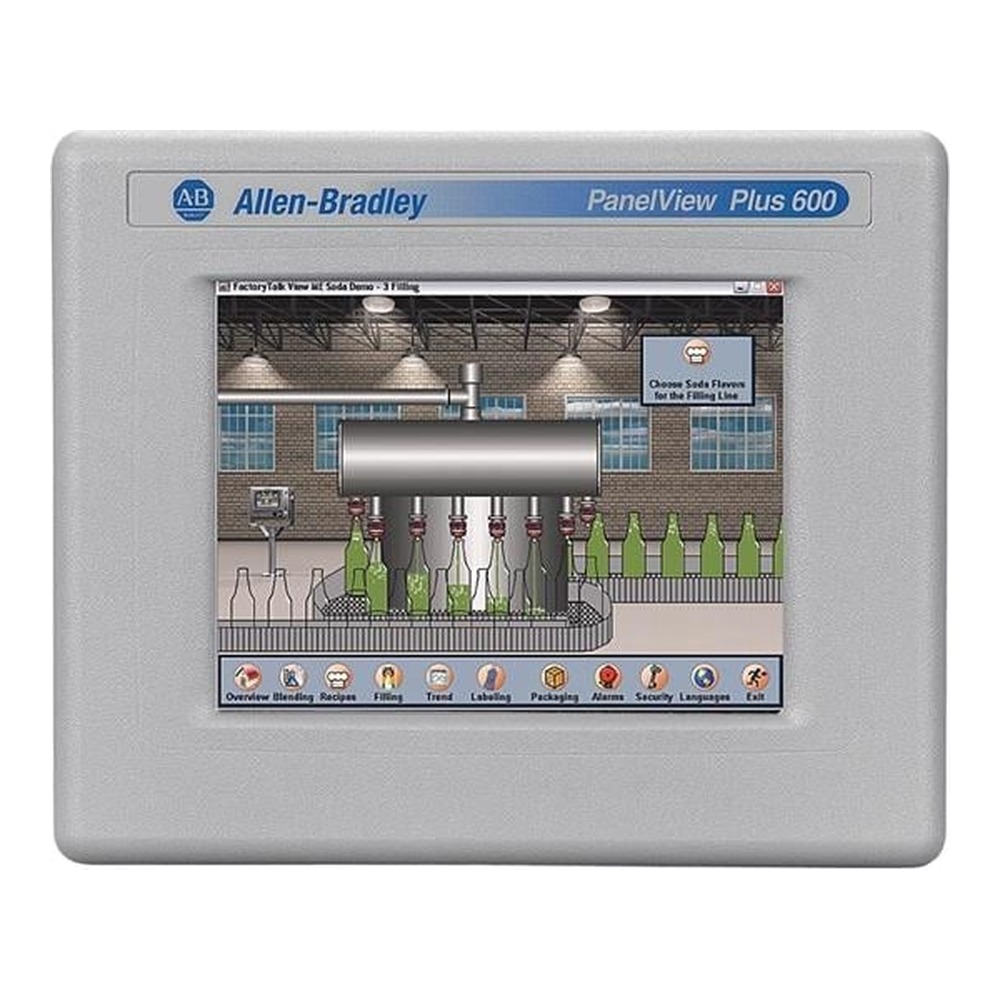

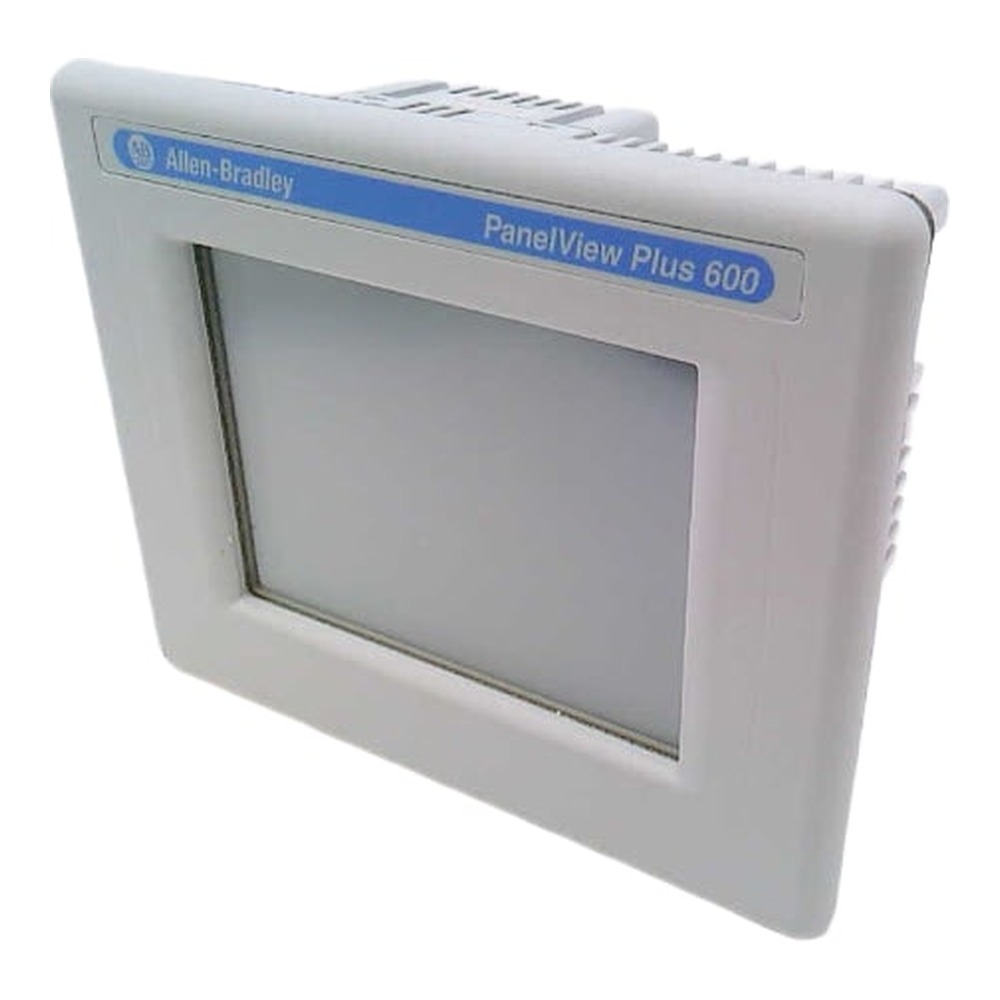

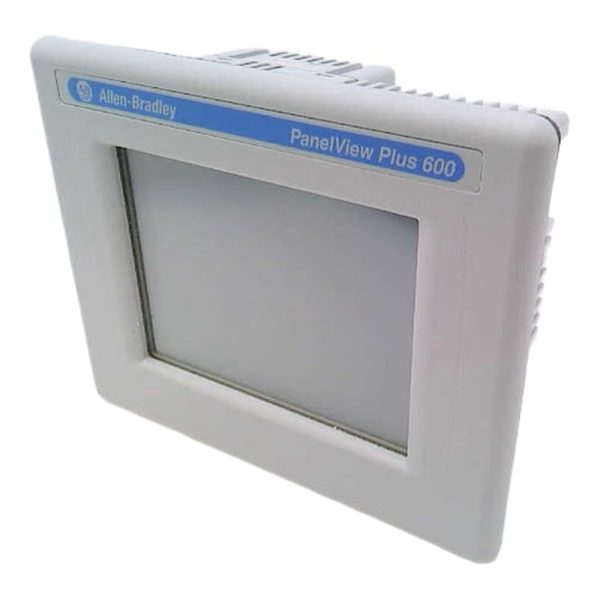

Allen-Bradley 2711P-T6C20A9 PanelView Plus 6 Touchscreen Terminal, 5.7 in Display, Color, 320 x 240, 18-bit color
Allen-Bradley 2711P-T6C20A9 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 5.7 in color display with 320 x 240, 18-bit color resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100-240 VAC.
Overview
The Allen-Bradley 2711P-T6C20A9 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 5.7 in color display with 320 x 240, 18-bit color resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100-240 VAC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Touchscreen operator input
- 5.7 in display size
- Color display
- Resolution 320 x 240, 18-bit color
- Ethernet and RS-232 communications
- Power supply 100-240 VAC
- Memory 256 MB RAM
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-T6C20A9 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 6 |
| Product Type | PanelView Plus 6 600 Operator Terminals |
| UPC | 884951344259 |
| Weight | 2.88 lbs (1.30 kg) |
| Product Family | PanelView Plus 6 Operator Terminals |
| Operator Input | Touchscreen |
| Display Size | 5.7 in |
| Display Type | Color active-matrix TFT |
| Display Color | Color |
| Resolution | 320 x 240, 18-bit color |
| Communication | Ethernet and RS-232 |
| Input Power | 100-240 VAC |
| Memory | 256 MB RAM |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Lifecycle status | End of life |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Touch | Analog Resistive |
| Internal memory | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports | Ethernet, RS-232, 2 USB host |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
