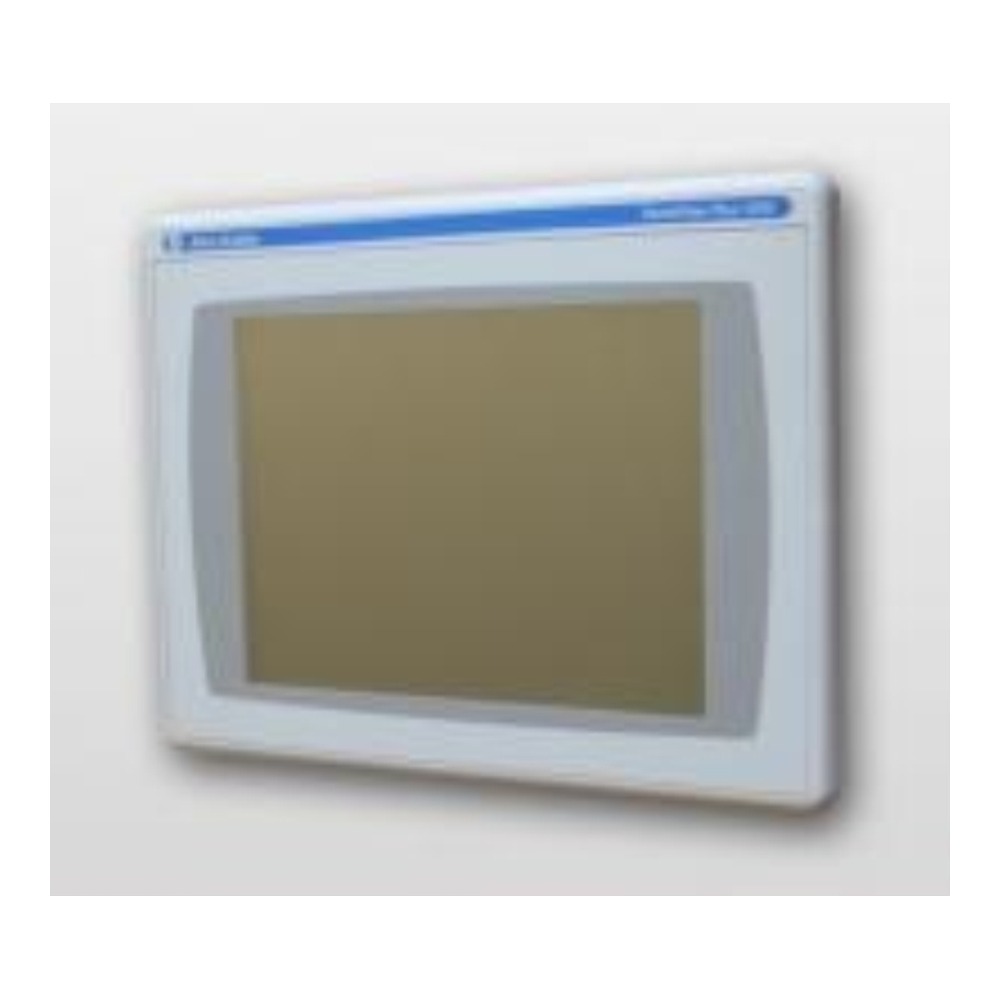

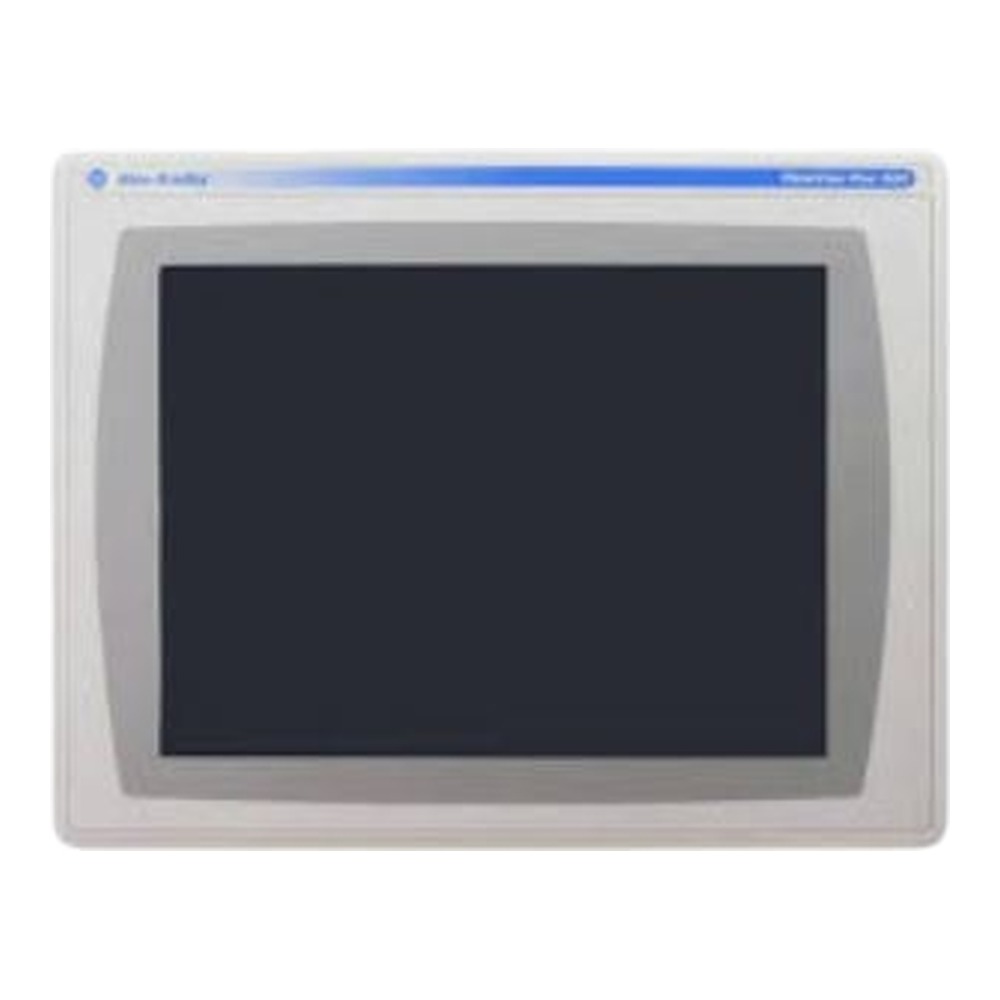

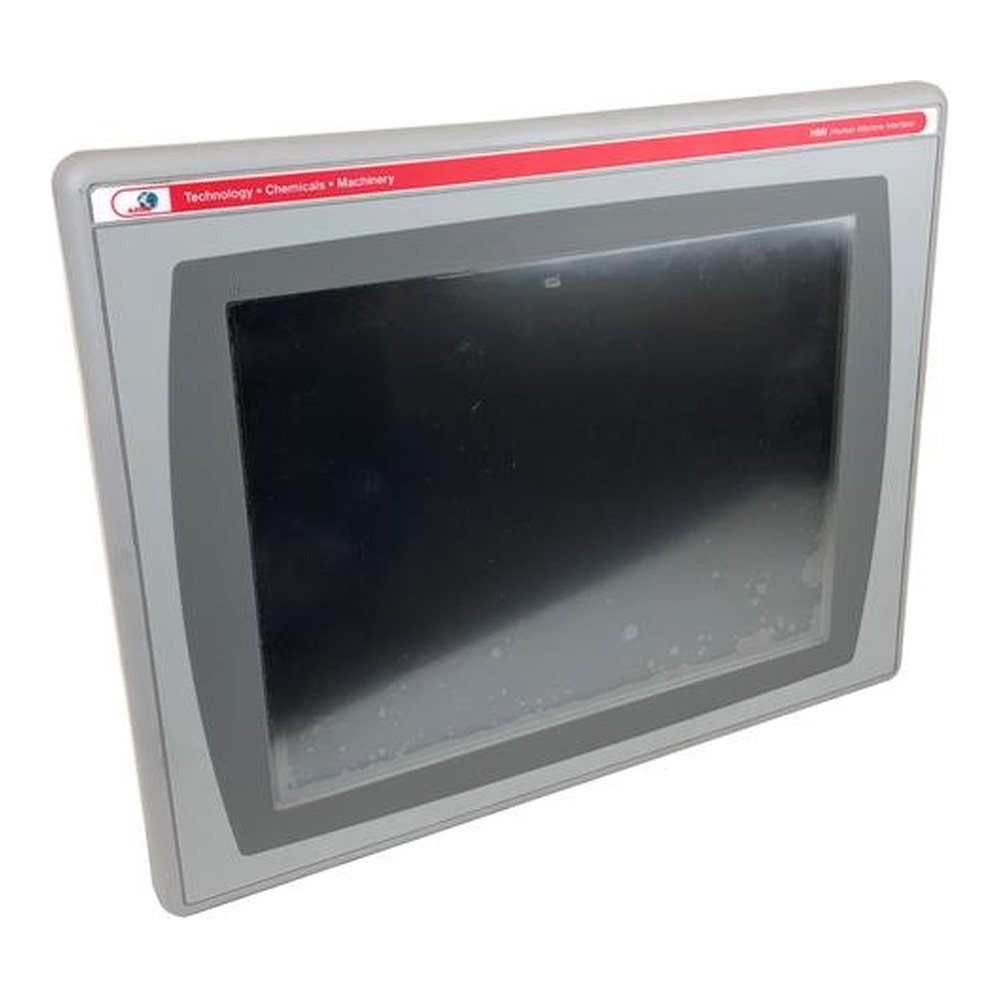

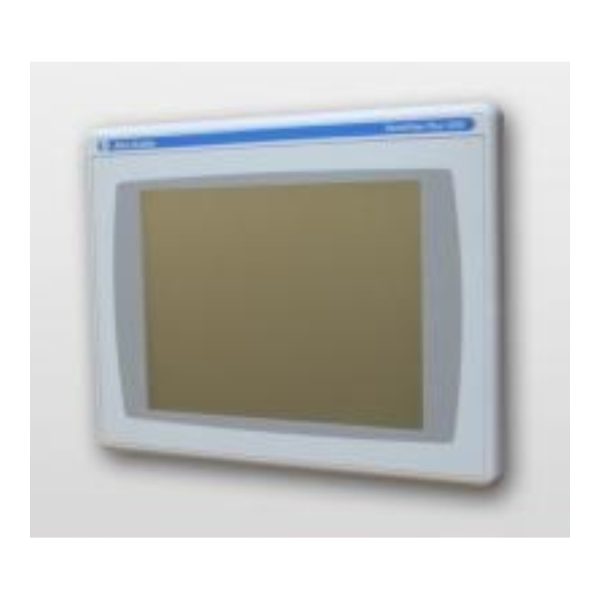

Allen-Bradley 2711P-T15C4A8 PanelView Plus 6 Touchscreen Terminal, 15.0 in Display, Color, 1024 x 768, 18-bit color graphics
Allen-Bradley 2711P-T15C4A8 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 15.0 in color display with 1024 x 768, 18-bit color graphics resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100-240 Volts AC.
Overview
The Allen-Bradley 2711P-T15C4A8 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 15.0 in color display with 1024 x 768, 18-bit color graphics resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100-240 Volts AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Touchscreen operator input
- 15.0 in display size
- Color display
- Resolution 1024 x 768, 18-bit color graphics
- Ethernet and RS-232 communications
- Power supply 100-240 Volts AC
- Memory 512 MB RAM
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-T15C4A8 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 6 |
| Product Type | Operator Interface |
| Weight | 8.75 lbs (3.97 kg) |
| Product Family | PanelView Plus 6 Graphic Terminals |
| Operator Input | Touchscreen |
| Display Size | 15.0 in |
| Display Type | Color active-matrix TFT |
| Display Color | Color |
| Resolution | 1024 x 768, 18-bit color graphics |
| Communication | Ethernet and RS-232 |
| Input Power | 100-240 Volts AC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL15C |
| Category | Panelviews |
| Display Area | 304 x 228 mm (12.0 x 9.0 in.) |
| Touch interface | 8-wire analog resistive Actuation: 1 million presses; operating force: |
| Terminal Memory | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Battery (real-time clock) | Battery-backed clock timestamps critical data, accuracy is ±2 minutes |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
