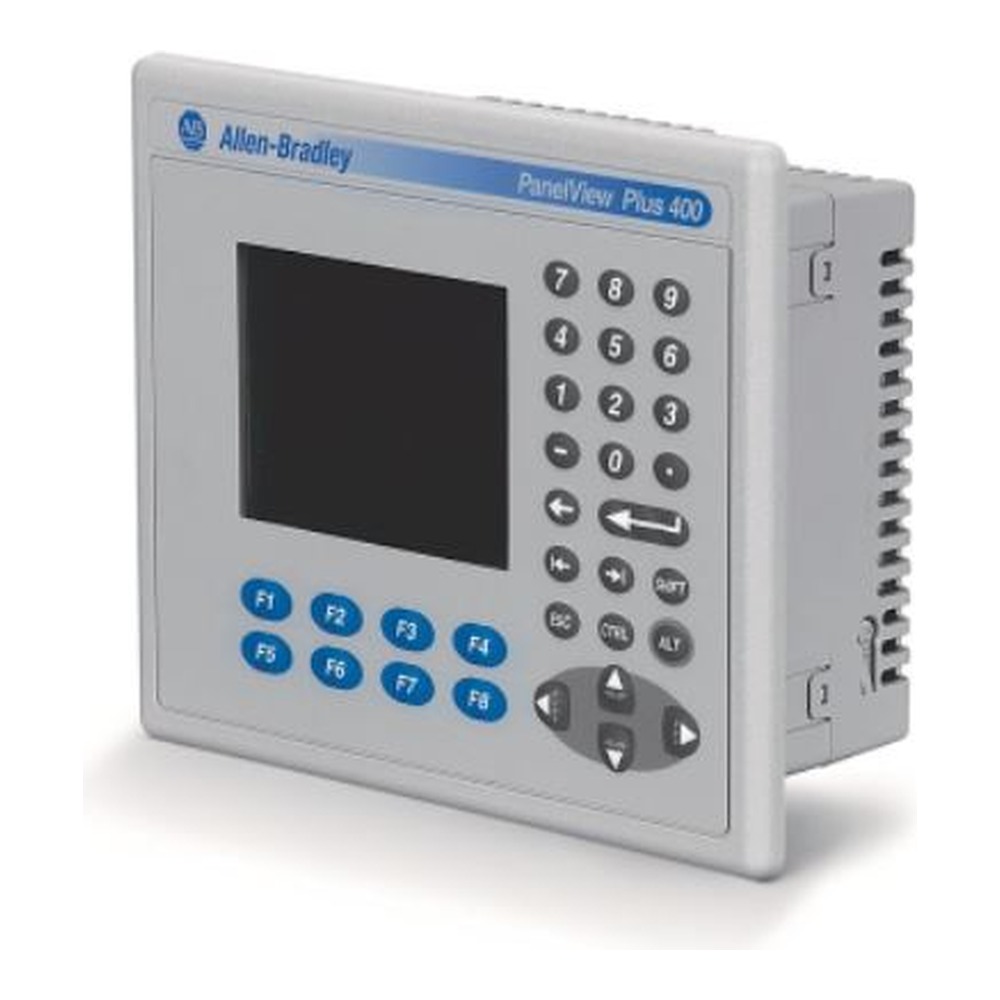

Allen-Bradley 2711P-K4M5D8 PanelView Plus 6 Keypad Terminal, 3.5 in Display, Monochrome, 320 x 240, 16-levels gray
Allen-Bradley 2711P-K4M5D8 is a keypad operator interface terminal from the PanelView Plus 6 product line. The terminal features a 3.5 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over RS-232. The unit is powered from 18-30 VDC.
Overview
The Allen-Bradley 2711P-K4M5D8 is a keypad operator interface terminal from the PanelView Plus 6 product line. The terminal features a 3.5 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over RS-232. The unit is powered from 18-30 VDC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad operator input
- 3.5 in display size
- Monochrome display
- Resolution 320 x 240, 16-levels gray
- RS-232 communications
- Power supply 18-30 VDC
- Memory 256 MB RAM
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-K4M5D8 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 6 |
| Product Type | Operator Terminals |
| UPC | 884951344815 |
| Weight | 2.75 lbs (1.25 kg) |
| Product Family | PanelView Plus 6 400 Operator Terminals |
| Operator Input | Keypad |
| Display Size | 3.5 in |
| Display Type | Grayscale TFT LCD |
| Display Color | Monochrome |
| Resolution | 320 x 240, 16-levels gray |
| Communication | RS-232 |
| Input Power | 18-30 VDC |
| Memory | 256 MB RAM |
| Backlight | 25,000 hr LED backlight life |
| Keypad function keys | 8 function keys (F1…F8) |
| Lifecycle status | Active |
| Display Area | 70 x 53 mm (2.8 x 2.3 in.) |
| Internal memory | 256 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Integrated ports | Ethernet, RS-232, 2 USB host |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
