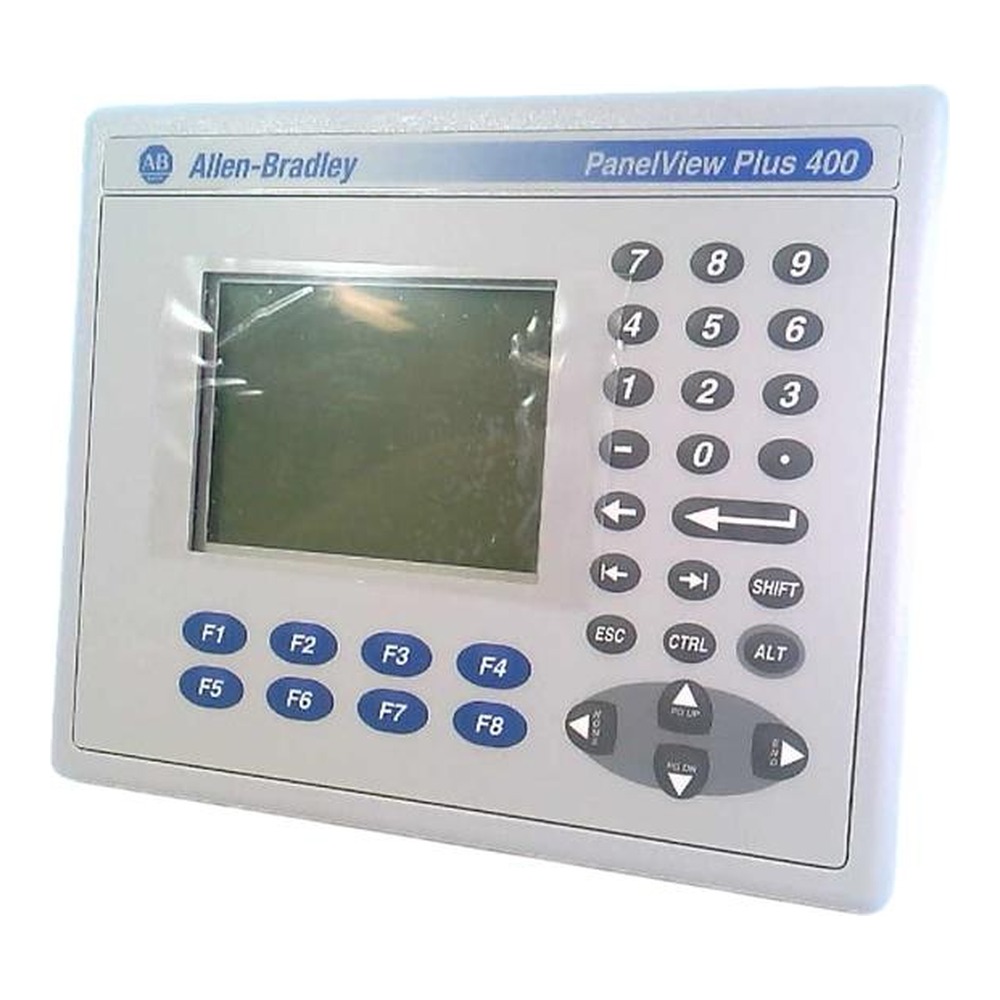

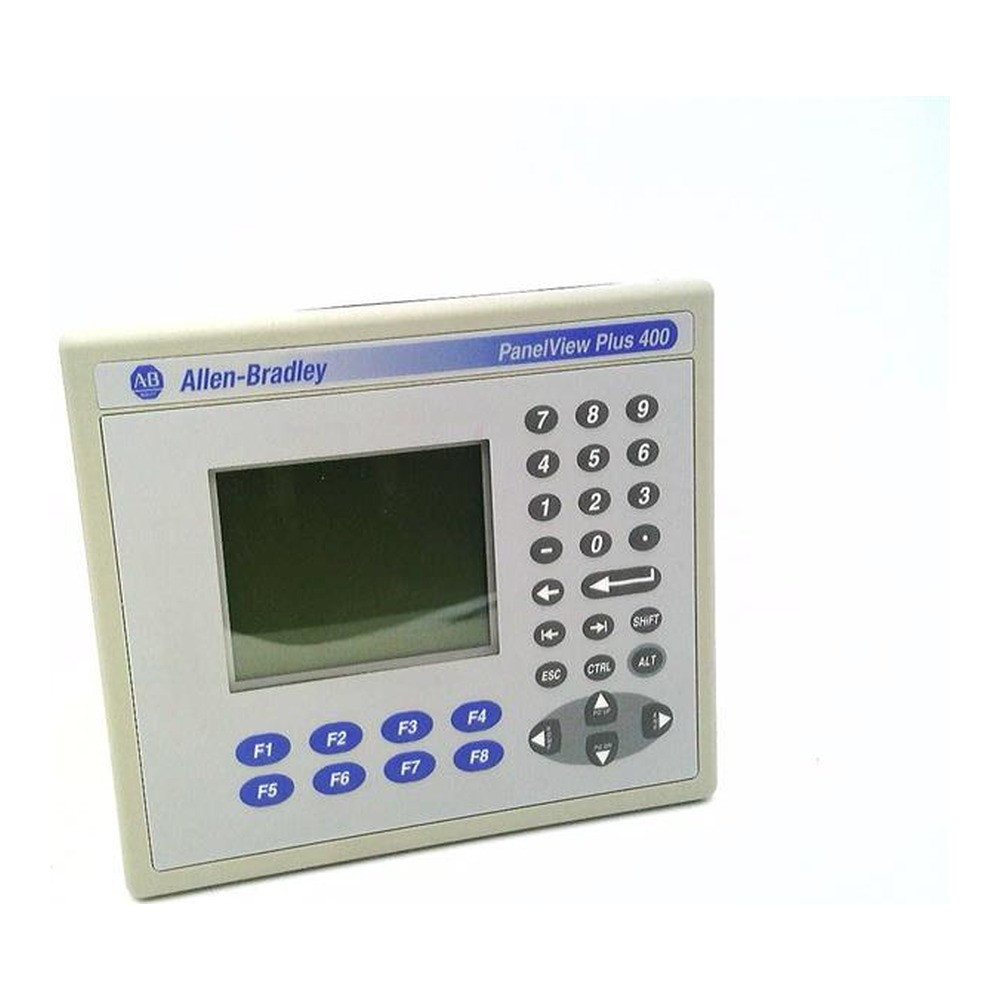

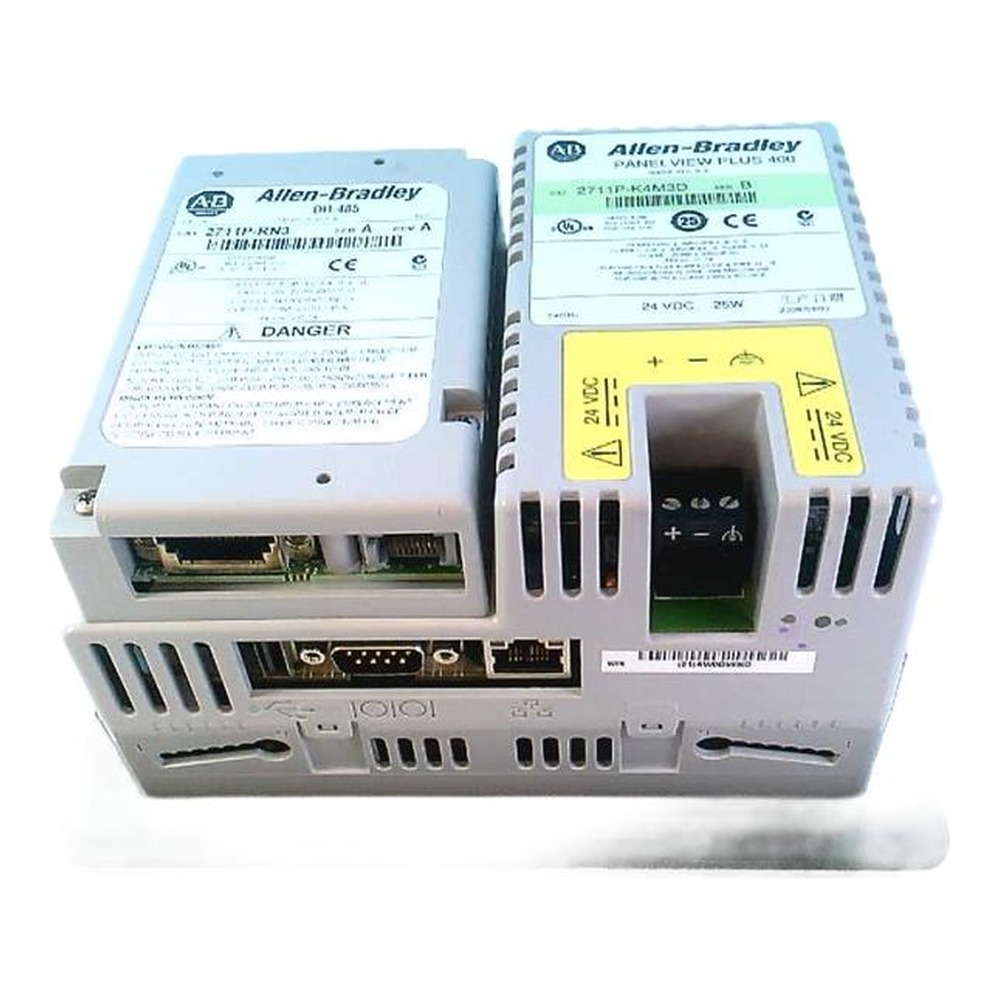

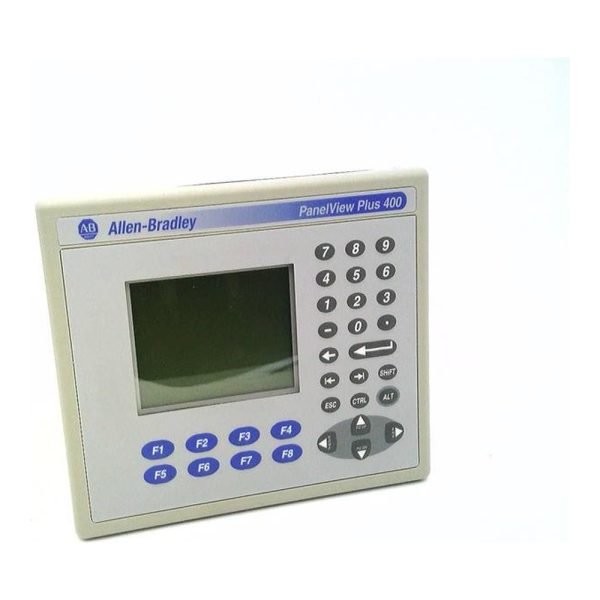

Allen-Bradley 2711P-K4M3D PanelView Plus 400 Keypad Terminal, 3.8 in Display, Monochrome, 320 x 240, 16-levels gray
Allen-Bradley 2711P-K4M3D is a keypad operator interface terminal from the PanelView Plus 400 product line. The terminal features a 3.8 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over DH-485 Port.
Overview
The Allen-Bradley 2711P-K4M3D is a keypad operator interface terminal from the PanelView Plus 400 product line. The terminal features a 3.8 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over DH-485 Port. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad operator input
- 3.8 in display size
- Monochrome display
- Resolution 320 x 240, 16-levels gray
- DH-485 Port communications
- Memory 64 MB
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-K4M3D |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 400 |
| Product Type | Operator Interface |
| Weight | 2.56 lbs (1.16 kg) |
| Product Family | PanelView Plus Graphic Terminals |
| Operator Input | Keypad |
| Display Size | 3.8 in |
| Display Type | Monochrome Passive Matrix, Film Compensated Super-Twist Nematic (FSTN) |
| Display Color | Grayscale |
| Resolution | 320 x 240, 16-levels gray |
| Communication | DH-485 Port |
| Input Power | DC |
| Memory | 64 MB |
| Backlight | LED |
| Category | Panelviews |
| Display Area | 78 x 59 mm (3.07 x 2.32 in) |
| Keypad | 8 function keys (F1…F8), Numeric input, navigation |
| System Memory | 5MB (Series A); 10 MB (Series B or later) |
| External storage | Secure Digital (SD) card, cat. no.1784-SDx, supported by hot-swappable |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
