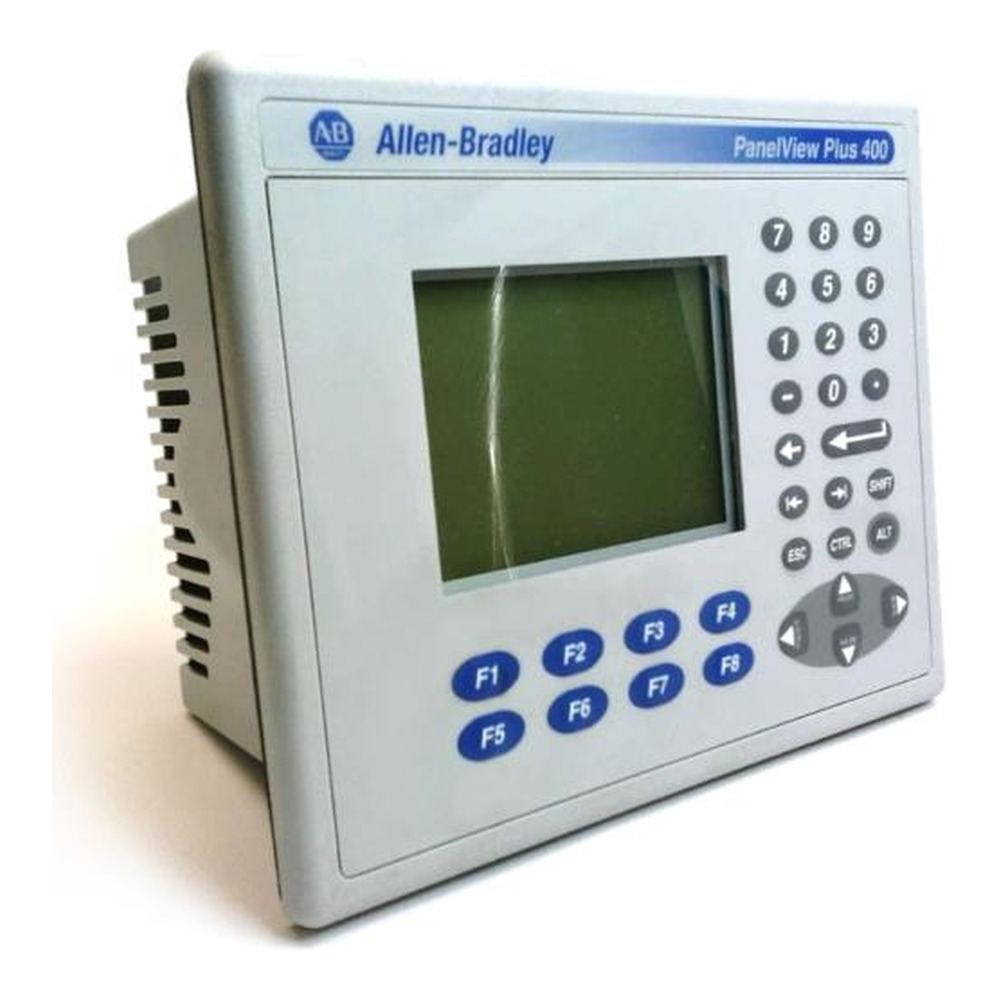

Allen-Bradley 2711P-K4M20A PanelView Plus 400 Keypad Terminal, 3.8 in Display, Color, 320 x 240
Allen-Bradley 2711P-K4M20A is a keypad operator interface terminal from the PanelView Plus 400 product line. The terminal features a 3.8 in color display with 320 x 240 resolution. Communications are handled over Ehternet and RS-232 Ports.
Overview
The Allen-Bradley 2711P-K4M20A is a keypad operator interface terminal from the PanelView Plus 400 product line. The terminal features a 3.8 in color display with 320 x 240 resolution. Communications are handled over Ehternet and RS-232 Ports. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad operator input
- 3.8 in display size
- Color display
- Resolution 320 x 240
- Ehternet and RS-232 Ports communications
- Memory 64 MB
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-K4M20A |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 400 |
| Product Type | Operator Terminals |
| UPC | 781180130885 |
| Weight | 2.00 lbs (0.91 kg) |
| Product Family | PanelView Plus Compact Terminals |
| Operator Input | Keypad |
| Display Size | 3.8 in |
| Display Type | Grayscale passive matrix, film compensated super-twist nematic (FSTN) |
| Display Color | Grayscale |
| Resolution | 320 x 240 |
| Communication | Ehternet and RS-232 Ports |
| Input Power | AC |
| Memory | 64 MB |
| Backlight | CCFL, 50,000 hours min at 25 ° C (77 °F), non-replaceable |
| Product Category | PanelView Plus 1000 |
| Input lifespan | 1 million actuations |
| Display Area | 77 x 58 mm (3.0 x 2.3 in.) |
| Internal memory | 5MB / 10 MB Flash Memory |
| Logic Module | None |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
