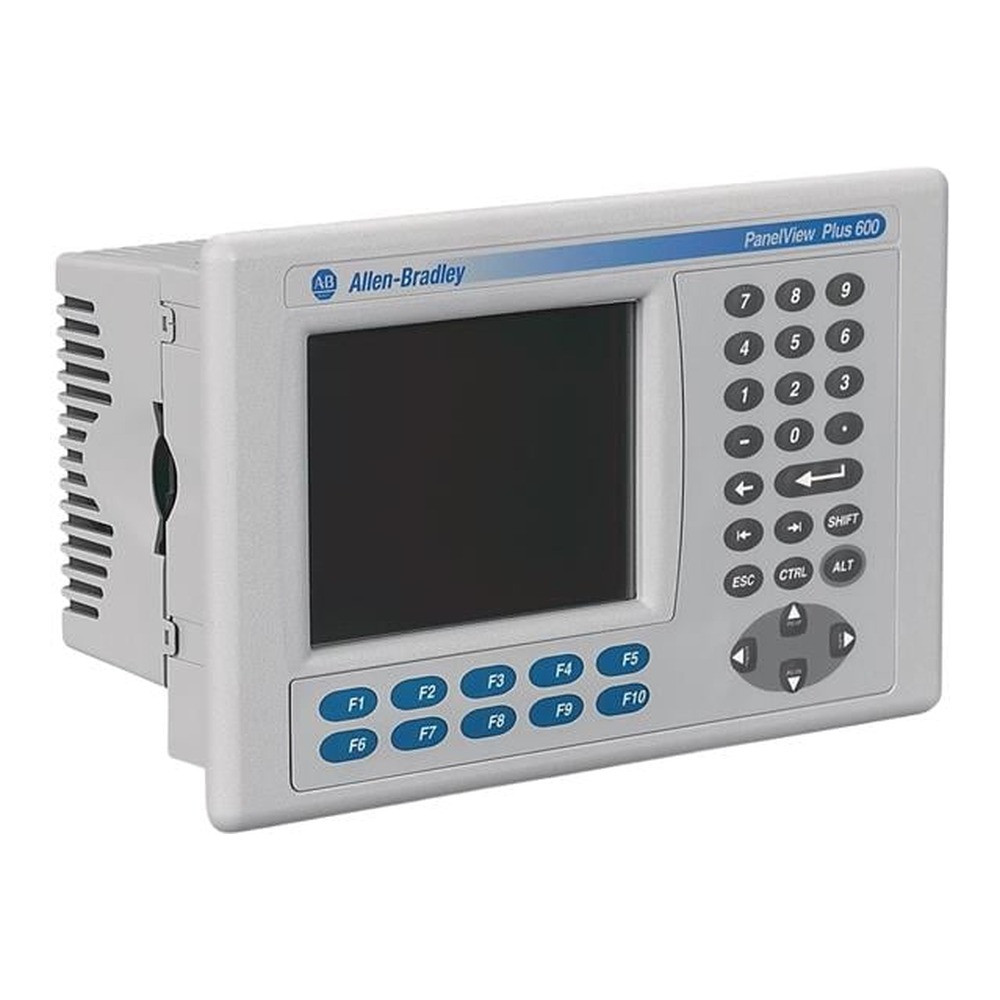

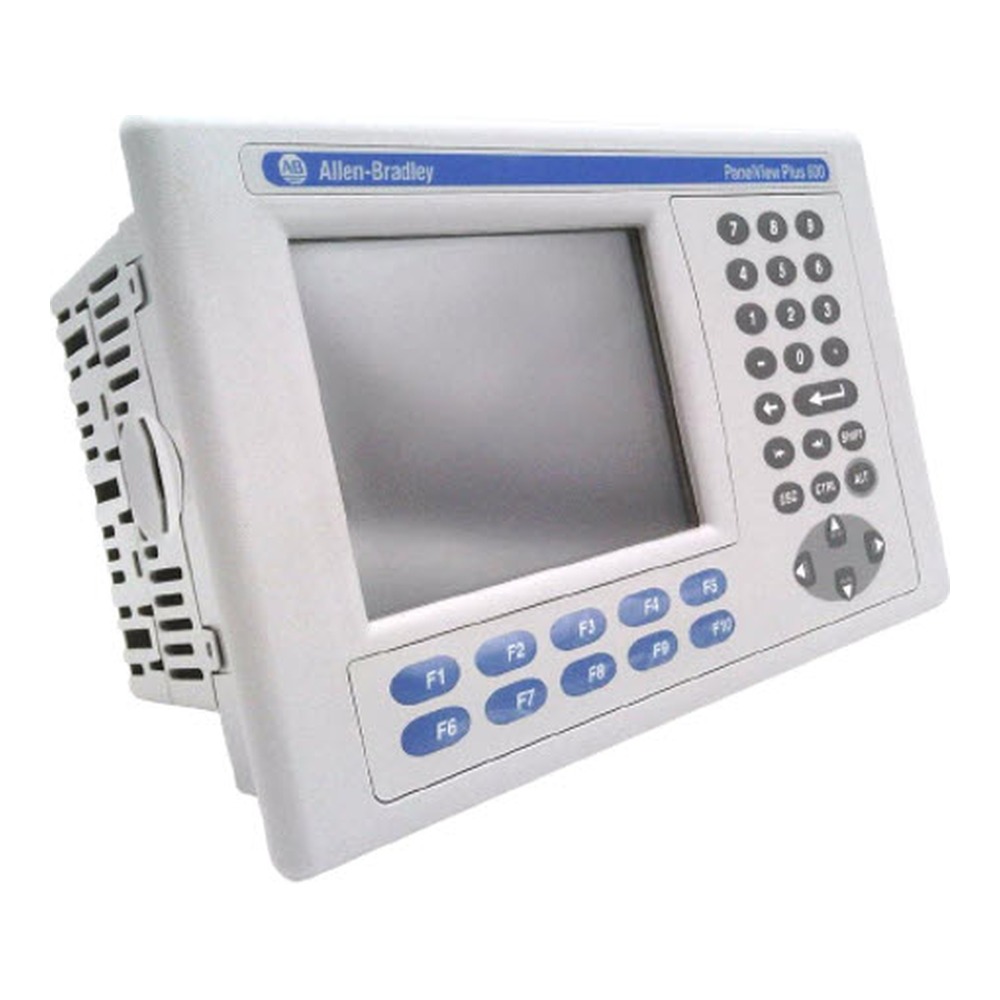

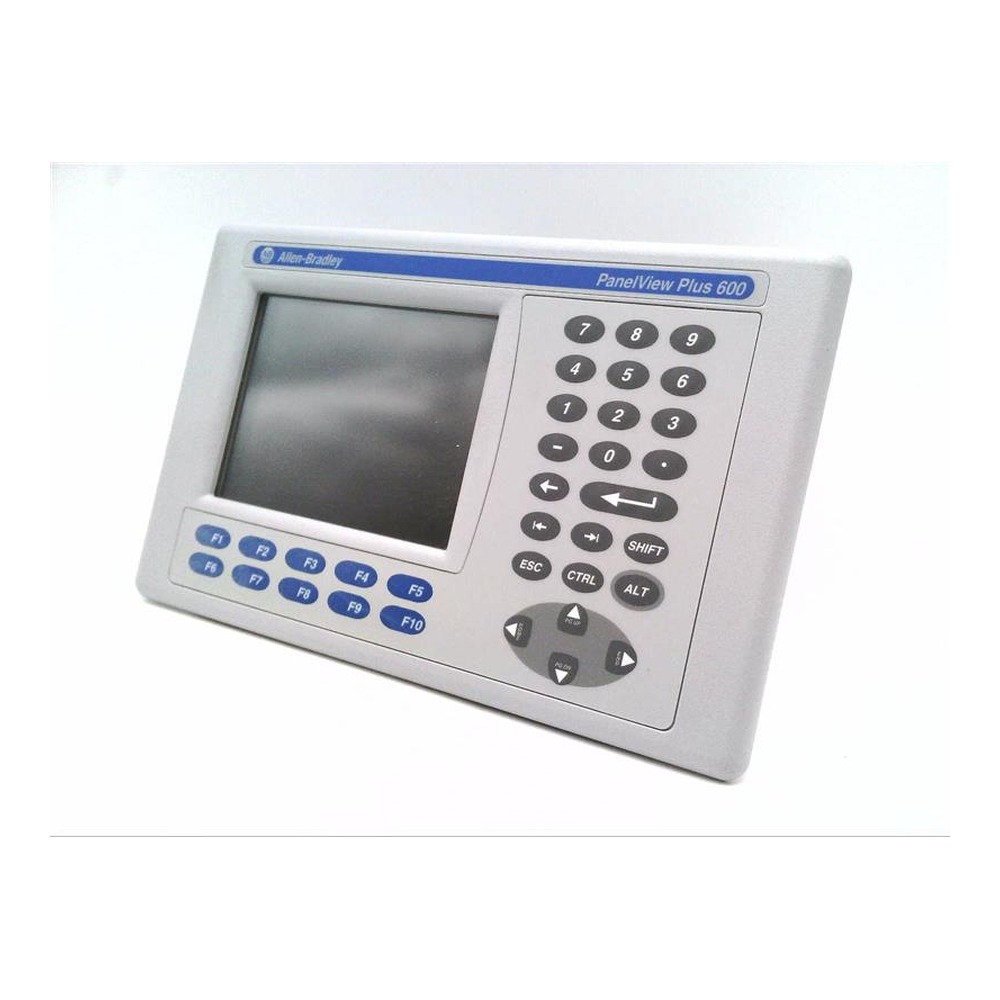

Allen-Bradley 2711P-B6M20A8 PanelView Plus 6 Touchscreen Terminal, 5.7 in Display, Monochrome, 320 x 240, 16-levels gray
Allen-Bradley 2711P-B6M20A8 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 5.7 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100 to 240 Volts AC.
Overview
The Allen-Bradley 2711P-B6M20A8 is a touchscreen operator interface terminal from the PanelView Plus 6 product line. The terminal features a 5.7 in monochrome display with 320 x 240, 16-levels gray resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 100 to 240 Volts AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Touchscreen operator input
- 5.7 in display size
- Monochrome display
- Resolution 320 x 240, 16-levels gray
- Ethernet and RS-232 communications
- Power supply 100 to 240 Volts AC
- Memory 256 MB RAM
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-B6M20A8 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 6 |
| Product Type | PanelView Plus 6 600 Operato Terminals |
| UPC | 884951344587 |
| Weight | 3.00 lbs (1.36 kg) |
| Product Family | PanelView Plus 6 Operato Terminals |
| Operator Input | Touchscreen |
| Display Size | 5.7 in |
| Display Type | Grayscale TFT LCD |
| Display Color | Monochrome |
| Resolution | 320 x 240, 16-levels gray |
| Communication | Ethernet and RS-232 |
| Input Power | 100 to 240 Volts AC |
| Memory | 256 MB RAM |
| Backlight | White LED, not replaceable; 25,000 hours min at 25 °C (77 °F) |
| Lifecycle status | End of life |
| Display Area | 115 x 86 mm (4.5 x 3.4 in.) |
| Keypad | 1 million presses |
| Keypad function keys | F1-F10 function keys (F1…F10), Numeric input, navigation |
| Touch | Analog Resistive |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
