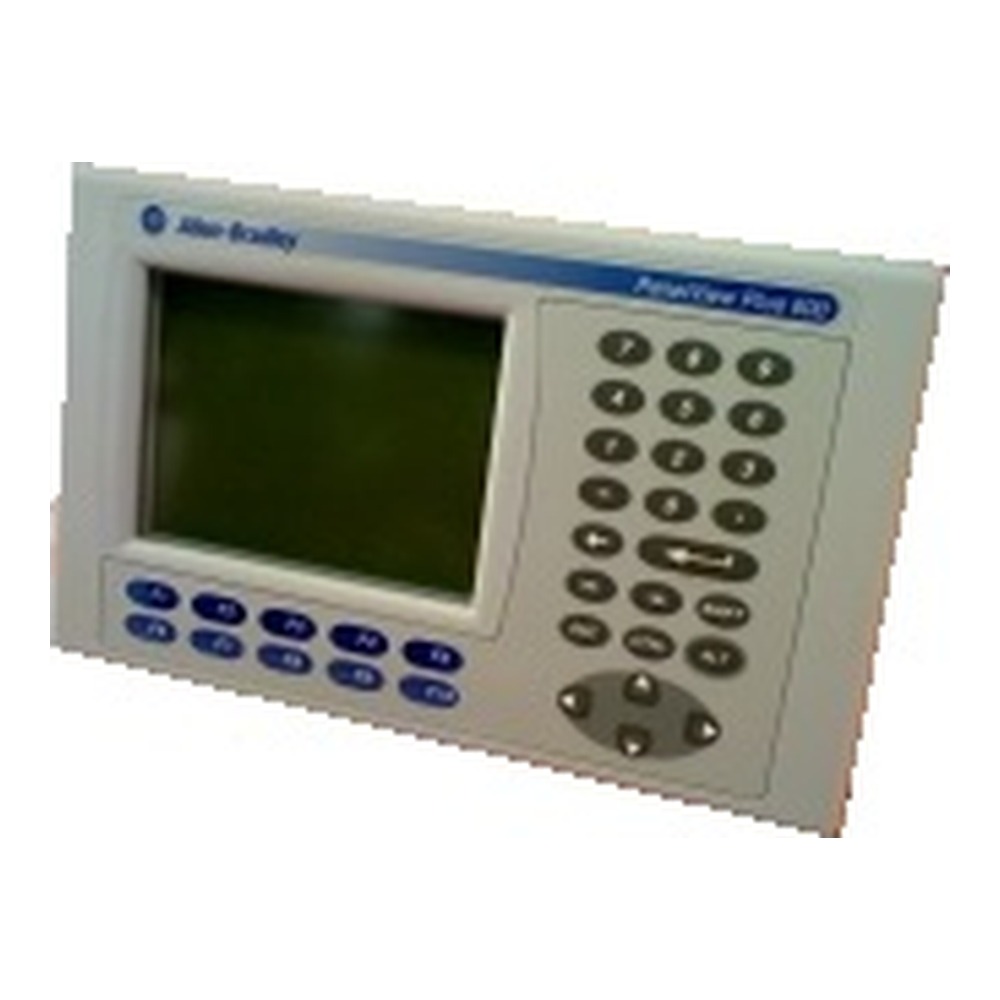

Allen-Bradley 2711P-B6M20A PanelView Plus 600 Keypad & Touch Terminal, 5.5 in Display, 320 x 240
Allen-Bradley 2711P-B6M20A is a keypad & touch operator interface terminal from the PanelView Plus 600 product line. The terminal features a 5.5 in display with 320 x 240 resolution. Communications are handled over RS-232, USB, 2 Ethernet ports. The unit is powered from 85…264V AC.
Overview
The Allen-Bradley 2711P-B6M20A is a keypad & touch operator interface terminal from the PanelView Plus 600 product line. The terminal features a 5.5 in display with 320 x 240 resolution. Communications are handled over RS-232, USB, 2 Ethernet ports. The unit is powered from 85…264V AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad & Touch operator input
- 5.5 in display size
- Resolution 320 x 240
- RS-232, USB, 2 Ethernet ports communications
- Power supply 85…264V AC
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-B6M20A |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 600 |
| Product Type | PanelView Plus 600 Operator Terminals |
| Weight | 3.75 lbs (1.70 kg) |
| Product Family | PanelView Plus Operator Terminals |
| Operator Input | Keypad & Touch |
| Display Size | 5.5 in |
| Display Type | Grayscale passive matrix, film compensated super-twist nematic (FSTN) |
| Resolution | 320 x 240 |
| Communication | RS-232, USB, 2 Ethernet ports |
| Input Power | 85…264V AC |
| Backlight | CCFL 50,000 hours life, min |
| Lifecycle status | Discontinued |
| Display Area | 112 x 84 mm (4.4 x 3.3 in.) |
| Keypad | 1 million presses |
| Keypad function keys | F1-F10 function keys (F1…F10), Numeric input, navigation |
| Touch | Analog Resistive |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
