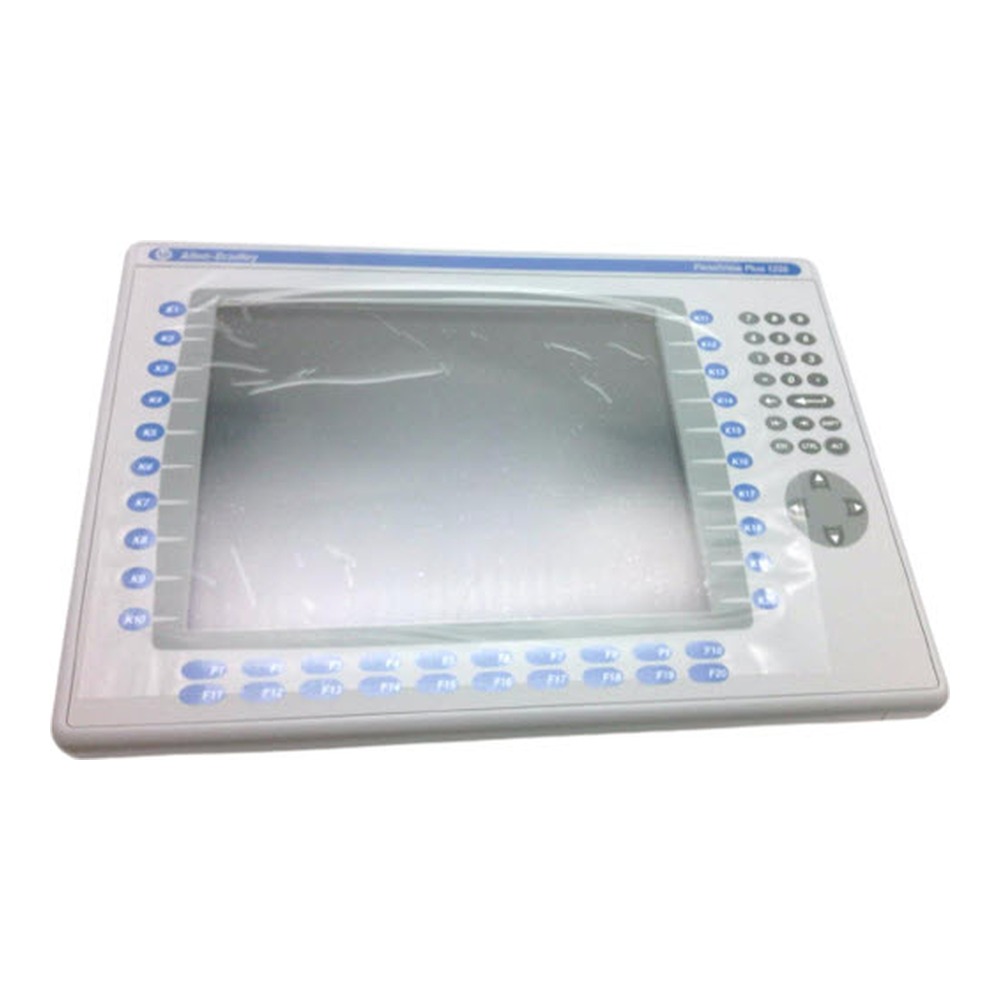

Allen-Bradley 2711P-B12C4D8 PanelView Plus 6 Keypad & Touch Terminal, 12.1 in Display, Color, 800 x 600, 18-bit color graphics
Allen-Bradley 2711P-B12C4D8 is a keypad & touch operator interface terminal from the PanelView Plus 6 product line. The terminal features a 12.1 in color display with 800 x 600, 18-bit color graphics resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 18-32 VDC.
Overview
The Allen-Bradley 2711P-B12C4D8 is a keypad & touch operator interface terminal from the PanelView Plus 6 product line. The terminal features a 12.1 in color display with 800 x 600, 18-bit color graphics resolution. Communications are handled over Ethernet and RS-232. The unit is powered from 18-32 VDC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad & Touch operator input
- 12.1 in display size
- Color display
- Resolution 800 x 600, 18-bit color graphics
- Ethernet and RS-232 communications
- Power supply 18-32 VDC
- Memory 512 MB RAM
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-B12C4D8 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 6 |
| Product Type | Operator Terminals |
| Weight | 9.88 lbs (4.48 kg) |
| Product Family | PanelView Plus 1250 Standard Terminals |
| Operator Input | Keypad & Touch |
| Display Size | 12.1 in |
| Display Type | Color active matrix, thin-film transistor (TFT) |
| Display Color | Color |
| Resolution | 800 x 600, 18-bit color graphics |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Memory | 512 MB RAM |
| Backlight | 50,000 hr LED backlight life |
| Lifecycle status | Active |
| Display Area | 246 x 184 mm (9.7 x 7.2 in.) |
| Keypad | 1 million presses |
| Keypad function keys | F1 to F20, K1 to K20; 0…9, Special Characters, Backspace, Enter, Left |
| Touchscreen | 8-wire Analog Resistive Touchscreen |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711P-UM006 — PanelView Plus Terminals User Manual | 2711p-um006_-en-p.pdf |
| Publication | 2711P-IN001 — PanelView Plus Terminals Installation Instructions | 2711p-in001_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711p-ct001_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
