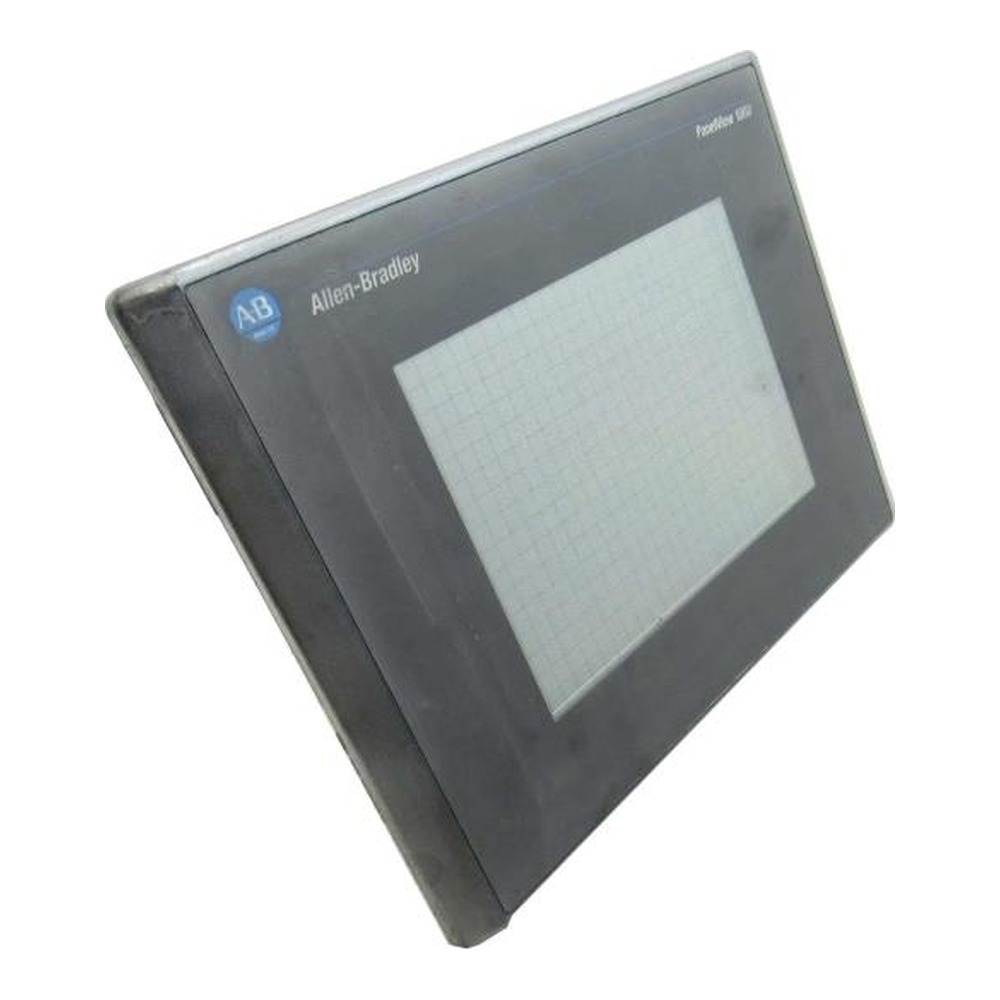

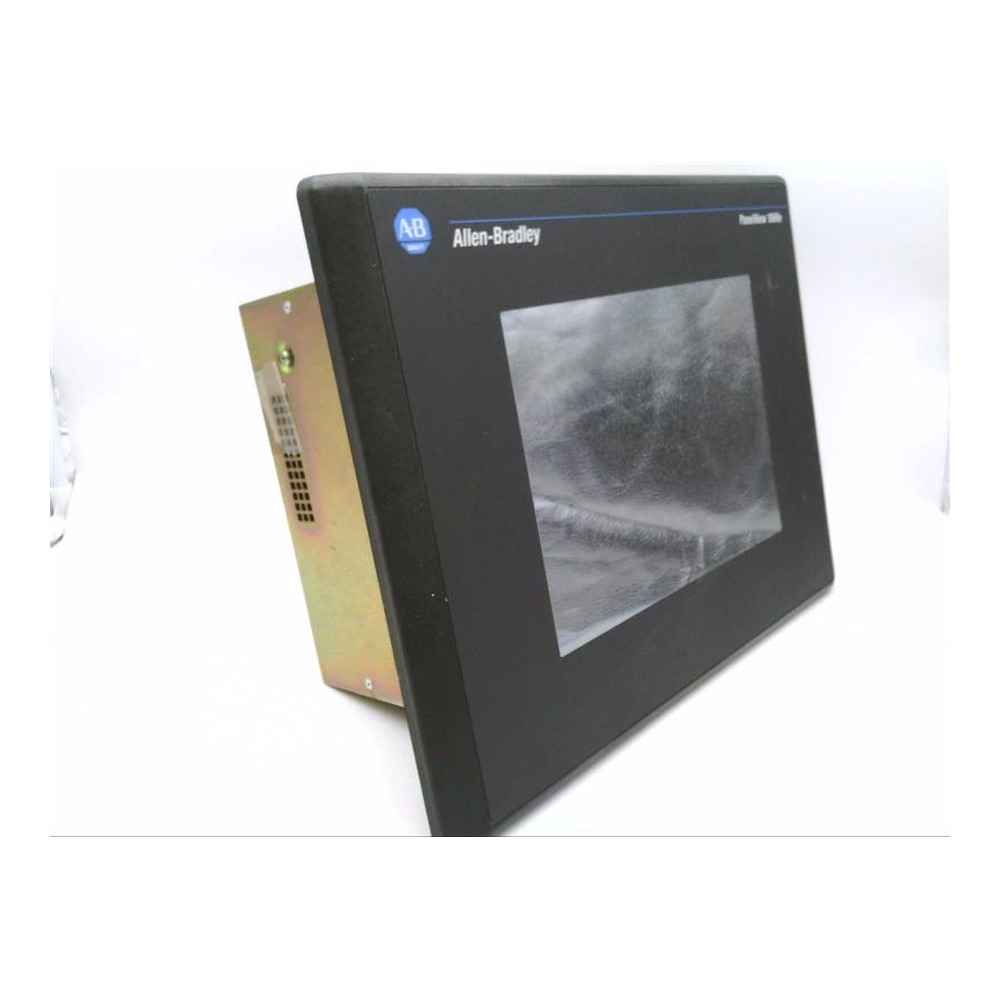

Allen-Bradley 2711E-T10C15 PanelView 2711E Touchscreen Terminal, 10.4 in Display, Color
Allen-Bradley 2711E-T10C15 is a touchscreen operator interface terminal from the PanelView 2711E product line. The terminal features a 10.4 in color display. Communications are handled over ControlNet. The unit is powered from 180-264V AC.
Overview
The Allen-Bradley 2711E-T10C15 is a touchscreen operator interface terminal from the PanelView 2711E product line. The terminal features a 10.4 in color display. Communications are handled over ControlNet. The unit is powered from 180-264V AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Touchscreen operator input
- 10.4 in display size
- Color display
- ControlNet communications
- Power supply 180-264V AC
- Memory 2.25MB On-Board Flash
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711E-T10C15 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView 2711E |
| Product Type | Operator Interface |
| Weight | 11.13 lbs (5.05 kg) |
| Product Family | PanelView operator terminals |
| Operator Input | Touchscreen |
| Display Size | 10.4 in |
| Display Type | TFT Active Matrix Display, |
| Display Color | Color |
| Communication | ControlNet |
| Input Power | 180-264V AC |
| Memory | 2.25MB On-Board Flash |
| Backlight | Field Replaceable; 10000 hours |
| Category | Panelviews |
| Product Category | PanelView 1000e |
| Display Format | 640 horizontal by 480 vertical pixels |
| Display Area | 211.2 mm 158.4 mm image size |
| Input lifespan | 1 million actuations |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711E-UM001 — PanelView e Terminals User Manual | 2711e-um001_-en-p.pdf |
