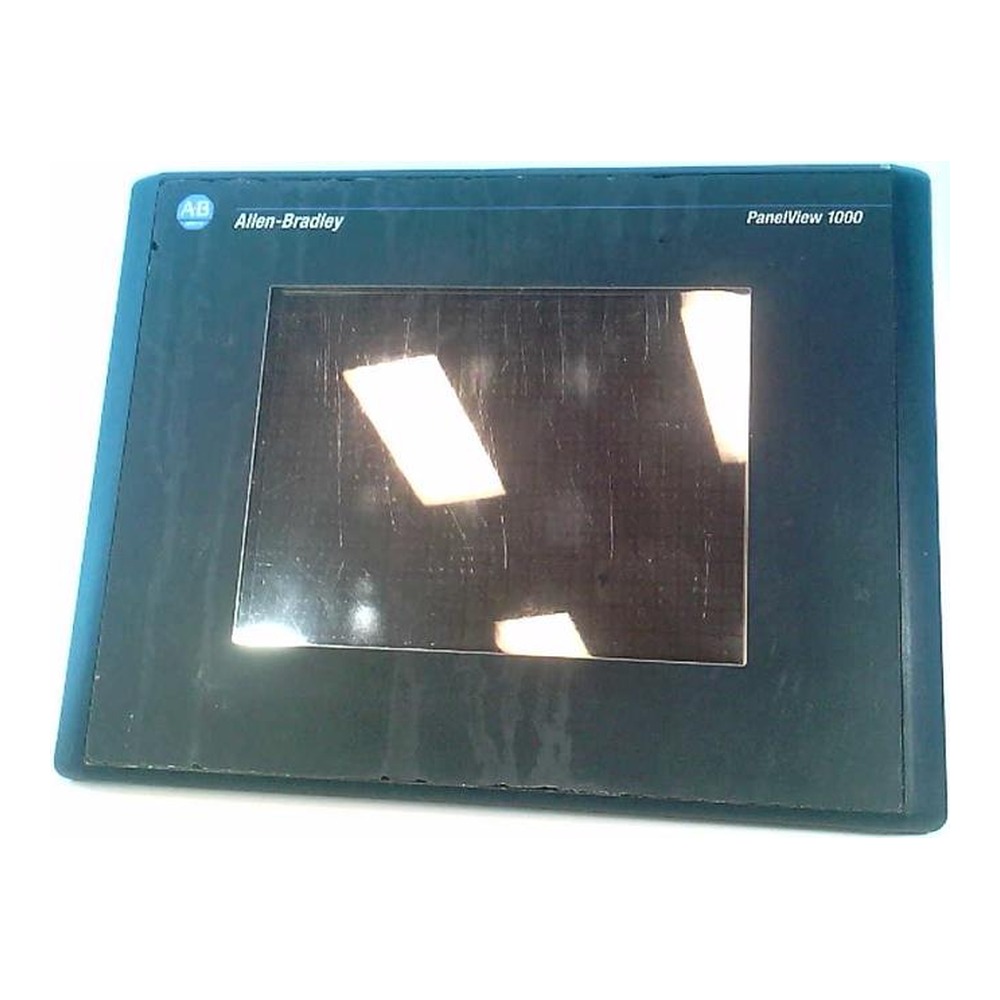

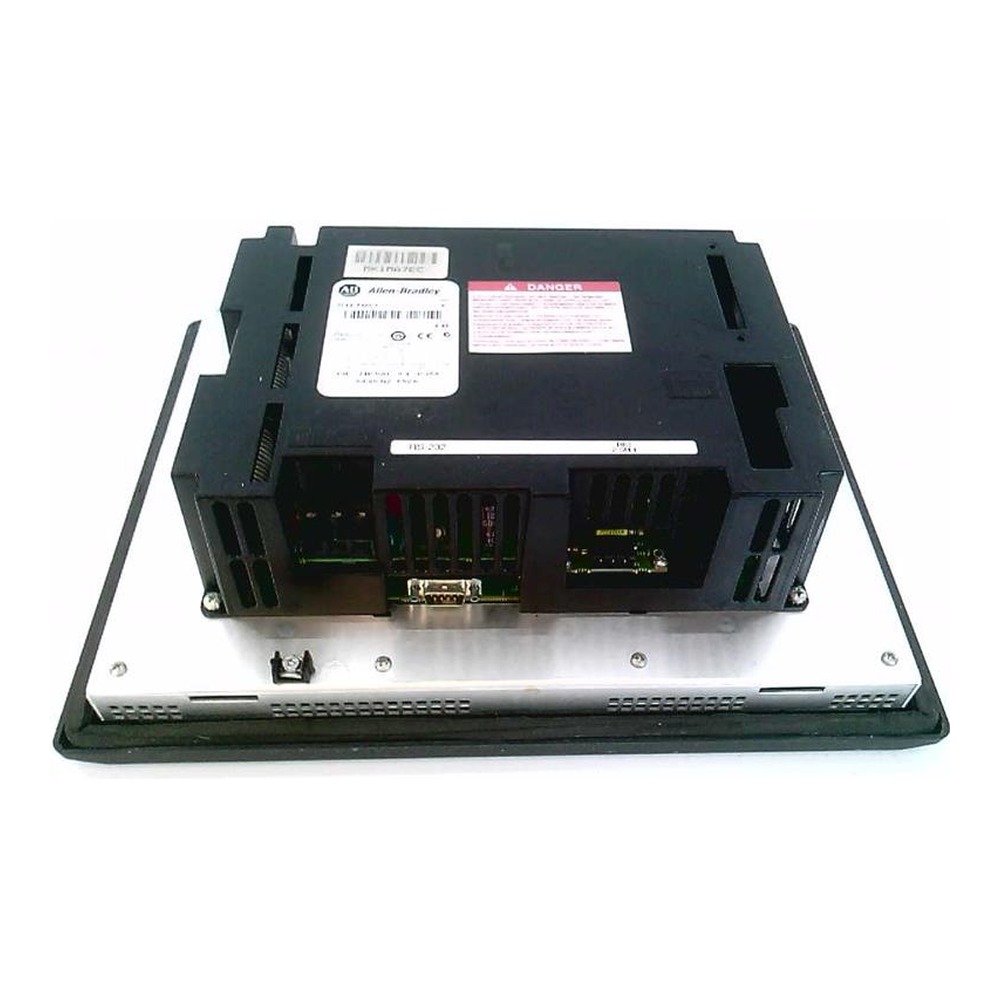

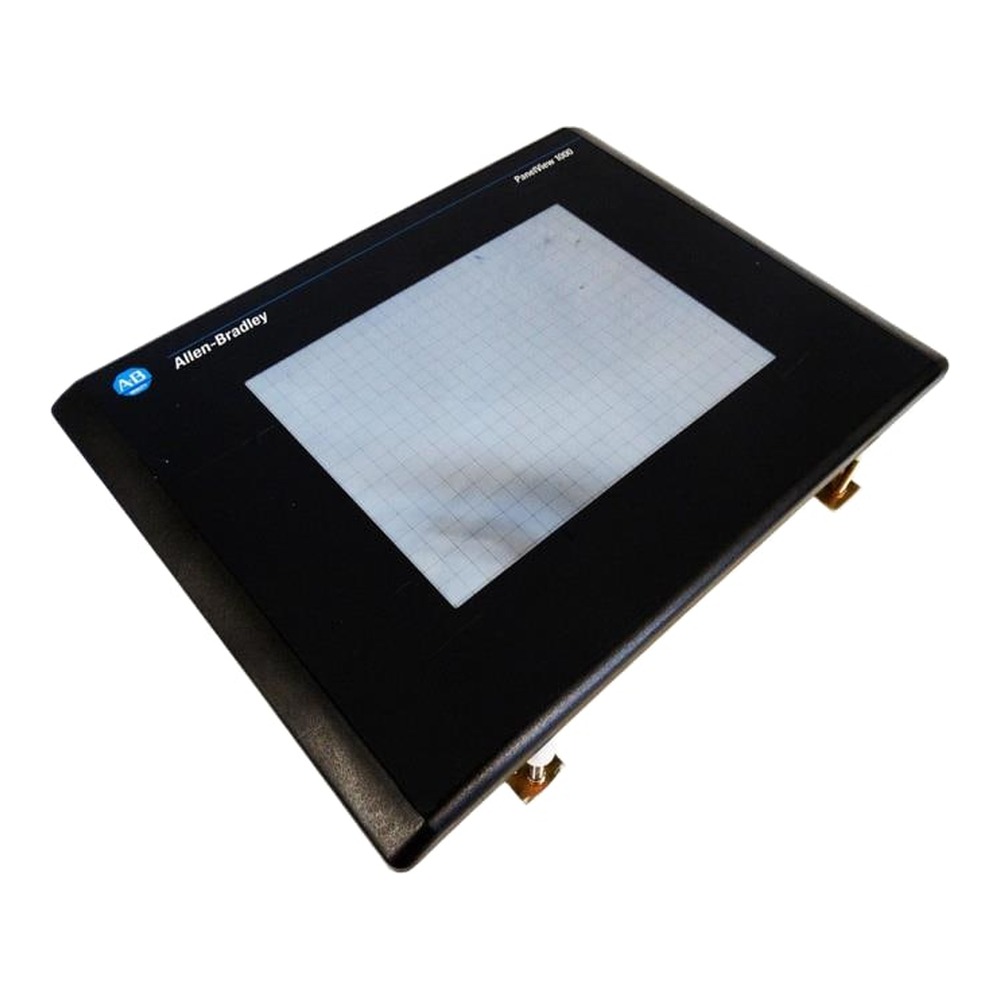

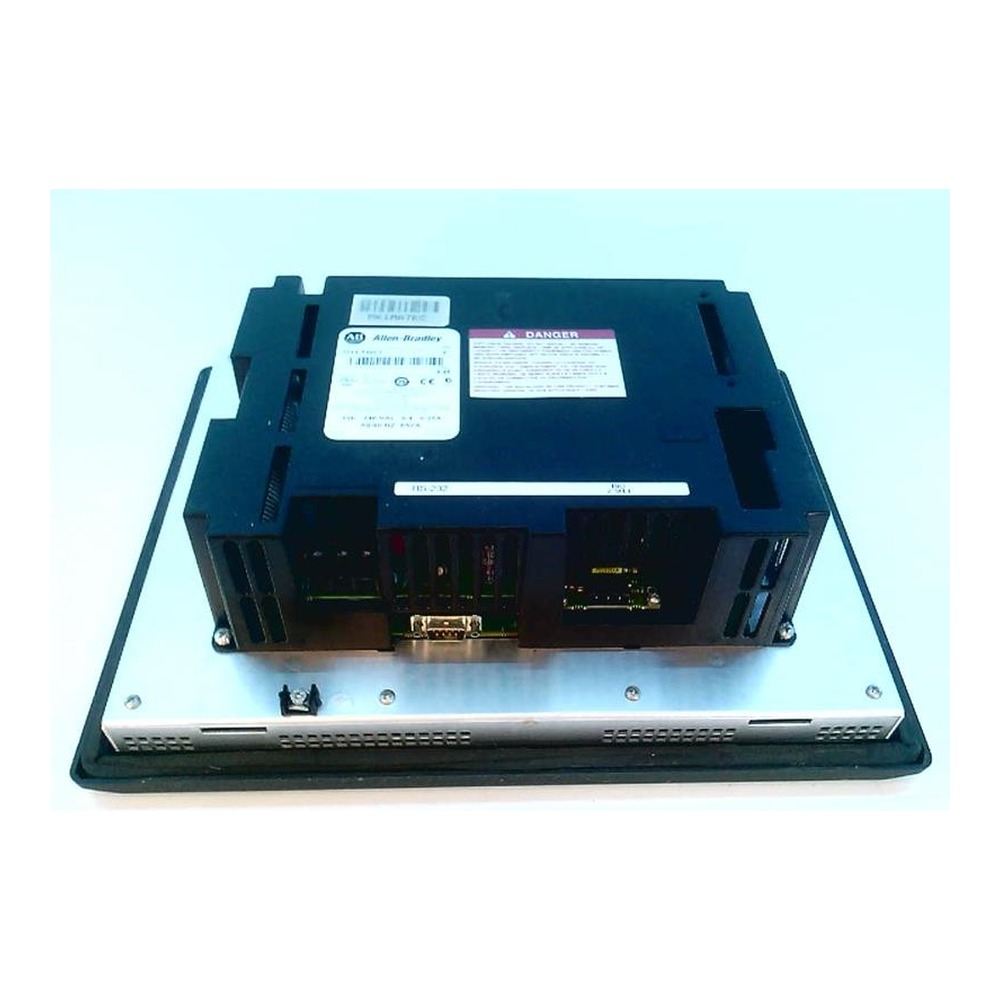

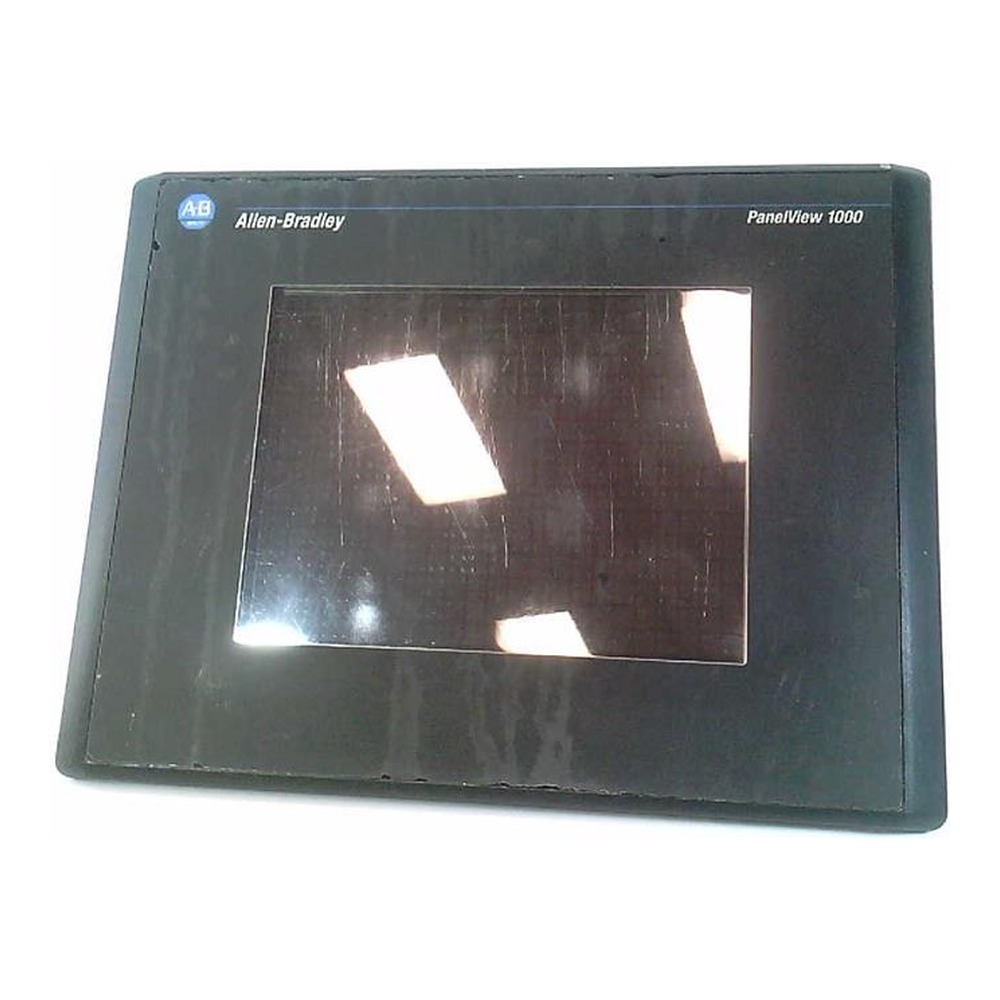

Allen-Bradley 2711-T10C1 PanelView 1000 Touchscreen Terminal, 10.1 in Display, Color, 640 x 480
Allen-Bradley 2711-T10C1 is a touchscreen operator interface terminal from the PanelView 1000 product line. The terminal features a 10.1 in color display with 640 x 480 resolution. Communications are handled over Remote I/O and Printer (RS-232) Port. The unit is powered from 85 to 264 Volts AC.
Overview
The Allen-Bradley 2711-T10C1 is a touchscreen operator interface terminal from the PanelView 1000 product line. The terminal features a 10.1 in color display with 640 x 480 resolution. Communications are handled over Remote I/O and Printer (RS-232) Port. The unit is powered from 85 to 264 Volts AC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Touchscreen operator input
- 10.1 in display size
- Color display
- Resolution 640 x 480
- Remote I/O and Printer (RS-232) Port communications
- Power supply 85 to 264 Volts AC
- Memory 256 KB
- Enclosure rated NEMA Type 12/13 or 4X
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711-T10C1 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView 1000 |
| Product Type | PanelView 1000 Standard Operator Terminals |
| UPC | 662072718599 |
| Weight | 6.44 lbs (2.92 kg) |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Touchscreen |
| Display Size | 10.1 in |
| Display Type | Color Active matrix |
| Display Color | Multi-Color |
| Resolution | 640 x 480 |
| Communication | Remote I/O and Printer (RS-232) Port |
| Input Power | 85 to 264 Volts AC |
| Memory | 256 KB |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Backlight | 50,000 hr LED backlight life half-life |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Touch Interface | 1 million presses |
| Input Frequency | 47…63 Hz |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711-UM014 — PanelView Standard Terminals User Manual | 2711-um014_-en-p.pdf |
| Publication | 2711-IN008 — PanelView Standard Terminals Installation Instructions | 2711-in008_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711-ct002_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
