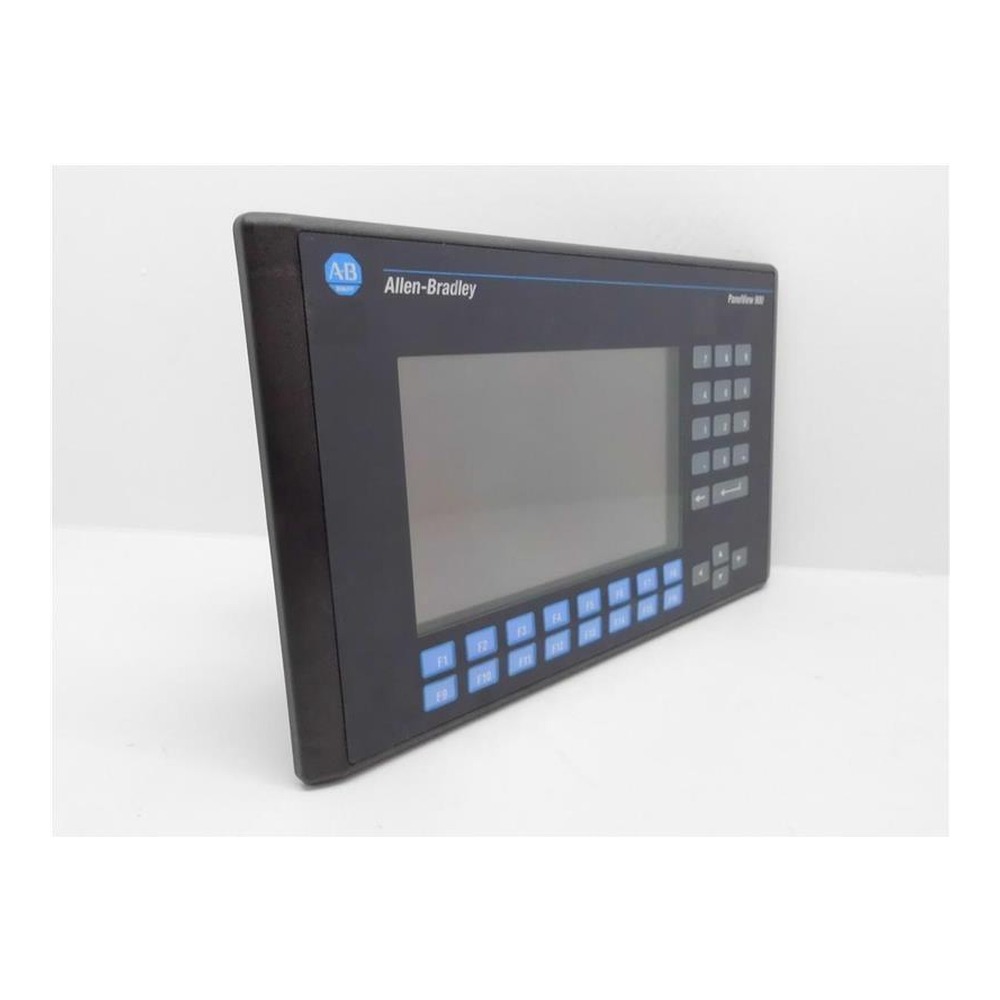

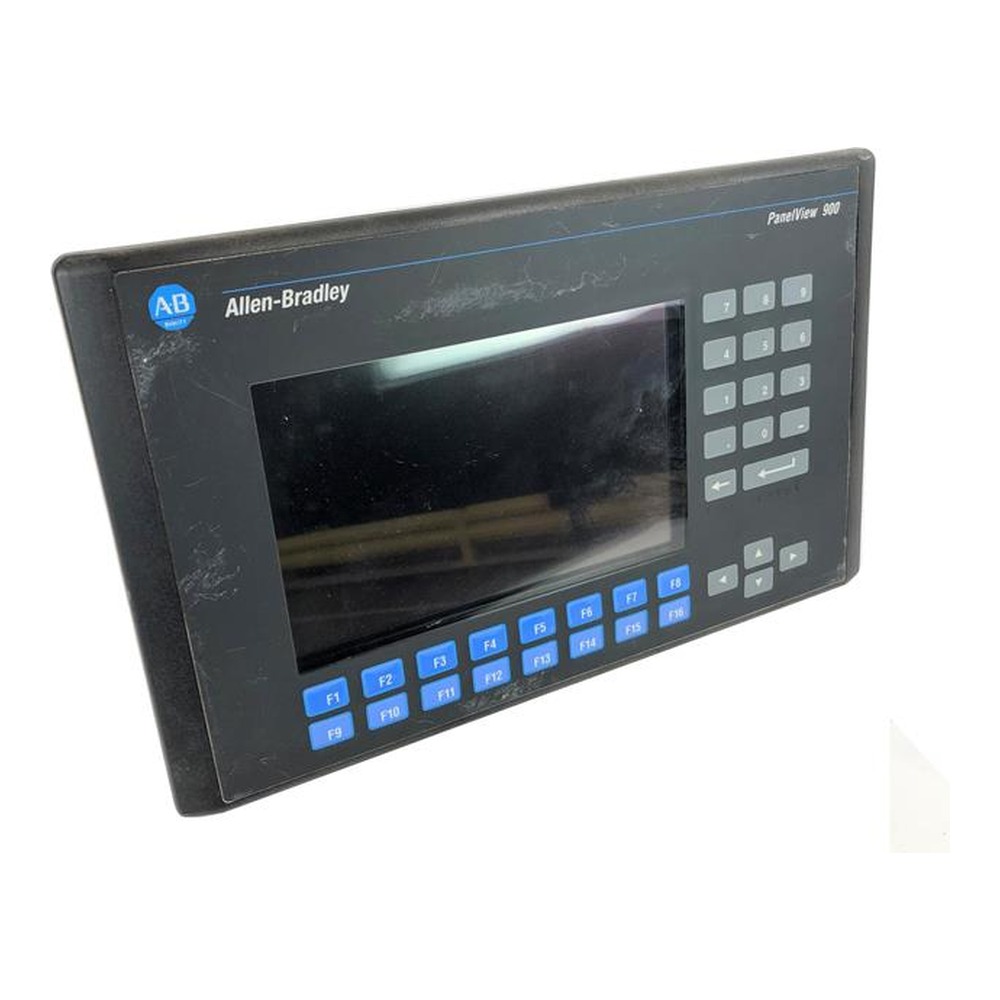

Allen-Bradley 2711-K9A5 PanelView 900 Keypad Terminal, 9 in Display, Monochrome, 640 x 400
Allen-Bradley 2711-K9A5 is a keypad operator interface terminal from the PanelView 900 product line. The terminal features a 9 in monochrome display with 640 x 400 resolution. Communications are handled over RS-232 (DH-485). The unit is powered from 120 VAC.
Overview
The Allen-Bradley 2711-K9A5 is a keypad operator interface terminal from the PanelView 900 product line. The terminal features a 9 in monochrome display with 640 x 400 resolution. Communications are handled over RS-232 (DH-485). The unit is powered from 120 VAC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad operator input
- 9 in display size
- Monochrome display
- Resolution 640 x 400
- RS-232 (DH-485) communications
- Power supply 120 VAC
- Memory 1008K bytes
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711-K9A5 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView 900 |
| Product Type | PanelView 900 Standard Operator Terminals |
| Weight | 7.13 lbs (3.23 kg) |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Keypad |
| Display Size | 9 in |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Color | Monochrome |
| Resolution | 640 x 400 |
| Communication | RS-232 (DH-485) |
| Input Power | 120 VAC |
| Memory | 1008K bytes |
| Backlight | Non-replaceable |
| Display Area | 210 x 131 mm (8.27 x 5.17 in.) |
| Keypad Assembly | 16 function keys (F1…F16) |
| Input Frequency | 47…63 Hz |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711-UM014 — PanelView Standard Terminals User Manual | 2711-um014_-en-p.pdf |
| Publication | 2711-IN008 — PanelView Standard Terminals Installation Instructions | 2711-in008_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711-ct002_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
