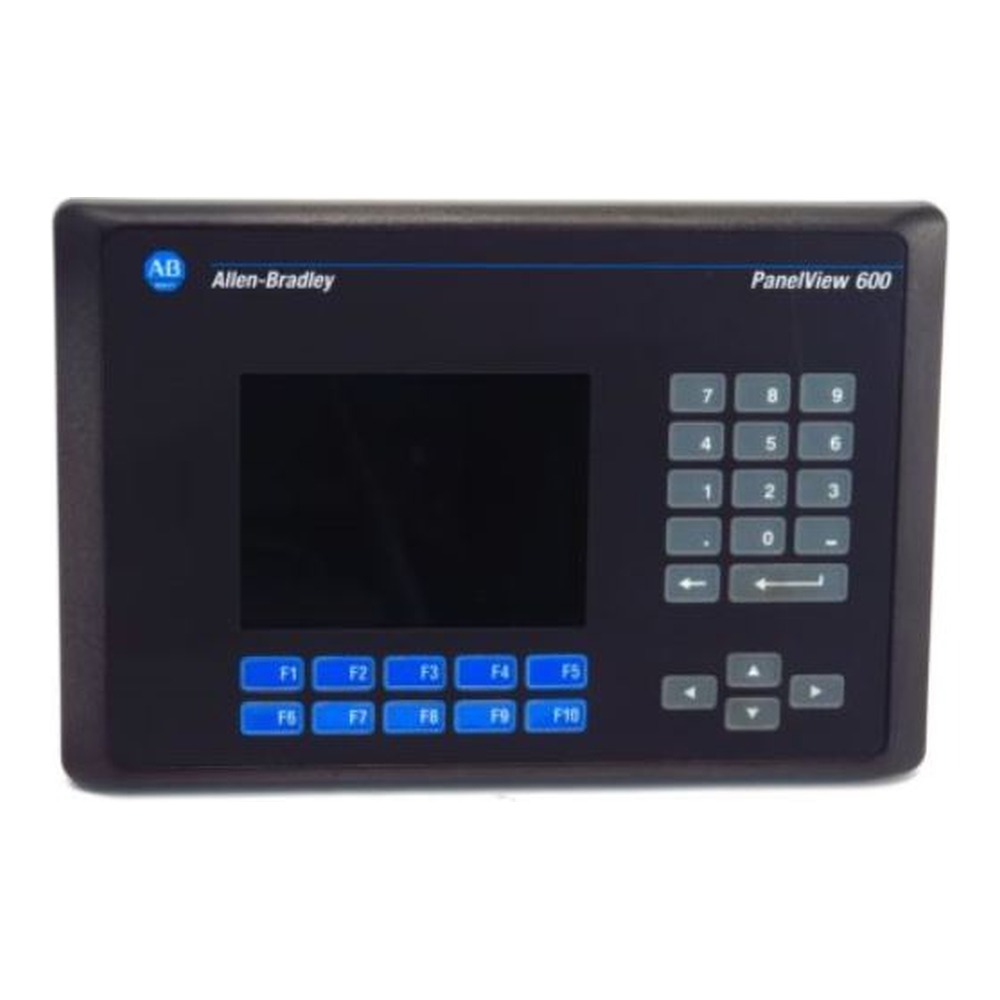

Allen-Bradley 2711-K6C2L1 PanelView 600 Keypad Terminal, 5 in Display, Monochrome, 256 x 128
Allen-Bradley 2711-K6C2L1 is a keypad operator interface terminal from the PanelView 600 product line. The terminal features a 5 in monochrome display with 256 x 128 resolution. Communications are handled over DH-485. The unit is powered from 18-32 VDC.
Overview

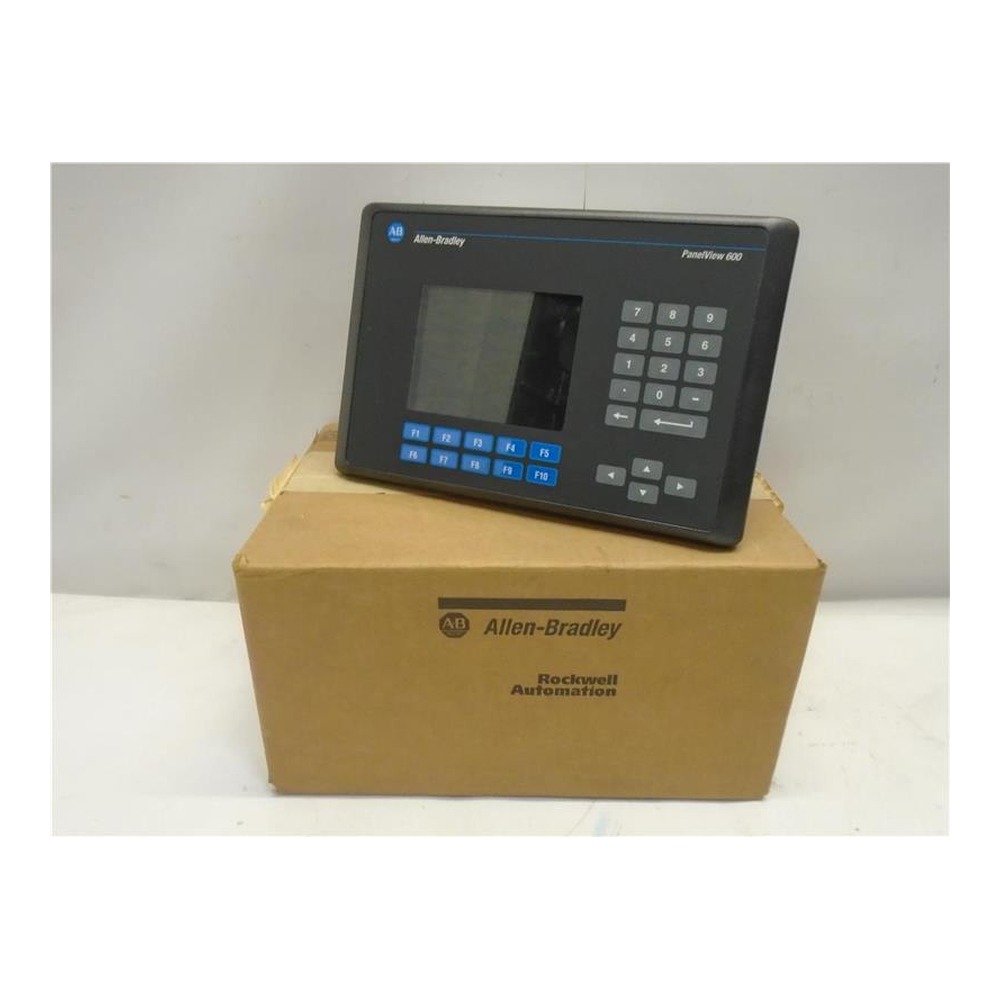

The Allen-Bradley 2711-K6C2L1 is a keypad operator interface terminal from the PanelView 600 product line. The terminal features a 5 in monochrome display with 256 x 128 resolution. Communications are handled over DH-485. The unit is powered from 18-32 VDC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- Keypad operator input
- 5 in display size
- Monochrome display
- Resolution 256 x 128
- DH-485 communications
- Power supply 18-32 VDC
- Memory 240 KB
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711-K6C2L1 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView 600 |
| Product Type | PanelView 600 Standard Operator Terminals |
| Weight | 4.25 lbs (1.93 kg) |
| Product Family | PanelView Standard Operator Terminals |
| Operator Input | Keypad |
| Display Size | 5 in |
| Display Type | Monochrome transflective LCD with LED backlight |
| Display Color | Color |
| Resolution | 256 x 128 |
| Communication | DH-485 |
| Input Power | 18-32 VDC |
| Memory | 240 KB |
| Backlight | 100,000 hr LED backlight life |
| Display Area | 120 x 60 mm (4.75 x 2.38 in.) |
| Keypad Assembly | 10 function keys (F1…F10) |
| Enclosure | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators | COMM: Green Fault: Red |
| Communication Cable | 1747-UIC |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2711-UM014 — PanelView Standard Terminals User Manual | 2711-um014_-en-p.pdf |
| Publication | 2711-IN008 — PanelView Standard Terminals Installation Instructions | 2711-in008_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA DOC | 2711-ct002_-en-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-29. Please review the product label to confirm the certifications your specific unit carries.
