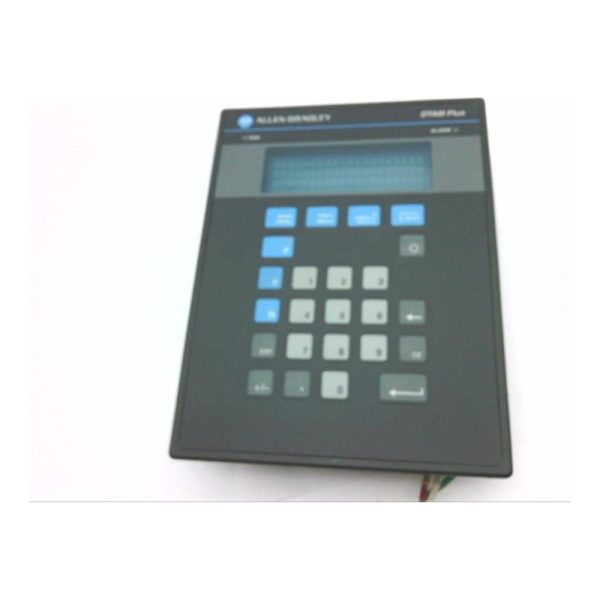

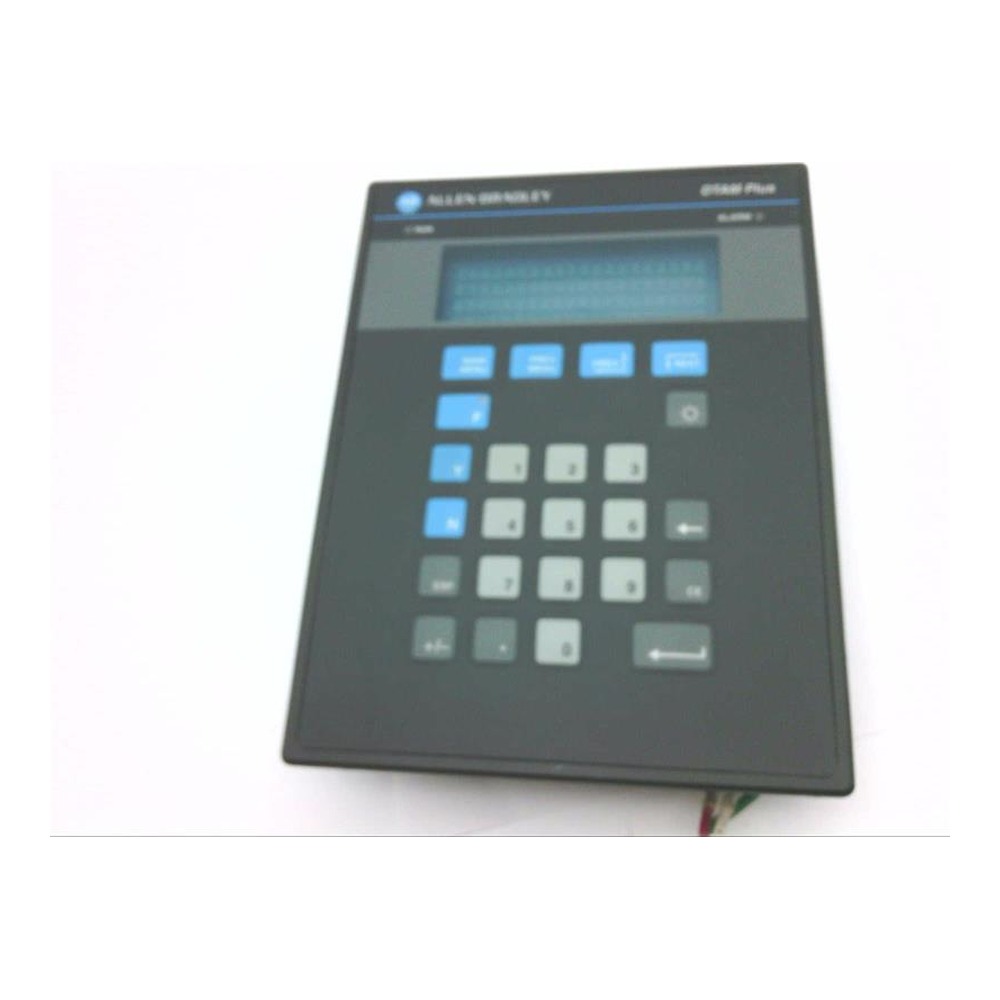

Allen-Bradley 2707-V40P2 Microview 2707 ASCII Terminal, 1.3 x 3.9 Display Area, Vacuum Fluorescent
Allen-Bradley 2707-V40P2 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 1.3 x 3.9 (display area) vacuum fluorescent display. Communications are handled over RS-232C, RS-485. The unit is powered from 110-300 V DC.
Overview
The Allen-Bradley 2707-V40P2 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 1.3 x 3.9 (display area) vacuum fluorescent display. Communications are handled over RS-232C, RS-485. The unit is powered from 110-300 V DC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- ASCII operator input
- 1.3 x 3.9 display area
- Vacuum Fluorescent display
- RS-232C, RS-485 communications
- Power supply 110-300 V DC
- Memory 40K
- Enclosure rated NEMA Type 4x, 4, 12, 13 (indoor use only)
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2707-V40P2 |
| Manufacturer | Allen Bradley |
| Product Line | Microview 2707 |
| Product Type | Operator Interface |
| Weight | 2.50 lbs (1.13 kg) |
| Operator Input | ASCII |
| Display Size | 1.3 x 3.9 |
| Display Color | Vacuum Fluorescent Display (VFD) |
| Communication | RS-232C, RS-485 |
| Input Power | 110-300 V DC |
| Memory | 40K |
| Enclosure Type | NEMA Type 4x, 4, 12, 13 (indoor use only) |
| Category | Panelviews |
| Character Count | 20 |
| Line Count | 4 |
| Programming Cables | 2707-NC1, 2707-NC2, 2707-NC3, 2707-NC4, 2707-NC5, 2707-NC6, 2707-NC10, |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2707-UM001 — DTAM Plus Operator Terminal User Manual | 2707-um001_-en-p.pdf |
