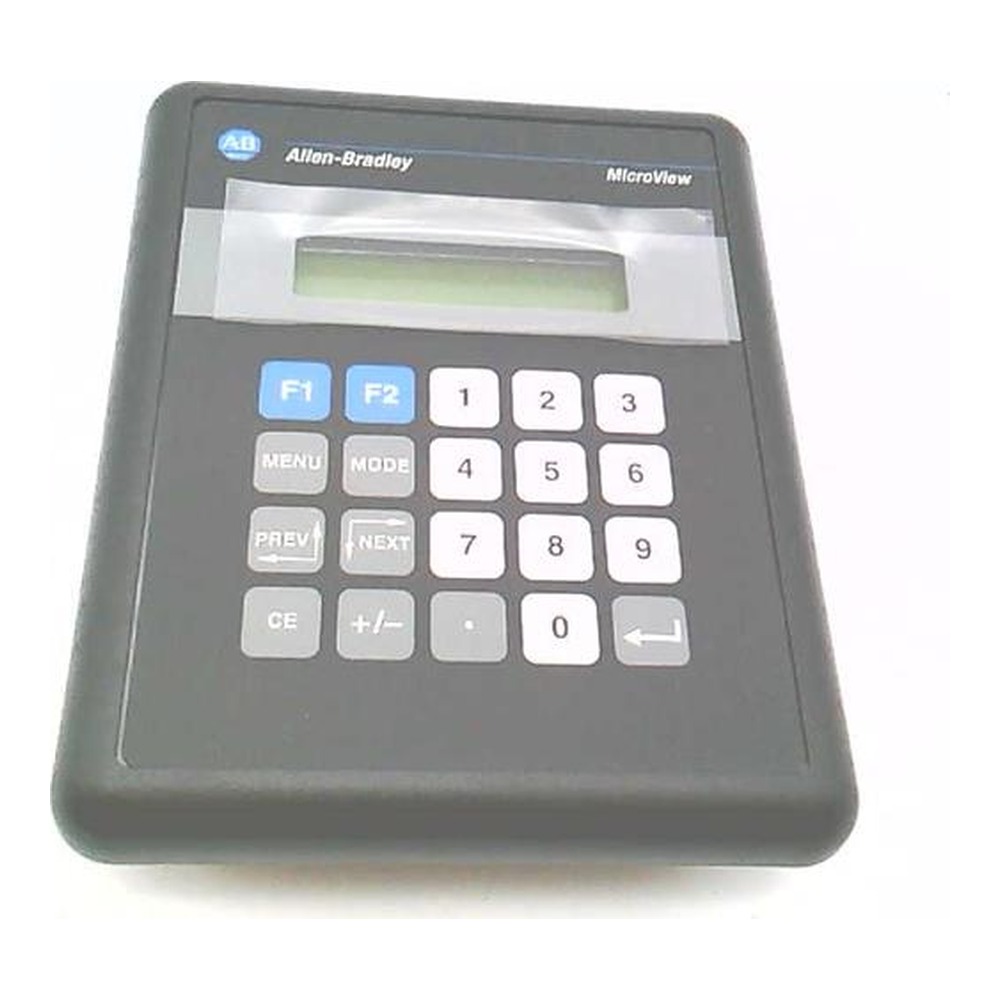

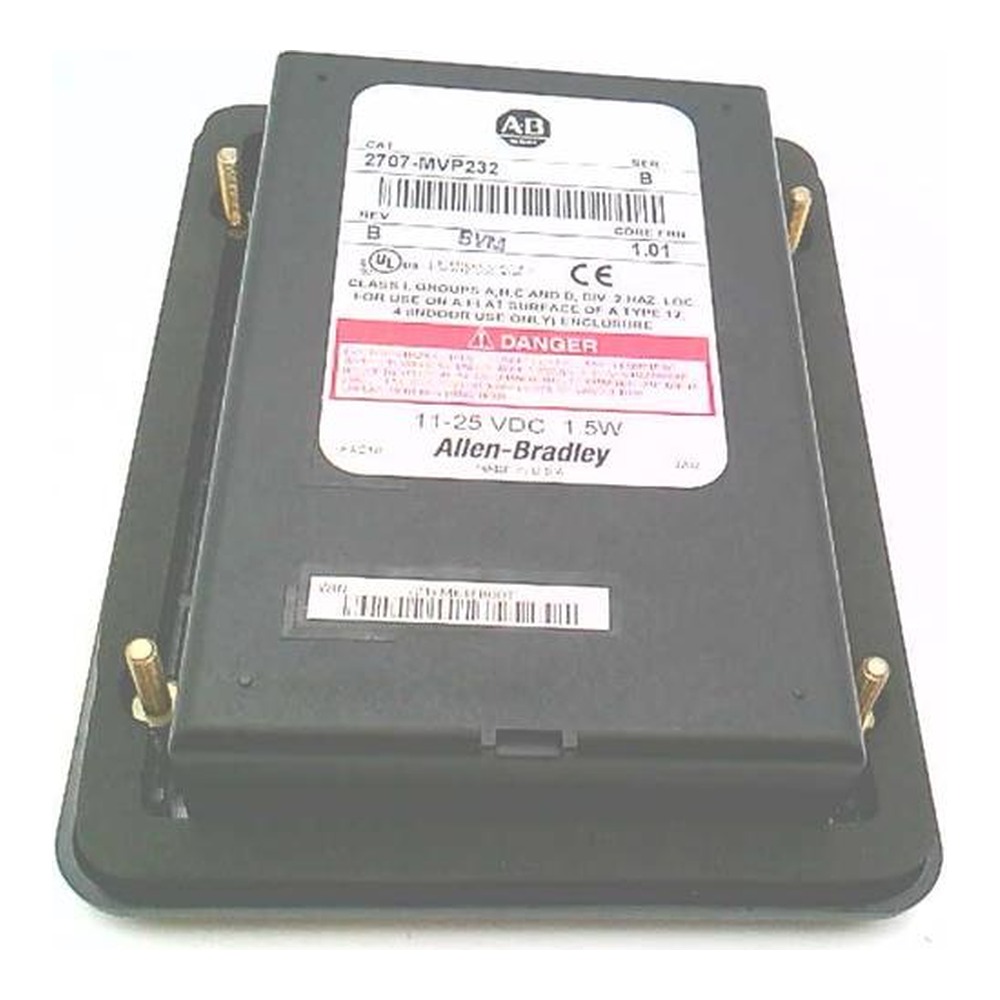

Allen-Bradley 2707-MVP232 Microview 2707 ASCII Terminal, 0.58 x 2.35 Display Area
Allen-Bradley 2707-MVP232 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 0.58 x 2.35 (display area) display. Communications are handled over RS-232. The unit is powered from 11-25 V DC.
Overview
The Allen-Bradley 2707-MVP232 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 0.58 x 2.35 (display area) display. Communications are handled over RS-232. The unit is powered from 11-25 V DC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- ASCII operator input
- 0.58 x 2.35 display area
- RS-232 communications
- Power supply 11-25 V DC
- Memory 50-screen
- Enclosure rated Not required
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2707-MVP232 |
| Manufacturer | Allen Bradley |
| Product Line | Microview 2707 |
| Product Type | Operator Interface |
| Weight | 0.63 lbs (0.28 kg) |
| Product Family | MicroView Operator Interface Module |
| Operator Input | ASCII |
| Display Size | 0.58 x 2.35 |
| Display Color | LCD (Yellow-green LED backlight) |
| Communication | RS-232 |
| Input Power | 11-25 V DC |
| Memory | 50-screen |
| Enclosure Type | Not required |
| Backlight | Yellow-green LED, fixed intensity |
| Category | Panelviews |
| Input keys | F1 and F2 Function keys, Numeric and Navigation keys |
| Actuating Force | 16 oz. (453 grams) |
| Operational Life | 1 million operations |
| Display area | 0.58 x 2.35 in (15mm x 60 mm) |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2707-UM001 — DTAM Plus Operator Terminal User Manual | 2707-um001_-en-p.pdf |
