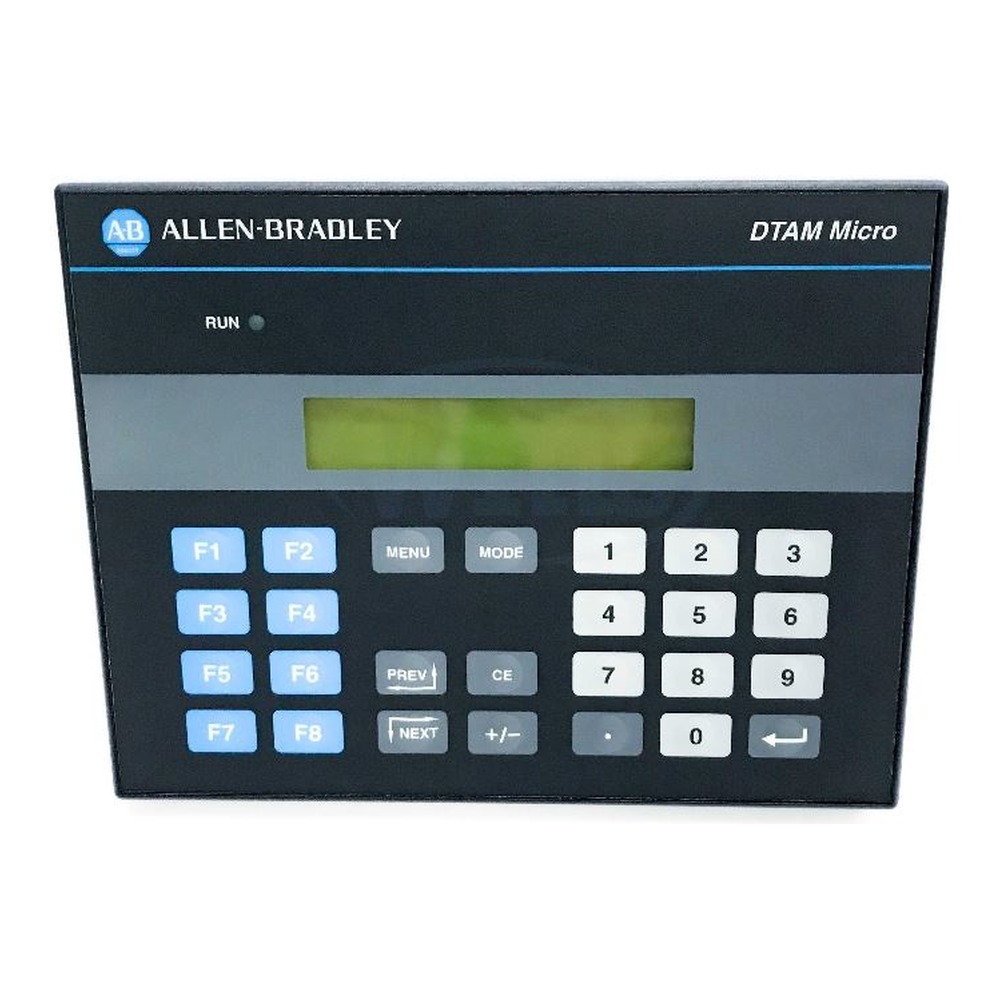

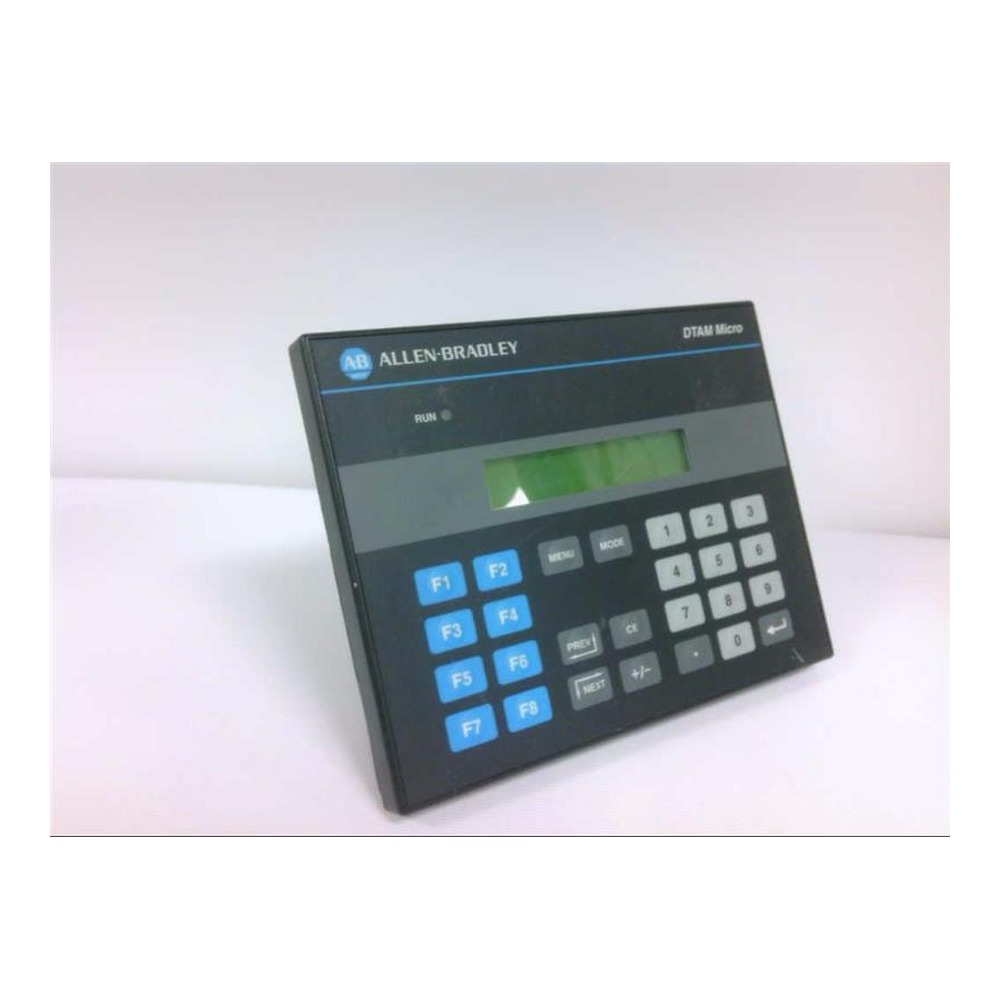

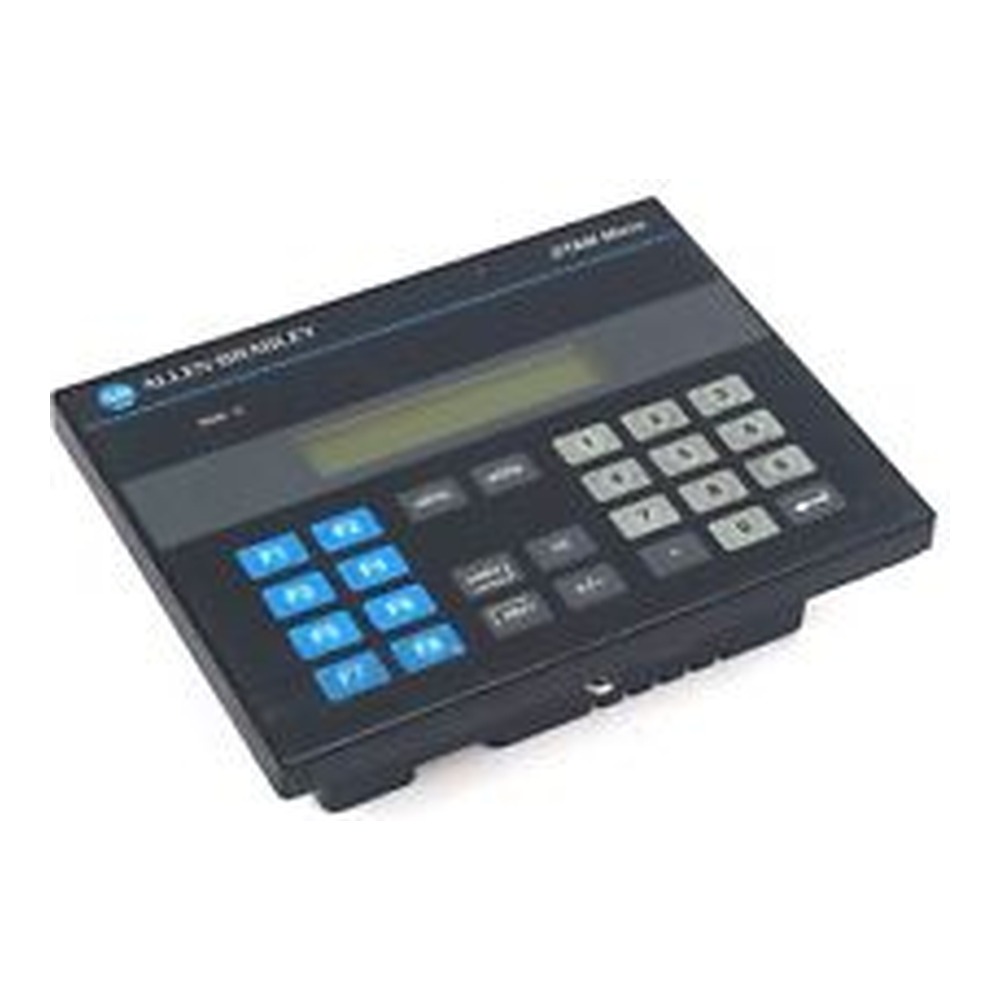

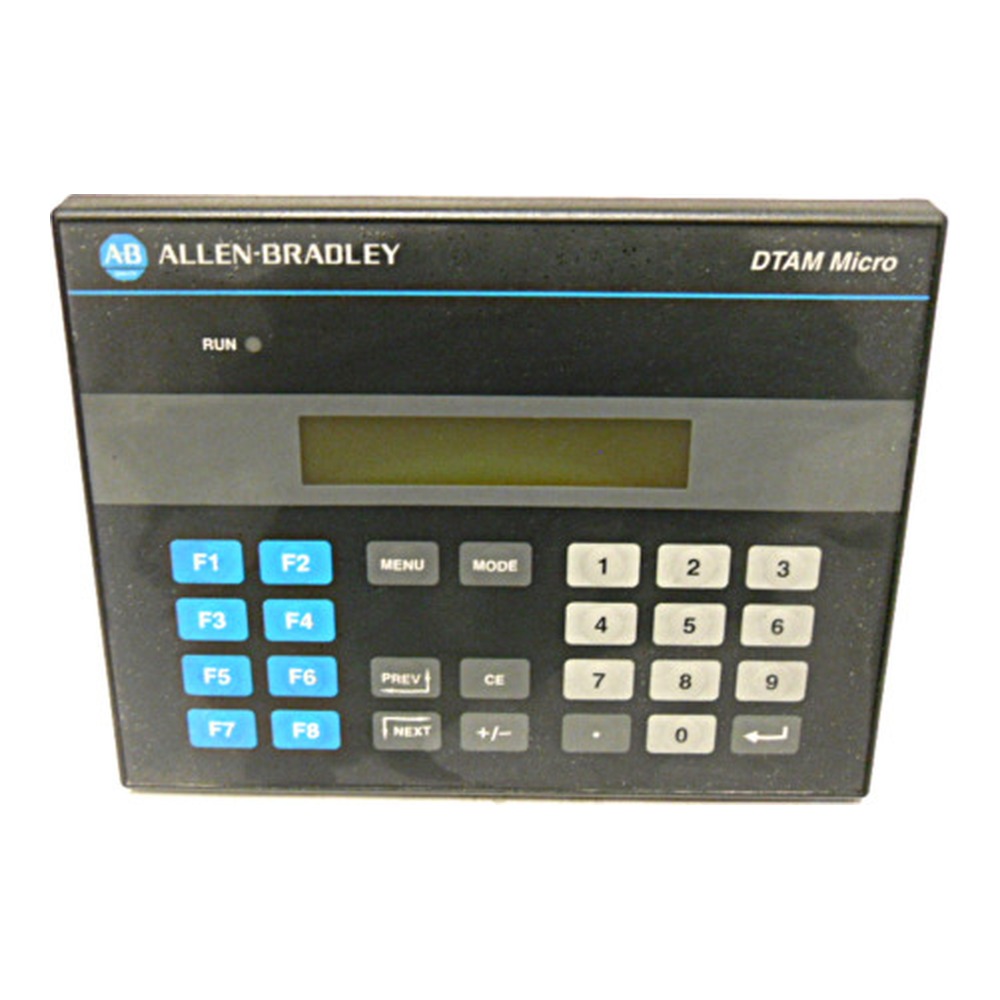

Allen-Bradley 2707-M232P3 Microview 2707 ASCII Terminal, 1.0 x 3.0 Display Area
Allen-Bradley 2707-M232P3 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 1.0 x 3.0 (display area) display. Communications are handled over RS-232. The unit is powered from 18-30 V DC.
Overview
The Allen-Bradley 2707-M232P3 is an ASCII operator interface terminal from the Microview 2707 product line. The terminal features a 1.0 x 3.0 (display area) display. Communications are handled over RS-232. The unit is powered from 18-30 V DC. This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- ASCII operator input
- 1.0 x 3.0 display area
- RS-232 communications
- Power supply 18-30 V DC
- Memory 244-screen
- Enclosure rated NEMA Type 4, 12, 13 (indoor use only)
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2707-M232P3 |
| Manufacturer | Allen Bradley |
| Product Line | Microview 2707 |
| Product Type | Operator Interface |
| Weight | 2.00 lbs (0.91 kg) |
| Operator Input | ASCII |
| Display Size | 1.0 x 3.0 |
| Display Color | LCD (Yellow-green LED backlight) |
| Communication | RS-232 |
| Input Power | 18-30 V DC |
| Memory | 244-screen |
| Enclosure Type | NEMA Type 4, 12, 13 (indoor use only) |
| Category | Panelviews |
| Character Count | 20 |
| Line Count | 2 |
| Product Lifecycle Status* | Discontinued/Obsolete |
| Compatible Controllers | PLC5 / SLC500 |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
Why Buy from Us
This product is supplied new in original factory packaging and is backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 2707-UM001 — DTAM Plus Operator Terminal User Manual | 2707-um001_-en-p.pdf |
