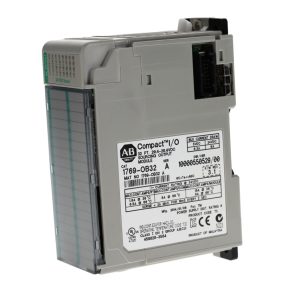

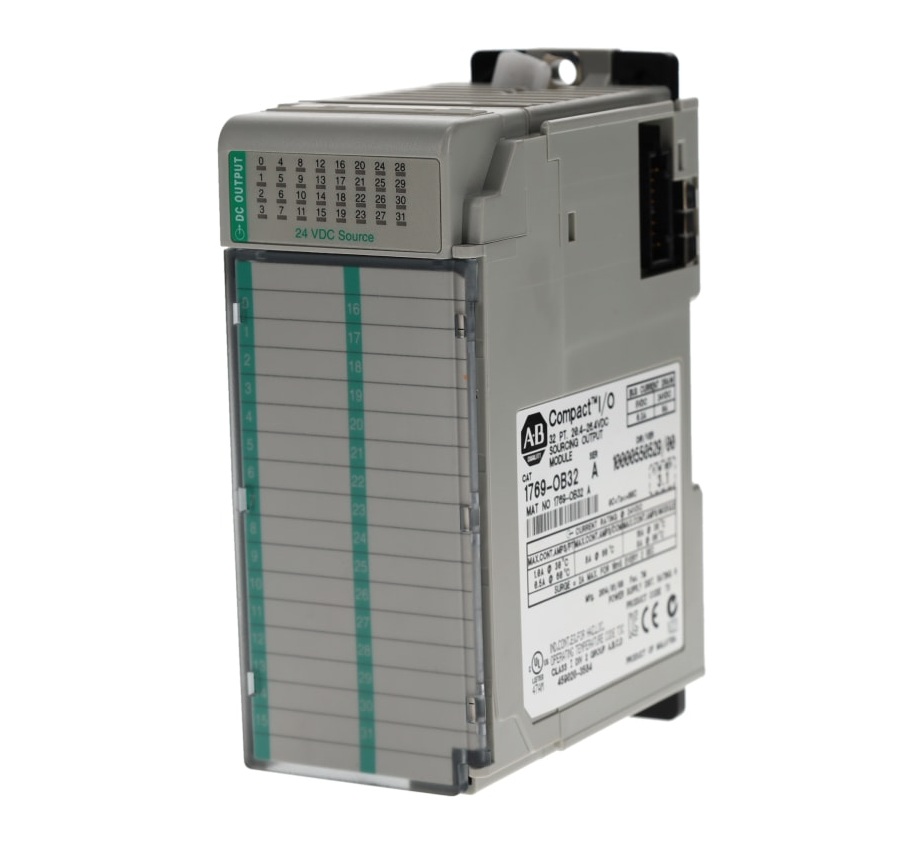

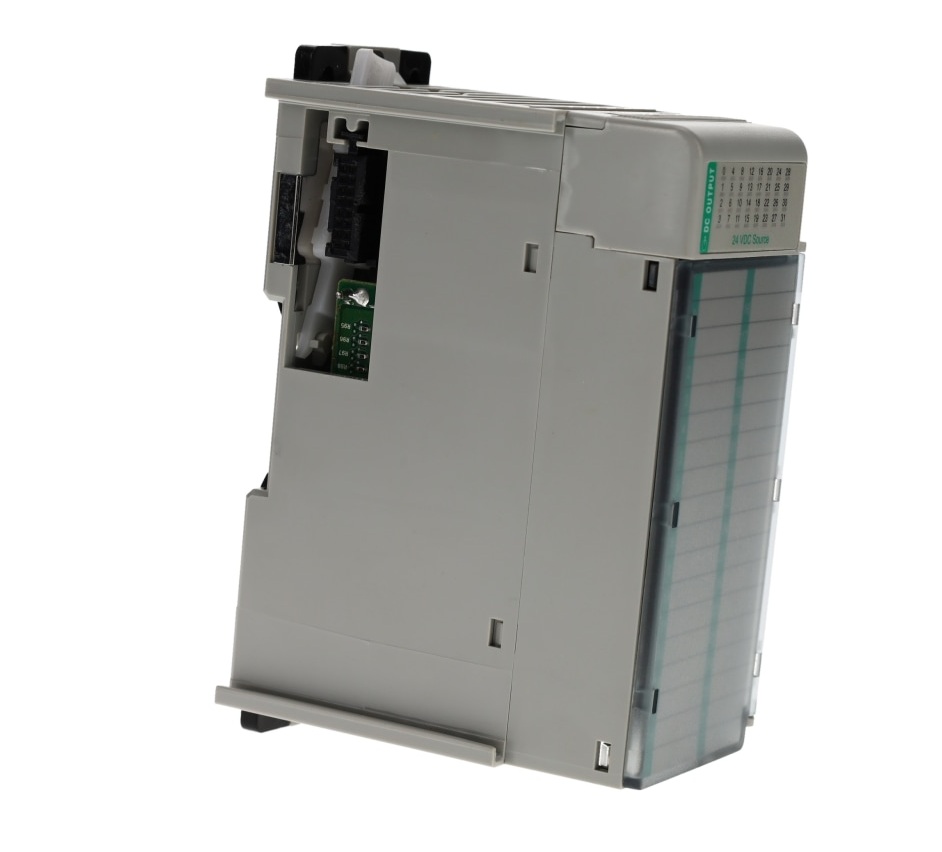

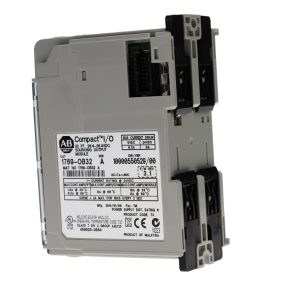

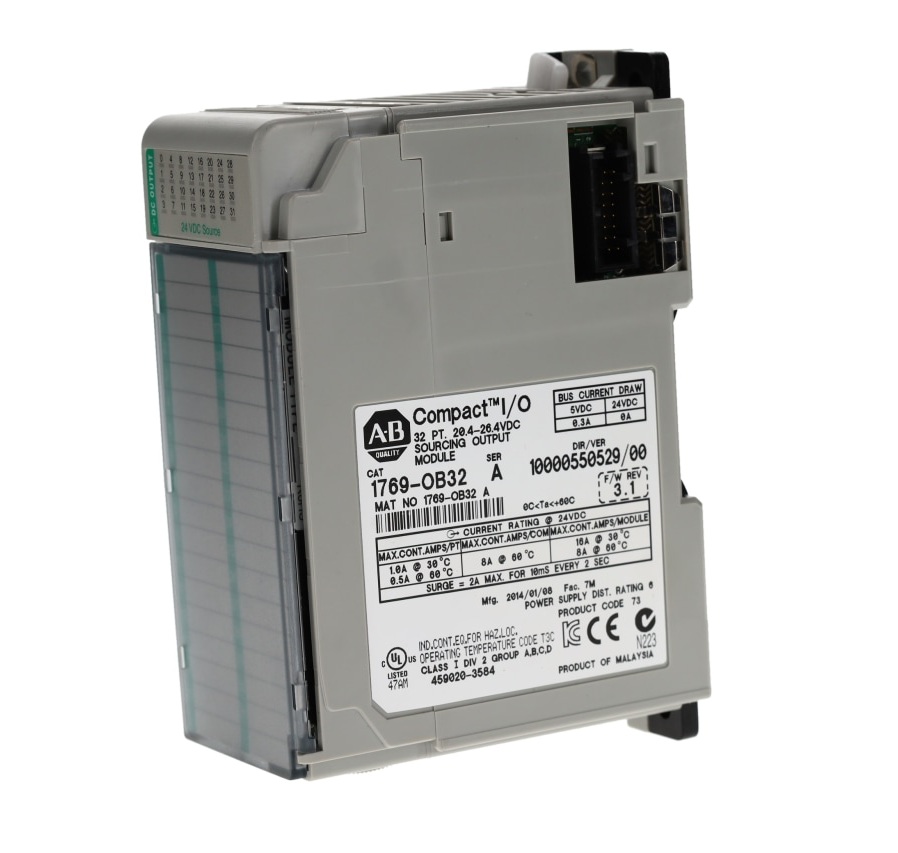

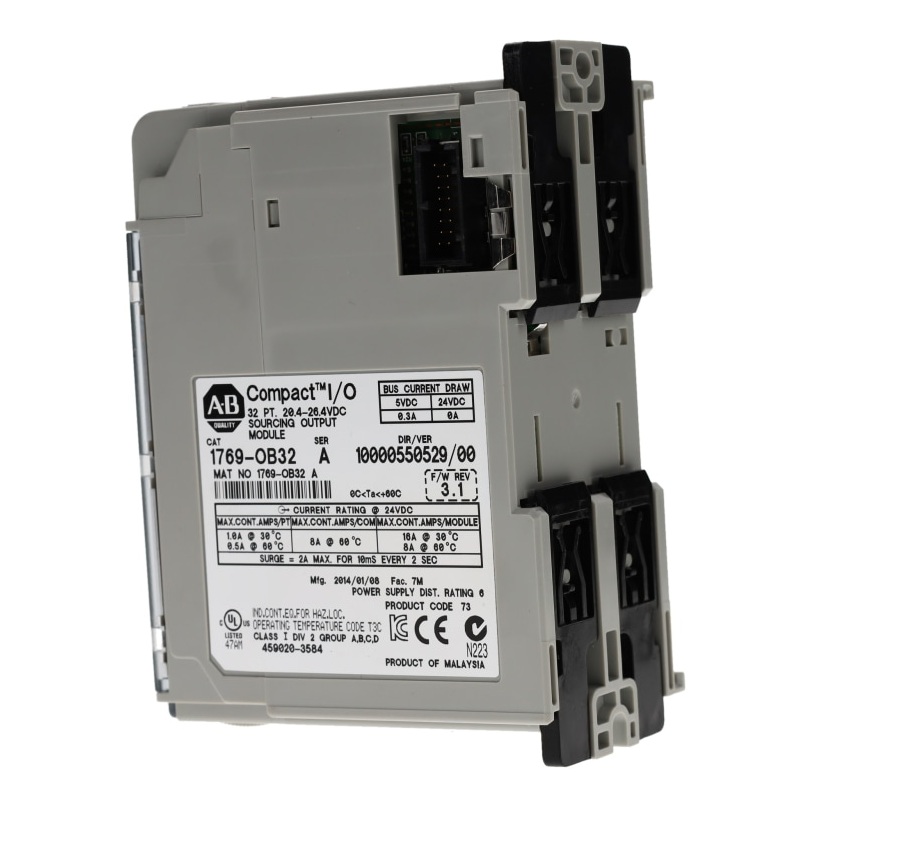

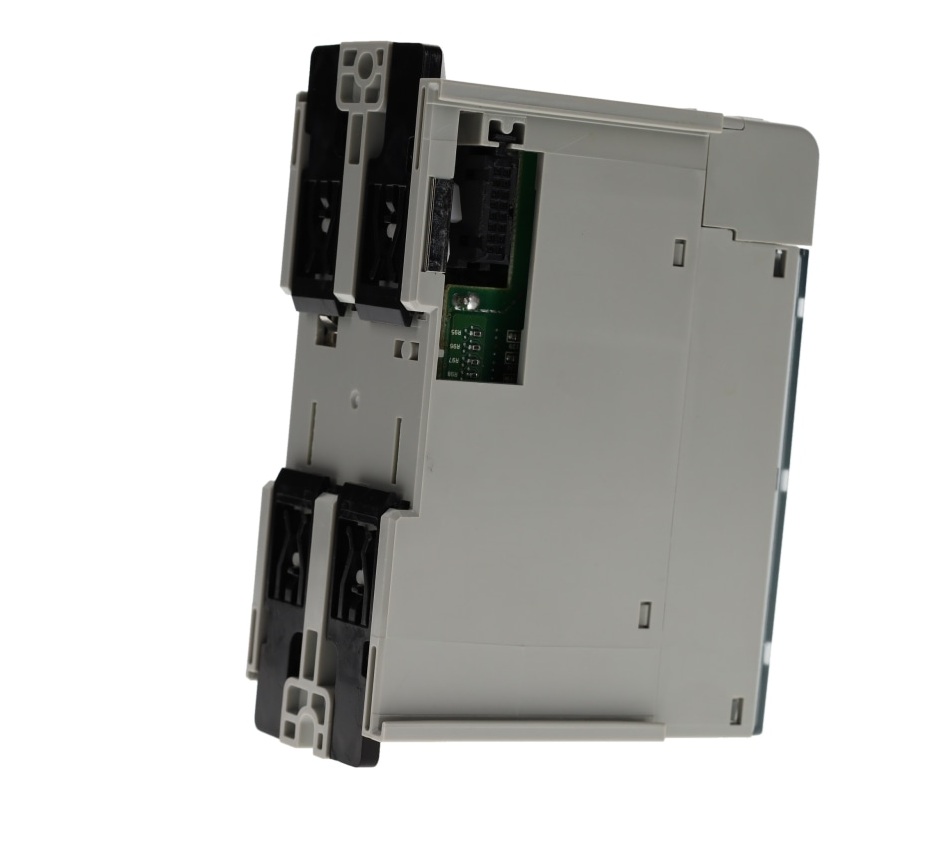

Allen Bradley 1769-OB32 Product Overview
The Allen Bradley 1769-OB32 is a 32-point solid-state 24VDC source output module from the CompactLogix 1769-OB32 series, engineered for high-density digital control in CompactLogix and MicroLogix 1500 PLC systems. This module delivers fast, reliable transistor (PNP sourcing) outputs ideal for controlling solenoids, relays, indicator lights, motors, valves, and other DC loads in demanding industrial automation environments.
With 32 output channels segmented into 2 isolated groups of 16 points, the 1769-OB32 enables organized output management while conserving panel space. Its compact 1.5-slot form factor and flexible DIN rail or panel mounting options make it a versatile choice for control panel designs where space efficiency is critical.
Key Features
- 32 High-Density Digital Outputs — 2 isolated groups of 16 sourcing (PNP) transistor outputs
- 24VDC Operating Voltage — Wide operating range of 20.4–26.4V DC for flexible system integration
- Fast Response Time — 0.1 ms ON / 1.0 ms OFF switching for high-speed automation applications
- Per-Channel Protection — Built-in short-circuit and overload protection on every output
- Hot-Swappable Design — Supports module replacement without powering down the system (with system configuration permission)

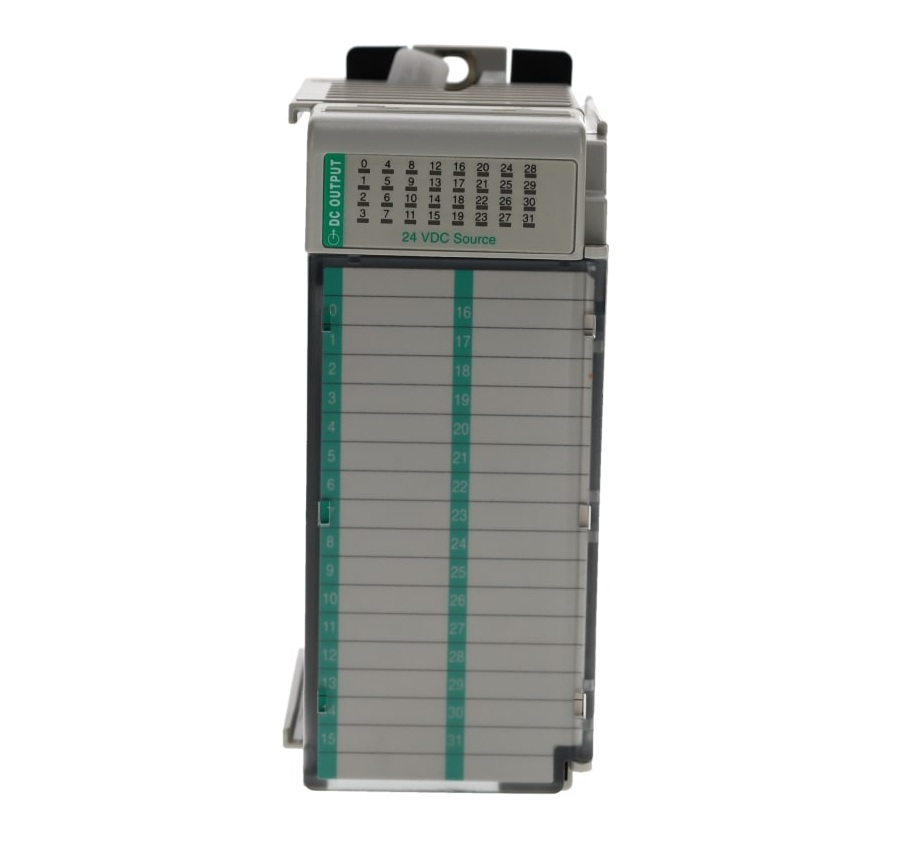

- Diagnostic LEDs — 32 green channel-status LEDs for real-time ON/OFF monitoring

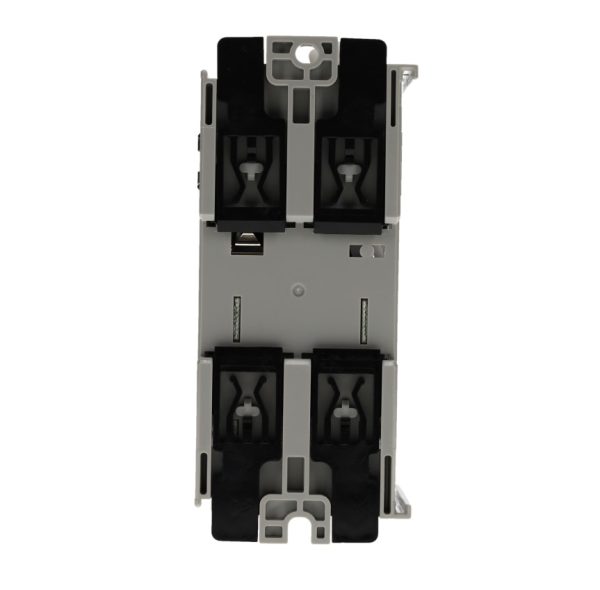

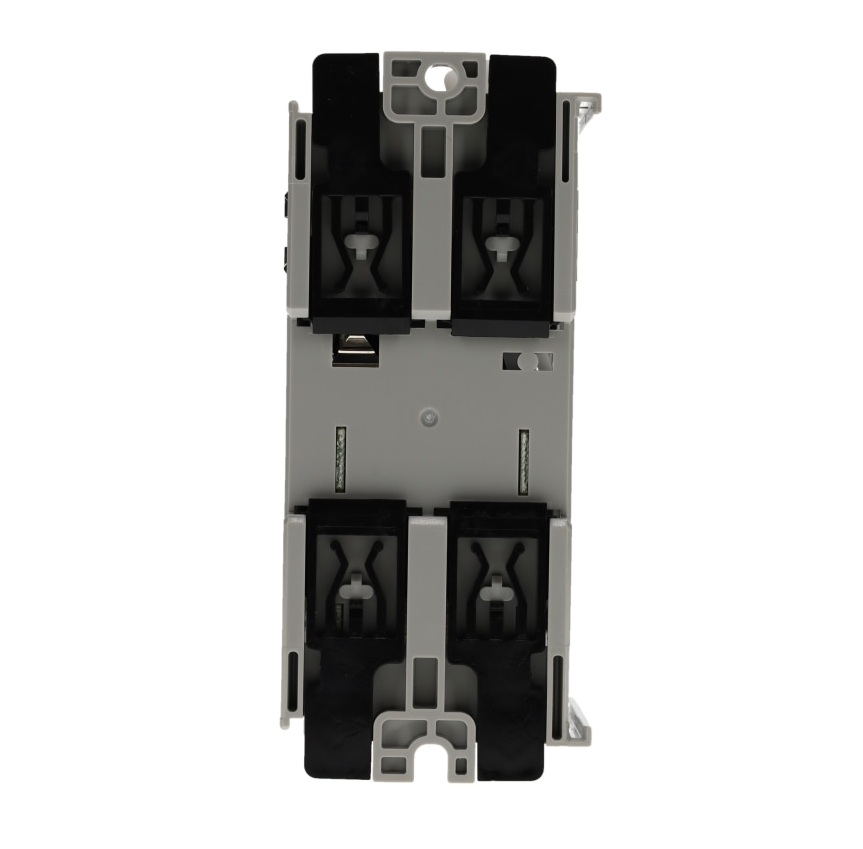

- Compact Footprint — Only 1.5 slots wide; DIN rail or panel mounting
- Robust Isolation — 1200V AC / 1697V DC dielectric isolation between outputs and backplane
Technical Specifications
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Output Module |
| Product Line | CompactLogix |
| Part Number | 1769-OB32 |
| UPC | 611320915662 |
| Weight | 1.31 lbs (0.60 kg) |
| Number of Outputs | 32 Outputs |
| Number of Output Groups | 2 Groups of 16 Outputs |
| Voltage Category | 24V DC |
| Operating Voltage | 20.4-26.4V DC |
| Output Delay (On) | 0.1 ms |
| Output Delay (Off) | 1 ms |
| Current Draw at 5.1V | 300 mA |
| Max. Heat Dissipation | 4.5 Watts |
| Min. On-State Current | 1 mA |
| Slot Width | 1.5 Slots |
| Mounting Options | Panel and DIN Rail Mounting |
Why Choose the 1769-OB32?
For system integrators and maintenance technicians who need a high-density digital output solution, the 1769-OB32 delivers proven reliability and performance. Its solid-state sourcing output, fast response time, and seamless integration with Allen-Bradley controllers make it the go-to choice for upgrading existing systems or designing new control panels for packaging machinery, material handling, and process automation.
Documents
| Category | Document | Publication | Link |
|---|---|---|---|
| General | Selection Guide | 1769-SG001 | View on Rockwell Automation |
| Technical Data | 1769 Compact I/O Modules Specifications | 1769-TD006 | Download PDF |
| User Manual | 1769 Series Programmable Logic Controller | 1769-UM021 | Download PDF |
