High-Density Digital Input for Compact Control Systems

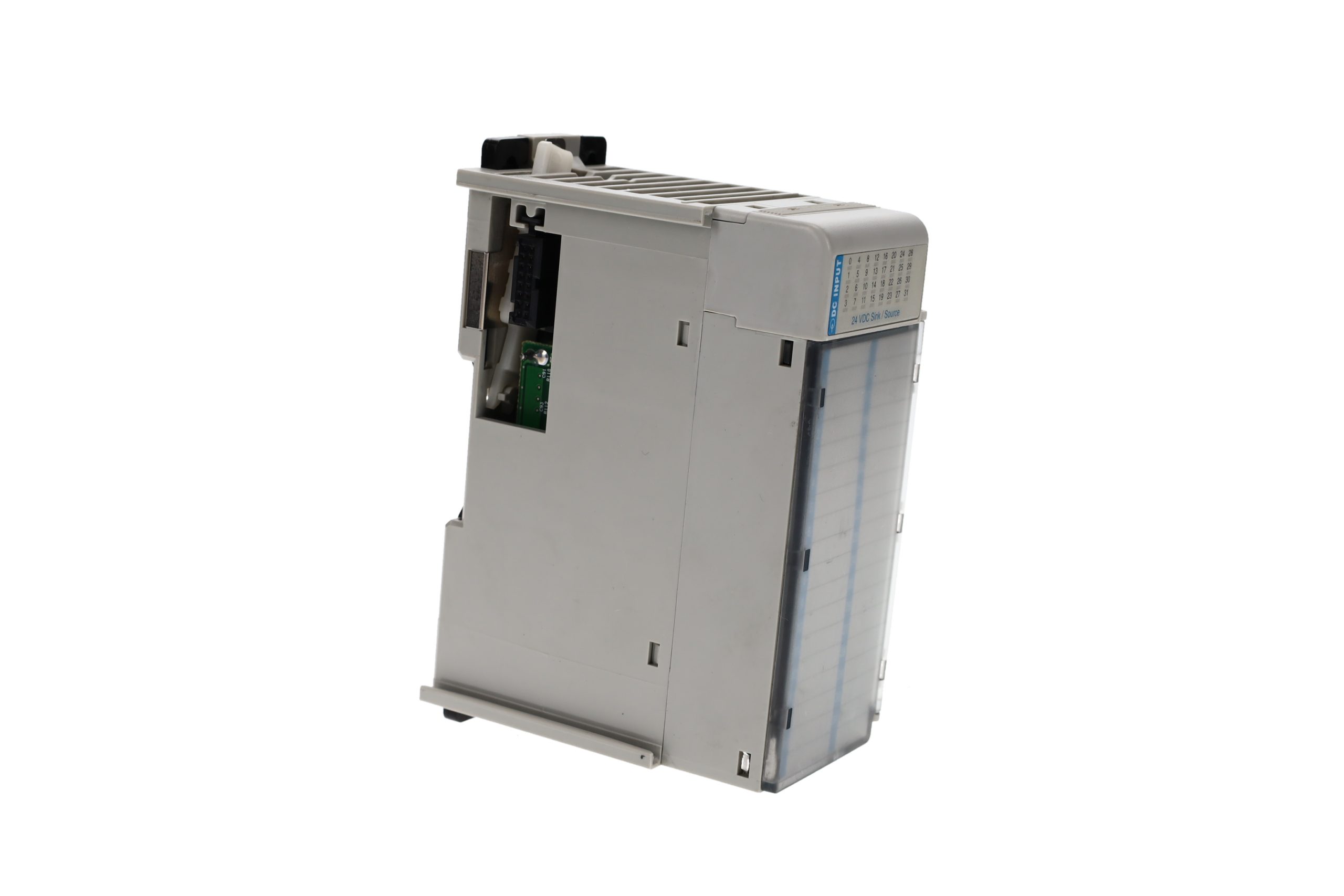

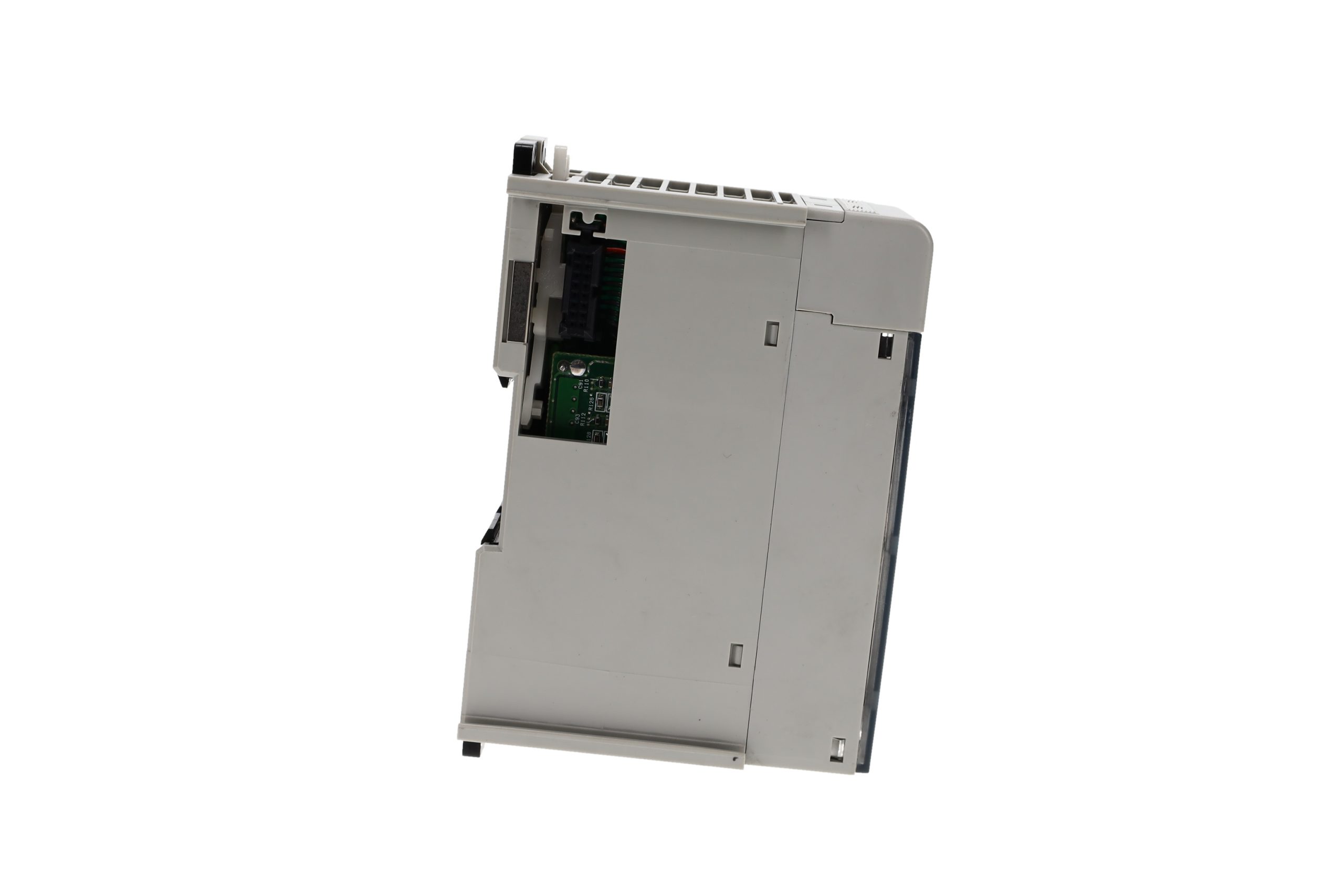

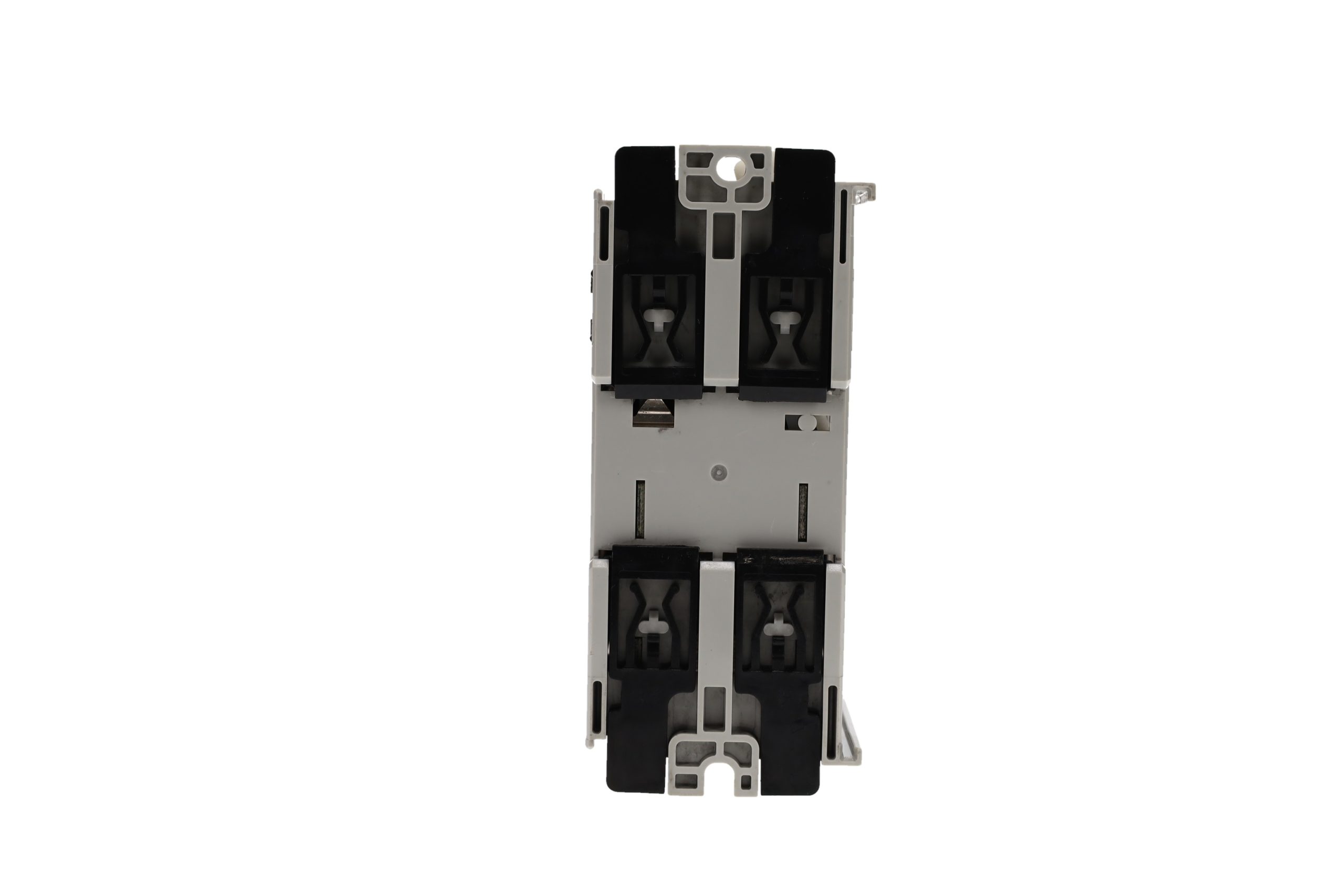

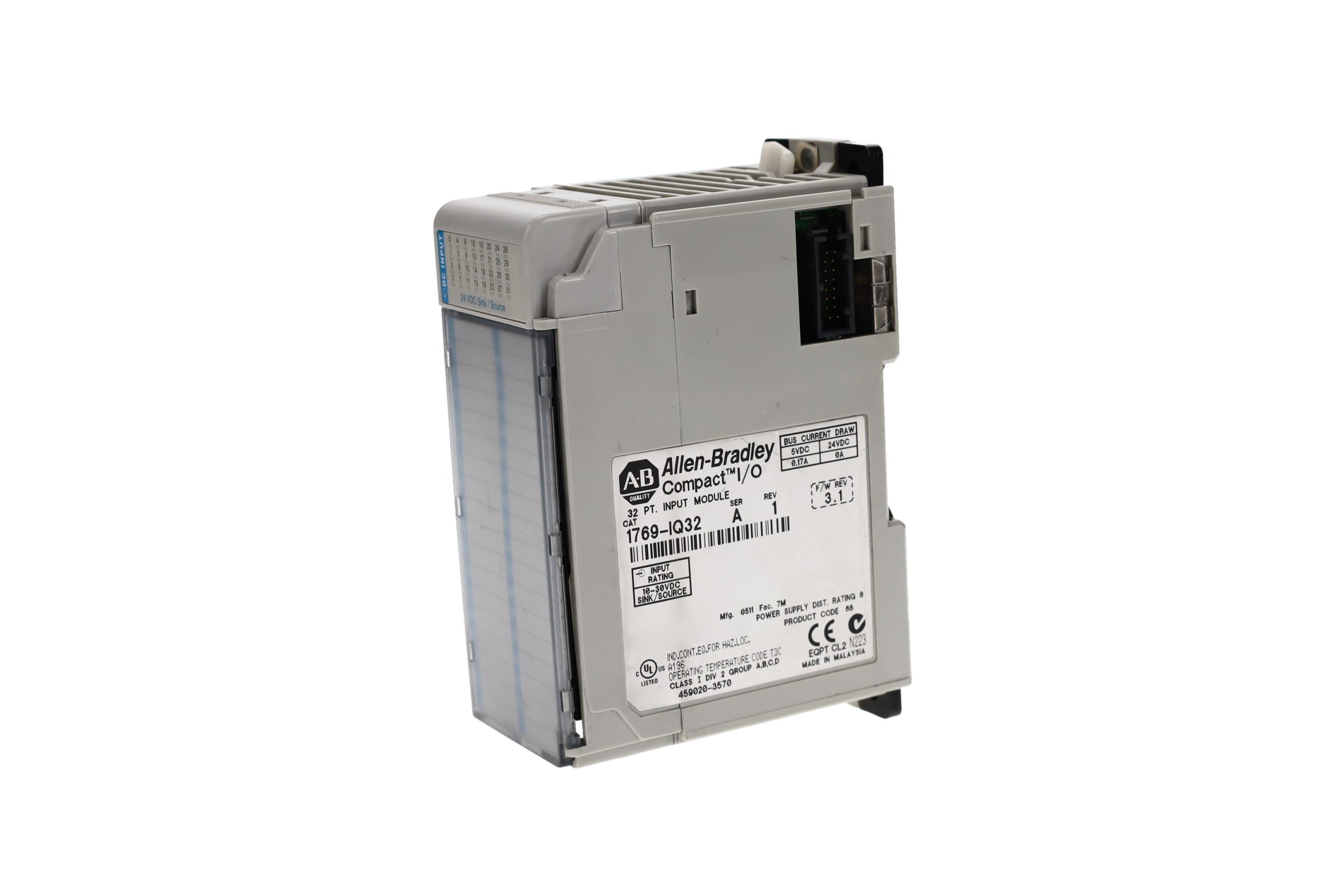

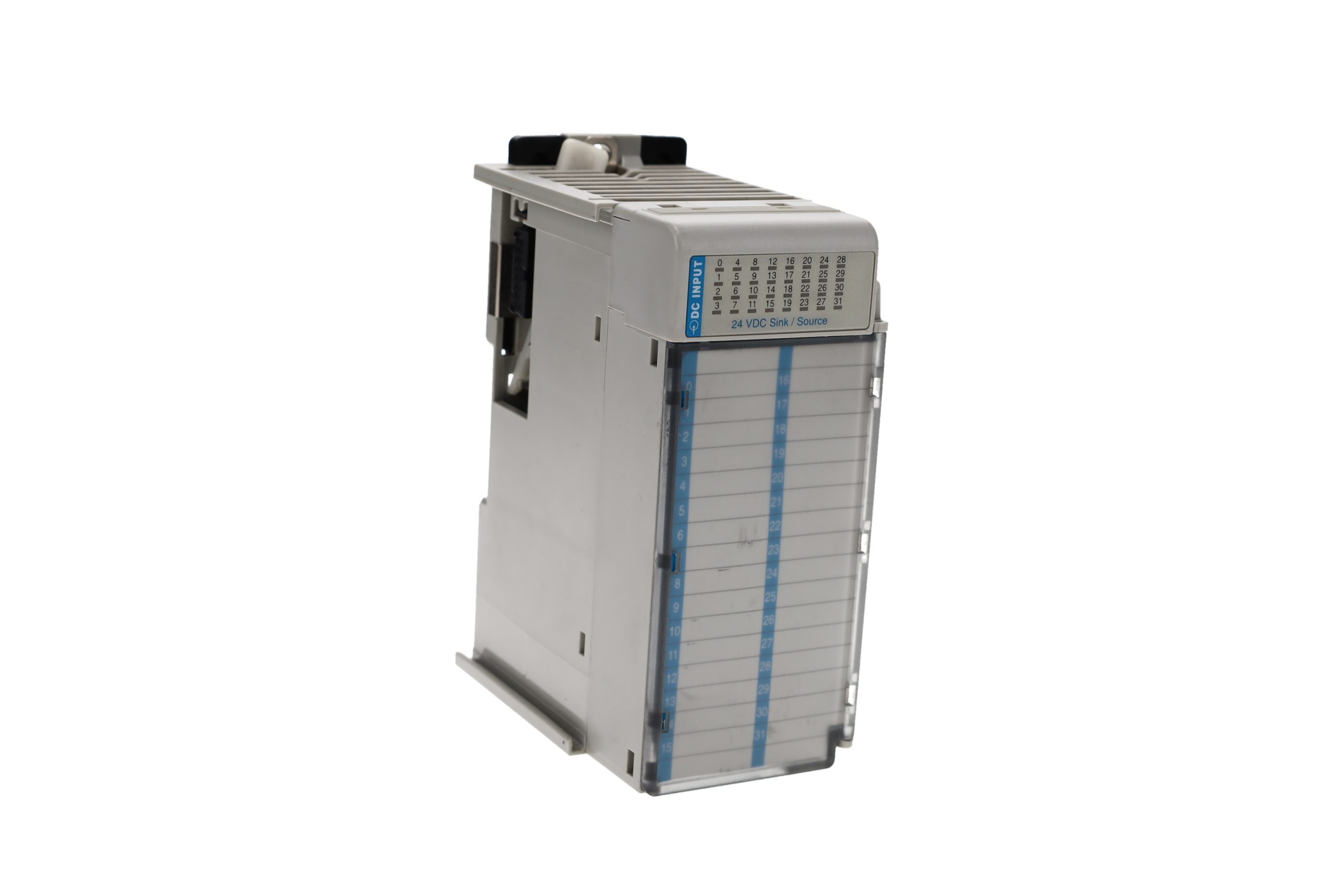

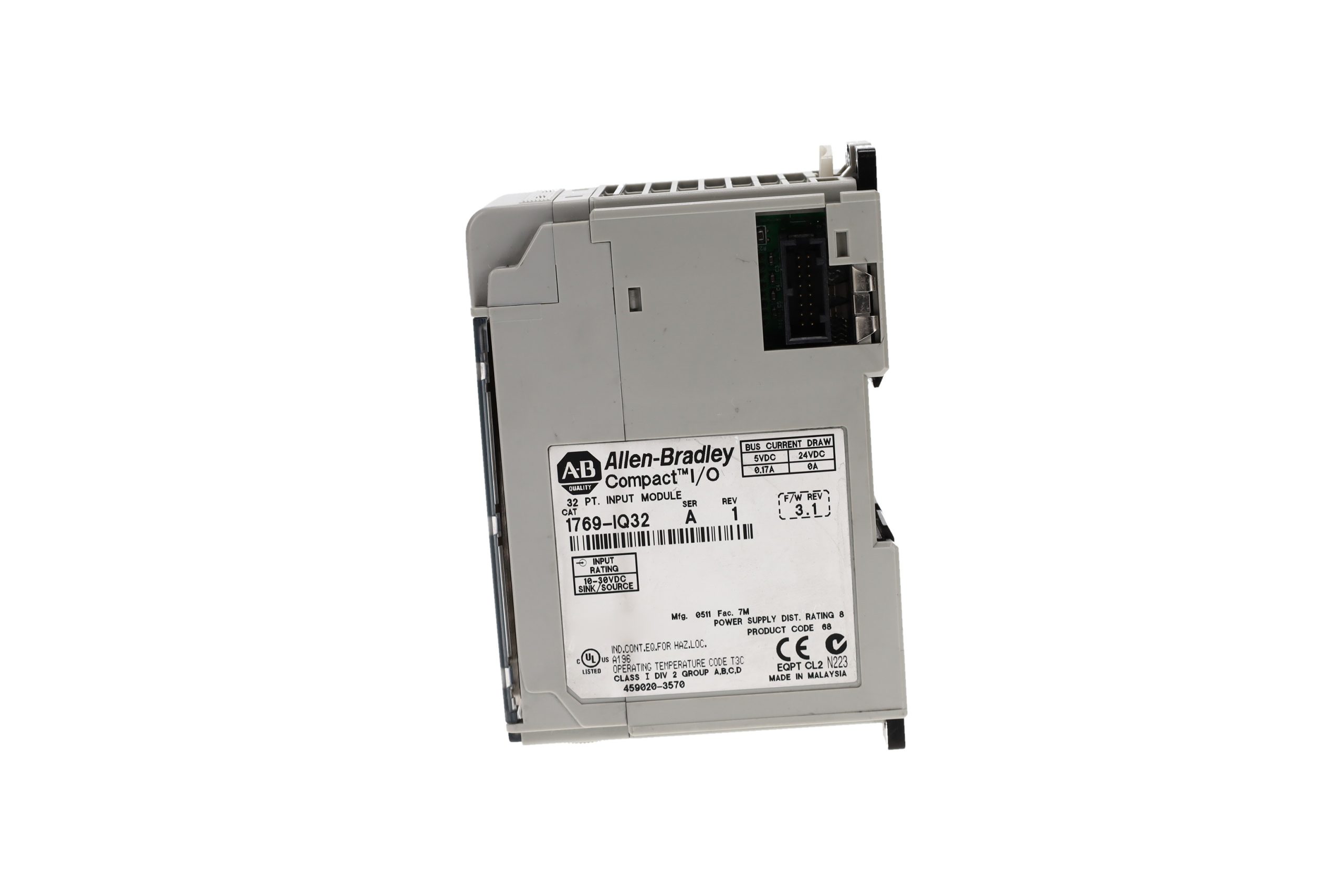

The Allen-Bradley 1769-IQ32 is a robust digital input module designed for the CompactLogix™ and Compact GuardLogix® control systems. It provides 32 channels of 24VDC sink/source input in a compact form factor, making it ideal for applications that require a high density of digital input points. Whether you are monitoring pushbuttons, limit switches, proximity sensors, or other 24VDC field devices, this module delivers fast and reliable signal acquisition.
Key Features & Benefits:
- 32 Input Channels: Provides 32 discrete digital input points in a single module, reducing the number of modules needed and simplifying panel wiring.
- Sink/Source Compatibility: Supports both sink (sourcing) and source (sinking) wiring configurations, offering maximum flexibility for integrating with different sensor types and field devices.
- Wide Voltage Range: Operates with an input voltage range of 10 to 30V DC at 30°C (86°F), ensuring compatibility with a broad range of industrial sensors and switches.
- Fast Response Time: Features an on-delay and off-delay of only 8.0 ms (maximum), providing rapid signal detection for time-critical applications.
- Compact Design: Part of the space-saving CompactLogix™ system, allowing for high-density I/O configurations in limited panel space.
- Hot-Swap Capability: Can be removed and replaced with the system powered on (with certain chassis and configurations), minimizing system downtime during maintenance.
- Integrated Diagnostics: Provides module-level diagnostic information to help quickly identify wiring faults or field device issues.
Technical Specifications:
| Manufacturer | Allen Bradley |
|---|
| Product Type | Input Module |
|---|
| Product Line | CompactLogix |
|---|
| Part Number | 1769-IQ32 |
|---|
| UPC | 611320915655 |
|---|
| Weight | 1.31 lbs (0.60 kg) |
|---|
| Number of Inputs | 32 Inputs |
|---|
| Number of Groups | 4 Groups of 8 Inputs |
|---|
| Voltage Category | 24V DC |
|---|
| Input Delay | 8 ms (on and off delays) |
|---|
| Current Draw at 5.1V | 170 mA |
|---|
| Max. Heat Dissipation | 4.6 Watts |
|---|
| Max. Off-State Voltage | 5V DC |
|---|
| Max. Off-State Current | 1.5 mA |
|---|
| Min. On-State Voltage | 10V DC |
|---|
| Min. On-State Current | 2 mA |
|---|
| Max. Inrush Current | 250 mA |
|---|
Why Choose the 1769-IQ32?
For system integrators and maintenance technicians who need a high-density digital input solution, the 1769-IQ32 delivers proven reliability and performance. Its sink/source flexibility, fast response time, and seamless integration with Allen-Bradley controllers make it the go-to choice for upgrading existing systems or designing new control panels for packaging machinery, material handling, and process automation.
