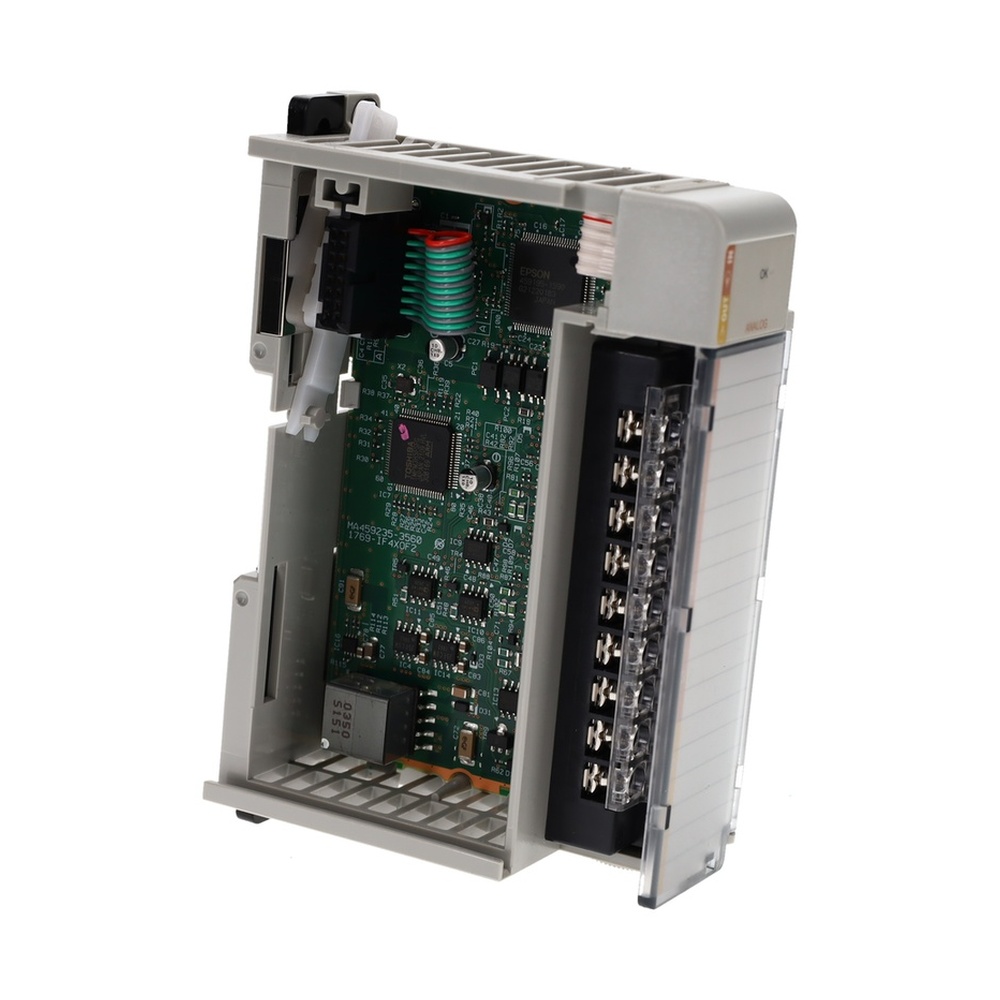

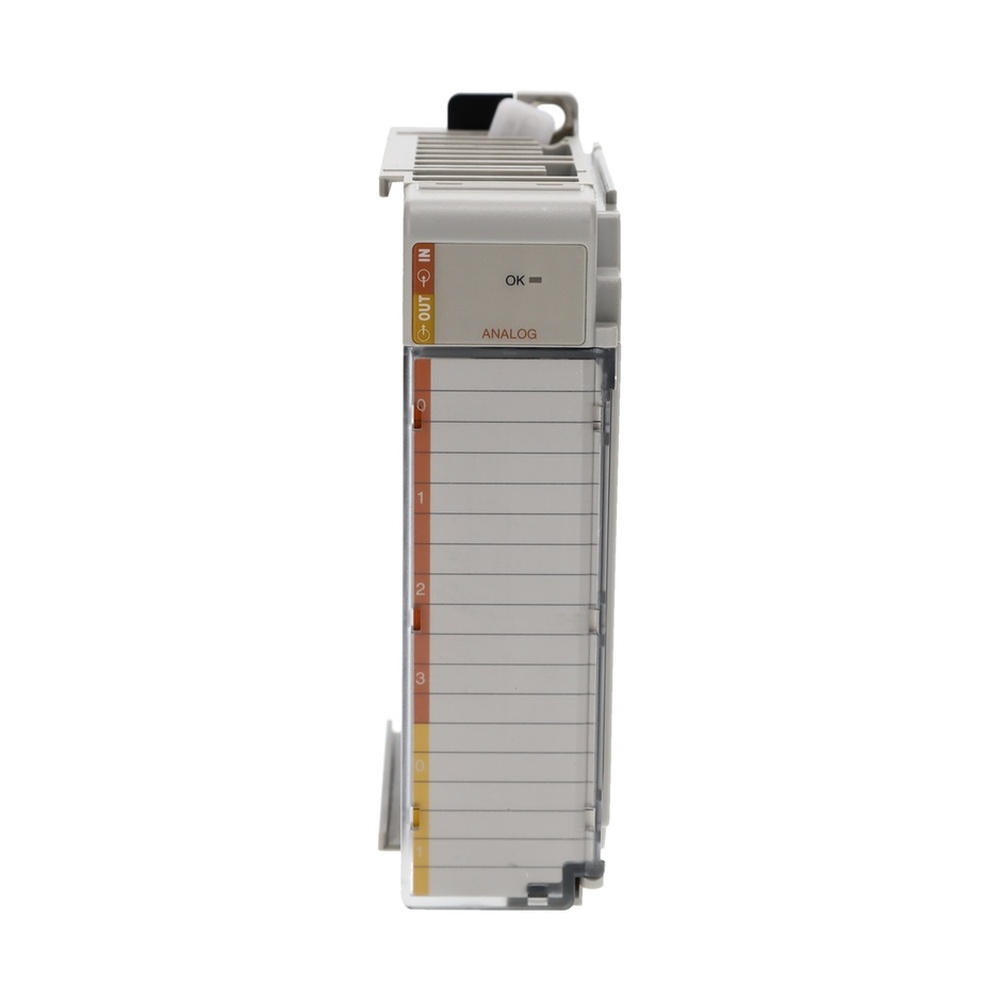

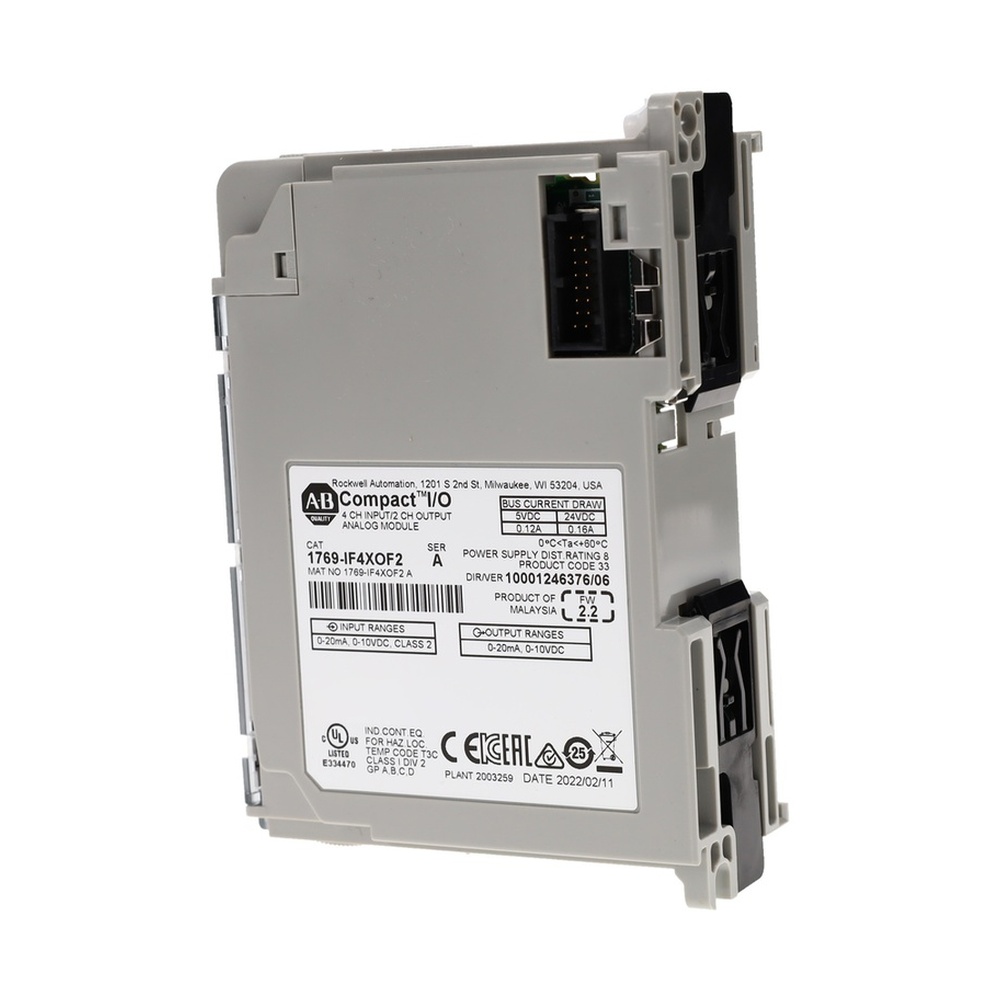

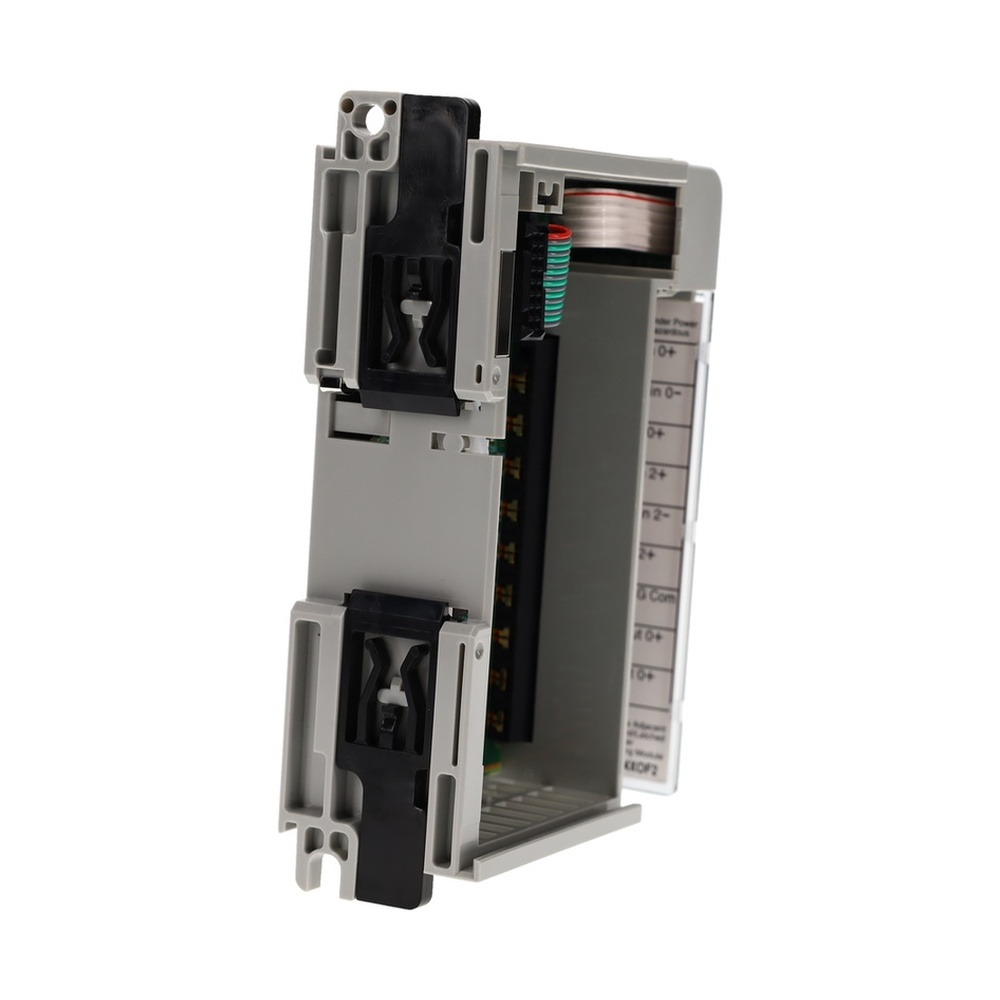

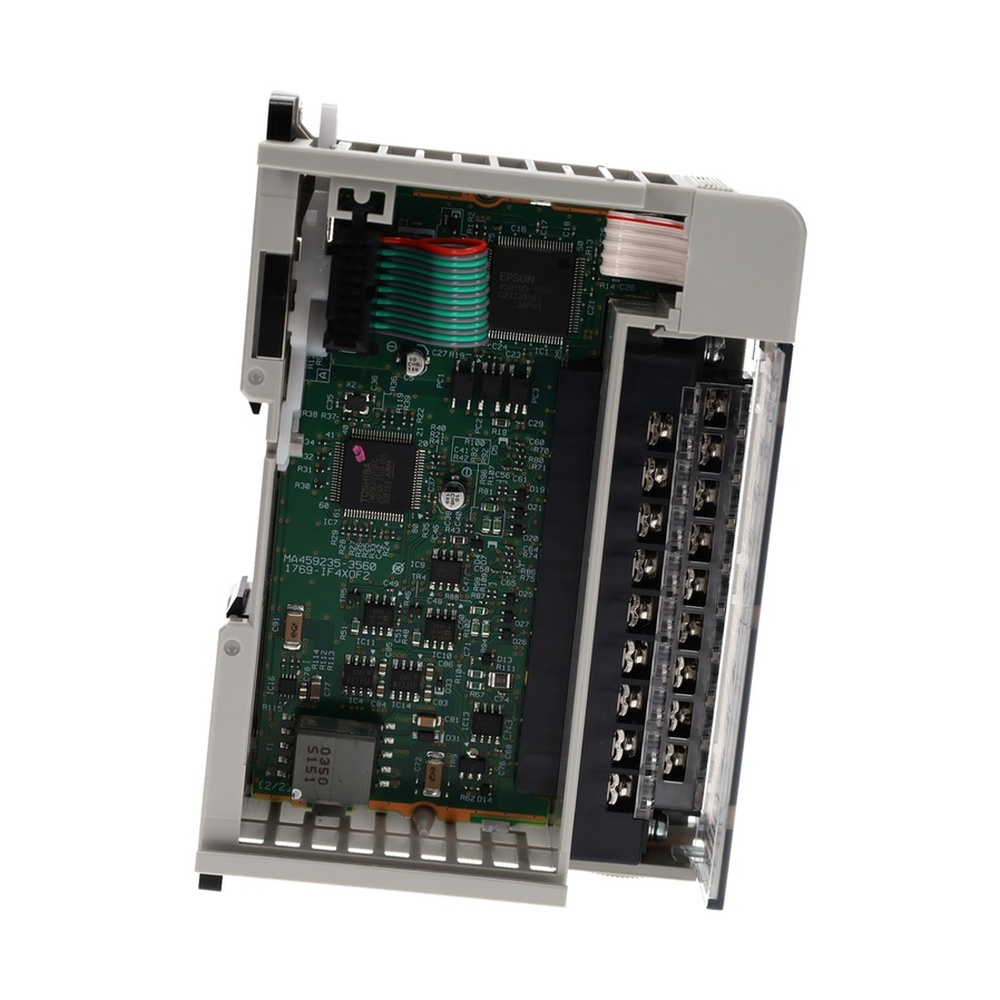

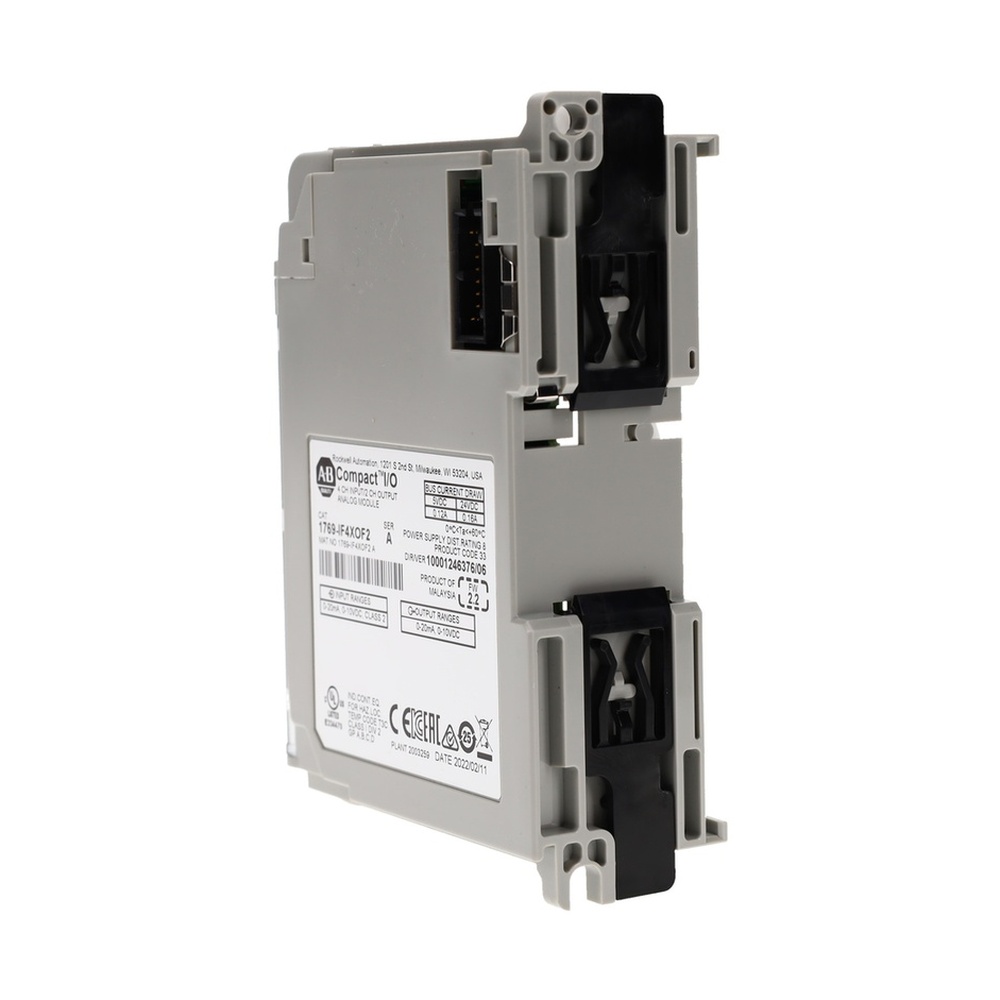

1769-IF4XOF2 Detailed Description
Versatile Analog I/O for Compact Control Systems
The Allen-Bradley 1769-IF4XOF2 is a combination analog input/output module designed for the CompactLogix™ and Compact GuardLogix® control systems. It efficiently integrates four analog inputs and two analog outputs into a single, compact form factor, making it an ideal choice for applications with space constraints that still require a mix of analog signal types. This module simplifies wiring and reduces the number of modules needed in your I/O configuration.
Key Features & Benefits:
- 4 Analog Inputs: Provides four configurable channels that can accept both voltage and current signals, allowing connection to a wide variety of sensors and transmitters.
- 2 Analog Outputs: Includes two configurable channels that can source both voltage and current signals to control devices like variable frequency drives (VFDs), control valves, and chart recorders.
- High Resolution: Features 15-bit plus sign resolution for inputs and 14-bit plus sign for outputs, ensuring precise measurement and control of your process variables.
- Channel-to-Channel Isolation: Offers electrical isolation between channels, which helps to protect the module and controller from ground loops and voltage spikes.
- Compact Design: Part of the space-saving CompactLogix™ system, this combination module maximizes I/O density in limited panel space.
- Hot-Swap Capability: Can be removed and replaced with the system powered on (with certain chassis and configurations), minimizing system downtime during maintenance.
Technical Specifications:
Manufacturer Allen Bradley Product Type I/O Combination Module Product Line CompactLogix Part Number 1769-IF4XOF2 UPC 612598286218 Weight 0.94 lbs (0.43 kg) Panel Mounting Tabs Included DIN Rail Latches Included Status LED Green “OK” Status LED Power Supply Distance Rating 8 Modules Current Draw at 5V DC 120 mA Current Draw at 24V DC 160 mA Current I/O Operation Supported Voltage I/O Operation Supported Number of Inputs 4 Single-Ended or Differential Inputs Number of Outputs 2 Single-Ended Outputs Operating Temperature 0 to 60 degrees Celsius
Why Choose the 1769-IF4XOF2?
For system integrators and engineers designing compact control panels, the 1769-IF4XOF2 offers an efficient and reliable way to handle mixed analog signals. Its combination of inputs and outputs in a single module reduces hardware costs and simplifies system design for applications in packaging, material handling, and small process control systems.
Documents
| General | Publication |
|---|---|
| Product Cutsheet | — |
| Selection Guide | 1769-SG001 |
| Technical Data | Publication |
|---|---|
| 1769-td006_-en-p | 1769-TD006 |
| User Manual | Publication |
|---|---|
| 1769-um021_-en-p | 1769-UM021 |
