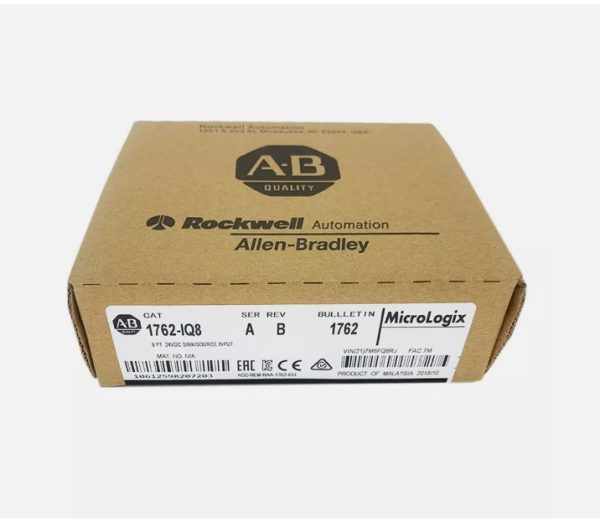

1762-IQ8 New Factory Sealed Allen-Bradley 1762-IQ8 MicroLogix 1200 Discrete Input Module

Key Features:

• Eight Input Channels: Offers eight input channels in a single group, providing comprehensive input capabilities for your control system
• Wider Input Voltage Range: Accepts a nominal input voltage of 10 to 30V DC, ensuring compatibility with various power sources.
• Sink and Source Wiring Configuration: Supports both sink and source wiring configurations, providing flexibility in connecting to your devices.
• Signal Delay: Features a signal delay of 8 ms for both ON and OFF transitions, ensuring quick response times in your control system.

Technical Specifications:

• Module Type: Discrete Input Module
• Series: MicroLogix
• Part Number: 1762-IQ8
• Brand: Allen-Bradley
• Number of Inputs: Eight (8) channels
• Nominal Input Voltage: 24VDC
• Input Voltage Range: 10-30 VDC
• ON-state Current: Min. 2.0 mA at 10VDC; Nominal 8.0 mA at 24VDC; Max. 12.0 mA at 30VDC
• Off-state Current: Max. 1.5 mA
• Backplane Current: 50 mA at 5.1VDC
• Isolation Rating: Verified by 1200V AC for 1 sec. or 1697V DC for 1 sec. 75V DC working voltage (IEC Class 2 reinforced insulation)

Description:

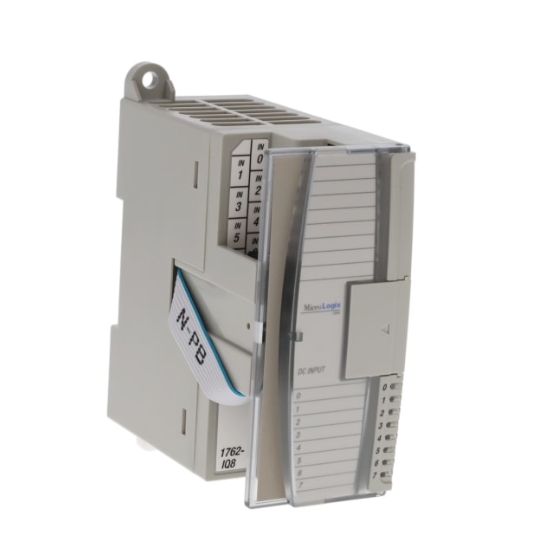

The Allen Bradley 1762-IQ8 is a compact and reliable discrete input module designed to expand the input capabilities of your MicroLogix 1200 series controllers. With eight input channels in a single group, this module is ideal for applications requiring high-density input monitoring.

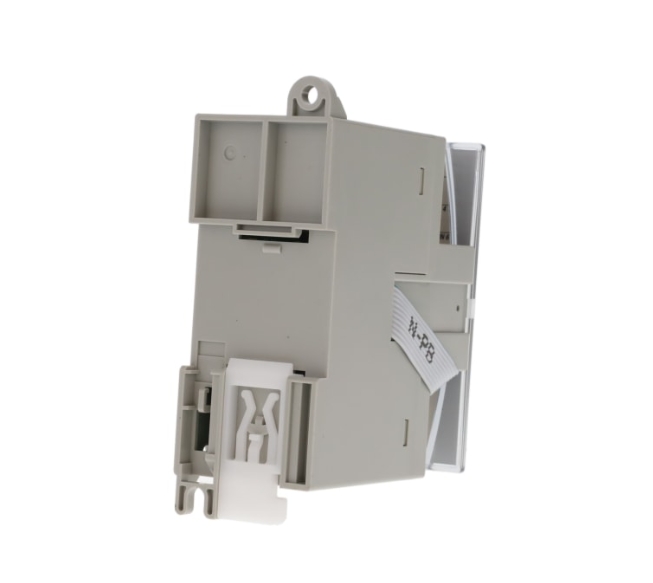

The 1762-IQ8 operates within a wide input voltage range of 10 to 30V DC, making it suitable for various input signal sources. It features a backplane current draw of 50 mA at 5VDC, ensuring efficient power consumption. The module is designed for DIN rail or panel mounting, providing flexibility in installation.
