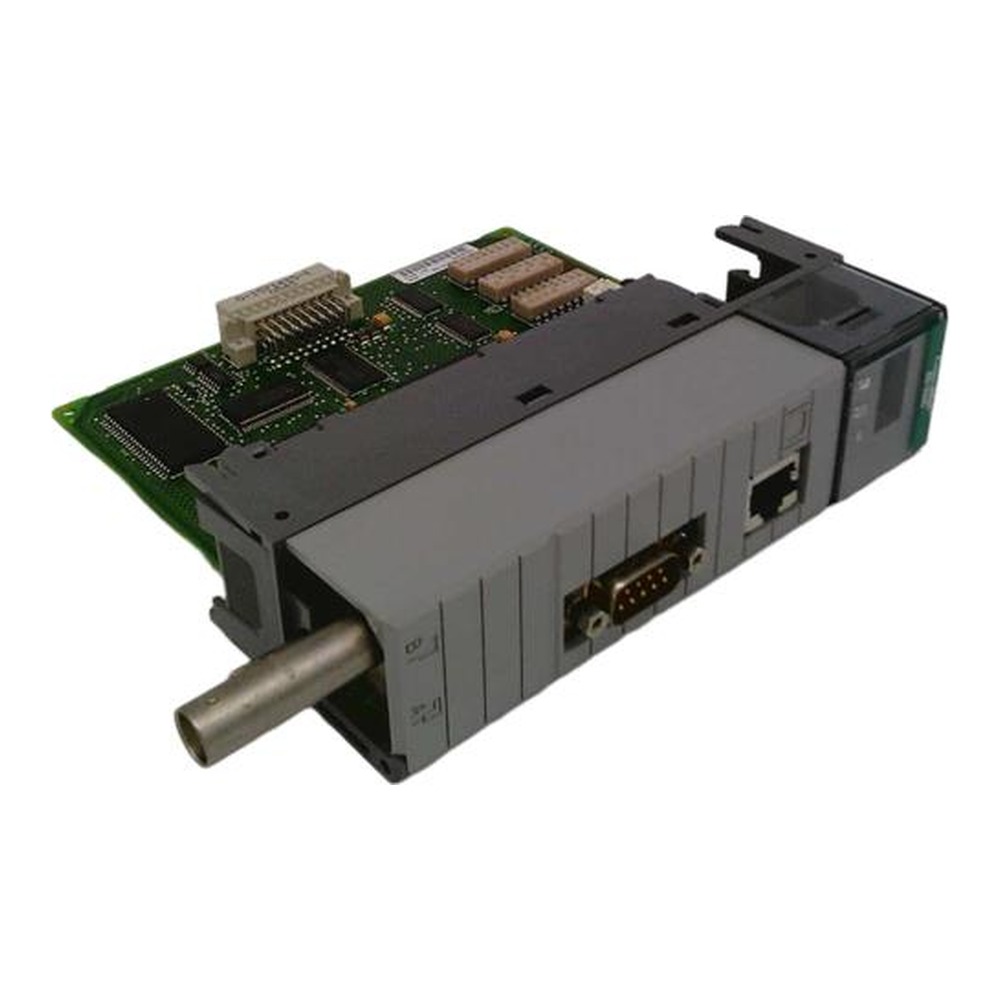

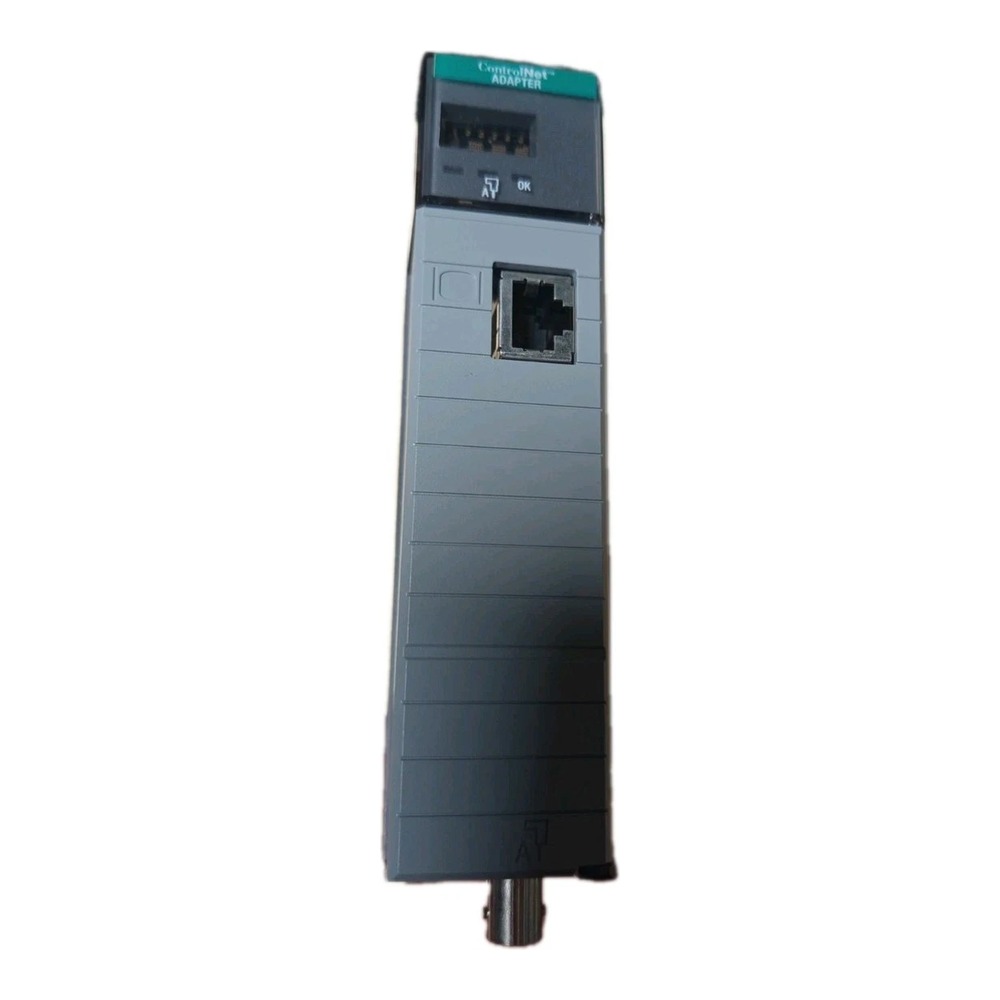

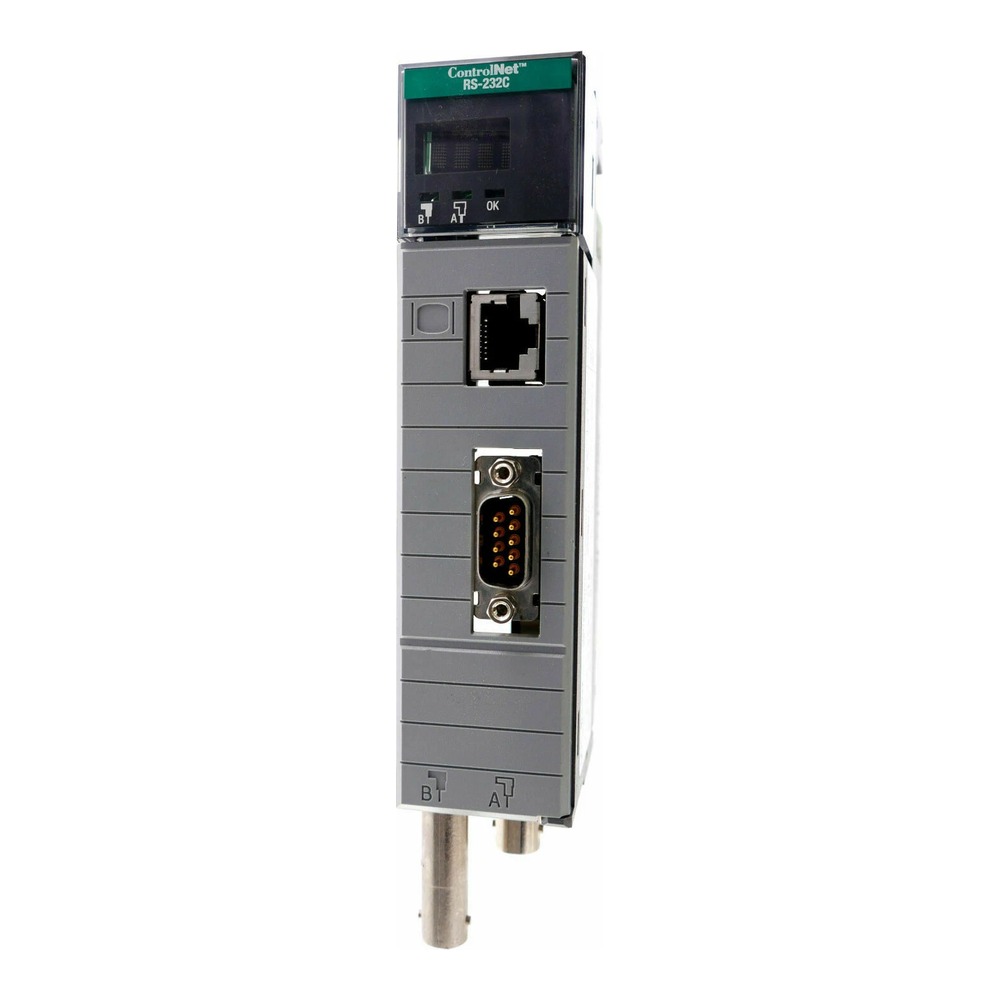

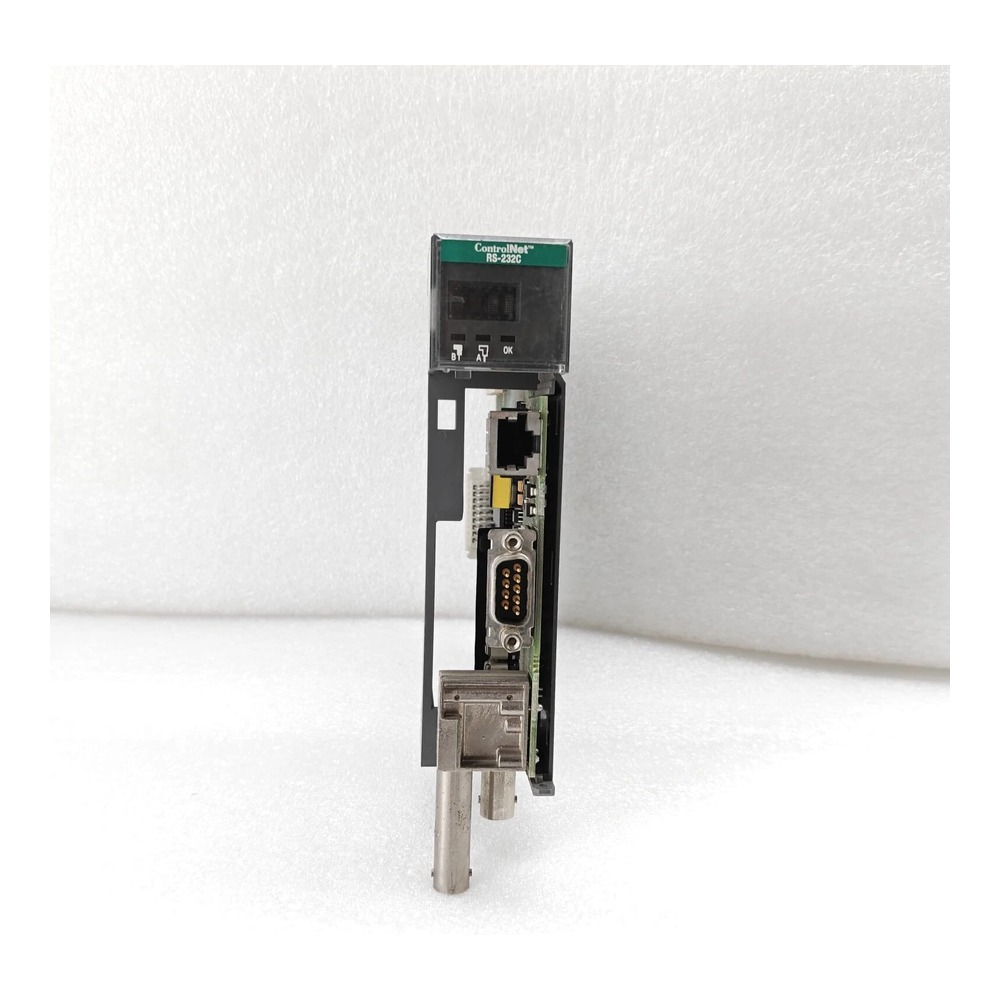

Allen-Bradley 1747-KFC15 SLC 500 ControlNet RS-232 Communication Interface Module
Allen-Bradley 1747-KFC15 is a ControlNet RS-232 communication interface module that connects an SLC 500 processor’s RS-232 serial port to a ControlNet network.
Overview
The 1747-KFC15 mounts in an SLC 500 chassis and bridges the processor’s RS-232C serial port (DF1 protocol) onto ControlNet through dual BNC coaxial connectors – channel A alone for non-redundant media or channels A and B together for redundant media – using standard RG-6 75-ohm coax taps. A front-panel Network Access Port (RJ-45) gives a programming terminal full network access without disturbing trunk cabling. The ControlNet node address is set with on-board rotary switches (S4/S5) and DIP switch banks, and status is shown on the front-panel LEDs and dot-matrix displays. The module draws 150 mA @ 5 V DC and 40 mA @ 24 V DC and is rated 0 to 60 °C.
Key Features
- Bridges the SLC 500 processor RS-232 port to ControlNet (DF1 protocol)
- Dual BNC coax connectors – channel A or redundant channels A+B, RG-6 75-ohm
- Network Access Port (RJ-45 NAP) for programming-terminal access
- Rotary switches (S4/S5) and 3 banks of DIP switches for configuration
- Status LEDs plus dot-matrix displays for diagnostics
- Backplane current 150 mA @ 5 V DC and 40 mA @ 24 V DC
- Module weight 217.6 g (7.68 oz); single-slot SLC 500 mounting
- Operating 0…60 °C; storage -40…85 °C; 5…95% RH non-condensing
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 (1747) |
| Series | SLC 500 |
| Part Number / Catalog No. | 1747-KFC15 |
| Product Type | ControlNet RS-232 Communication Interface Module |
| Network Interface | ControlNet, 2 x BNC coax (redundant media capable) |
| Coax Cable | RG-6, 75-ohm, via standard ControlNet tap |
| Serial Interface | RS-232C (DF1) to SLC 500 processor |
| Network Access Port | RJ-45 8-pin shielded (NAP) |
| Configuration | Rotary switches S4/S5 (node address) + DIP switch banks |
| Backplane Current | 150 mA @ 5 V DC; 40 mA @ 24 V DC |
| Module Weight | 217.6 g (7.68 oz) |
| Dimensions | 14.5 x 3.5 x 14 cm (5.7 x 1.4 x 5.5 in), approx (single-slot SLC 500 module) |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5 to 95% non-condensing |
| Slots Used | 1 |
| Weight | 1.13 lbs (0.51 kg) |
Applications
The 1747-KFC15 brings legacy SLC 500 processors onto a ControlNet backbone for programming, messaging and data collection. It is the standard retrofit path when a plant standardizes on ControlNet while SLC controllers remain in service, and its NAP port lets engineers attach a programming terminal anywhere on the segment without breaking the coax chain.
Why Buy from Us

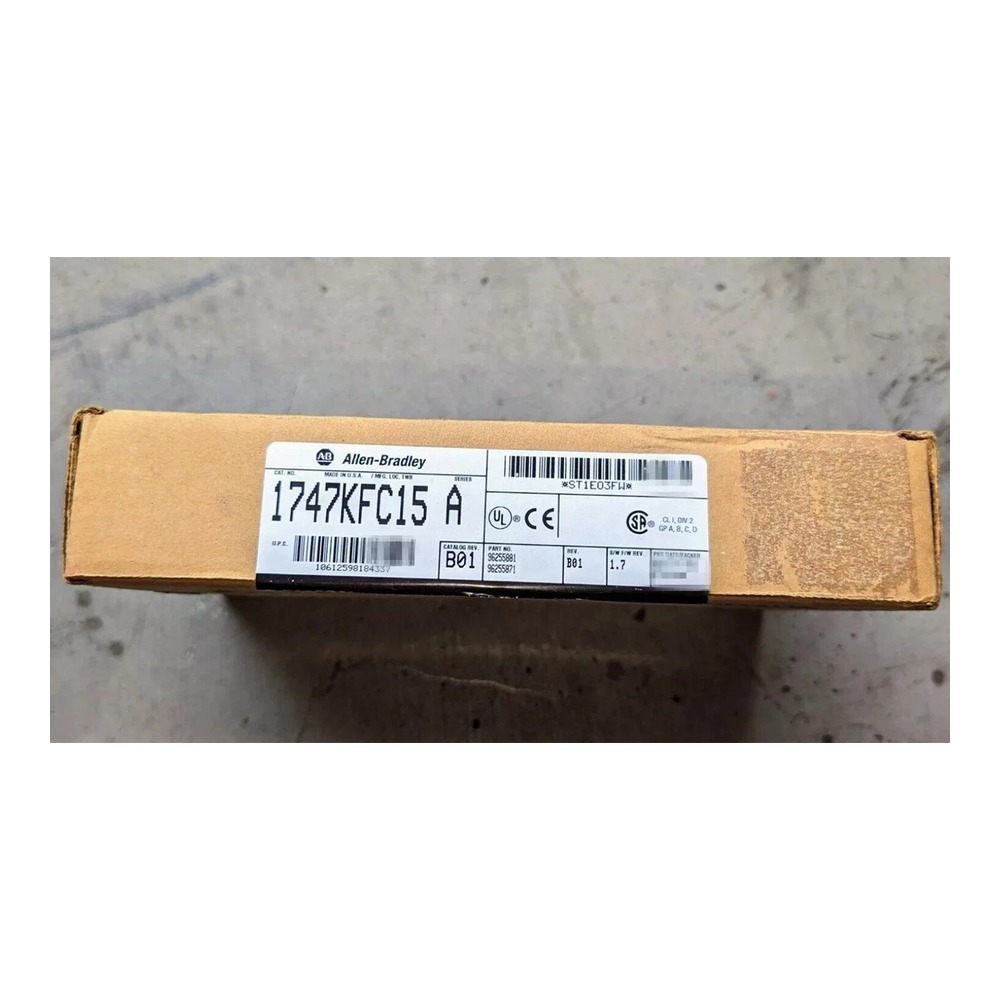

This module is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-UM534 – SLC500 ControlNet RS-232 Interface (1747-KFC15) User Manual | 1747-um534_-en-p.pdf |
