Allen-Bradley 1747-ASB SLC 500 Remote I/O Adapter Module

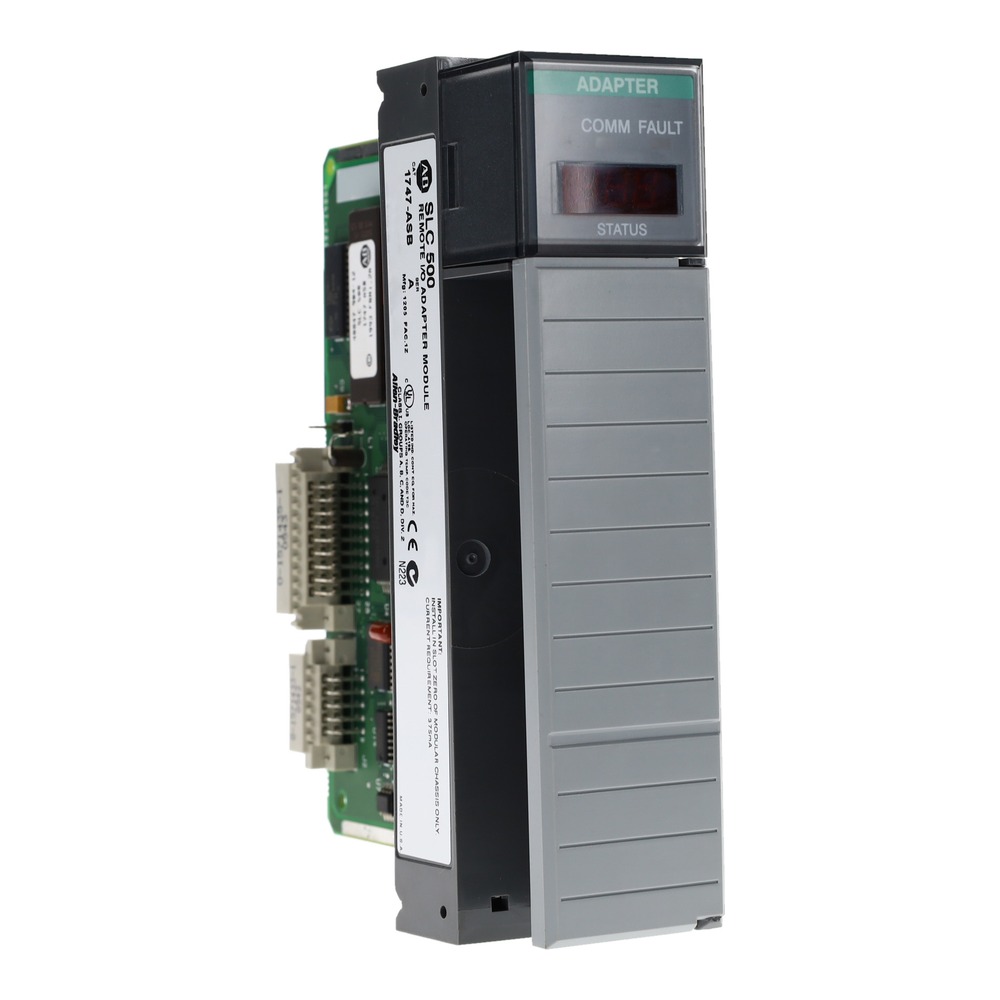

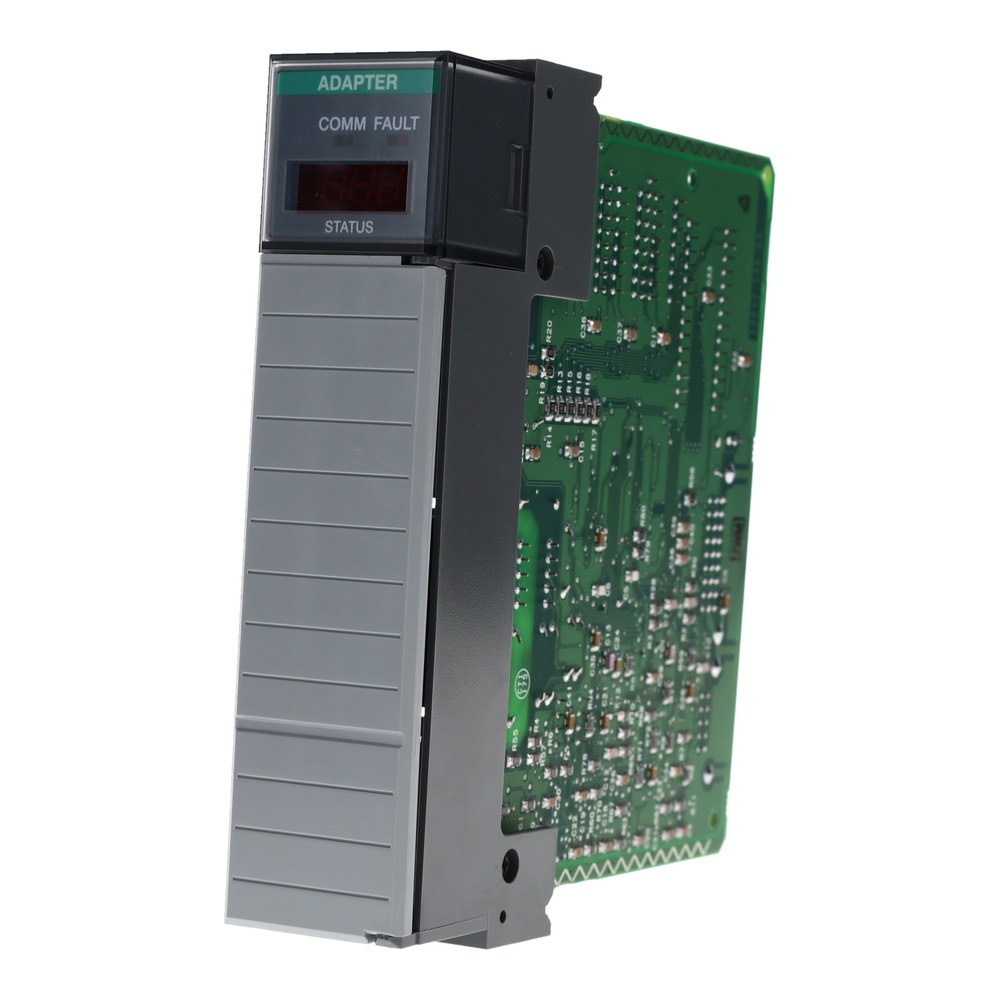

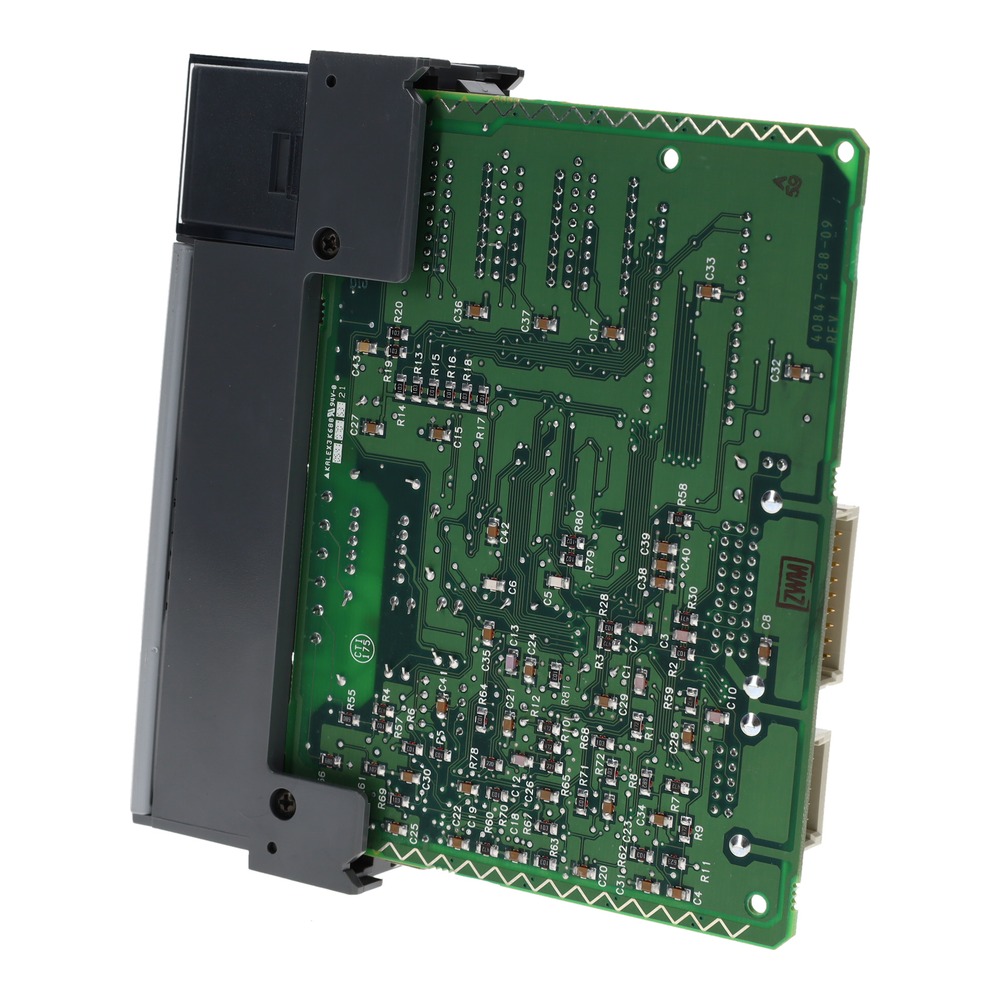

Allen-Bradley 1747-ASB is the SLC 500 remote I/O adapter module that links a remote 1746 chassis to a Remote I/O (RIO) link, letting I/O live up to 10,000 ft (3048 m) from the processor.
Overview
The 1747-ASB occupies slot 0 of a 1746 remote chassis and acts as the bridge between the RIO link and the backplane: it operates as a slave device on the RIO link while acting as the master of the remote chassis and any optional remote expansion chassis. No user programming is required – the adapter is configured with on-board DIP switches, and status is visible on the front-panel FAULT and COMM LEDs. It draws 375 mA at 5 V DC from the backplane and is rated for 0 to 60 °C operation with -40 to 85 °C storage.
Key Features
- Remote I/O adapter for the SLC 500 family – installs in slot 0 of a 1746 remote chassis
- Slave device operation on the RIO link; master device operation on the hosted chassis
- Supports optional remote expansion chassis

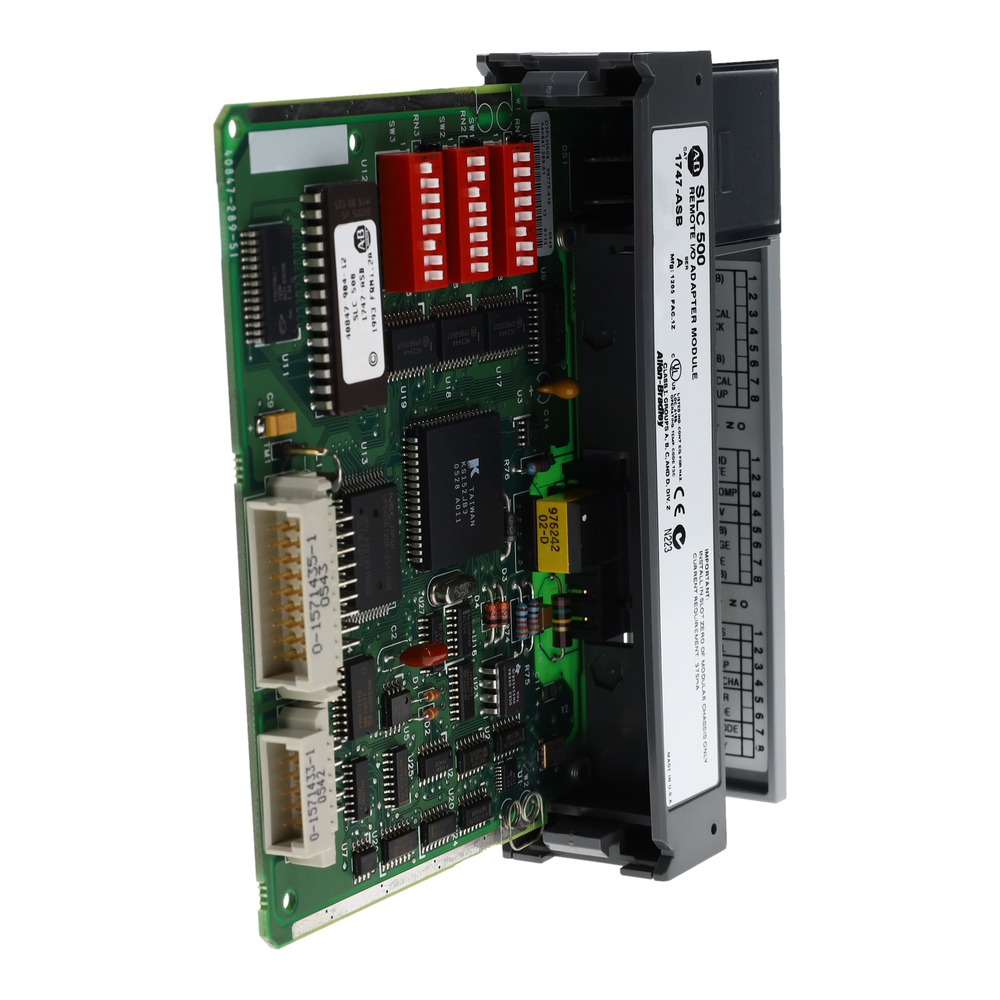

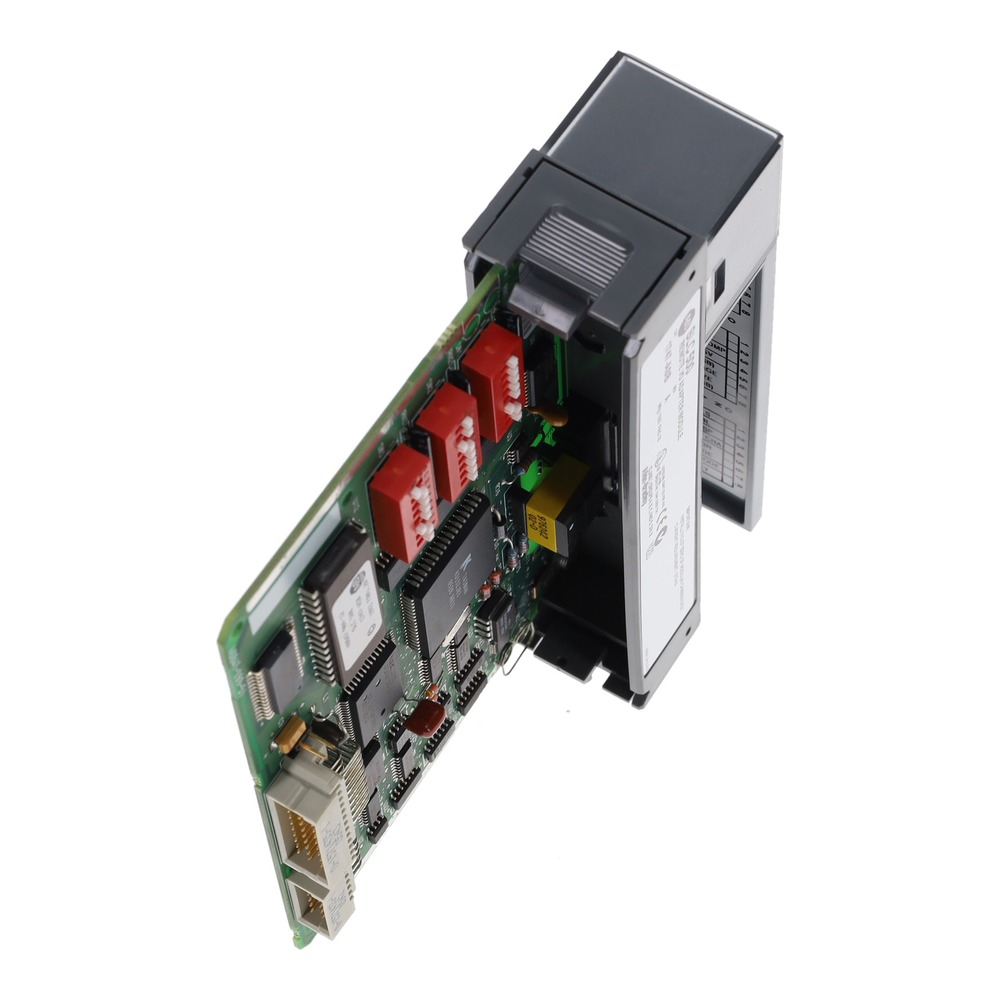

- No user programming required; DIP switch configuration

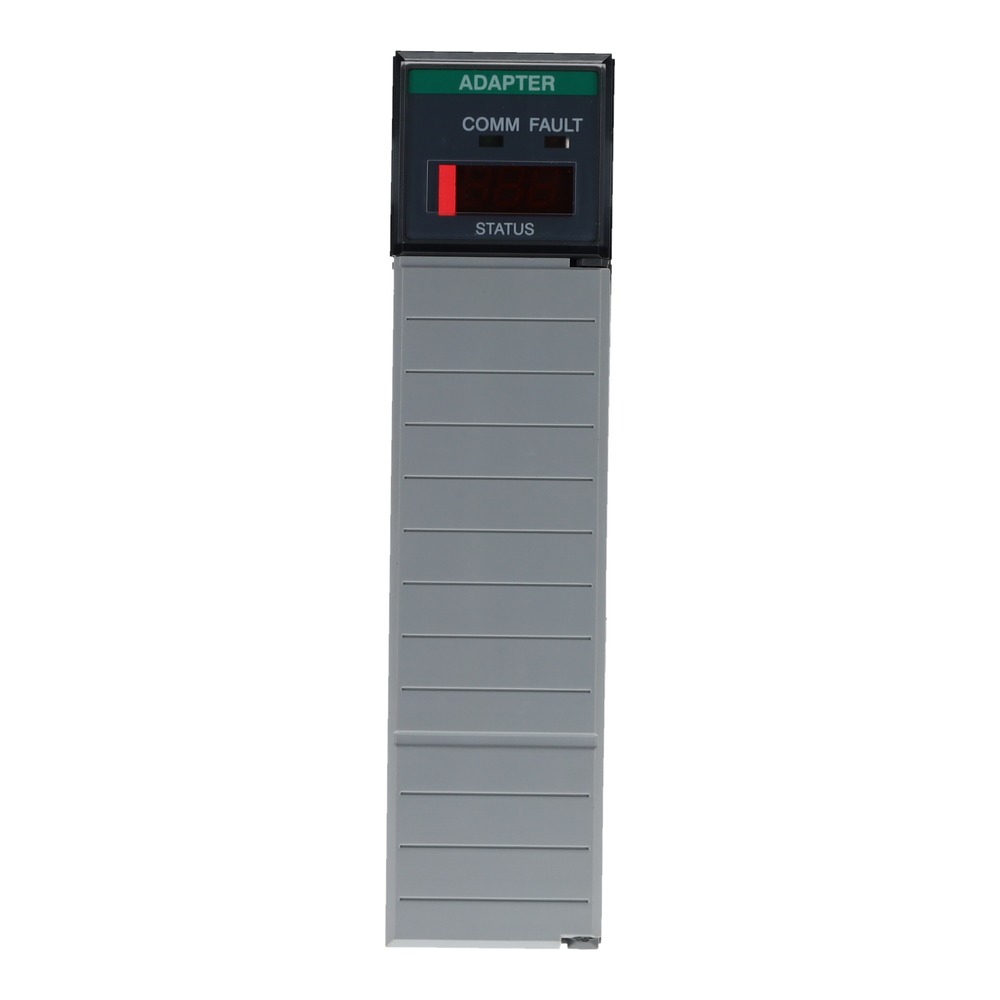

- Front-panel FAULT and COMM status LEDs
- Backplane current 375 mA @ 5 V DC; single-slot module
- Operating 32…140 °F (0…60 °C); storage -40…185 °F (-40…85 °C)
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 (1747) |
| Series | SLC 500 |
| Part Number / Catalog No. | 1747-ASB |
| UPC | 662468028769 |
| Product Type | Remote I/O Adapter Module |
| Installation Slot | Slot 0 on a 1746 series remote chassis |
| RIO Link Operation | Slave device; master on hosted remote chassis |
| Remote Expansion Chassis | Supported (optional) |
| User Programming | Not required |
| Status Indicators | FAULT and COMM LEDs; DIP switches included |
| Backplane Current | 375 mA @ 5 V DC |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Slots Used | 1 |
| Dimensions | 14.5 x 3.5 x 14 cm (5.7 x 1.4 x 5.5 in), approx (single-slot SLC 500 module) |
| Weight | 0.56 lbs (0.26 kg) |
Applications
Use the 1747-ASB wherever SLC 500 I/O must be remoted from the processor: drive houses, machine sections across the floor, or panel clusters spread along a line. The adapter lets a single SLC 5/03, 5/04 or 5/05 processor control remote 1746 I/O over classic RIO – a common requirement when integrating or extending installed A-B systems without changing the control architecture.
Why Buy from Us
This adapter is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN014 – Remote I/O Adapter Module (1747-ASB) Installation Instructions | 1747-in014_-en-p.pdf |
| Publication | 1747-UM006 – Remote I/O Adapter Module (1747-ASB) User Manual | 1747-um006_-en-p.pdf |
| Publication | 1747-UM011 – SLC 500 Modular Hardware Style Installation and Operation Manual | 1747-um011_-en-p.pdf |
