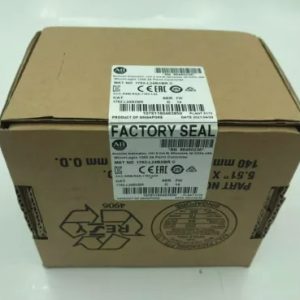

1762-L24BXBR AB 1762-L24BXBR /C MicroLogix 1200 PLC Processor New In Box Fast Ship
Technical specifications for 1762-L24BXBR
| Manufacturer | Rockwell Automation |
|---|---|
| Part Number/Catalog No. | 1762-L24BXBR |
| Brand | Allen-Bradley |
| Power Supply | 24VDC |
| No. of Inputs | (10) 24V dc; (4) fast 24V dc |
| No. of Outputs | (5) relay; (4) 24V dc FET; (1) high-speed 24V dc FET |
| Input Circuit Type | 24 VDC |
| Output Circuit Type | Relay; FET |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20,000,000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; One (1) Programming port |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Dimensions | Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
| Shipping Weight | 2.4 pounds |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power Supply Usage | 82 VA |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Input Power | 24V DC |
| Inputs | (10) 24V DC and (4) Fast 24V DC |
| Outputs | (5) Relay, (4) 24V DC FET, (1) High-Speed 24V DC FET |
| UPC | 10781180463850 |
| UNSPSC | 32151705 |
Description

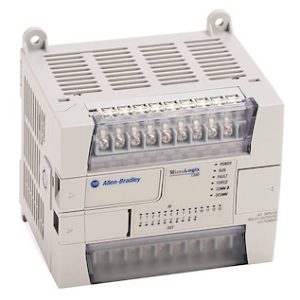

The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 controller. This controller is a 24-point controller with dedicated programming port and communication interface. This controller has a compact design with provision for expansion by means of installation up to Six (6) 1762 expansion I/O of various types.
The 1762-L24BXBR supports DIN rail of panel mounting. Panel mounting provides more susceptibility to vibration compared to DIN rail mounting. The compact assembly of this this Programmable Logic Controller (PLC) contributes to space saving design and only requires installation clearance of 500 mm or 2 inches on all sides of the controller.
The 1762-L24BXBR has a variety of embedded I/O channels such as Ten (10) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) High-speed 24VDC FET outputs. Input channels 0-3 accepts input signal frequency of 0-20 kHz while inputs 4 and higher accepts input signal frequency of 0Hz to 1 kHz which is scan time dependent. Aside from the embedded discrete input channels, the 1762-L24BXBR has Two (2) Trim Potentiometers that may be used to manipulate internal registers as well implement local control.
The 1762-L24BXBR has Two (2) communication interface available. It has One (1) dedicated programming port that is located on the side of the controller while the primary communication port is located on the controller’s front panel. Both these communication ports have a physical interface of 8-pin mini-DIN circular connector. The primary port support communication with visualization devices as well as connecting online with the controller for performing download, upload, online and commissioning of the device.
The 1762-L24BXBR programmable controller unit contains a real-time clock which allows for scheduling the control activities. The control unit offers extended flexibility with 24 or 40 I/O points. The input points support either 120 Volts AC or 24 Volts DC (sink or resource). On the other hand, the outputs are relay contact or FET. At the same time, in up to 6 digital or analog modules, you can add as many as 96 I/O. It is also powered by a wide range of high-functionality communication options. The Allen-Bradley 762-L24BXBR MicroLogix 1200/1762 Programmable Controller system has 4 pulse-catch or latching inputs which enable the gadget capture and hold very brief signals for input processing.
Alternative names
- 1762-124BXBR
- 1762-L248X8R
- 1762-L248XBR
- 1762-L24BX8R
- 1762-L2ABXBR
- 1762124BXBR
- 1762L248X8R
- 1762L248XBR
- 1762L24BX8R
- 1762L24BXBR
- 1762L2ABXBR
- L762-12A8X8R
- L762-L24BXBR
- L76212A8X8R
- L762L24BXBR
Frequently asked questions
What are the input and output type does the 1762-L24BXBR have?
The 1762-L24BXBR has Ten (10) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) High-speed 24VDC FET outputs.
Does the 1762-L24BXBR feature a dedicated programming port?
Yes. 1762-L24BXBR has a programming port.
How many trim potentiometers does the 1762-L24BXBR have?
The 1762-L24BXBR has Two (2) trim potentiometers.
Technical notes
The Allen-Bradley 1762-L24BXBR is a MicroLogix 1200 Programmable Logic Controller (PLC). It features Ten (10) 24VDC sink / source inputs, Four (4) fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) High-speed 24VDC FET outputs. It has an embedded 8-pin mini-DIN communication port supporting RS232 (DF1) protocol. This controller is powered by an external 24VDC supply voltage.
