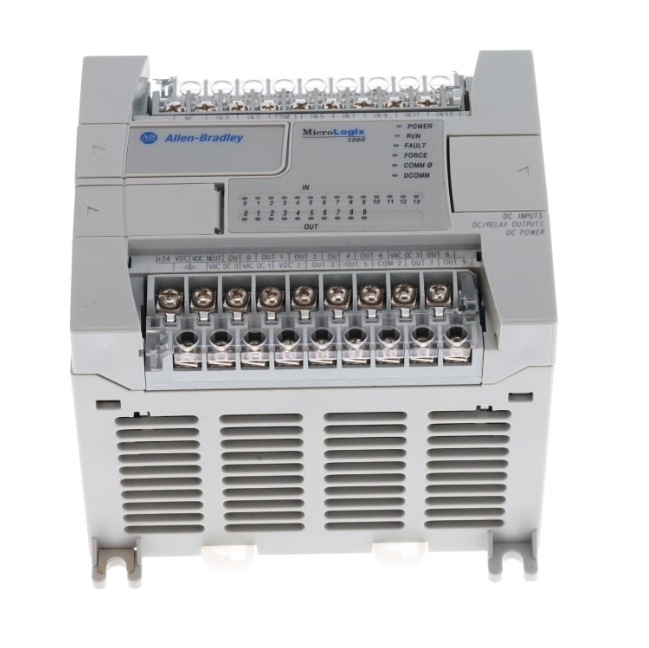

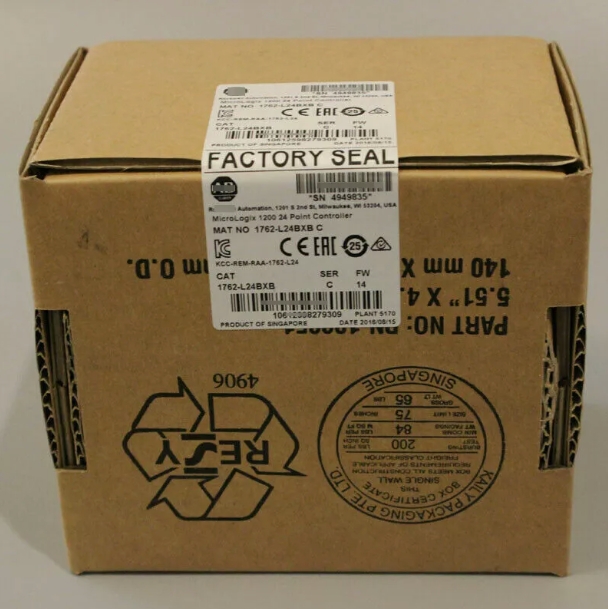

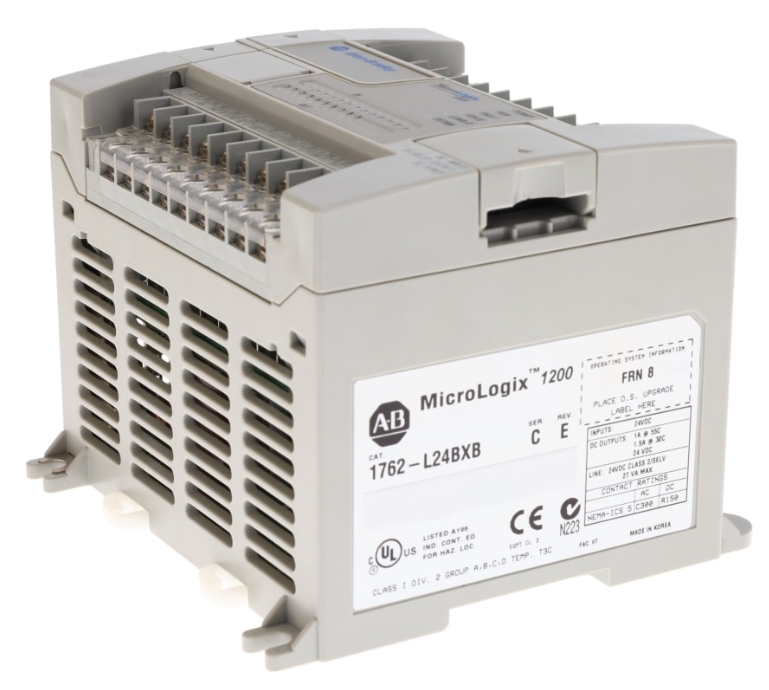

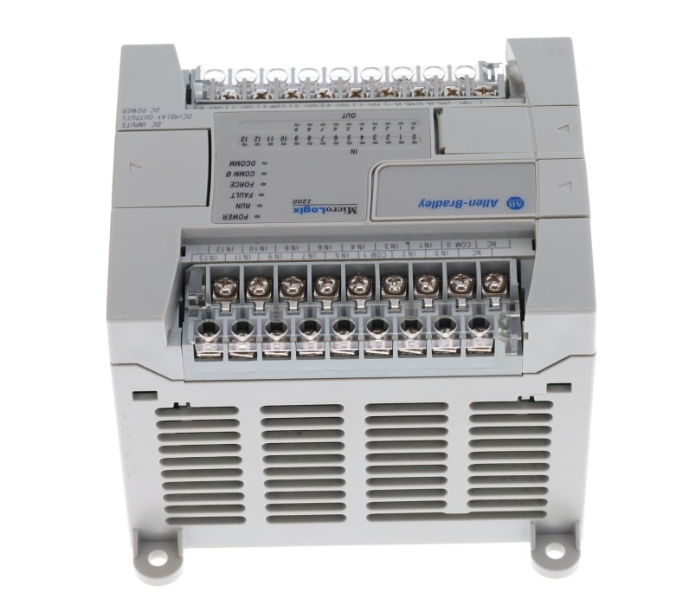

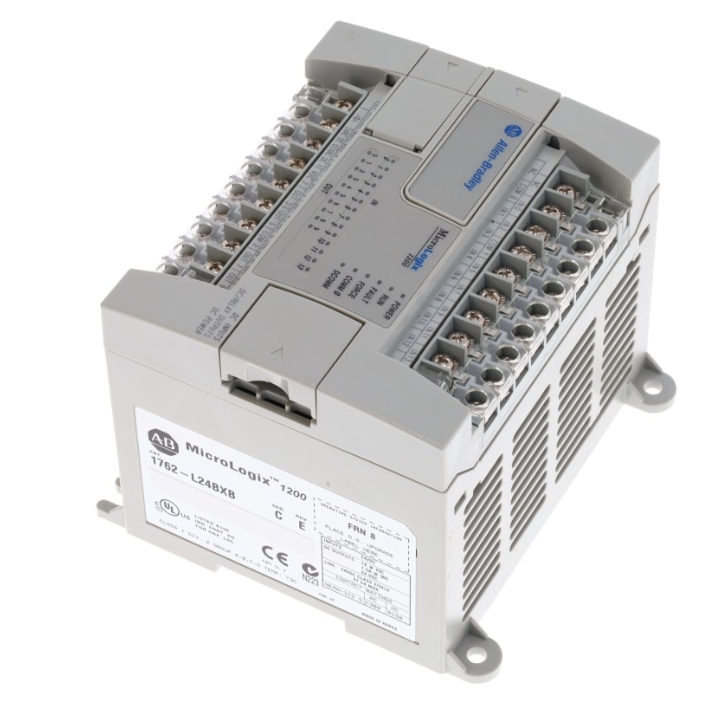

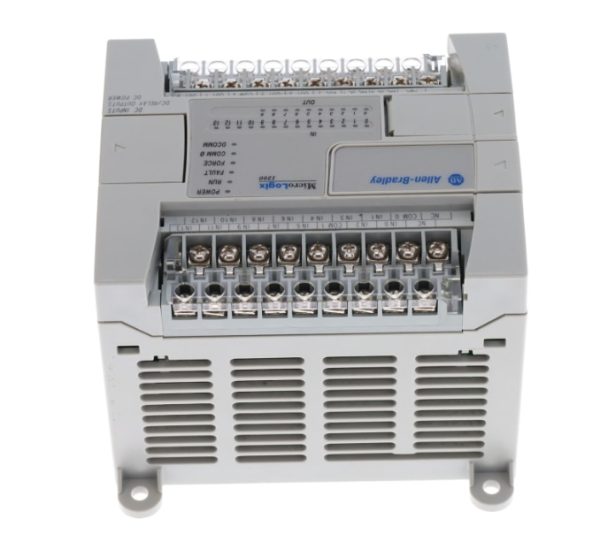

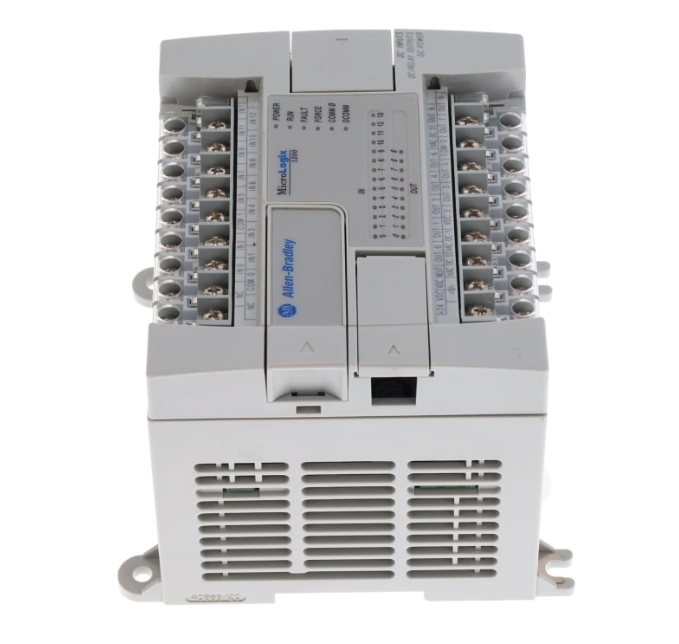

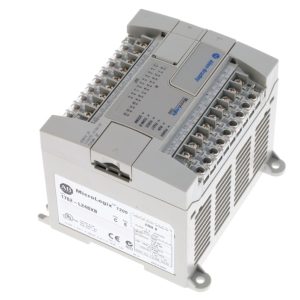

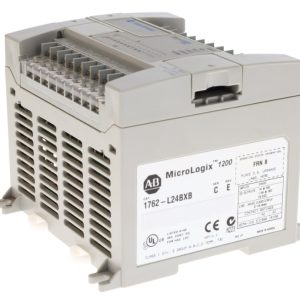

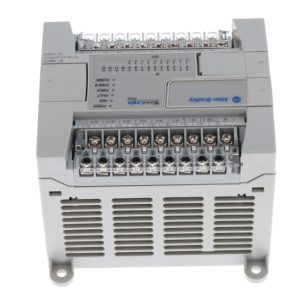

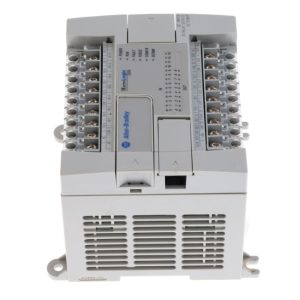

1762-L24BXB New Factory Sealed AB 1762-L24BXB MicroLogix1200 24 Point Controller
Technical specifications for 1762-L24BXB
| Manufacturer | Rockwell Automation |
|---|---|
| Power Supply Usage | 40W |
| Shipping Weight | 2.4 pounds |
| Dimensions | Height: 90 mm 104 mm (with DIN latch open); Width: 160 mm; Depth: 87 mm |
| Part Number/Catalog No. | 1762-L24BXB |
| Brand | Allen-Bradley |
| Power Supply | 24VDC |
| No. of Inputs | Ten (10) 24V dc; (4) fast 24V dc |
| No. of Outputs | Five (5) relay; Four (4) 24V dc FET; (1) high-speed 24V dc FET |
| Input Circuit Type | 24 VDC sink / source |
| Output Circuit Type | Relay; FET |
| Relay Contact Rating | 24-125VDC; 120-240VAC |
| Mechanical Cycles | 20000000 |
| Load Current | 10A, minimum |
| Communication Ports | One (1) 8-Pin mini-DIN serial port; |
| Supported Protocols | DF1, DH-485, ASCII, MODBUS |
| Ambient Operating Temp | 0 to 55 degrees Celsius |
| Power supply inrush current | 120V ac: 25A for 8 ms; 240V ac: 40A for 4 ms |
| Series | MicroLogix 1200 |
| Module Type | Programmable Controller |
| Inputs | (10) 24V DC and (4) Fast 24V DC |
| Outputs | (5) Relay, (4) 24V DC FET, (1) High-Speed 24V DC FET |
| Input Power | 24V DC |
| Power Supply Output | 400 or 350 milliamps |
| Operating Frequency | 0-20 kilohertz |
| UPC | 10612598279309 |
| UNSPSC | 32151705 |
Description
The 1762-L24BXB is an Allen-Bradley MicroLogix controller. This controller is ideally used for micro and small automation requirements. This controller is of a compact type controller, provided with comprehensive range of I/O channels such as Ten (10) standard 24VDC inputs, Four (4) Fast 24VDC inputs, Five (5) relay, Four (4) 24VDC FET and One (1) high-speed output. These I/O channels enable this controller to be used in general purpose and some specific applications such as counting, totalizing and position monitoring.
The 1762-L24BXB has a built-in power supply that operates with a nominal input supply voltage of 24VDC. It comes with a mini-DIN 8 pin circular RS232 connector that is installed on the controller’s front panel that may be used for most communication functions, specifically, programming, hardware configuration, online edits and communication with visualization systems such as Supervisory Control and Data Acquisition (SCADA) and human Machine Interface (HMI). The 1762-L24BXB is designed to withstand an inrush current of 15A for 20 ms. The embedded power supply provides output current of 400 mA at 5VDC and 350 mA at 24VDC with power supply usage of 27 Watts. This controller must be operated at operating temperature range of +0°C to +55°C (+32°F to +131°F) or stored at a facility with -40°C to +85°C (-40°F to +185°F) at 5-95% relative humidity.
This controller supports either DIN rail or direct panel mounting. It has a physical measurement of 90mm or 104 mm (with DIN latch open), 110 mm (W) and 87 mm (D).
This equipment is designed for use in an industrial enclosure which reduces the effects of electrical interference and environmental exposure. Install this device as far as possible from load lines, power lines, relays, AC motor drives, and other electrical noise. The 1762-L24BXB has different specifications than other controller modules. Its heat dissipation is 17 Watts and its power supply inrush current is 15 Amps for 20 milliseconds at 24 Volts DC. The power supply usage of the 1762-L24BXB is 27 Watts. The output circuit type of this module are both Relay and FET type. The input circuit type is 24 Volts DC sink or source. This module has no sensor power output. The minimum output load current is 10 mA, the common current per group is 7.5 Amps, and the power supply output of the 1762-L24BXB is 400 mA at 5 Volts DC and 350 mA at 24 Volts DC.
Alternative names
- 1762-124BXB
- 1762-L248X8
- 1762-L248XB
- 1762-L24BX8
- 1762-L2ABXB
- 1762124BXB
- 1762L248X8
- 1762L248XB
- 1762L24BX8
- 1762L24BXB
- 1762L2ABXB
- L762-12A8X8
- L762-L24BXB
- L76212A8X8
- L762L24BXB
Frequently asked questions
What are the part numbers for the 1762-L24BXB MicroLogix Programmable Controller’s optional memory module and real-time clock?
The 1762-L24BXB MicroLogix Programmable Controller has three options for a memory module and/ or real-time clock: memory module and real-time clock (1762-MM1RTC), memory module only (1732-MM1). or the real-time clock only (1732-RTC).
What are the input and output circuit types for the 1762-L24BXB MicroLogix 1200 Programmable Controller?
The 1762-L24BXB Programmable Controller’s input circuit type is 24 Volts DC sink/source and its output circuit type is relay/FET.
When the 1762-L24BXB MicroLogix 1200 Programmable Controller is on, what is the current?
When the 1762-L24BXB MicroLogix 1200 Programmable Controller is on and operating at 14 Volts DC, it has a current of 2.5 milliamps, at 24 Volts it has a current of 7.3 milliamps. Finally, if the 1762-L24BXB programmable controller is on and operating at 30 Volts DC, the current will be 12 milliamps.
What is the power supply inrush for the 1762-L24BXB MicroLogix 1200 Programmable Controller?
The power supply inrush of the 1762-L24BXB MicroLogix 1200 Programmable Controller at 120 volts AC is 25 amperes for 8 milliseconds. At 240 volts AC, the power supply inrush is 40 amperes for 4 milliseconds.
What is input frequency range of the Fast input channels?
The fast input channels are compatible with switching frequencies of 0 Hz to 20 kHz.
Where are the fast inputs located?
The fast inputs are channels 0-3.
What is the turn-off and turn-on time of the single fast output channel?
The single fast output channel has an turn-on and turn-off time of 6 µsec and 18 µsec, respectively.
Technical notes
The Allen-Bradley 1762-L24BXB is a 24-point controller module. The 1762-L24BXB has 14 inputs and 24 Volts DC. This module is a sink/source Micrologix 1200 Controller.
