1746-NI8 Allen Bradley

Original price was: $1,468.53.Current price is: $1,266.51.

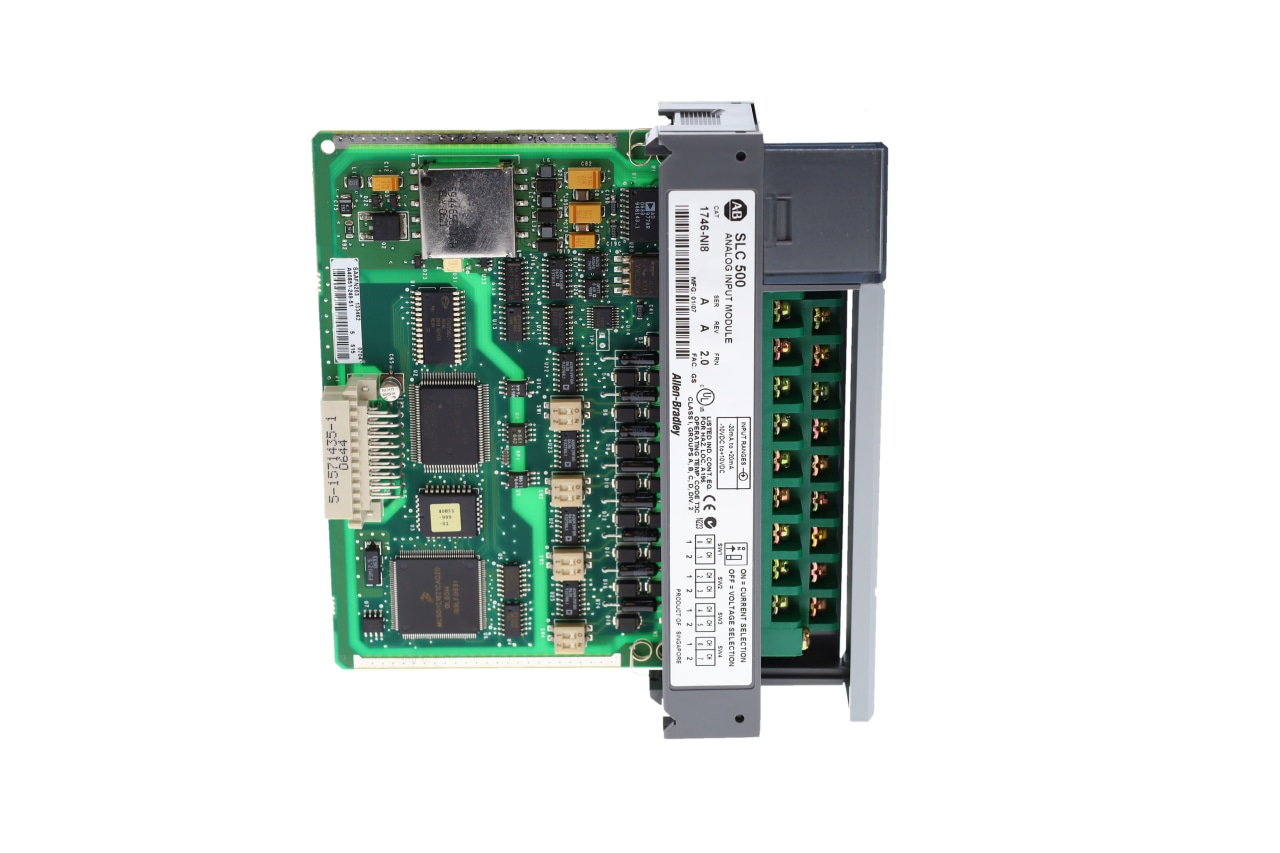

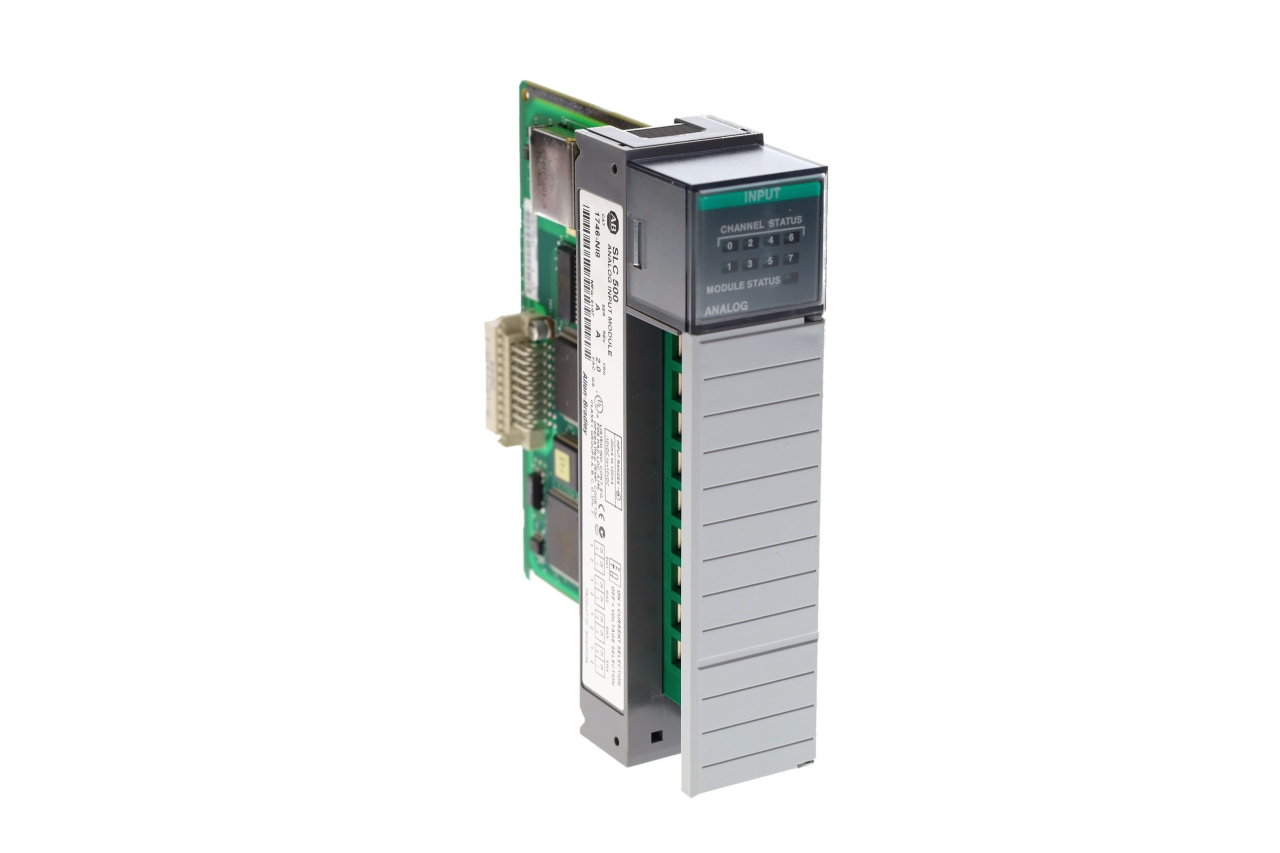

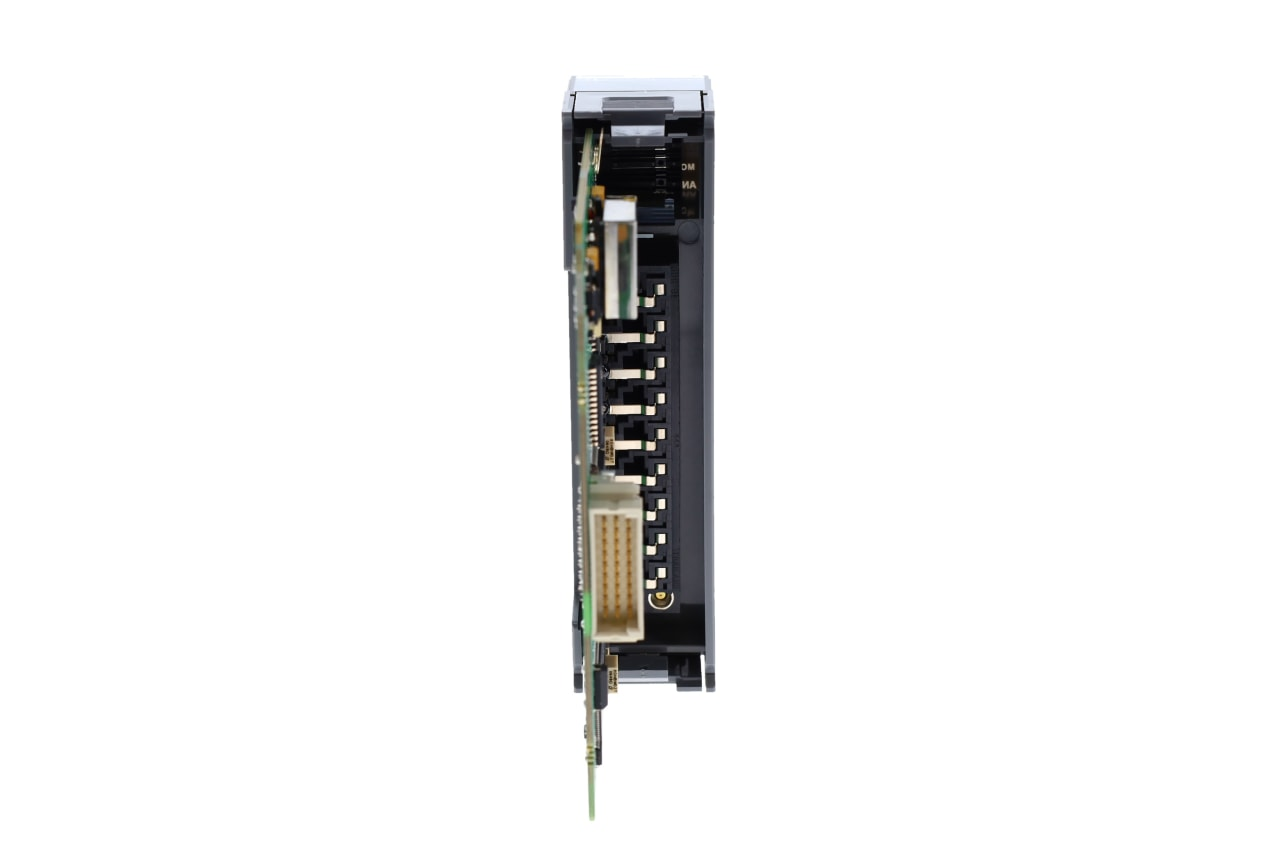

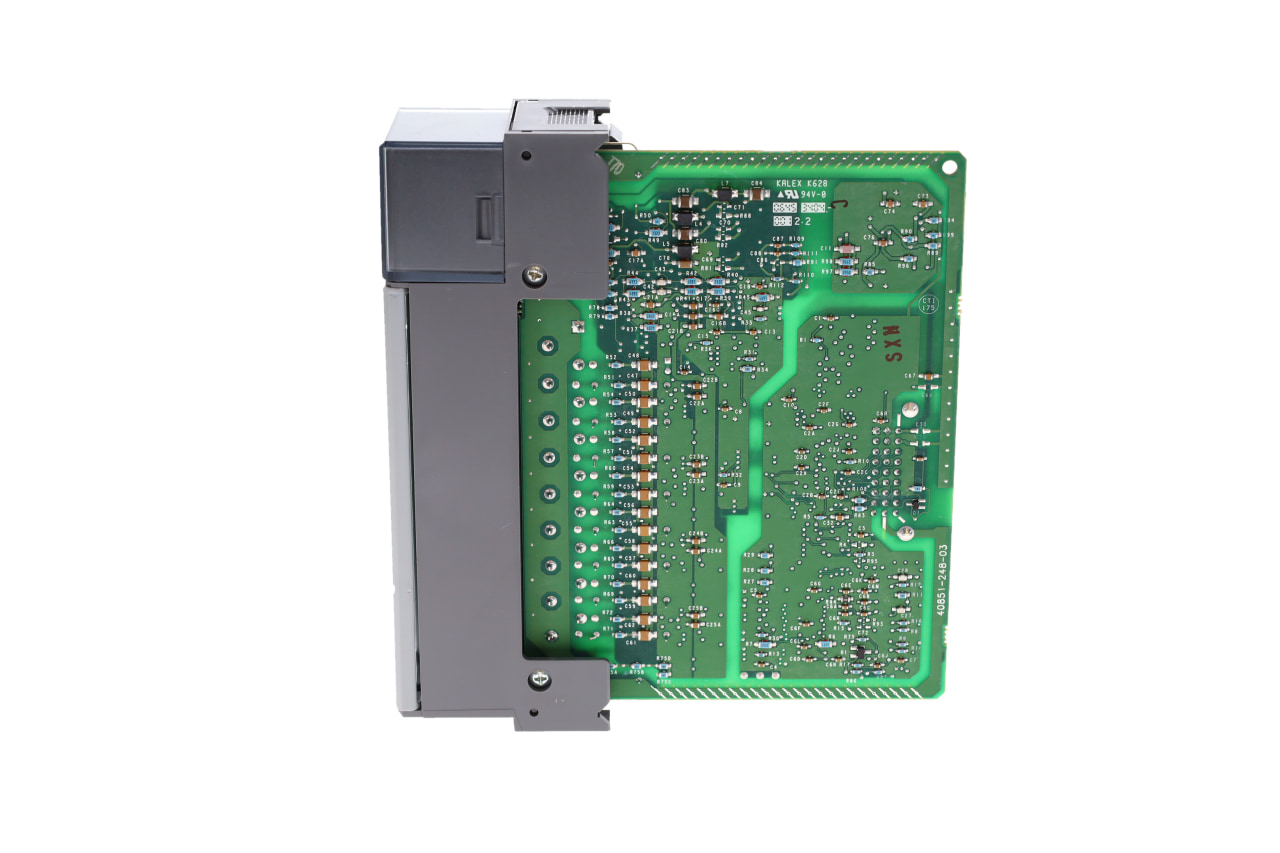

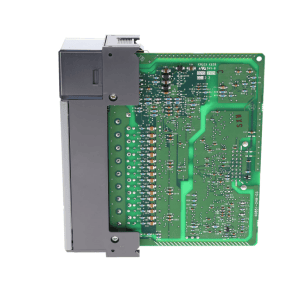

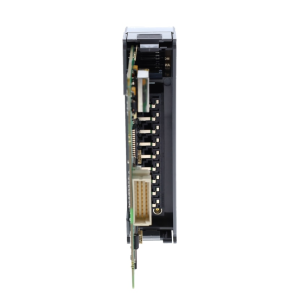

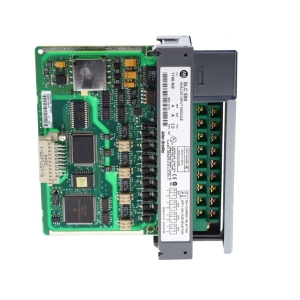

The Allen-Bradley 1746-NI8 is a SLC 500 Analog I/O Module. This Analog I/O Module has Eight (8) non-isolated differential, voltage or current selectable input channels. This module occupies single slot of the SLC 500 chassis and compatible with fixed or modular style hardware.

1746-NI8

Technical specifications for 1746-NI8

ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.1746-NI8
SeriesSLC 500
Module TypeAnalog I/O Module
Backplane Current (5 Volts)200 milliamps
Inputs1746-NI4
Backplane Current (24 Volts DC)100 milliamps
Input signal Category-20 to +20 mA (or) -10 to +10V dc
Bandwidth1-75 Hertz
Input Filter Frequencies1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50 Hz, 75 Hz
Update Time6 milliseconds
Chassis locationAny I/O module slot except slot 0
Resolution16 bits
Backplane Current(5 Volts) 200 mA;(24 Volts DC) 100 mA
Step Response0.75-730 milliseconds
Conversion typeSuccessive approximation, switched capacitor
ApplicationsCombination 120 Volts AC I/O
Input Types, Voltage10V dc 1-5V dc 0-5V dc 0-10V dc
Backplane Power Consumption14 Watts Maximum
Input Type, Current0-20 mA 4-20 mA 20 mA 0-1 mA
Input Impedance250 Ohms
Data FormatEngineering Units Scaled for PID Proportional Counts (-32,768 to +32,767 range), Proportional Counts (User Defined Range, Class 3 only). 1746-NI4 Data Form
Cable1492-ACABLE*C
LED Indicators9 green status indicators one for each of 8 channels and one for module status
Thermal Dissipation3.4 Watts
Wire Size14 AWG
UPC10662072678036
UNSPSC32151705

Description

The Allen-Bradley 1746-NI8 is an analog single-slot I/O module for the SLC 500 system. It is suitable for time-sensitive applications that require fast analog signal conversion and high accuracy. The 1746-NI8 module has an 8-Channel input with an isolated backplane. Its backplane current consumption is 200mA and 100mA at 5 Volts DC and 24 Volts DC respectively. It has a maximum backplane power consumption of 1 Watt at 5 Volts DC and 2.4 Watts at 24 Volts DC. The 1746-NI8 can be installed in any I/O slot, except Slot 0 of the SLC 500 I/O chassis. Input signal data is converted to digital data via successive approximation conversion. The 1746-NI8 module uses programmable filter frequencies with a low-pass digital filter for input filtering. It performs continuous autocalibration and has an isolation voltage of 750 Volts DC and 530 Volts AC, tested for 60 seconds. It has a common-mode voltage ranging from -10 to 10 Volts with a maximum of 15 Volts between any two terminals. The 1746-NI8 module comes with a removable terminal block of 18 positions. For wiring, the Belden 8761 or a similar cable must be used with one or two 14 AWG wires per terminal. The cable has a maximum loop impedance of 40 Ohms at the voltage source and 250 Ohms at the current source. For troubleshooting and diagnostics, it has 9 green LED status indicators. The 8 channels have one indicator each to display the input status and one each for displaying the module status. The 1746-NI8 has a Division 2 hazardous environment standard with an operating temperature of 0 to 60 degrees Celsius.

The 1746-NI8 features Eight (8) channel analog input module compatible for used with SLC 500 Fixed or modular hardware style controllers. This module from Allen-Bradley has individually selectable voltage or current input channels. Available selectable input signals include 10V dc, 1–5V dc, 0–5V dc, 0–10V dc for Voltage while 0–20 mA, 4–20 mA, +/-20 mA for Current. Input signals may be represented as Engineering Units, Scaled-for-PID, Proportional Counts (–32,768 to +32,767 range), Proportional Counts with User Defined Range (Class 3 only) and 1746-NI4 Data.

This Eight (8) channel module is compatible for use with SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04 and SLC 5/05 processors. SLC 5/01 may only operate as class 1 while SLC 5/02, 5/03, 5/04 are configurable for Class 1 and Class 3 operation. The channels of each module may be wired in single-ended or differential input.

This module has a removable terminal block for connection to input signals and easy replacement of module without the need of rewiring. Selection of input signal type is done with the use of embedded DIP switches.

Revisions

Revision Part #Also known as
1746-NI8 Ser A1746-NI8/A, Series A, Rev A
Request a quote

Alternative names

  • 1746-NIB
  • 1746NI8
  • 1746NIB
  • 1747-NI8
  • 17A6-NI8
  • 17A6NI8
  • L746-NI8
  • L746NI8
  • L7A6-NIB
  • L7A6NIB
Frequently asked questions

How many inputs does the 1746-NI8 module have?

The 1746-NI8 has a total of eight (8) possible inputs.

Does the 1746-NI8 have any LED indicators?

Yes, the 1746-NI8 has nine (9) LED status indicators.

What cable does the 1715-IF16 require?

The 1715-IF16 needs a Belden 8761 cable for wiring.

Does this module have a terminal block?

Yes, the 1746-NI8 contains an 18-position, removable terminal block.

Technical notes

The Allen-Bradley 1746-NI8 is a SLC 500 Analog I/O Module. This Analog I/O Module has 8 Inputs and a Backplane Current (5 Volts) of 200 milliamps. It has a Bandwidth of 1-75 Hertz and an Update Time of 6 milliseconds.

Documentation

RESOURCEPUBLICATION NUMBER
Installation Instructions1746-IN006
Weight0.25 kg
Dimensions15 × 15 × 5 cm
