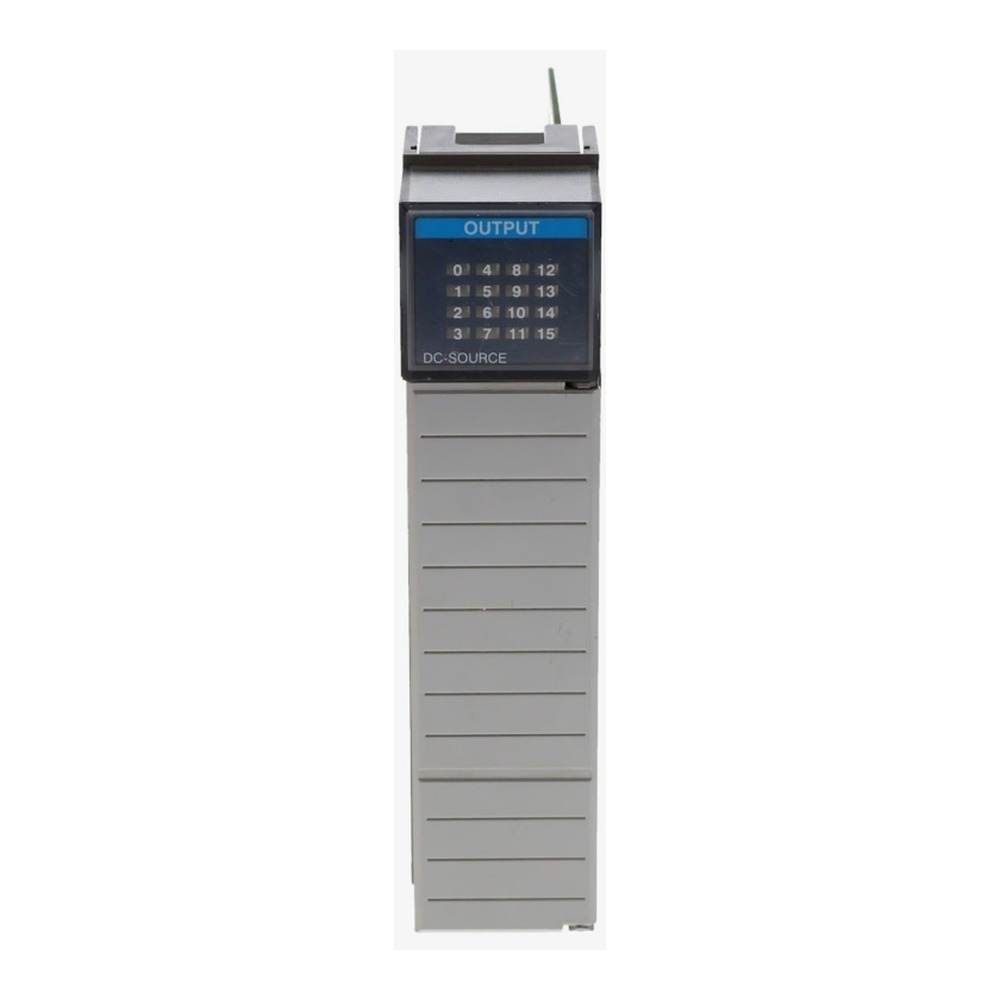

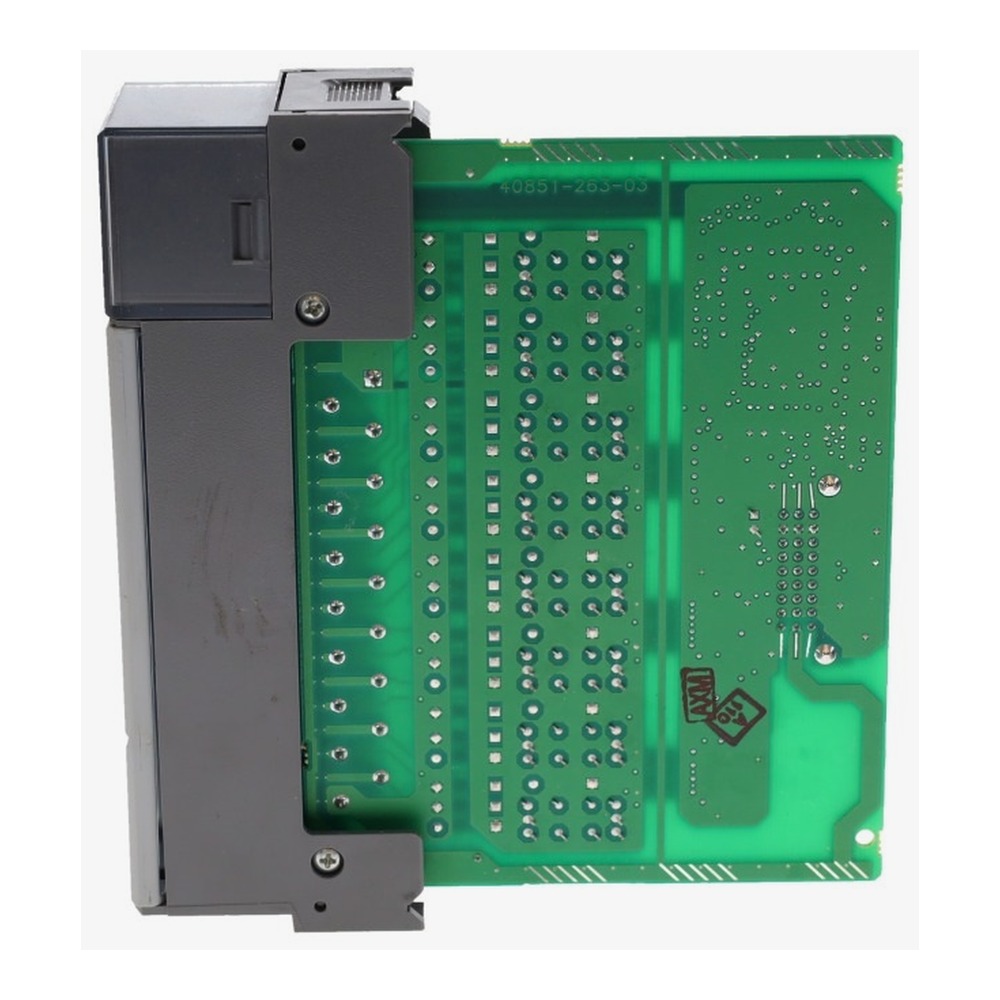

Allen-Bradley 1746-OB16 SLC 500 Digital DC Output Module, 16 Points, 24V DC Source
Allen-Bradley 1746-OB16 is a 16-point digital DC output module for the SLC 500 family, sourcing 24V DC loads.
Overview
The module provides 16 sourcing outputs in one group, operating from 10-50V DC with a 24V DC nominal system. Signal delays are 0.1 ms on and 1 ms off at maximum resistive load, and each output tolerates a 3 A surge for 10 ms. On-state voltage drop is 1.2 V maximum at 0.5 A; minimum load is 1 mA and off-state leakage is 1 mA. The backplane draws 0.28 A at 5V DC with no 24V DC load, heat dissipation totals 7.6 W, and a removable terminal block is included.
Key Features
- 16 digital DC outputs, 24V DC sourcing type (1 group)
- Operating range 10-50V DC
- Backplane load 0.28 A at 5V DC / 0 A at 24V DC
- 3 A surge per output for 10 ms; 1.2 V max on-state drop at 0.5 A
- Fast switching: 0.1 ms on / 1 ms off; single 1746 chassis slot
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 |
| Part Number / Catalog No. | 1746-OB16 |
| UPC | 662468067058 |
| Voltage Category | 24V DC (source output) |
| Number of Outputs | 16 Outputs (1 group) |
| Operating Voltage Range | 10-50V DC (sourcing) |
| Backplane Current Draw | 0.28 A at 5V DC / 0 A at 24V DC |
| Signal Delay | 0.1 ms on; 1 ms off (max resistive load) |
| Min. Load Current | 1 mA |
| Max. Off-State Leakage | 1 mA |
| Max. On-State Voltage Drop | 1.2V at 0.5 A |
| Surge Current per Output | 3 A for 10 ms |
| Heat Dissipation | 7.6 W total (0.388 W per point) |
| Removable Terminal Block | Included |
| Dimensions | 14 x 3.5 x 14.5 cm (5.5 x 1.4 x 5.7 in) |
| Weight | 0.63 lbs (0.28 kg) |
Applications
The 1746-OB16 drives 24V DC loads from an SLC 500 rack – interposing relays, drive enable inputs, solenoids and annunciators – with fast 0.1 ms switching suited to counting and timing applications.
Why Buy from Us
This product is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN009 — SLC 500 Modular Hardware Style Installation Instructions | 1747-in009_-en-p.pdf |
| Publication | 1747-UM013 — SLC 500 Modular Hardware Style User Manual | 1747-um013_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| UKCA Declaration of Conformity (SLC 500 family) | slc500-ct007_-en-e.pdf |
| Morocco Declaration of Conformity (SLC 500 family) | slc500-ct008_-fr-e.pdf |
Per the Rockwell Automation product certification listing. Please review the product label to confirm the certifications your specific unit carries.
