Allen-Bradley 1746-IB32 SLC 500 Digital DC Input Module, 32 Points, 24V DC Sink
Allen-Bradley 1746-IB32 is a 32-point digital DC input module for the SLC 500 family, sized for 24V DC current-sinking sensors.
Overview
The module provides 32 sinking inputs at 24V DC nominal, operating from 15-30V DC at 50 degrees Celsius (15-26.4V DC at 60 degrees Celsius). The off-to-on signal delay is 3 ms and off-state current is 1 mA maximum. The backplane draws 103 mA at 5V DC with no 24V DC load; module power dissipation is 6.65 W (0.20 W per channel). General-purpose DC input applications connect through 1746-HT or 1746-HCA cables, and the module occupies a single 1746 chassis slot.
Key Features
- 32 digital DC inputs, 24V DC current-sinking type
- Operating range 15-30V DC at 50 C (15-26.4V DC at 60 C)
- Backplane load 103 mA at 5V DC / 0 mA at 24V DC
- Signal delay 3 ms; off-state current 1 mA max; 6.65 W power dissipation
- Connects via 1746-HT / 1746-HCA cables; single 1746 chassis slot
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Line | SLC 500 |
| Part Number / Catalog No. | 1746-IB32 |
| UPC | 662468092715 |
| Voltage Category | 24V DC |
| Module Type | Digital DC Input Module (sinking) |
| Number of Inputs | 32 Inputs |
| Input Voltage | 24V DC nominal |
| Operating Voltage Range | 15-30V DC at 50 C; 15-26.4V DC at 60 C |
| Backplane Current Draw | 103 mA at 5V DC / 0 mA at 24V DC |
| Signal Delay | 3 ms (off-to-on) |
| Off-State Current | 1 mA max |
| Power Dissipation | 6.65 W per module (0.20 W per channel) |
| I/O Connection | 1746-HT / 1746-HCA cables |
| Dimensions | 14 x 3.5 x 14.5 cm (5.5 x 1.4 x 5.7 in) |
| Weight | 0.63 lbs (0.28 kg) |
Applications
The 1746-IB32 doubles point density with 32 sinking DC inputs in one slot – the economical choice for large SLC 500 machines wired with 24V DC sensors, halving chassis slot usage versus 16-point modules.
Why Buy from Us

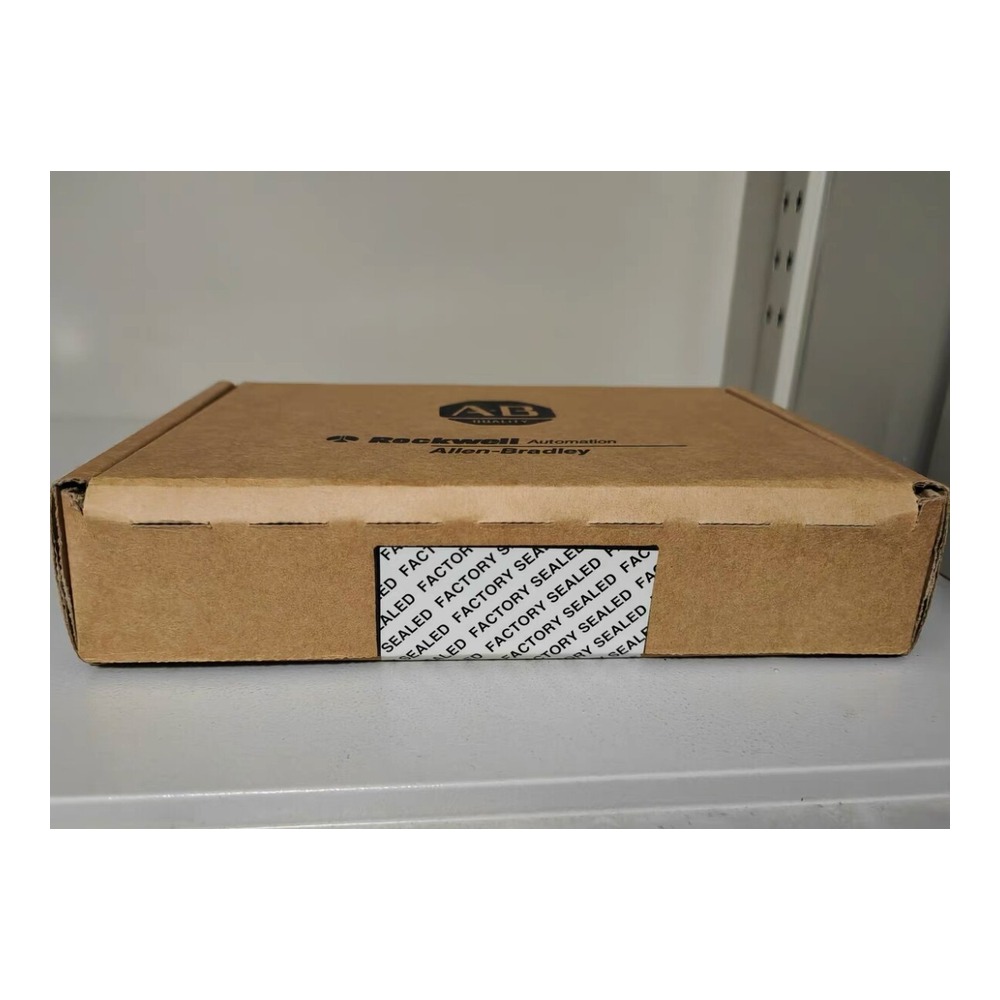

This product is available new in original factory packaging, fully tested and backed by a standard warranty of 1 year. We ship worldwide with careful anti-static packaging and fast dispatch. Quantity discounts and repair/exchange options are available on request.
Documents
| Resource | Title | Link |
|---|---|---|
| Publication | 1747-IN009 — SLC 500 Modular Hardware Style Installation Instructions | 1747-in009_-en-p.pdf |
| Publication | 1747-UM013 — SLC 500 Modular Hardware Style User Manual | 1747-um013_-en-p.pdf |
Certifications
| Certification | Download |
|---|---|
| MOROCCO DOC | slc500-ct008_-fr-e.pdf |
Per the Rockwell Automation product certification listing as of 2026-09-24. Please review the product label to confirm the certifications your specific unit carries.
