Description

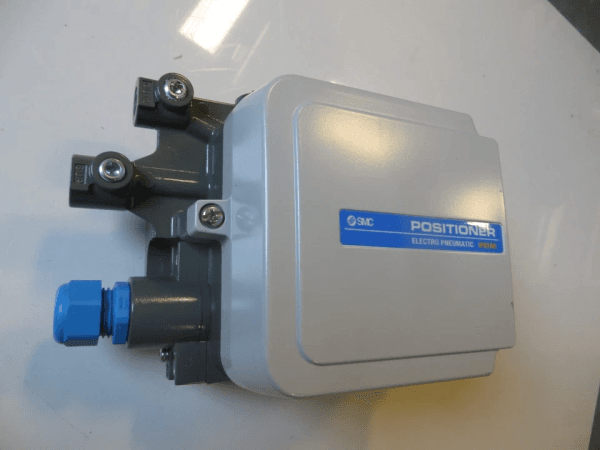

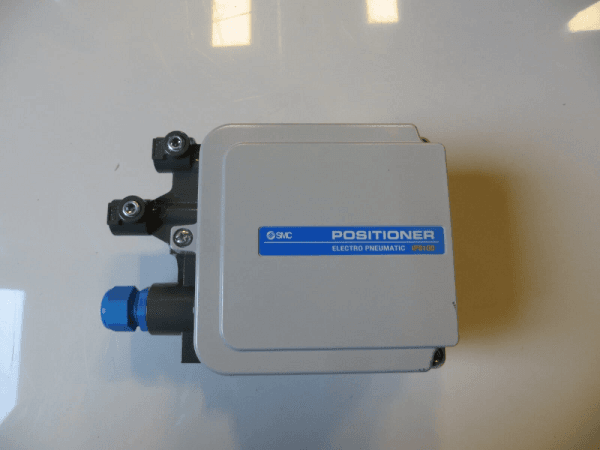

Discover the high-performance SMC IP8100-000 Electro-Pneumatic Positioner, a rotary-type control component designed for precise valve positioning in industrial automation systems. As a trusted solution from SMC, a global leader in pneumatic technology, this positioner integrates advanced features to ensure reliable operation in harsh industrial environments, making it ideal for chemical, power, oil & gas, and water treatment applications.
Core Features & Technical Advantages
• Precise Position Control & Remote Detection:
Accepts 4-20mA DC input signal and realizes accurate remote position detection, with repeatability within ±0.5% F.S. and linearity within ±2% F.S., ensuring stable valve adjustment performance .
• Superior Environmental Adaptability: Boasts IP65 protection rating (compliant with IEC Pub.529) thanks to improved check valve design, effectively resisting dust and water ingress. It features vibration resistance with no resonance between 5-200Hz, adapting to complex on-site working conditions .
• User-Friendly Design: Equipped with an external scale plate for easy valve position reading and a large-diameter pressure gauge for clear pressure monitoring. The compact structure is more space-saving compared to the previous IP6#00 series .
• Explosion-Proof Safety: Adopts intrinsic safety explosion-proof structure (CE0344 Ⅱ2G ExiBⅡCT5/6), meeting ATEX/IECEx standards, suitable for hazardous areas in petrochemical and other industries .
• Wide Compatibility: Directly interchangeable with SMC IP6#00 series positioners, supporting stroke adjustment of 0°~60° and 0°~100°, easily matching different rotary pneumatic actuators .
Technical Specifications
– Supply Air Pressure: 0.14~0.7MPa – Output Flow: ≥80ℓ/min (ANR) at 0.14MPa supply pressure; ≥200ℓ/min (ANR) at 0.4MPa – Ambient Temperature: -20~80°C (T5), -20~60°C (T6) (no freezing) – Body Material: Aluminum alloy with epoxy modified resin coating – Connection: Air port 1/4NPT, Electrical connection M20×1.5 – Weight: Approximately 2.4kg
Why Choose SMC IP8100-000?
• Trusted SMC Quality: Ensures long-term stable operation with strict quality control and reliable after-sales support.
• Energy-Efficient Operation: Low air consumption (≤5ℓ/min ANR at 0.14MPa), reducing operational costs .
• Easy Installation & Maintenance: Compatible with existing IP6#00 series installations, no need to modify pipelines, simplifying replacement and maintenance processes.
• Predictive Maintenance Support: Real-time transmission of valve status data, helping to detect potential issues in advance and minimize downtime.
Application Scenarios
Perfect for controlling valves in industrial processes such as reactor feed flow regulation, steam turbine bypass valve adjustment, oil and gas pipeline pressure management, and water treatment system control. Suitable for both new projects and old system upgrades.
Order your SMC IP8100-000 Electro-Pneumatic Positioner today for reliable, precise, and safe valve control in your industrial automation system. Contact us for bulk pricing, technical support, and delivery information!
