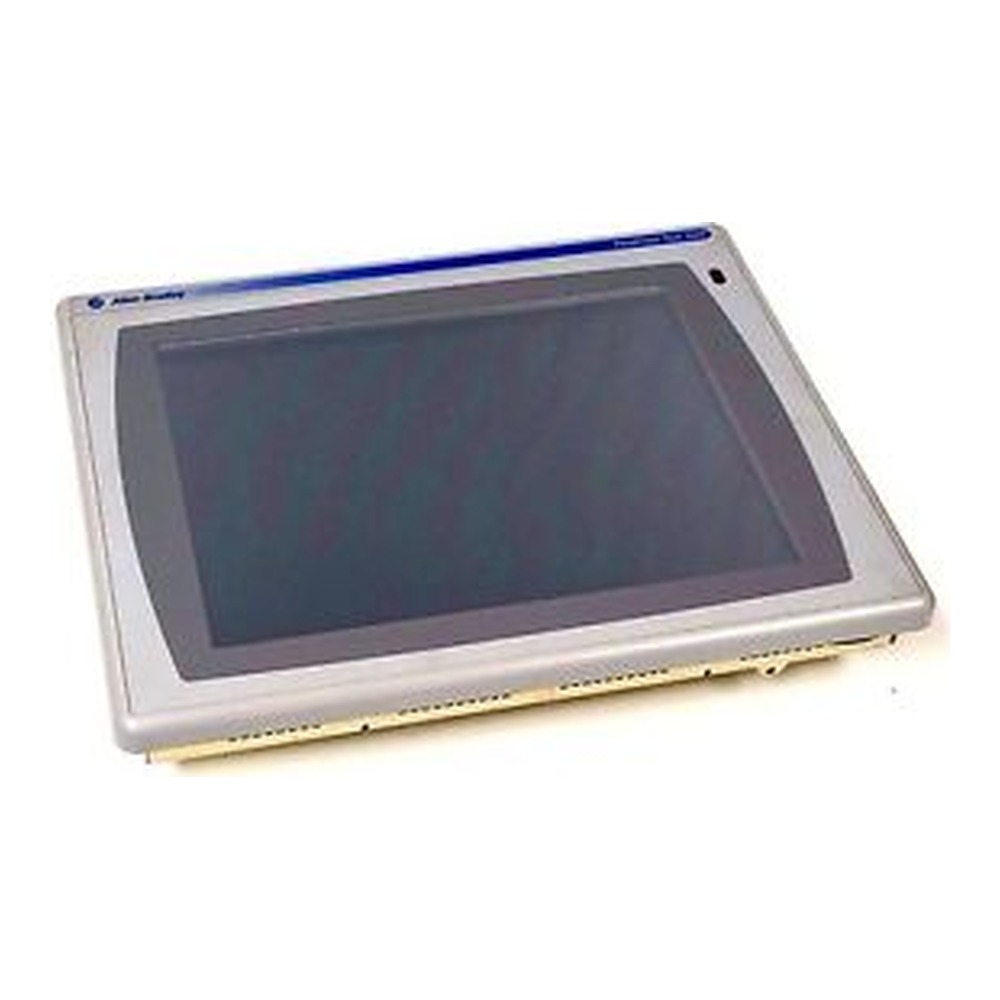

Allen-Bradley 2711P-T15C4D2 PanelView Plus 1500 HMI Module, 15 in Display, Color, 1024 × 768 pixels, 18-bit color graphics
Allen-Bradley 2711P-T15C4D2 is an industrial operator interface terminal from the PanelView Plus 1500 product line. The terminal features a 15 in color display with 1024 × 768 pixels, 18-bit color graphics resolution. The unit is powered from 18 to 32 V DC (24 V DC nominal).
Overview

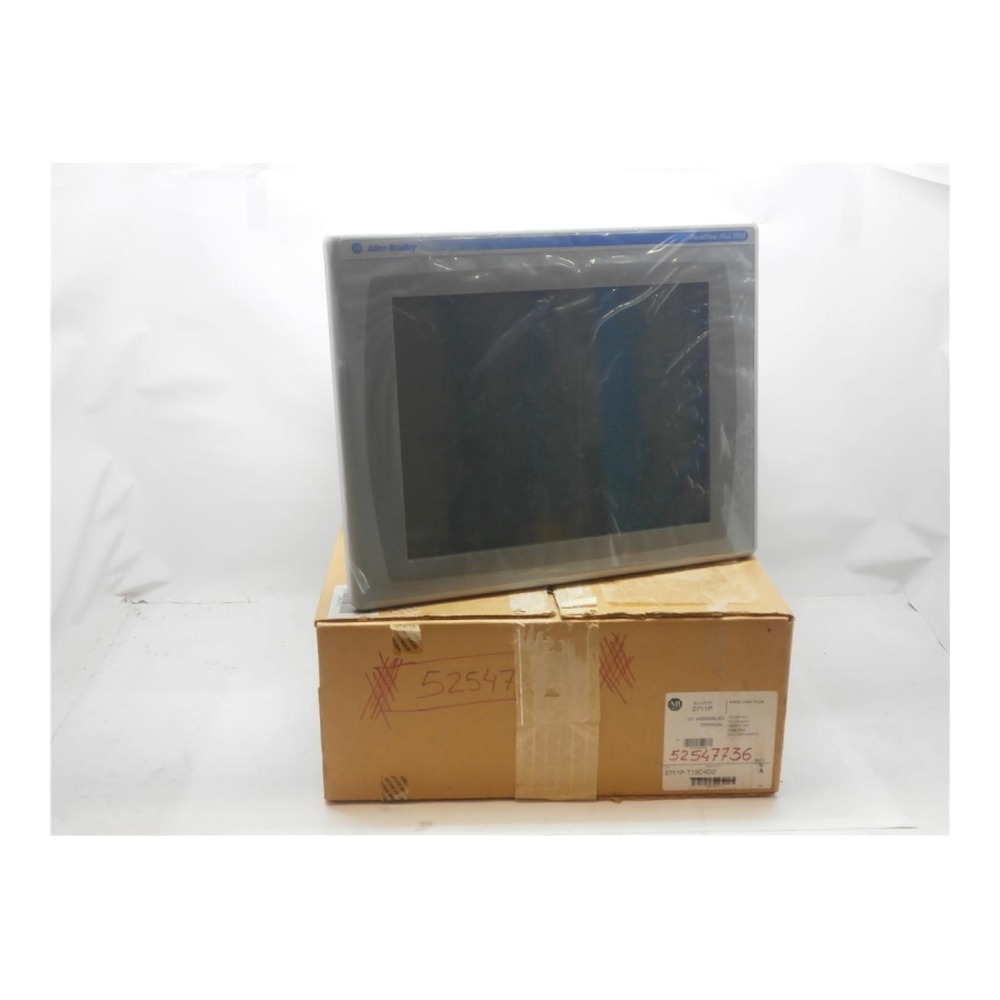

The Allen-Bradley 2711P-T15C4D2 is an industrial operator interface terminal from the PanelView Plus 1500 product line. The terminal features a 15 in color display with 1024 × 768 pixels, 18-bit color graphics resolution. The unit is powered from 18 to 32 V DC (24 V DC nominal). This part has been discontinued by the manufacturer and is offered subject to stock availability. Units are supplied new in original factory packaging.
Key Features
- 15 in display size
- Color display
- Resolution 1024 × 768 pixels, 18-bit color graphics
- Power supply 18 to 32 V DC (24 V DC nominal)
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / Catalog No. | 2711P-T15C4D2 |
| Manufacturer | Allen Bradley |
| Product Line | PanelView Plus 1500 |
| Product Type | HMI Module |
| UPC | 662073072713 |
| Weight | 10.88 lbs (4.93 kg) |
| Display Size | 15 in |
| Display Type | Color active-matrix TFT |
| Resolution | 1024 × 768 pixels, 18-bit color graphics |
| Input Power | 18 to 32 V DC (24 V DC nominal) |
| Display Brightness | 300 cd/m² |
| Touchscreen Type | Analog resistive |
| Power Consumption | 39 W @ 1.6 A (typical) / 70 W @ 2.9 A (peak) |
| Max. CompactFlash Capacity | 512 MB |
| Communication Ports | Ethernet 10/100Base-T, RS-232 serial, USB (host/device) |
| Standard Warranty | 1 year |
| Condition Options | New (Original Packaging) |
